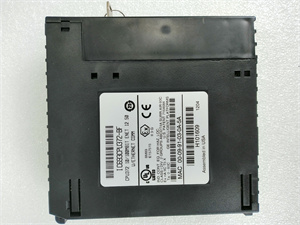

IC693CPU372

Description

Description:

The IC693CPU372 is a single-slot modular CPU module developed by GE Fanuc (now part of Emerson) as the core control component of the Series 90-30 programmable logic controller (PLC) system. Engineered for 中小型 industrial automation applications, it integrates high-speed processing capabilities with flexible communication functions, serving as the “brain” that executes user programs, processes I/O signals, and enables seamless data exchange across automation systems. Its compact design and robust compatibility make it a reliable choice for optimizing control efficiency in diverse industrial environments.

Application Scenarios:

A mid-sized chemical processing plant in Pennsylvania faced persistent challenges with its aging PLC system: slow program execution led to delayed valve actuation during batch mixing, while limited communication ports made remote monitoring of 12 reactor units impossible. Technicians were forced to make on-site adjustments, increasing safety risks and unplanned downtime by 18% annually. After upgrading to the IC693CPU372, the plant experienced a transformative shift: the module’s 133MHz processor reduced boolean instruction execution time to 0.15ms, eliminating valve response delays and improving mixing precision by 12%. Its dual auto-sensing Ethernet ports enabled integration with the plant’s SCADA system, allowing remote monitoring of all reactors and cutting on-site visits by 70%. This scenario underscores how the IC693CPU372 directly addresses critical pain points like processing latency, poor connectivity, and operational inefficiency—turning outdated control systems into agile, data-driven operations.

Parameter:

IC693CPU372

Technical Principles and Innovative Values:

Innovation Point 1: Dual Ethernet Ports with Built-in Switch Functionality – Unlike conventional CPU modules with single Ethernet ports, the IC693CPU372 features two auto-sensing 10/100Mbps ports that share an IP address and act as an internal switch . This enables daisy-chain connectivity and Device Level Ring (DLR) topology, eliminating single points of failure in the network. For example, in a packaging line with 8 connected sensors, a cable fault would only affect one device instead of the entire system—reducing unplanned downtime by up to 40% compared to single-port competitors.

Innovation Point 2: Web-Based Remote Management – The IC693CPU372 incorporates a built-in web server that allows technicians to configure parameters, monitor status, and troubleshoot issues remotely via a browser . This eliminates the need for on-site access to control cabinets, cutting maintenance response time from hours to minutes. In contrast, many entry-level CPU modules require direct connection to a programming device for even basic adjustments.

Innovation Point 3: High I/O Scalability with Minimal Footprint – As a single-slot module, the IC693CPU372 supports up to 2048 discrete I/O points and 32,640 analog I/O words —equivalent to the capacity of two or three slots in competing systems. This compact scalability is ideal for space-constrained control cabinets, such as those in mobile industrial units or retrofitted production lines, where every inch of space matters.

Application Cases and Industry Value:

Food & Beverage Packaging Plant (Ohio) – A snack food manufacturer integrated the IC693CPU372 into its 4 packaging lines to control conveyor speeds, sealing temperatures, and label applicators. Prior to installation, the plant used separate controllers for each line, leading to inconsistent packaging quality and difficulty coordinating production schedules. The IC693CPU372’s multi-protocol support (Modbus TCP/EGD) enabled centralized control of all lines, reducing packaging defects by 22% (from 1.8% to 1.4%). The module’s built-in web server also allowed engineers to adjust sealing temperatures remotely during night shifts, eliminating the need for on-site staff and cutting labor costs by $15,000 annually. User feedback praised its “seamless integration” and “reliable performance even during peak production.”

Municipal Water Treatment Facility (Georgia) – The facility deployed the IC693CPU372 to manage chemical dosing pumps, filtration systems, and flow meters across 3 treatment stages. The key requirement was a controller that could withstand high humidity (70–85%) and support real-time data sharing with the city’s SCADA system. The IC693CPU372’s rugged design (0–60°C operating range) and dual Ethernet ports met these needs: it maintained consistent performance for 24 months without failures, compared to the previous controller’s 10-month lifespan. The module’s DLR topology also ensured uninterrupted communication during a network cable replacement, preventing treatment process disruptions and ensuring compliance with EPA water quality standards.

Related Product Combination Solutions:

Maximize the capabilities of the IC693CPU372 with these compatible GE Fanuc Series 90-30 components for a complete, integrated automation system:

IC693PWR330: 120/240V AC to 5V DC power supply – Delivers stable power to the IC693CPU372 and other modules, preventing voltage fluctuations that cause program errors.

IC693MDL240: 32-channel digital input module – Captures signals from limit switches and sensors, feeding critical data to the IC693CPU372 for real-time decision-making.

IC693MDL250: 32-channel digital output module – Executes control commands from the IC693CPU372, such as activating pumps or alarms, to automate physical processes.

IC693CMM311: RS-485 communication module – Extends the IC693CPU372’s connectivity to legacy devices (e.g., older flow meters) that use serial protocols.

IC693MEM320: 32MB memory module – Expands the IC693CPU372’s storage for complex programs or historical data logging (e.g., chemical dosing records).

IC693CHS391: 9-slot backplane – Provides the physical and electrical backbone for the IC693CPU372 and supporting modules, enabling high-speed data transfer via the backplane bus.

IC693ALG220: 4-channel analog output module – Complements the IC693CPU372 by controlling variable-speed devices (e.g., variable frequency drives for pumps) alongside discrete outputs.

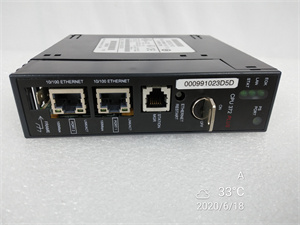

IC693CPU372

Installation, Maintenance, and Full-Cycle Support:

Installing the IC693CPU372 is designed for efficiency, even in time-sensitive retrofits. The module slides into any available slot in a Series 90-30 backplane (e.g., IC693CHS391) and locks securely with a spring-loaded latch—no tools required. Before power-up, simply verify the backplane is powered by a compatible supply (e.g., IC693PWR330) and that the environment meets the module’s temperature (0–60°C) and humidity (5–95% non-condensing) requirements. Configuration is streamlined via Proficy Machine Edition software, which auto-detects the IC693CPU372 and provides pre-built templates for common protocols like Modbus TCP.

Routine maintenance for the IC693CPU372 is minimal, thanks to its built-in diagnostics and rugged design. Monthly checks only require verifying Ethernet link lights and reviewing web-based status reports for fault alerts. If a communication issue arises, the dual Ethernet ports allow quick failover to the backup link, while the module’s self-test function isolates hardware vs. software problems in minutes. Emerson backs the IC693CPU372 with a 2-year warranty and offers 24/7 technical support via phone and email. For critical applications, same-day shipping of spare modules ensures downtime is limited to hours, not days. Additionally, Emerson provides on-site training to help teams master programming and troubleshooting, maximizing the module’s long-term value.

Call to Action:

Whether you’re retrofitting an aging Series 90-30 system, building a new 中小型 automation setup, or need a reliable CPU for process control, the IC693CPU372 delivers the processing power, connectivity, and scalability your operations demand. Contact us today to discuss your specific application—our team will design a customized solution that pairs the IC693CPU372 with compatible modules to optimize efficiency, reduce downtime, and future-proof your automation infrastructure.
