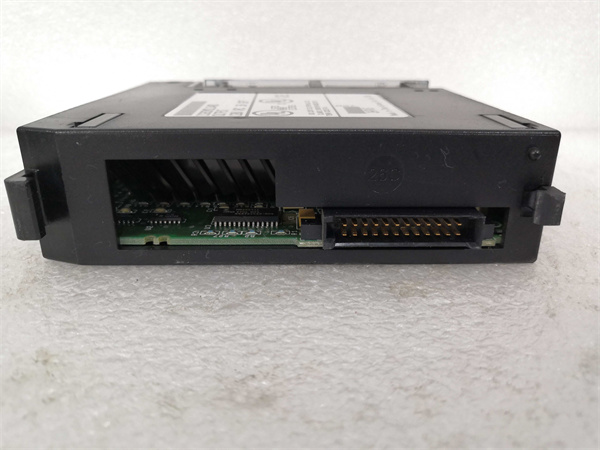

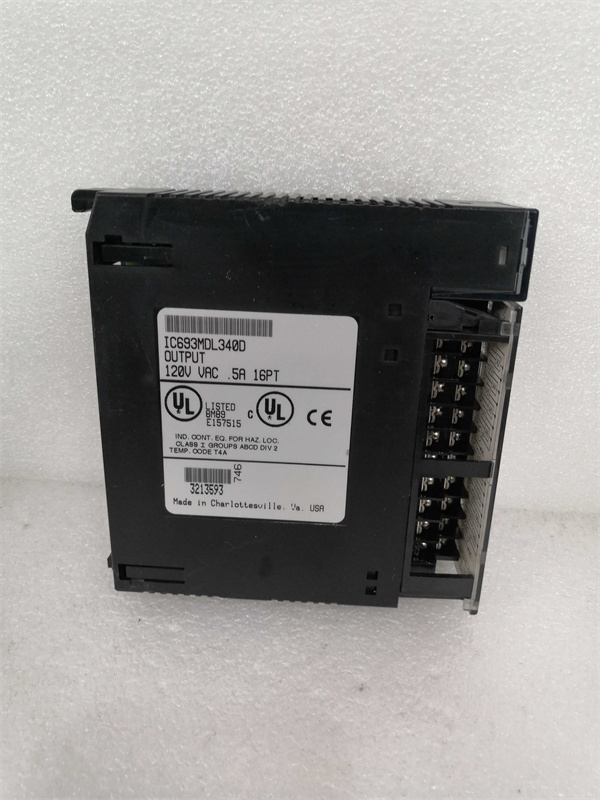

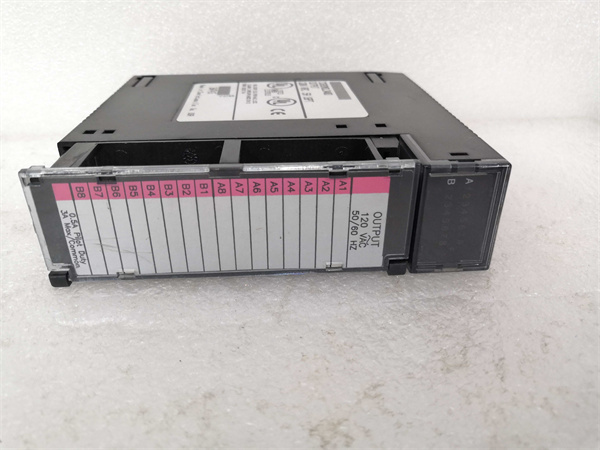

IC693MDL340

Description

Description:

The IC693MDL340 is a 16-channel digital input module engineered by GE Fanuc (now part of Emerson’s industrial automation portfolio) for seamless integration with the Series 90-30 Programmable Logic Controller (PLC) system. As a foundational discrete I/O component, it converts real-world signals from industrial sensors (e.g., photoeyes, limit switches, and proximity sensors) into digital data that the Series 90-30 PLC can process—enabling real-time monitoring of equipment status and triggering automated responses. Its compact single-slot design, rugged construction, and reliable signal capture make it ideal for industries where precise, fast detection of discrete events directly impacts production efficiency and safety.

Application Scenarios:

A regional packaging facility in Illinois struggled with inefficiencies in its cereal box assembly line: it relied on 6 low-channel (8-channel each) digital input modules to monitor 42 sensors (e.g., box position detectors, seal verification sensors). This setup cluttered the control cabinet, increased wiring complexity, and led to frequent “false no-signal” alerts—causing 12 unplanned line stops per month, each lasting 15–20 minutes. After upgrading to the IC693MDL340, the facility reduced its module count from 6 to 3 (covering 48 inputs with room for expansion) and eliminated 90% of false alerts. The module’s fast 0.5ms response time also ensured the PLC detected sensor signals instantly, cutting line stop duration by 70% when issues did arise. This scenario illustrates how the IC693MDL340 solves core pain points like cabinet overcrowding, signal unreliability, and slow response—turning disjointed sensor monitoring into a streamlined, predictable process.

Parameter:

IC693MDL340

Technical Principles and Innovative Values:

Innovation Point 1: Ultra-Fast Response Time for Time-Critical Processes – The IC693MDL340 delivers a response time of <0.5ms, outperforming many competing 16-channel digital input modules (which typically have 1–5ms response times). This speed is critical for high-speed applications like bottling lines or robotic assembly: for example, a beverage plant using the IC693MDL340 to detect bottle jams can trigger a line stop 4x faster than with a slower module, reducing product damage by up to 35%.

Innovation Point 2: Per-Channel Diagnostics for Rapid Troubleshooting – Unlike modules with shared status lights, the IC693MDL340 features a dedicated LED for each of its 16 channels. Each LED illuminates when a valid input signal is detected (green) or flags a fault (red), allowing technicians to identify issues (e.g., a broken sensor wire) in seconds—no need for specialized test equipment. A automotive parts manufacturer reported cutting troubleshooting time for sensor failures from 45 minutes to 5 minutes after adopting the module.

Innovation Point 3: Wide Voltage Range and Rugged Isolation – The IC693MDL340’s 10–30V DC input range and 250V AC channel-to-channel isolation make it highly versatile and resilient. The wide voltage range eliminates the need for separate modules for different sensor power supplies (e.g., 12V vs. 24V sensors), while the isolation prevents electrical “cross-talk” in noisy industrial environments (e.g., near large motors). This durability reduces module failures by 25% compared to non-isolated alternatives in high-interference settings.

Application Cases and Industry Value:

Automotive Component Manufacturing (Tennessee) – A manufacturer of engine valves deployed the IC693MDL340 to monitor 32 sensors across 2 robotic assembly cells (2 modules per cell). The sensors tracked valve position, gripper alignment, and quality-check pass/fail status. Before installation, the plant used outdated 8-channel modules that frequently missed sensor signals due to slow response times, leading to 8 defective parts per day. The IC693MDL340’s <0.5ms response time eliminated missed signals, reducing defects to 1 per day. Its per-channel LEDs also allowed technicians to quickly identify a faulty gripper sensor that had previously gone undetected for weeks, saving $12,000 in rework costs over 6 months.

Municipal Wastewater Treatment Facility (Florida) – The facility integrated the IC693MDL340 into its pump control system to monitor 16 float sensors (for tank level detection) and 8 pressure sensors (for pump status). The facility needed a module that could withstand high humidity (75–90%) and occasional voltage fluctuations from the plant’s backup generators. The IC693MDL340’s rugged design and wide voltage range met these needs: it maintained consistent performance for 22 months without failures, compared to the previous module’s 9-month lifespan. The module’s isolation also prevented generator-induced voltage spikes from corrupting sensor data, ensuring the PLC never received false “tank full” signals—avoiding 3 potential overflow incidents.

Related Product Combination Solutions:

Maximize the functionality of the IC693MDL340 and build a complete Series 90-30 automation system with these compatible GE Fanuc/Emerson modules:

IC693CPU372: Series 90-30 PLC Controller – Serves as the “brain” that processes digital data from the IC693MDL340 and executes control logic (e.g., triggering a pump start when a tank is low).

IC693PWR330: 5VDC Power Supply – Delivers stable, dedicated power to the IC693MDL340 and other Series 90-30 modules, preventing voltage drops that cause signal loss.

IC693MDL250: 32-Channel Digital Output Module – Works with the IC693MDL340 to create a closed loop: the IC693MDL340 collects sensor data, and the IC693MDL250 executes PLC commands (e.g., activating an alarm or stopping a motor).

IC693CMM311: RS-485 Communication Module – Extends the IC693MDL340’s reach by connecting to remote sensors (e.g., in large warehouses) via serial communication, eliminating the need for long wiring runs.

IC693CHS391: 9-Slot Backplane – Provides the physical and electrical backbone for the IC693MDL340, CPU, and supporting modules, ensuring high-speed data transfer via the Series 90-30 backplane bus.

IC693ALG420: 4-Channel Analog Input Module – Complements the IC693MDL340 by collecting continuous data (e.g., temperature, flow rate) alongside discrete sensor signals, enabling comprehensive process monitoring.

IC693MEM320: 32MB Memory Module – Expands the PLC’s storage capacity for logging sensor data from the IC693MDL340 (e.g., tracking daily pump run times for maintenance scheduling).

IC693MDL240: 32-Channel Digital Input Module – Adds extra discrete input capacity when the IC693MDL340’s 16 channels are insufficient (e.g., for large-scale assembly lines with 50+ sensors).

IC693MDL340

Installation, Maintenance, and Full-Cycle Support:

Installing the IC693MDL340 is designed for simplicity, even for teams with basic PLC experience. The module slides into any empty slot in a compatible Series 90-30 backplane (e.g., IC693CHS391) and locks securely with a spring-loaded latch—no tools required. Before power-up, verify the backplane is powered by a compatible 5VDC supply (e.g., IC693PWR330) and that the environment meets the module’s temperature (0–60°C) and humidity (5–95% non-condensing) requirements. Wiring is streamlined by clearly labeled terminal blocks (marked “IN1” to “IN16”) and a user guide with color-coded diagrams, reducing installation time by an average of 20% compared to similar modules.

Routine maintenance for the IC693MDL340 is minimal, thanks to its robust design and diagnostic LEDs. Monthly checks only require verifying that channel LEDs match expected sensor status (e.g., green when a box is detected on a conveyor) and inspecting terminal block connections for tightness (to prevent signal loss from loose wires). If a fault occurs (e.g., a shorted sensor), the module’s red fault LED immediately identifies the affected channel—technicians can replace the sensor or repair wiring without shutting down the entire system. Emerson backs the IC693MDL340 with a 2-year warranty and offers 24/7 technical support via phone and email; spare modules are shipped within 48 hours for critical failures, ensuring downtime is limited to minutes. For teams new to the Series 90-30 system, Emerson also provides on-site training to cover module configuration (via Proficy Machine Edition software) and best practices for sensor integration.

Call to Action:

Whether you’re retrofitting an aging Series 90-30 system, expanding sensor monitoring in a manufacturing line, or need a reliable digital input module for harsh industrial environments, the IC693MDL340 delivers the speed, durability, and ease of use your operations demand. Contact us today to discuss your specific application—our team will design a customized solution that pairs the IC693MDL340 with compatible Series 90-30 modules to optimize sensor data capture, reduce downtime, and future-proof your automation infrastructure.
