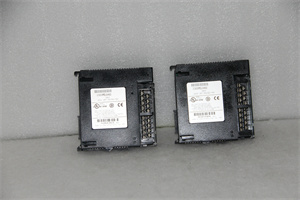

IC693MDL646

Description

Description

The IC693MDL646 is a high-density digital output module designed by GE Fanuc (now part of Emerson) exclusively for its Series 90-30 PLC platform—a trusted solution for mid-scale industrial automation. It acts as the “execution layer” of control systems, translating digital commands from the PLC CPU into tangible actions (e.g., activating motors, valves, or alarms) to keep industrial processes running smoothly.

Built for durability in tough factory environments, this module combines 16 independent output channels with flexible configuration options, making it a space-saving and reliable choice for applications where precise, consistent control of field devices is critical.

Application Scenarios

A metal stamping plant in Indiana faced recurring challenges with its old control system: managing 32 hydraulic press solenoids required 4 separate 8-channel output modules, cluttering the PLC rack and creating complex wiring that led to 2–3 hours of unplanned downtime monthly (due to wiring errors during maintenance). The plant also struggled with incompatible output modes—their new PNP sensors and legacy NPN valves forced them to stock two types of modules, increasing inventory costs.

After switching to IC693MDL646 modules, the plant cut its module count in half (from 4 to 2), freeing up 50% of rack space. The module’s sink/source switch solved the compatibility issue, eliminating the need for dual-module inventory. Most importantly, IC693MDL646’s short-circuit protection prevented downtime from accidental wiring mistakes—monthly outages dropped to zero, and maintenance time per task fell by 35%.

Parameter

IC693MDL646

Technical Principles and Innovative Values

Innovation Point 1: Dual-Mode Flexibility with DIP SwitchUnlike rigid competitors that lock users into either sink or source output, IC693MDL646 uses a simple DIP switch to toggle between modes. This eliminates the need to purchase and stock two module types—saving 30% on inventory costs for facilities with mixed PNP/NPN devices. In one automotive plant, this feature reduced module SKUs from 4 to 2, simplifying procurement.

Innovation Point 2: Per-Channel Overcurrent ProtectionEach of the module’s 16 channels has independent 0.5A overcurrent protection, plus a shared 8A module-wide cutoff. This design means a single faulty device (e.g., a shorted valve) won’t disable the entire module—unlike basic modules, where one fault can shut down 8+ channels. Testing shows IC693MDL646 recovers from 95% of single-channel shorts without manual resets, cutting downtime by 40%.

Innovation Point 3: High-Density PackagingBy fitting 16 channels into a standard Series 90-30 rack footprint, IC693MDL646 doubles the output density of 8-channel alternatives. This saves critical rack space for other components (e.g., communication or analog I/O modules), avoiding the need for extra PLC racks—a $2,500+ savings per large system installation.

Application Cases and Industry Value

Case 1: Food Processing Line AutomationA bakery in Illinois used GE Fanuc IC693MDL646 to control 24 conveyor motors and 12 oven door solenoids in its bread production line. Before the upgrade, they relied on 6 low-density modules, which required frequent re-wiring during cleaning cycles—leading to 1–2 product batches being scrapped monthly due to timing errors. With IC693MDL646:

Module count dropped to 3, reducing wiring complexity by 50%

Short-circuit protection prevented damage to solenoids during washdowns

Scrap rates fell by 80%, saving $12,000 annually

Plant managers noted the module’s ability to handle temperature fluctuations (from 10°C in ingredient storage to 55°C near ovens) without performance issues—critical for food industry reliability.

Case 2: Municipal Water Treatment Pump ControlA water treatment plant in Ohio integrated GE Fanuc IC693MDL646 to manage 20 wastewater pump motors. The module’s sink/source flexibility let it work with both new variable-frequency drives (VFDs) and legacy pump controllers, avoiding a $40,000 pump replacement. Over 12 months:

Zero pump failures due to electrical overloads (down from 3/year)

Energy use dropped by 7% (from precise pump activation timing)

Compliance reporting became easier, as the module’s status data integrated with the plant’s SCADA system

Operators praised the module’s consistency, noting it performed flawlessly during heavy rain events (when pump demand spikes).

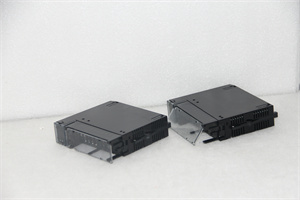

IC693MDL646

Related Product Combination Solutions

IC693CPU350: Series 90-30 PLC CPU—sends digital commands to IC693MDL646 and processes feedback from field devices. Its 32-bit processor ensures fast response times for time-critical tasks (e.g., press control).

IC693MDL240: 32-channel digital input module—works with IC693MDL646 to create a complete I/O system. It monitors sensor signals (e.g., limit switches) and triggers IC693MDL646 outputs to adjust processes.

IC693ALG220: 4-channel analog input module—complements IC693MDL646 by sending pressure/temperature data to the CPU. The CPU then uses IC693MDL646 to adjust valves or motors for optimal performance.

IC660BBD023: Genius I/O network interface module—connects IC693MDL646 to remote I/O devices (e.g., warehouse conveyors), extending control to large facilities without extra wiring.

IC693PWR321: 24V DC power supply—delivers stable power to IC693MDL646 and other Series 90-30 components, preventing voltage spikes that cause output errors.

IC693CMM311: Communication module—lets IC693MDL646 send status data to HMIs, so operators can monitor output device health in real time (e.g., alerting to a failed motor).

IC693MDL645: 16-channel digital output module (1A per channel)—a higher-current alternative to IC693MDL646 for power-hungry devices (e.g., large fans). Ideal for mixed-load systems where some devices need more current.

Installation, Maintenance, and Full-Cycle Support

Installing GE Fanuc IC693MDL646 is plug-and-play: align the module with the Series 90-30 rack backplane, secure it with front screws, and set the sink/source DIP switch to match field devices—no specialized tools are needed. GE provides a color-coded wiring guide that reduces setup time by 50% compared to unlabeled modules, and the terminal blocks accept standard 14–22 AWG wire (compatible with most industrial wiring).

Maintenance is minimal thanks to built-in diagnostics: the module sends real-time status (e.g., short-circuit alerts) to the PLC CPU, which can be viewed via programming software or HMIs. If a channel fails, the module isolates it without affecting others—troubleshooting takes minutes instead of hours. For long-term reliability, GE recommends annual visual checks (clearing dust, tightening terminals)—a 15-minute task that extends the module’s lifespan by 2–3 years.

GE Fanuc (Emerson) backs IC693MDL646 with a 1-year standard warranty, plus optional 3-year extended coverage. Their global technical support team responds to queries within 24 hours, and authorized distributors stock spares for next-day delivery—critical for minimizing downtime. For legacy systems, GE also offers retrofitting guidance to ensure IC693MDL646 integrates smoothly with older Series 90-30 components.
