IC693PBM200

Description

Description

The IC693PBM200 is a high-performance PROFIBUS DP master module developed by GE (now integrated into Emerson’s industrial automation portfolio) exclusively for the Series 90-30 PLC system. It serves as the “network nerve center” connecting the PLC to distributed PROFIBUS DP slave devices, enabling seamless data exchange and centralized control of industrial equipment—from sensors and actuators to variable frequency drives (VFDs) and remote I/O stations.

Application Scenarios

A large steel rolling mill in Pennsylvania faced a critical connectivity challenge: its Series 90-30 PLC system could not communicate with 75 PROFIBUS DP-compatible devices (including temperature sensors, hydraulic valve banks, and conveyor VFDs) spread across a 1km production line. This forced operators to manually monitor and adjust equipment, leading to 20+ hours of monthly unplanned downtime and a 5% defect rate in rolled steel due to delayed parameter adjustments. After integrating the IC693PBM200, the mill’s PLC gained master control over all 75 slaves, with the module’s 12 Mbps data transfer rate ensuring real-time signal transmission. The IC693PBM200’s sync mode also synchronized 12 rolling mill motors to within 2ms of each other, eliminating mechanical misalignment. Within three months, unplanned downtime dropped to 2.5 hours monthly, and the defect rate fell to 0.8%. This scenario demonstrates how the IC693PBM200 solves multi-vendor device interoperability and real-time control pain points in large-scale industrial environments.

Parameter

IC693PBM200

Technical Principles and Innovative Values

Innovation Point 1: Massive Slave Capacity for Scalable Networks – Unlike entry-level PROFIBUS master modules limited to 64 slaves, the IC693PBM200 supports up to 125 DP slaves . This means a single module can manage an entire medium-sized production line, reducing the need for multiple master modules by 50%. A automotive parts plant reported cutting network infrastructure costs by $12,000 by replacing three 40-slave modules with one IC693PBM200.

Innovation Point 2: Sync/Freeze Modes for Precision Control – The module includes PROFIBUS DP Sync and Freeze modes , which synchronize data exchange across all slaves to within microseconds. In a battery manufacturing line, this feature ensured 20 filling valves activated simultaneously, reducing fill volume variation from ±2% to ±0.5%. This precision is unavailable in basic communication modules that process slave data sequentially.

Innovation Point 3: Safe Fault Handling with Clear Mode – Unique to the IC693PBM200 (vs. older GE models like HE693PBM101), the module enters “clear mode” when the PLC stops I/O scanning, zeroing output data to slaves . This prevents hazardous device behavior (e.g., a VFD continuing to run) during PLC downtime. A chemical plant credited this feature with avoiding a $50,000 equipment damage incident during a temporary CPU reset.

Application Cases and Industry Value

Automotive Body Assembly Plant (Michigan) – The plant’s welding line relied on 85 PROFIBUS-compatible robots, clamp actuators, and vision sensors from three vendors, which could not integrate with its Series 90-30 PLC. Weld timing mismatches caused 100+ defective car bodies monthly, and technicians spent 15 hours weekly troubleshooting communication gaps. After installing the IC693PBM200, the PLC centralized control of all 85 slaves, using the module’s 12 Mbps rate to transmit weld parameters in real time. The Sync mode synchronized 12 welding robots, cutting defects to 12 monthly. Technicians praised the “intuitive LED status indicators” that reduced troubleshooting time by 70%.

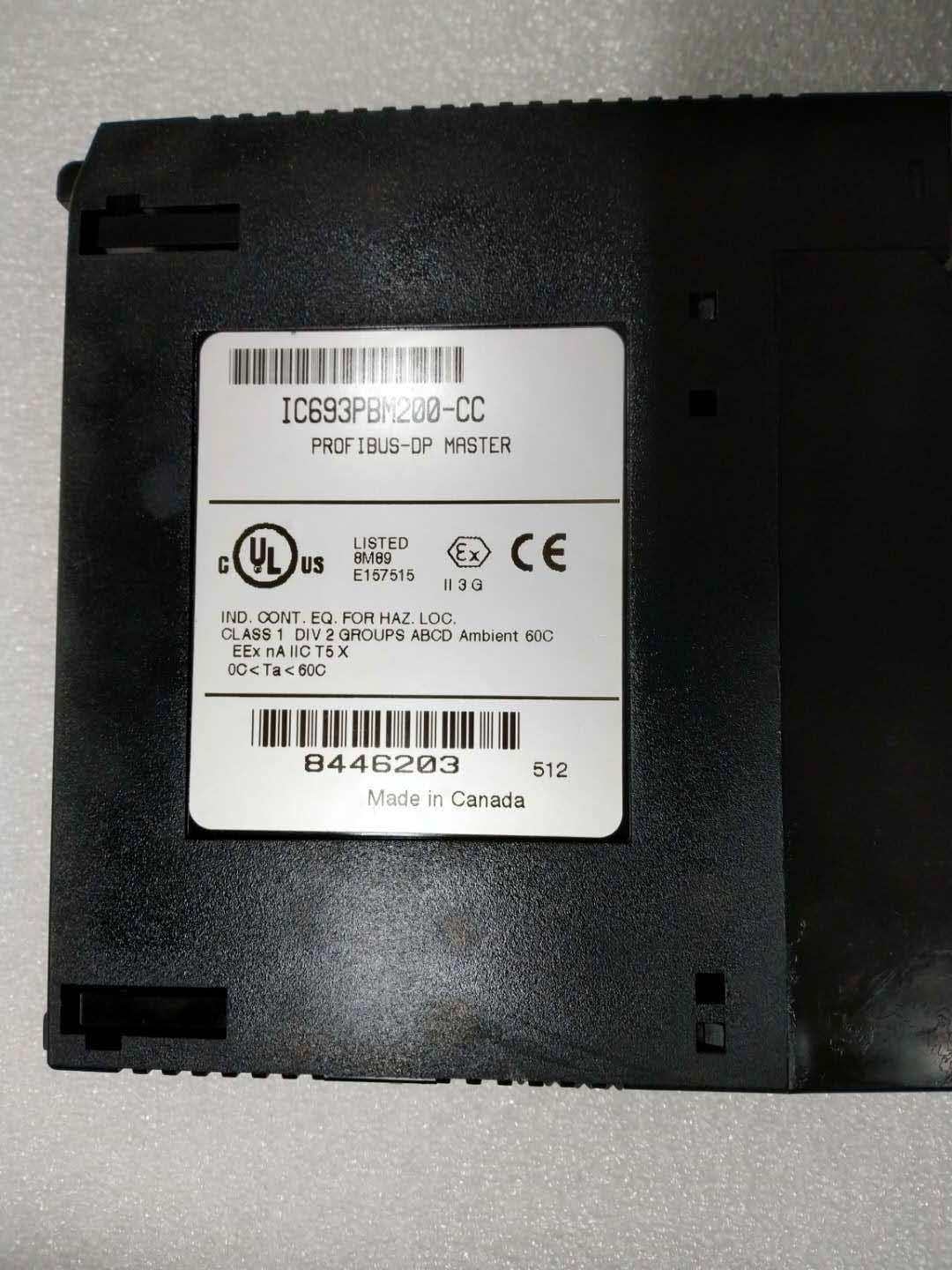

Offshore Oil Platform (Gulf of Mexico) – The platform needed to monitor 110 pressure/temperature sensors and control 40 valves across two remote wellheads, 800 meters from the main PLC. Previous attempts with basic modules failed due to signal loss and limited slave capacity. The IC693PBM200’s robust PROFIBUS driver maintained signal integrity over the distance, while its 125-slave capacity covered all devices with room for 15 future expansions. The module’s Class 1 Div 2 certification ensured safe operation in hazardous areas, and its total data exchange limit (3,972 bytes) enabled real-time transmission of critical safety data. The platform reduced unplanned shutdowns by 85% and achieved compliance with offshore safety regulations.

Related Product Combination Solutions

Maximize the IC693PBM200’s capabilities with these compatible GE Series 90-30 components:

IC693CPU352: High-performance PLC CPU – Acts as the system brain, processing data from the IC693PBM200 and issuing control commands (requires firmware v6.50+ for full functionality).

IC693PWR321A: 24V DC power supply – Delivers stable power to the Series 90-30 baseplate, ensuring the IC693PBM200’s 450 mA @ 5V DC draw is met without voltage drops.

IC693CHS398: 5-slot expansion baseplate – Provides additional slots for the IC693PBM200 when the main baseplate is full, supporting distributed network deployment.

IC693MDL930: 32-channel digital output module – Works with the IC693PBM200 to translate PLC logic into actuator control, ideal for non-PROFIBUS devices in mixed networks.

Siemens ET200S: PROFIBUS DP slave I/O station – Extends I/O capacity via the IC693PBM200, enabling control of remote sensors/actuators in large facilities.

IC693CMM321: Ethernet communication module – Complements the IC693PBM200 by connecting the PLC to SCADA systems, enabling remote monitoring of PROFIBUS network data.

Proficy Machine Edition v3.0+: Configuration software – Required to set up the IC693PBM200, including slave mapping, data rates, and Sync/Freeze modes.

IC693ALG221J: 4-channel analog output module – Pairs with the IC693PBM200 to control variable devices (e.g., VFDs) alongside discrete PROFIBUS slaves.

IC693PBM200

Installation, Maintenance, and Full-Cycle Support

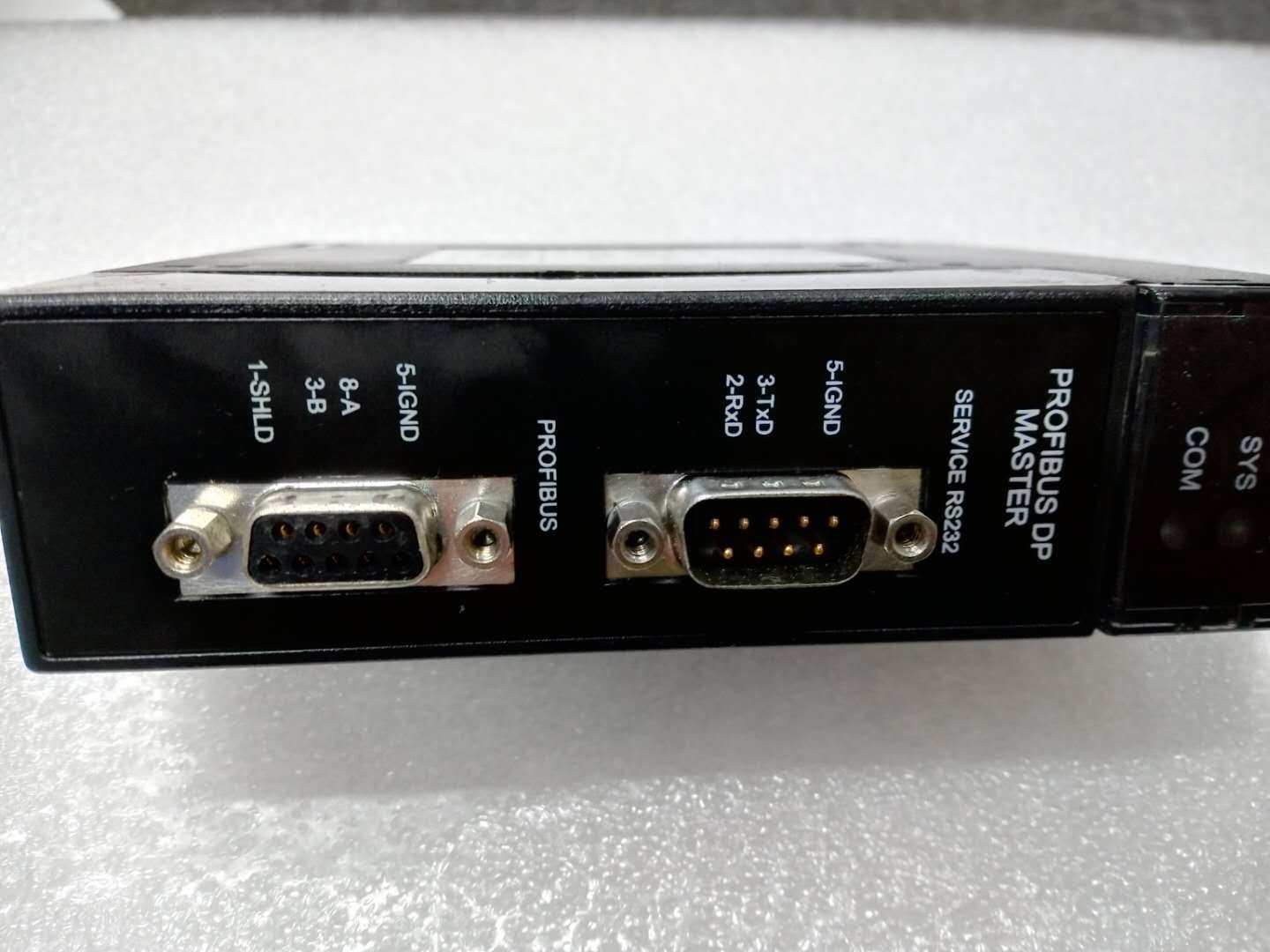

Installing the IC693PBM200 is streamlined for industrial environments. Slide the module into any slot (except slot 1 of modular CPU baseplates) of a Series 90-30 baseplate, secure it with the spring latch, and connect the PROFIBUS DP network via the terminal block (supports 2-wire/4-wire RS-485). Commissioning is done via Proficy Machine Edition v3.0+ software: map slave devices by bus address, set data rates (up to 12 Mbps), and enable Sync/Freeze modes if needed. The module’s built-in LEDs (COM for communication, SYS for system status) provide instant visual feedback during setup, reducing commissioning time by 40% vs. unmonitored modules.

Routine maintenance is minimal, thanks to the IC693PBM200’s diagnostic features. Weekly checks involve verifying the COM LED blinks (indicating active communication) and the SYS LED is solid green (normal operation). If a slave fails, the module flags it via status bits arranged by bus address , allowing technicians to isolate the issue without scanning the entire network. Firmware updates can be applied via the service port, ensuring compatibility with new slave devices. Emerson backs the module with a 2-year warranty and 24/7 technical support; critical spare parts ship within 48 hours to minimize downtime. On-site training is available to teach teams configuration best practices and troubleshooting for PROFIBUS networks.
