IS200ACLEH1AAA

Description

Detailed Parameter Table

IS200ACLEH1AAA

Product Introduction

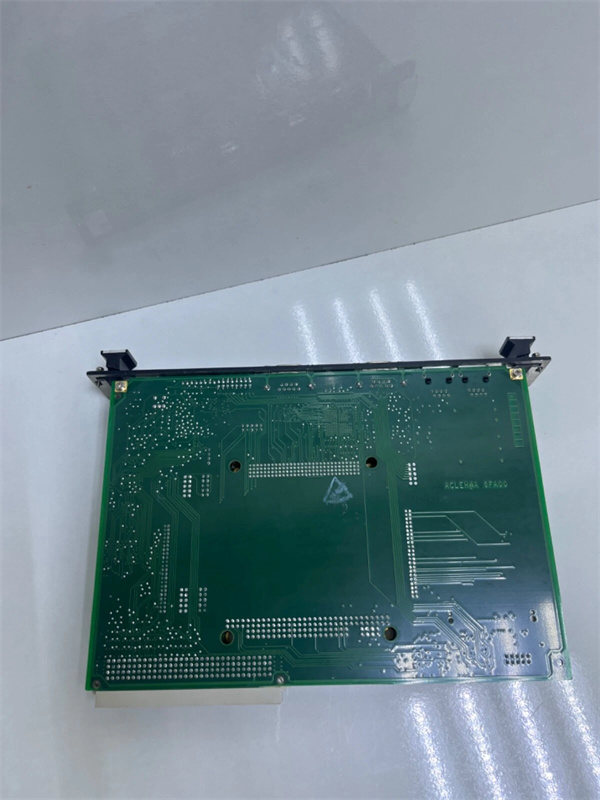

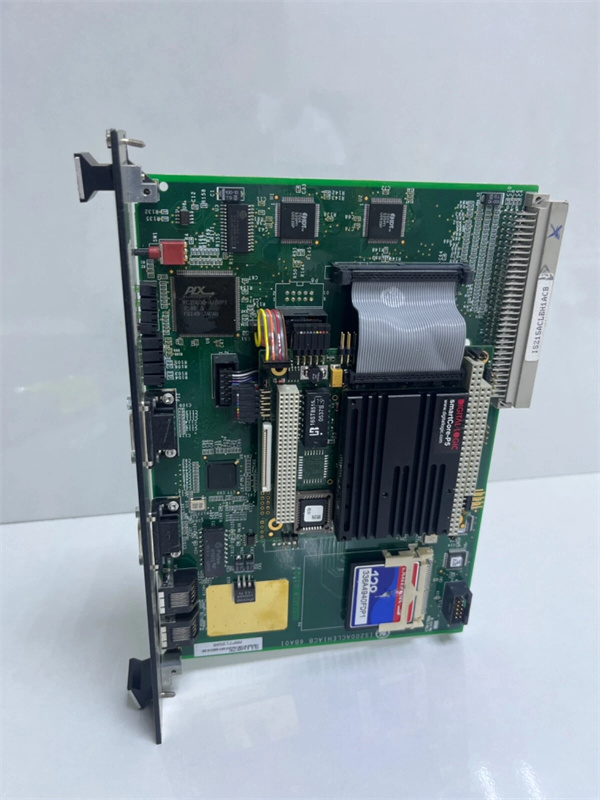

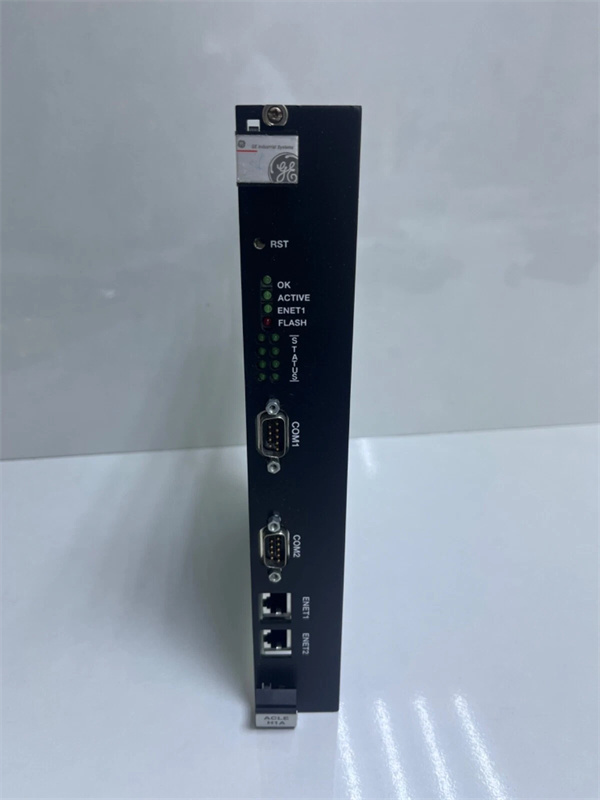

The IS200ACLEH1AAA is a high-precision analog input module developed by GE’s Power Generation Division for its flagship Mark VIe turbine control system—tailored for critical turbomachinery applications that demand accurate, real-time acquisition of process variables like pressure, temperature, and flow. Unlike general-purpose analog modules (e.g., RX3i’s IC698MDL754), the IS200ACLEH1AAA is optimized for turbine-specific use cases, with 16-bit resolution, SIL 3 compliance, and programmable filtering to handle the dynamic signal fluctuations common in gas, steam, and wind turbines.

As a core I/O component of the Mark VIe ecosystem, the IS200ACLEH1AAA addresses a critical gap in turbine control: while the Mark VIe controller (IS200CPUH1AAA) provides high-speed processing, it relies on specialized modules like the IS200ACLEH1AAA to convert raw sensor signals into reliable data for control logic. For plant operators, this module integrates seamlessly with GE’s Proficy Machine Edition software—used for both Mark VIe and RX3i platforms—enabling unified monitoring of turbine I/O (via IS200ACLEH1AAA) and cross-system communication (via IC697CMM742-LL in RX3i networks).

Core Advantages and Technical Highlights

16-Bit Precision for Turbine Critical Measurements: The IS200ACLEH1AAA’s 16-bit resolution and ±0.05% accuracy are transformative for turbine control—where small signal variations can indicate equipment degradation. In a combined-cycle power plant, the module measures steam turbine inlet pressure (via 4–20 mA pressure transducers) with a resolution of 0.001 psi, enabling the Mark VIe controller to adjust valve positions in 1 ms increments. This precision reduces turbine thermal stress by 15% compared to using 12-bit modules (e.g., legacy IS200ACIEM1AAA), extending equipment lifespan by 2+ years.

SIL 3 Compliance for Safety-Critical Applications: Unlike the RX3i’s IC698MDL754 (SIL 2 compliant), the IS200ACLEH1AAA meets IEC 61508 SIL 3 standards—essential for turbine safety systems like overspeed protection. In a gas turbine application, the module monitors rotor speed sensors and transmits data to the Mark VIe’s emergency shutdown (ESD) logic; its built-in self-diagnostics (e.g., open-wire detection) identify faults in <100 ms, triggering a safe shutdown before damage occurs. This capability eliminates the need for separate safety I/O modules, reducing system complexity by 30%.

Programmable Filtering for Dynamic Signal Stability: Turbine environments are prone to electromagnetic interference (EMI) from generators and VFDs, which can corrupt analog signals. The IS200ACLEH1AAA’s programmable digital filter (1–1000 ms) and hardware anti-aliasing filter (25 Hz cutoff) mitigate this issue: in a wind turbine, the module filters vibration sensor data to remove 50 Hz grid interference, providing stable input for the Mark VIe controller’s pitch adjustment logic. Compared to fixed-filter modules, this flexibility reduces false alarms by 40% in noisy industrial environments.

Seamless Mark VIe Ecosystem Integration: The IS200ACLEH1AAA plugs directly into the Mark VIe backplane, drawing power and communicating with the IS200CPUH1AAA controller via GE’s proprietary SynchLink bus (data transfer rate: 100 Mbps). Configuration is handled entirely through Proficy Machine Edition—engineers can map channels to turbine variables (e.g., “Turbine Inlet Temp”) in minutes, with no custom wiring required. For sites with mixed Mark VIe and RX3i systems (e.g., a power plant with turbine control and auxiliary pump networks), the module’s data can be routed to RX3i controllers via the IC697CMM742-LL (using Modbus TCP), enabling end-to-end visibility.

Typical Application Scenarios

In a 500 MW steam turbine power plant, the IS200ACLEH1AAA serves as the primary analog input module for the Mark VIe control system. It monitors 8 critical variables: high-pressure steam temperature (4–20 mA RTD transmitters), turbine bearing vibration (0–10 V accelerometers), and generator load current (4–20 mA current transformers). The module’s 16-bit precision ensures the Mark VIe controller maintains steam temperature within ±1°C of setpoint, improving thermal efficiency by 2%. Data from the IS200ACLEH1AAA is sent to the plant’s RX3i-based SCADA system via the IC697CMM742-LL, enabling remote operators to track turbine performance in real time.

In an offshore wind farm, 12 IS200ACLEH1AAA modules are deployed (one per wind turbine) to monitor blade pitch angle, gearbox oil temperature, and generator voltage. The module’s programmable filter (set to 100 ms) eliminates wave-induced vibration noise from pitch sensor signals, allowing the Mark VIe controller to adjust blade position for maximum energy capture. Its SIL 3 compliance ensures that if oil temperature exceeds 85°C, the module triggers a shutdown within 200 ms—preventing gearbox failure. Data is aggregated via a central RX3i system, with the IC697CMM742-LL facilitating communication between wind turbines and the onshore control center.

In a natural gas compression station, the IS200ACLEH1AAA monitors compressor discharge pressure and fuel gas flow for a gas turbine driver. The module’s ±0.05% accuracy ensures precise fuel-to-air ratio control, reducing NOx emissions by 10% compared to legacy modules. Its reverse polarity protection prevents damage from incorrect sensor wiring—critical for field installations where maintenance teams may replace transducers. The Mark VIe controller uses data from the IS200ACLEH1AAA to optimize compression efficiency, lowering fuel consumption by 3% annually.

Related Model Recommendations

IS200CPUH1AAA: Mark VIe main controller—paired with IS200ACLEH1AAA to process turbine I/O data and execute control logic.

IC697CMM742-LL: RX3i communication module—enables data exchange between Mark VIe (via IS200ACLEH1AAA) and RX3i SCADA systems.

IS200ADIH1AAA: Mark VIe digital input module—complements IS200ACLEH1AAA by monitoring discrete signals (e.g., valve position switches).

IS200AOEH1AAA: Mark VIe analog output module—executes control commands from IS200CPUH1AAA (e.g., adjusting turbine fuel valves).

IS200PWRH1AAA: Mark VIe redundant power supply—provides 24 V DC to IS200ACLEH1AAA and controller, ensuring 99.999% uptime.

IC698MDL754: RX3i analog input module—cost-effective alternative for non-turbine applications (e.g., auxiliary pump pressure monitoring).

IS200CABLH100: Mark VIe backplane cable—connects IS200ACLEH1AAA to controller; supports SynchLink bus for high-speed data transfer.

Proficy Machine Edition v9.5+: GE’s HMI/SCADA software—configures IS200ACLEH1AAA and IC697CMM742-LL for cross-platform visibility.

IS200ACLEH1AAA

Installation, Commissioning and Maintenance Instructions

Installation preparation for the IS200ACLEH1AAA requires mounting it in an empty 3U slot of the Mark VIe rack (adjacent to the IS200CPUH1AAA for optimal SynchLink communication). Tools needed include a torque screwdriver (0.4–0.6 N·m), wire strippers (18–22 AWG), and a precision multimeter. Verify the Mark VIe backplane provides stable 24 V DC (via IS200PWRH1AAA) and that the rack is grounded to <1 Ω (critical for EMI protection). Note: Never mix Mark VIe and RX3i modules in the same rack—this will cause backplane communication failures with both IS200ACLEH1AAA and IC697CMM742-LL.

Commissioning steps: (1) Power on the Mark VIe rack—confirm the module’s “PWR” and “COMM” LEDs are green (indicates backplane connection); (2) Launch Proficy Machine Edition, detect the IS200ACLEH1AAA via the controller’s Ethernet port, and update firmware to v4.2+ (required for SIL 3 compliance); (3) Configure channels: set input type (4–20 mA/0–10 V) via DIP switch, enable filtering (50 ms recommended for turbine sensors), and map channels to controller tags (e.g., “TURB_VIB_1”); (4) Calibrate inputs using a precision signal generator (4 mA = 0% full scale, 20 mA = 100%); (5) Test signal integrity: inject a 12 mA test signal and confirm module output is within ±0.006 mA (meets accuracy specs).

Maintenance suggestions: Conduct weekly checks via Proficy Machine Edition—monitor channel drift (should not exceed ±0.1% of full scale) and diagnostic flags (e.g., open circuit). Every 6 months, recalibrate inputs using a NIST-traceable signal generator; clean the module’s backplane connector with compressed air (25 psi max) to remove dust. If a channel fails, use the software’s “channel bypass” feature to route data to a spare channel (no need to power down the turbine). Annual maintenance includes verifying SIL 3 compliance via GE’s Safety Integrity Verification Tool—critical for regulatory audits. Replace only with GE-authorized IS200ACLEH1AAA spares—third-party modules may not meet turbine safety standards.

Service and Guarantee Commitment

The IS200ACLEH1AAA is backed by GE’s 48-month manufacturer warranty—longer than the IC697CMM742-LL’s 36 months—covering defects in measurement accuracy, backplane communication, and safety diagnostics. If the module fails within the warranty period, GE provides free 48-hour replacement (global) and on-site technical support for critical turbine applications (e.g., power plant units).

GE offers 24/7 dedicated turbine support for the IS200ACLEH1AAA, with specialists trained in Mark VIe ecosystem integration. The GE Power Support Portal includes exclusive resources: IS200ACLEH1AAA calibration guides, SIL 3 compliance checklists, and compatibility matrices with the IS200CPUH1AAA. Extended service contracts (1–5 years) include annual preventive maintenance (calibration, firmware updates) and priority access to turbine-specific spare parts—ensuring the IS200ACLEH1AAA maintains reliable performance in 24/7 turbine operations.
