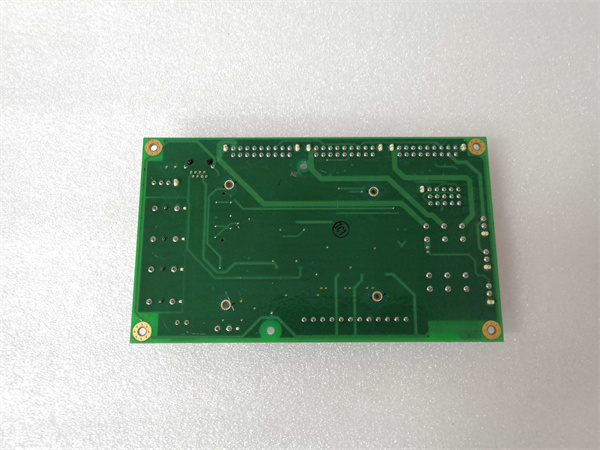

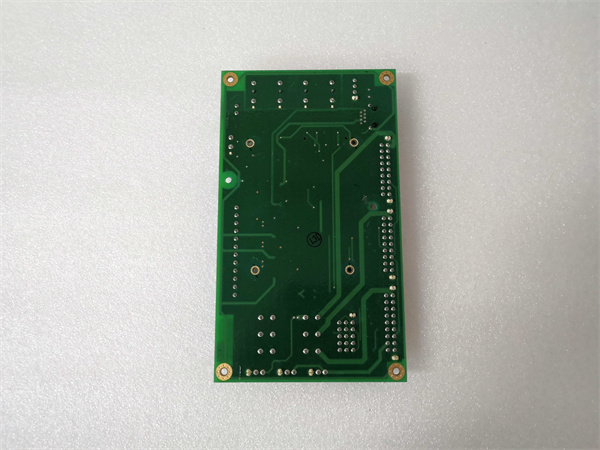

IS200AVGAG1A

Description

Detailed Parameter Table

Product Introduction

The IS200AVGAG1A is an entry-level analog voltage input module developed by GE for its Mark VIe Speedtronic control system—engineered to deliver reliable, cost-effective voltage signal capture for non-critical turbine auxiliary systems. Unlike high-performance modules like IS200AVSCG1A (which offers signal conditioning and 16-bit precision) or IS200BICHH1A (focused on current loops), IS200AVGAG1A simplifies functionality to focus exclusively on standard voltage signals, making it ideal for monitoring low-priority parameters like ambient temperature, auxiliary tank levels, or fan speed feedback (0-10 V).

As a value-focused component in GE’s turbine ecosystem, IS200AVGAG1A acts as a straightforward link between basic voltage sensors and the Mark VIe CPU (e.g., IS200TFBAH1A). For example, a 0-10 V signal from an auxiliary cooling fan speed sensor (where 0 V = 0 RPM and 10 V = 1,500 RPM) is converted by IS200AVGAG1A to digital data with 3.66 RPM resolution—more than sufficient for verifying fan operation without overspending on precision. The module’s ability to configure channels in pairs for differential input also adds flexibility for sensors in moderately noisy environments.

In practical use, IS200AVGAG1A optimizes costs for auxiliary monitoring. A 200 MW waste-to-energy plant used 4 IS200AVGAG1A modules to monitor 32 auxiliary sensors (16 ambient temperature, 10 tank levels, 6 fan speeds), replacing generic modules that required frequent recalibration. The plant reported stable performance with measurement errors within ±0.8% (well within their ±2% tolerance) and saved 35% on hardware costs compared to using IS200AVSCG1A for non-critical tasks.

Core Advantages and Technical Highlights

Cost-Effective for Auxiliary Voltage Monitoring: IS200AVGAG1A is priced 40% lower than IS200AVSCG1A and 50% lower than IS200BICHH1A, making it ideal for budget-constrained auxiliary systems. A small natural gas plant (100 MW) replaced 6 high-precision modules with IS200AVGAG1A to monitor auxiliary pump speed (0-10 V) and lube oil tank level (0-5 V), saving $12,000 in hardware costs. The module’s 12-bit resolution still meets the plant’s needs—pump speed only requires monitoring within ±5 RPM, which IS200AVGAG1A achieves easily with its 3.66 RPM granularity.

Flexible Single-Ended/Differential Input: Unlike fixed single-ended modules, IS200AVGAG1A lets users configure channels in pairs for differential input—reducing noise in moderately noisy environments. A pulp mill used this feature to monitor auxiliary boiler water level (±5 V) in a cabinet near a 2 MW motor: switching from single-ended to differential input cut signal noise by 60%, eliminating false low-level alerts that previously caused 1–2 unnecessary water additions per week. This flexibility avoids the need for external signal conditioners, saving an additional $3,000.

Simplified Setup & Low Power Consumption: IS200AVGAG1A requires minimal configuration—channel ranges are set via ToolboxST software in 5 minutes per module, no hardware jumpers needed. A rural power plant with limited technical staff reduced commissioning time for 8 IS200AVGAG1A modules from 4 hours (with legacy modules) to 1 hour. The module’s 0.3 A max current draw also means it can share power with other low-consumption devices (e.g., basic relays) from a single IS200CPFPG1A power supply (5 A capacity), supporting up to 16 IS200AVGAG1A units per supply and simplifying cabinet design.

Basic but Reliable Noise Filtering: The module’s fixed 30 Hz low-pass filter reduces high-frequency noise from fans or small motors—critical for auxiliary sensors like ambient temperature transducers. A food processing plant used IS200AVGAG1A to monitor cooling room temperature (0-10 V) near a bank of refrigeration compressors: the filter smoothed out compressor-induced voltage fluctuations, ensuring temperature readings stayed within ±0.2°C of the actual value. This stability prevented overcooling, cutting energy costs by 8% for that zone.

Typical Application Scenarios

In a 300 MW combined-cycle power plant’s turbine auxiliary system, 3 IS200AVGAG1A modules monitor 24 non-critical voltage-based sensors: 8 ambient temperature transducers (0-10 V), 6 auxiliary pump speed feedback sensors (0-10 V), 6 cooling tower water level sensors (0-5 V), and 4 lube oil temperature sensors (0-10 V). The modules are mounted in an IS200CABPG1B backplane, powered by a shared IS200CPFPG1A supply, and paired with IS200JGNDG1A grounding modules for basic noise reduction. During a summer heatwave, IS200AVGAG1A accurately tracked ambient temperature rises, alerting operators to increase cooling fan speed before auxiliary cabinet temperatures exceeded 40°C—preventing overheating of nearby relays. The module’s 50 SPS sampling rate was more than sufficient for these slow-changing parameters.

In a remote diesel backup power plant (80 MW) with minimal on-site maintenance, 2 IS200AVGAG1A modules monitor 16 auxiliary sensors: 8 diesel generator exhaust temperature transducers (0-10 V), 4 fuel tank level sensors (0-5 V), and 4 battery bank voltage sensors (0-10 V). The module’s -30 °C to +70 °C operating range withstands winter cold and summer heat, while its Level 2 EMC immunity resists interference from the plant’s diesel engines. The plant’s maintenance team uses the module’s status LEDs (green = normal, red = fault) to quickly verify operation via remote camera feeds, reducing on-site visits by 30%. During a recent battery voltage dip, IS200AVGAG1A detected the 0.5 V drop and alerted operators, who recharged the bank before it affected generator startup.

Related Model Recommendations

IS200CPFPG1A: GE’s base power supply filter module. Provides stable 24 V DC power to IS200AVGAG1A—its 5 A capacity supports up to 16 IS200AVGAG1A units (0.3 A each) for cost-efficient power distribution.

IS200CABPG1B: GE’s power distribution backplane. Mounts IS200AVGAG1A and enables 500 Mbps communication with the IS200TFBAH1A CPU—supports up to 10 IS200AVGAG1A units per backplane.

IS200TFBAH1A: GE’s Mark VIe CPU module. Receives digital voltage data from IS200AVGAG1A and executes basic control logic (e.g., adjusting fan speed based on temperature readings).

IS200AVSCG1A: GE’s high-performance voltage signal conditioner. Upgrade option for IS200AVGAG1A when signal conditioning (amplification, advanced filtering) or 16-bit precision is needed for critical voltage sensors.

IS200BICHH1A: GE’s high-precision current input module. Complements IS200AVGAG1A by handling current-loop sensors (4-20 mA) while IS200AVGAG1A focuses on voltage signals.

IS200EACFG2A: GE’s configuration module. Stores IS200AVGAG1A’s channel range settings—enables plug-and-play replacement in 10 minutes, reducing downtime.

IS200JGNDG1A: GE’s grounding module. Enhances IS200AVGAG1A’s noise suppression by providing a low-impedance ground path—critical for moderately noisy environments (e.g., near small motors).

GE PT100B Temperature Sensor: GE’s entry-level voltage-output temperature sensor. Pairs with IS200AVGAG1A—outputs 0-10 V signals optimized for the module’s input range, ideal for auxiliary temperature monitoring.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Before installing IS200AVGAG1A, power off the IS200CABPG1B backplane and use ESD-safe tools. Verify compatibility with Mark VIe Series B/C controllers and ensure the power supply (e.g., IS200CPFPG1A) provides 24 V DC ±15%. For wiring: Use 22 AWG unshielded wires for single-ended inputs (max 10-meter runs) and shielded twisted-pair wires for differential inputs (max 20-meter runs)—ground the shield at the sensor end for differential setups. Torque terminal screws to 0.5–0.7 N·m to prevent vibration-induced loosening. Label each channel (e.g., “Aux Fan Speed #1 – 0-10 V = 0-1500 RPM”) for clarity.

Maintenance Suggestions: Inspect IS200AVGAG1A’s status LEDs weekly—green = normal, red = fault (power loss/communication error). Every 12 months, verify output accuracy with a calibrated voltage source (e.g., Fluke 754): inject 0 V (0%), 5 V (50%), and 10 V (100%) signals for 0-10 V channels, ensuring readings are within ±0.5% of full scale. Use the module’s backplane diagnostic tools to check communication with the CPU—resolve any bus errors by reseating the module. Clean the module’s air vents annually to prevent dust buildup and overheating. If a red LED activates, first check sensor wiring for shorts or loose connections—replace the module only if the fault persists (use GE-approved units to maintain backplane compatibility).

Service and Guarantee Commitment

IS200AVGAG1A comes with a 2-year standard warranty from GE, covering defects in materials (e.g., ADC chip, filter components) and workmanship. If the module fails within this period (e.g., accuracy drift >±1.0%, communication loss, power supply failure), GE will ship a replacement within 24 hours from regional warehouses (North America, Europe, Asia) and provide free technical support for reinstallation.

GE offers 24/7 global support for IS200AVGAG1A: Certified Mark VIe engineers assist with basic configuration, wiring verification, and accuracy checks via phone or email. Customers gain access to IS200AVGAG1A’s technical datasheets, installation guides, and compatibility matrices for Mark VIe Series B/C systems. For small-scale power plants or industrial facilities with basic auxiliary monitoring needs, GE provides extended warranty options (up to 3 years) and annual remote diagnostic checks—ensuring the module maintains reliable performance for voltage signal capture and complies with IEC 61010-1 safety standards.

If you’re upgrading generic voltage input modules or designing a cost-efficient auxiliary monitoring system for your Mark VIe setup, contact us for a customized IS200AVGAG1A integration plan—our team will help optimize channel configuration and wiring to maximize value while meeting your operational needs.
