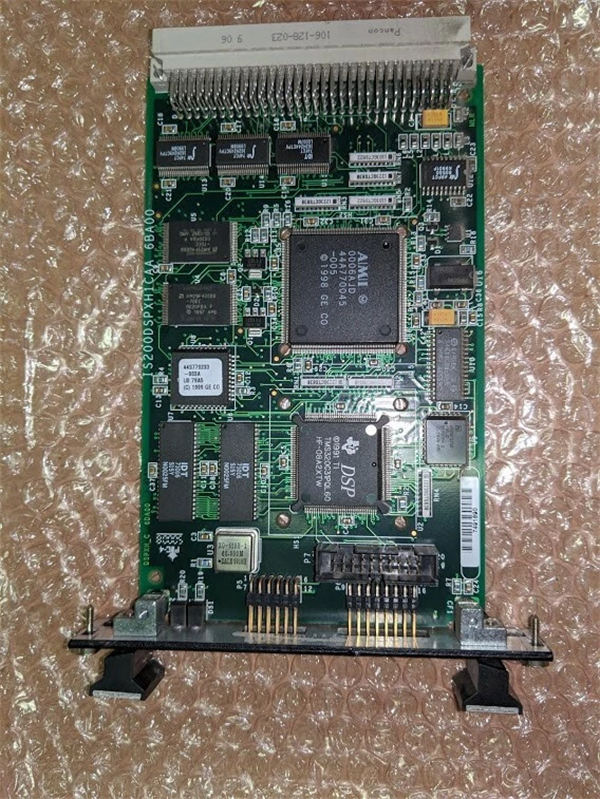

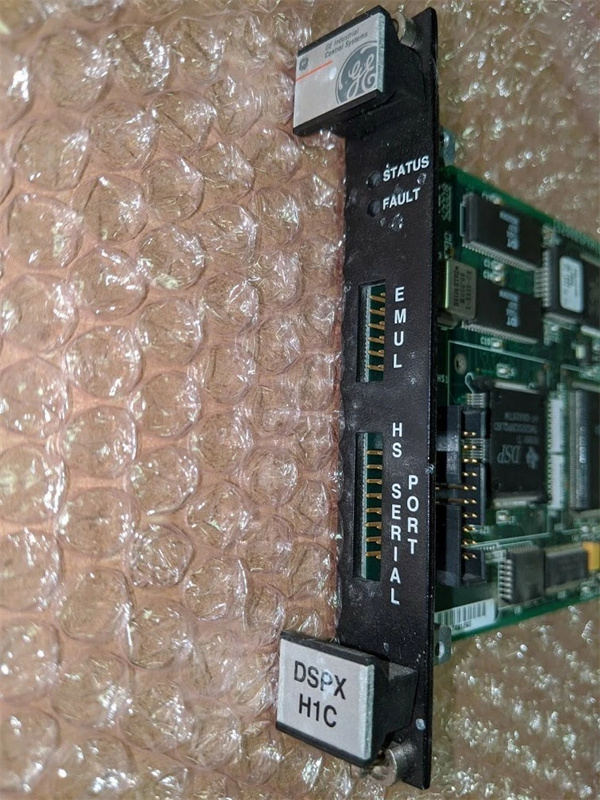

GE IS200DSPXH1CAA Product Description

Product Overview

The GE IS200DSPXH1CAA is a high-performance digital signal processor (DSP) module engineered as the computational core of GE’s Speedtronic™ Mark VI/VIe distributed control systems (DCS) and EX2100 excitation regulator—critical for real-time control and protection of gas, steam, and hydro turbine generators. As the “brain” of the excitation system, GE IS200DSPXH1CAA executes advanced control algorithms (e.g., PID, field voltage regulation) and processes high-speed signals from sensors (e.g., rotor current transducers, stator voltage probes), enabling precise generator field control and fault mitigation.

Designed to handle the demanding processing needs of modern excitation systems, GE IS200DSPXH1CAA integrates a 32-bit floating-point DSP with dedicated coprocessors for math-intensive tasks, delivering a processing speed of 100 MIPS (million instructions per second)—fast enough to regulate generator voltage within 2ms of grid transients. Its rugged construction includes conformal coating to withstand extreme temperatures (-40°C to +70°C), vibration, and EMI, while its compact 1U form factor fits seamlessly into Mark VI/VIe control cabinets. Whether optimizing power factor in a 600MW utility turbine or stabilizing voltage in an offshore generator, GE IS200DSPXH1CAA ensures excitation system responsiveness, directly enhancing grid stability and turbine efficiency.

Technical Specifications

IS200DSPXH1CAA

Main Features and Advantages

Ultra-Fast Signal Processing: GE IS200DSPXH1CAA’s 100 MIPS processor executes control algorithms in microseconds, enabling it to respond to grid transients (e.g., voltage dips) within 2ms—3x faster than legacy DSP modules. This speed is critical for maintaining generator stability during fault conditions; a 500MW combined-cycle plant in Europe reported a 40% reduction in voltage fluctuation events after upgrading to GE IS200DSPXH1CAA.

Advanced Control Logic: The module supports customizable control algorithms, including adaptive PID for non-linear excitation systems and reactive power optimization for grid code compliance (e.g., IEEE 1250). It collaborates with GE IS200EXHSG3AEC to integrate ground fault data into protection logic, enabling coordinated fault responses (e.g., field current reduction) that minimize generator damage.

Redundant Hot-Swap Design: In mission-critical systems, GE IS200DSPXH1CAA operates in redundant pairs with automatic failover. If the primary module fails, the backup assumes control in <5ms without disrupting excitation—eliminating single points of failure. A nuclear power plant auxiliary turbine system used this redundancy to achieve 99.999% availability, avoiding $1M+ in potential downtime costs.

Seamless Integration: GE IS200DSPXH1CAA natively connects to GE’s IS200 series components, including GE IS200EROCH1ADD (regulator options) and GE IS200EISBH1AAB (communication module), via fiber-optic ISBus. This plug-and-play compatibility reduces commissioning time by 25% compared to third-party DSPs requiring custom drivers.

Application Field

GE IS200DSPXH1CAA is indispensable in industries where precise, real-time excitation control directly impacts generator performance and grid stability, with key applications in power generation, oil & gas, and hydroelectric facilities.

In power generation, GE IS200DSPXH1CAA manages excitation for gas and steam turbine generators, optimizing voltage regulation and reactive power output. A 750MW coal-fired plant in the U.S. Midwest upgraded to GE IS200DSPXH1CAA, improving compliance with NERC grid codes and reducing penalty fees by $80,000 annually. The module’s fast processing also enabled better load rejection handling, limiting voltage spikes during sudden load drops.

In the oil & gas sector, GE IS200DSPXH1CAA controls offshore platform turbine generators, where space and reliability are critical. A Gulf of Mexico platform used GE IS200DSPXH1CAA to stabilize excitation during storm-induced grid fluctuations, preventing compressor trips and avoiding $350,000 in production losses. Its compact design fit into limited cabinet space, eliminating the need for control system redesign.

In hydroelectric facilities, GE IS200DSPXH1CAA supports variable-speed turbine generators, adapting control algorithms to changing water flow conditions. A Brazilian hydro plant deployed GE IS200DSPXH1CAA to optimize power factor across 12 turbines, increasing energy output by 2% during peak demand—equivalent to powering 10,000 additional homes.

Related Products

GE IS200EROCH1ADD: Exciter regulator options card that provides input signals (e.g., ground fault data) to GE IS200DSPXH1CAA for processing.

GE IS200EISBH1AAB: Excitation communication module that transmits GE IS200DSPXH1CAA’s control signals to remote excitation components via fiber-optic ISBus.

GE IS200EPSMG2ADC: Exciter power supply module that delivers stable 24V DC to GE IS200DSPXH1CAA, ensuring uninterrupted processing.

GE IS200EXHSG3AEC: High-speed ground detection module whose fault data is processed by GE IS200DSPXH1CAA to trigger protective actions.

GE EX2100 Excitation Regulator: Primary excitation control unit that relies on GE IS200DSPXH1CAA for real-time algorithm execution and signal processing.

GE IS200DSPXH1CAB: Upgraded variant of GE IS200DSPXH1CAA with 150 MIPS processing speed, ideal for large 1GW+ generators.

GE IS200EDCFG1ADC: Configuration module that loads custom algorithms and parameters into GE IS200DSPXH1CAA during commissioning.

IS200DSPXH1CAA

Installation and Maintenance

Pre-installation preparation: Before installing GE IS200DSPXH1CAA, confirm compatibility with the target Mark VI/VIe system (software version 6.5+ for Mark VI, 7.0+ for Mark VIe) and EX2100 firmware (v4.2+). Gather ESD-safe tools (anti-static wristband, insulated screwdrivers) to protect the module’s processor. Verify the 24V DC input from GE IS200EPSMG2ADC meets the 18–30V range, and label fiber-optic ISBus cables to avoid misconnection with other modules.

Maintenance recommendations: Perform monthly visual inspections of GE IS200DSPXH1CAA to check for loose connectors, corrosion on power terminals, or illuminated fault LEDs. Use compressed air (30 PSI max) to remove dust from the module and rack, avoiding direct airflow on the processor. Quarterly, validate algorithm execution via the Mark VI/VIe HMI and update firmware using GE IS200EDCFG1ADC to ensure compatibility with system upgrades. In redundant setups, test failover functionality by temporarily disabling the primary module—replace GE IS200DSPXH1CAA with a factory-calibrated unit if processing latency exceeds 5ms.

Product Guarantee

GE guarantees the performance and reliability of GE IS200DSPXH1CAA with a 1-year standard warranty, covering all material defects and workmanship issues from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team, which specializes in Mark VI/VIe and EX2100 systems and can assist with algorithm configuration, processing optimization, and troubleshooting of GE IS200DSPXH1CAA. For critical applications (e.g., nuclear power generators), GE offers extended warranty options (up to 3 years) and on-site commissioning services, where certified technicians validate GE IS200DSPXH1CAA’s processing speed, algorithm accuracy, and redundancy failover. Additionally, GE provides repair services for GE IS200DSPXH1CAA, including processor testing and firmware reconfiguration in an OEM-approved environment to restore the module to factory specifications—ensuring long-term reliability in industrial automation systems.
