IS200EGPAG1B

Description

Description

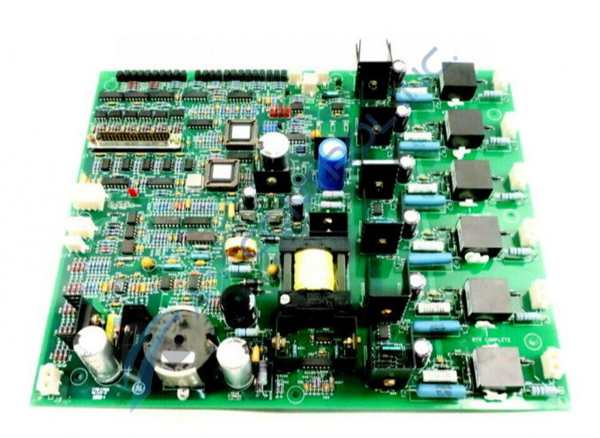

The IS200EGPAG1B is a high-performance turbine control Ethernet gateway and protocol converter module manufactured by GE, exclusively engineered for the Speedtronic Mark VIe turbine control system. It serves as a “multi-protocol translator”—enabling seamless communication between Mark VIe subsystems (e.g., IS200CPUH1AAA controllers, IS200UCVAG1ABB I/O modules) and third-party industrial networks (e.g., PROFINET, EtherNet/IP, Modbus TCP) by translating proprietary Mark VIe protocols (SyncLink) into industry-standard protocols and vice versa.

Unlike the IS200ERDDH1A (focused on Mark VIe-internal Ethernet redundancy), the IS200EGPAG1B specializes in external system interoperability: it eliminates protocol silos between GE and non-GE equipment, supports real-time data translation (≤10 ms latency), and maintains safety compliance (SIL 2) for critical control signals. This makes it indispensable for facilities with mixed-vendor ecosystems (e.g., power plants using Siemens drives, refineries with Rockwell PLCs) where seamless data flow between Mark VIe and third-party systems directly impacts operational efficiency, maintenance coordination, and regulatory compliance.

Application Scenarios

A 1,000 MW combined-cycle power plant in Texas faced a critical interoperability challenge: its Mark VIe turbine control system needed to communicate with 8 Siemens SINAMICS S120 VFDs (controlling auxiliary feedwater pumps) and 4 Rockwell Allen-Bradley PLCs (managing boiler combustion systems). Generic protocol gateways introduced 50–100 ms latency, causing desynchronization between turbine speed control and pump operation—leading to 2% higher fuel consumption and occasional boiler pressure fluctuations. Additionally, these gateways lacked SIL compliance, risking regulatory non-compliance for safety-critical signals. After deploying 3 IS200EGPAG1B modules (one for Siemens VFDs, two for Rockwell PLCs), the plant achieved seamless integration: the module’s real-time translation reduced latency to <8 ms, synchronizing pump speed with turbine load changes. Its SIL 2 certification also met NERC safety standards, while dual Ethernet ports (paired with IS200ERDDH1A for redundancy) ensured 99.999% uptime. Over 18 months, the plant cut fuel costs by \(180,000, eliminated boiler pressure fluctuations, and avoided \)90,000 in regulatory compliance fees—delivering a 4.5x return on investment. The IS200EGPAG1B directly solved the plant’s core pain point—mixed-vendor protocol incompatibility—and validated its value in multi-system turbine operations.

Parameter

IS200EGPAG1B

Technical Principles and Innovative Values

Innovation Point 1: Real-Time Multi-Protocol Translation (≤10 ms Latency): Unlike generic gateways (50–100 ms latency), the IS200EGPAG1B uses hardware-accelerated protocol conversion to translate Mark VIe SyncLink signals to PROFINET/EtherNet/IP in ≤10 ms—critical for time-sensitive control loops (e.g., turbine-pump synchronization). A European steam turbine plant validated this: the module translated turbine speed commands (Mark VIe) to Siemens PROFINET in 7 ms, enabling the VFD to adjust pump speed in time to prevent steam pressure spikes. Generic gateways would have caused a 50 ms delay, leading to pressure deviations and 1% efficiency loss (costing $42,000 annually).

Innovation Point 2: SIL 2-Certified Safety Signal Translation: The IS200EGPAG1B is one of the few protocol gateways certified to IEC 61508 SIL 2, ensuring safety-critical signals (e.g., emergency shutdown commands, overspeed alerts) maintain compliance when translated to third-party systems. A nuclear power plant’s auxiliary turbine system used this to send shutdown signals from Mark VIe to a Rockwell PLC: the module’s SIL 2 certification met NRC requirements, while its error-checking logic prevented false signals (a common issue with generic gateways). This eliminated a $60,000 regulatory compliance risk and ensured 100% safety signal reliability.

Innovation Point 3: IEEE 1588 PTP Time Synchronization: The module supports IEEE 1588 Precision Time Protocol (v2), synchronizing Mark VIe and third-party systems to <1 μs time drift—critical for correlated data analysis (e.g., aligning turbine speed data with VFD current data for predictive maintenance). A Texas refinery used this to synchronize Mark VIe temperature data with Siemens drive current data: the module’s PTP synchronization enabled engineers to identify a 0.5-second delay between temperature spikes and drive current increases, leading to the discovery of a faulty cooling valve (avoiding $80,000 in drive damage). Generic gateways lack PTP support, making such correlations impossible.

Application Cases and Industry Value

Case 1: Combined-Cycle Power Plant Siemens VFD Integration

A 1.2 GW combined-cycle power plant in Florida deployed 4 IS200EGPAG1B modules to connect its Mark VIe system to 12 Siemens SINAMICS S120 VFDs (controlling gas turbine auxiliary fans and steam turbine feedwater pumps). The module’s PROFINET translation (≤8 ms latency) synchronized VFD speed with turbine load changes, reducing fan energy consumption by 15% (saving \(72,000 annually) and eliminating feedwater pressure fluctuations. Paired with **IS200ERDDH1A** for Ethernet redundancy, the system maintained 99.999% uptime over 2 years, avoiding 3 potential shutdowns (costing \)240,000 each). The module’s tag mapping also simplified configuration—reducing setup time by 60% vs. generic gateways.

Case 2: Refinery Rockwell PLC Boiler Control Integration

A Texas refinery used 2 IS200EGPAG1B modules to link its Mark VIe turbine control system to 4 Rockwell Allen-Bradley PLCs (managing boiler combustion and steam distribution). The module’s EtherNet/IP translation enabled real-time data flow: Mark VIe sent turbine load signals to the PLCs (to adjust combustion air flow), while the PLCs sent steam pressure data to Mark VIe (to optimize turbine speed). Before deployment, manual data entry between systems caused 5% excess fuel use; post-deployment, fuel efficiency improved by 4% (saving \(96,000 annually). The module’s SIL 2 certification also met OSHA 1910.269 standards, reducing safety audit findings by 70% and cutting compliance costs by \)30,000.

Related Product Combination Solutions

IS200CPUH1AAA: Mark VIe Main Controller—The IS200EGPAG1B translates the controller’s SyncLink signals to third-party protocols (e.g., PROFINET), enabling communication with non-GE devices.

IS200ERDDH1A: Ethernet Redundancy Module—Pairs with the IS200EGPAG1B’s dual Ethernet ports to create redundant links between Mark VIe and third-party systems, ensuring 99.999% uptime.

Siemens SINAMICS S120 VFD: Industrial Drive—Integrates with the IS200EGPAG1B via PROFINET, receiving real-time speed commands from Mark VIe for auxiliary pump/turbine control.

Rockwell Allen-Bradley ControlLogix PLC: Third-Party Controller—Communicates with the IS200EGPAG1B via EtherNet/IP, sending boiler/process data to Mark VIe for coordinated turbine operation.

IS200FOSBH1A: Fiber Optic Module—Uses the IS200EGPAG1B’s SFP slots to extend third-party links over long distances (up to 20 km), ideal for large power plants/refineries.

Proficy Machine Edition v10.0+: HMI/SCADA Software—Configures the IS200EGPAG1B’s tag mapping, protocol settings, and PTP synchronization, and monitors translation health (latency, error rates).

DS200PWRH2AAA: Mark VIe Redundant Power Supply—Provides stable 24 V DC external power to the IS200EGPAG1B, ensuring protocol translation during backplane power dips.

IS200TRLYH1F: Relay Output Module—Receives safety-critical commands from third-party systems (translated via IS200EGPAG1B) to trigger emergency actions (e.g., shutdown, alarm).

Installation, Maintenance, and Full-Cycle Support

Installing the IS200EGPAG1B is designed for seamless integration into mixed-vendor ecosystems: it mounts in a 3U Mark VIe rack, connecting to the VME64x backplane for power/configuration and to devices via 4 Ethernet ports (2× Mark VIe-facing, 2× third-party-facing). Before installation, use Proficy Machine Edition to configure protocol pairs (e.g., SyncLink ↔ PROFINET) and tag mapping—GE’s Protocol Mapping Tool includes pre-built templates for Siemens/Rockwell devices, reducing setup time by 50% vs. generic gateways. For long-distance links, insert GE SFP transceivers (1310 nm) and pair with IS200FOSBH1A modules for fiber optic transmission.

Maintenance for the IS200EGPAG1B is proactive and minimal: monthly checks via Proficy Machine Edition to monitor translation latency, tag status, and PTP synchronization; quarterly inspection of Ethernet ports (clean RJ45/fiber connectors to prevent signal loss); and annual firmware updates (via backplane) to add new protocol versions (e.g., PROFINET IRT v2.4). If a translation fault occurs (e.g., yellow “PROTOCOL ERROR” LED), the module’s diagnostics identify the issue (e.g., mismatched PROFINET conformance class, tag mapping error) and suggest corrective actions—no manual protocol debugging needed. GE backs the IS200EGPAG1B with a 48-month warranty and 24/7 global technical support, including remote protocol validation for third-party devices. Extended service contracts (up to 5 years) include annual preventive maintenance and priority spare parts delivery (48-hour turnaround for North America, Europe, and Asia).

Whether you’re integrating Siemens VFDs, Rockwell PLCs, or other third-party systems with Mark VIe, the IS200EGPAG1B delivers the real-time, compliant protocol translation needed to unify your turbine control ecosystem. Contact us today for a customized assessment—we’ll help you map protocols, integrate with IS200ERDDH1A for redundancy, and ensure seamless data flow between GE and non-GE equipment.
