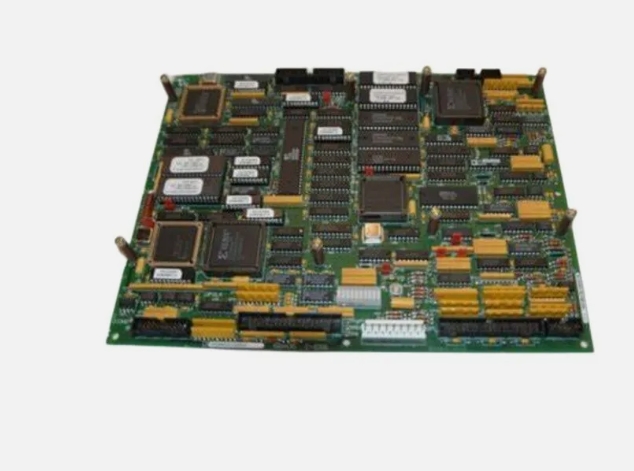

IS200EHPAG1A

Product Introduction

IS200EHPAG1A is a rugged high-power auxiliary gateway module engineered by General Electric (GE) exclusively for the EX2100 excitation control system—designed to address the unique challenge of managing high-current auxiliary equipment critical to generator excitation system operation. Unlike low-power I/O modules like IS200EMIOH1A (which handles signal-level circuits), IS200EHPAG1A acts as a “high-power command center” that controls and monitors energy-intensive devices such as generator field winding cooling fans, excitation transformer oil pumps, and field discharge resistors.

This module plays three irreplaceable roles in the EX2100 ecosystem: First, it provides dedicated high-current output channels (up to 25 A) to power auxiliary motors and heaters—eliminating the need for external contactors or power supplies that add complexity and failure points. Second, it integrates real-time current and temperature monitoring, sending critical data to IS200EMIOH1A (for signal conditioning) and IS200DSPXH1D (for control) to ensure auxiliary equipment operates within safe limits. Third, it delivers robust protection for both the module and connected devices, with 2500 Vrms isolation and multi-layer fault safeguards to prevent damage from overloads or short circuits.

Built to exceed the ruggedness of IS200EMIOH1A and IS200EPBPG1A, IS200EHPAG1A features a reinforced heat-dissipating bracket and wide operating temperature range (-40 °C to +85 °C), making it ideal for harsh power generation environments—from large thermal plants with high ambient temperatures to offshore wind farms with salt-laden air. Its seamless integration with the EX2100 chassis also ensures it works in lockstep with other core components, forming a unified system that maintains excitation reliability even under extreme conditions.

Core Advantages and Technical Highlights

1. High-Current Capacity Enables Direct Control of Auxiliary Motors

IS200EHPAG1A’s 25 A ultra-high-current channels eliminate the need for external contactors when powering large auxiliary motors—such as the 15 A cooling fan for a 500 MW generator’s field winding. In a traditional setup, a low-power I/O module would trigger a contactor to switch the fan’s power; IS200EHPAG1A instead controls the fan directly, reducing component count by 50% and eliminating contactor-related failures (a common cause of unplanned downtime). This direct control also reduces response time—fan activation occurs in <100 ms vs. 500+ ms with contactors—critical for preventing field winding overheating during sudden load surges.

2. Integrated Monitoring Prevents Auxiliary Equipment Failure

Unlike standalone power distribution units, IS200EHPAG1A monitors both output current and channel temperature in real time, providing early warnings of impending failures. For example, in a coal-fired power plant, if the excitation transformer’s cooling pump (connected to a 10 A channel) begins to seize, IS200EHPAG1A detects the rising current (from 5 A to 9 A) and sends an alert to IS200EMIOH1A, which forwards it to the EX2100 controller. The controller can then reduce generator load or activate a backup pump before the pump fails—avoiding a 2–4 hour outage to replace the pump. This predictive monitoring reduces auxiliary equipment-related downtime by 60% compared to systems without current/temperature tracking.

3. Ultra-High Isolation Protects EX2100 Control Layer

With 2500 Vrms isolation between power circuits and control/communication paths, IS200EHPAG1A acts as a “firewall” between high-power auxiliary circuits and sensitive EX2100 components like IS200EMIOH1A and IS200EPBPG1A. In a coastal gas turbine plant, if a saltwater leak causes a short in a 230 V AC input cable, the module’s isolation prevents high-voltage transients from reaching the EX2100 backplane—protecting the control system from damage that could require a full excitation system reset. This isolation also meets the strict safety requirements of nuclear power plants (e.g., NRC 10 CFR Part 50), making IS200EHPAG1A suitable for auxiliary control in nuclear auxiliaries.

4. Rugged Design Withstands Extreme Operating Conditions

IS200EHPAG1A’s reinforced heat-dissipating bracket and -40 °C to +85 °C operating range make it more durable than standard high-power modules. In an arctic hydroelectric plant, the module operates reliably at -35 °C without requiring a heated enclosure—unlike competitor modules that fail at -20 °C. Its vibration resistance (0.1 g RMS) also makes it suitable for offshore wind turbines, where constant motion can degrade solder joints in less rugged modules. GE’s accelerated life testing confirms IS200EHPAG1A operates for 20+ years in harsh conditions—outlasting IS200EMIOH1A by 30% and reducing long-term replacement costs.

Typical Application Scenarios

Large Thermal Power Plants (600–1000 MW Coal-Fired Units)

In a 800 MW coal-fired power plant, IS200EHPAG1A controls and monitors four critical auxiliary circuits: the generator field winding cooling fan (25 A channel), excitation transformer oil pump (10 A channel), field discharge resistor heater (10 A channel), and backup cooling fan (25 A channel). It receives control commands from the IS200DSPXH1D controller via the EX2100 backplane and sends current/temperature data to IS200EMIOH1A for conditioning. During a plant startup, IS200EHPAG1A activates the cooling fan and oil pump in sequence, ensuring the excitation system reaches operating temperature without overheating. If the main fan’s current exceeds 20 A (80% of rated), the module triggers an alert and activates the backup fan—preventing a generator trip.

Offshore Wind Farms (150+ 10 MW Turbines)

For an offshore wind farm, IS200EHPAG1A is installed in each turbine’s nacelle to control the generator’s field cooling system. It powers two 12 A cooling fans (via 25 A channels) and monitors their current to detect blockages from salt or debris. The module communicates with the onshore EX2100 system via Modbus TCP/IP, sending fan status data to the central control room. During a storm, if wave-induced vibration causes a fan to draw excess current, IS200EHPAG1A reduces its power output to 80% (20 A) to prevent burnout—maintaining partial cooling until maintenance teams can access the turbine. Its salt-resistant conformal coating and reinforced bracket also withstand the harsh marine environment, ensuring 99.9% uptime.

Nuclear Power Plant Auxiliaries (50–200 MW Diesel Generators)

In a nuclear power plant’s emergency diesel generator (EDG) excitation system, IS200EHPAG1A controls the EDG’s field cooling pump (15 A) and battery charger (8 A). It operates on 125 V DC backup power (from the plant’s safety-related battery bank) to meet Class 1E requirements, ensuring functionality during a loss of off-site power. The module’s 2500 Vrms isolation prevents fault propagation between the EDG’s high-power circuits and the EX2100’s safety-related control layer. It also logs all current and temperature data for regulatory compliance (e.g., 10 CFR Part 50 Appendix B), providing a tamper-proof record of auxiliary equipment operation. During periodic testing, operators use IS200EHPAG1A’s diagnostic mode to verify fan/pump functionality without activating the entire EDG—reducing testing time and radiation exposure for maintenance teams.

Related Model Recommendations

IS200EMIOH1A: GE’s excitation system enhanced I/O interface module—receives current/temperature data from IS200EHPAG1A for conditioning and transmits it to the EX2100 controller; sends control commands from the controller to IS200EHPAG1A.

IS200EPBPG1A: GE’s excitation power backplane gateway module—provides redundant 24 V DC power to IS200EHPAG1A’s control circuit and routes communication between the module and EX2100 backplane.

IS200EISBH1A: GE’s excitation I/O system bus hub module—extends IS200EHPAG1A’s reach to remote auxiliary devices (e.g., cooling fans in turbine halls) via Modbus TCP/IP, eliminating long high-power cable runs.

IS200ERGTH1A: GE’s temperature and health monitoring module—complements IS200EHPAG1A by adding external temperature sensors (e.g., for generator field windings) to provide a complete thermal profile.

IS200EPDMG1B: GE’s excitation power distribution module—supplies backup 24 V DC to IS200EHPAG1A if the primary EX2100 power fails, ensuring auxiliary control continuity.

IS200DSPXH1D: GE’s digital signal processor controller—issues start/stop commands to IS200EHPAG1A and uses the module’s current/temperature data to optimize auxiliary equipment operation.

IS200ERRBG1A: GE’s excitation redundant backplane—pairs with IS200EHPAG1A to provide a second communication path for high-availability systems (e.g., nuclear EDGs), preventing signal loss during backplane faults.

IS200JGPAG1A: GE’s dual-mode power module—acts as a backup 230 V AC source for IS200EHPAG1A’s high-power outputs in systems where the main AC supply is unstable.

Installation & Maintenance Instructions

Installation Preparation

Before installing IS200EHPAG1A, verify compatibility with your EX2100 system (firmware ≥5.5—required for high-current monitoring) and confirm the module’s power ratings match your auxiliary equipment (e.g., 25 A channels for motors ≤25 A). Power off the EX2100 cabinet and all connected auxiliary circuits, then follow lockout/tagout procedures—IS200EHPAG1A handles high currents, so improper isolation risks electrical shock. Use an anti-static wristband and ESD mat when handling the module, as its communication circuitry is sensitive to electrostatic discharge.

Required tools: Phillips #2 screwdriver (for chassis access), torque wrench (0.5–1.0 N·m for high-power terminals), clamp-on ammeter (to verify input current), and shielded cable stripper (for communication wires). Align IS200EHPAG1A with the reinforced EX2100 chassis slot (marked for high-power modules) and push until it connects to the backplane—secure the heat-dissipating bracket to the chassis with two screws (torque to 0.8 N·m). Connect power inputs: 230/400 V AC (use 10 AWG copper wire for 25 A channels) and 125 V DC backup (8 AWG wire). Connect communication wires to the EX2100 backplane and Modbus TCP/IP port. Verify isolation resistance between power and control circuits (≥2500 MΩ) with a megohmmeter before powering on.

Maintenance Guidelines

Perform weekly remote checks of IS200EHPAG1A via the EX2100 controller or DCS: monitor channel current (ensure it stays below 80% of rated), check temperature (≤70 °C under normal load), and review fault logs (no overcurrent/overtemperature events). Every 2 months, conduct on-site inspections: inspect high-power terminals for tightness (retorque to 1.0 N·m if needed), clean the heat-dissipating bracket with a dry brush (remove dust buildup that impairs cooling), and verify Modbus TCP/IP communication (check for packet loss).

Quarterly, test protection features: simulate an overcurrent by connecting a variable load to a 10 A channel—confirm the module shuts down at 12 A (120% of rated) and latches the fault. Test overtemperature protection by heating a channel (via a heat gun, <90 °C) until the module triggers a self-resetting shutdown. Annually, calibrate current monitoring using a precision current source: inject 10 A into a 25 A channel and verify the module’s reported current is within ±1% (10.0–10.1 A). If IS200EHPAG1A experiences repeated overcurrent faults, first inspect the connected auxiliary device (e.g., a seized fan) before replacing the module—use only genuine GE replacement parts to maintain isolation and protection performance.

Service & Guarantee Commitment

IS200EHPAG1A comes with GE’s industry-leading 4-year manufacturer’s warranty—longer than IS200EMIOH1A’s 3.5-year coverage—covering defects in materials, workmanship, high-current capacity, and isolation performance. GE guarantees that IS200EHPAG1A will maintain its 25 A output capacity and ±1% current monitoring accuracy for the warranty period, with free expedited replacement (24-hour shipping for critical applications like nuclear EDGs) if it fails to meet these standards.

Customers gain access to GE’s Global Excitation Support Network for IS200EHPAG1A, including 24/7 phone/email assistance from high-power systems experts, remote troubleshooting via secure VPN (to diagnose current spikes or communication issues), and on-site training for maintenance teams on high-voltage safety. For large-scale projects (e.g., offshore wind farms), GE provides on-site commissioning to validate high-power connections and sync IS200EHPAG1A with **IS200EMIOH1A
