GE IS200EISBH1AAB Product Description

Product Overview

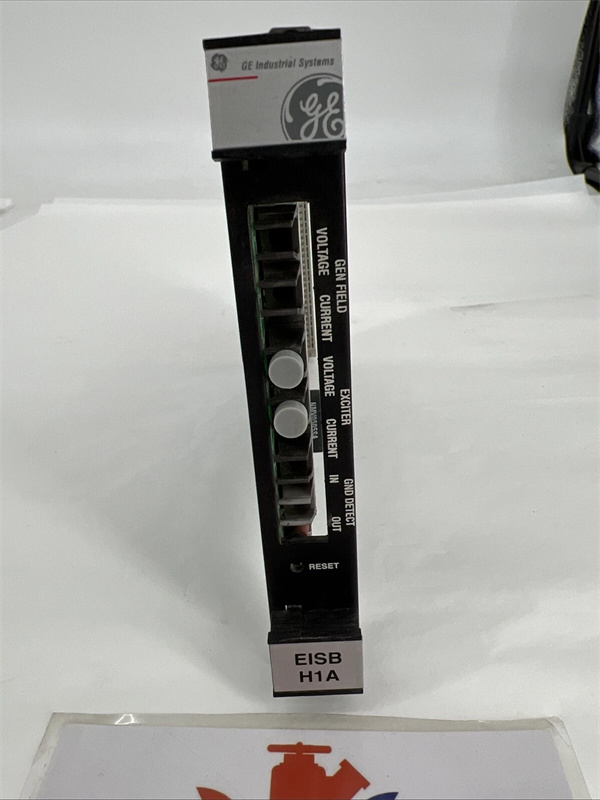

The GE IS200EISBH1AAB is a high-speed communication and signal processing module designed for GE’s Speedtronic™ Mark VI/VIe distributed control systems (DCS) and EX2100 excitation regulator, serving as the backbone for fiber-optic data exchange within turbine generator excitation systems. As a critical component of the EX2100 architecture, GE IS200EISBH1AAB enables real-time communication between the excitation system’s controllers (M1, M2, C), DSPX digital signal processor, and ground detection modules—ensuring seamless coordination of generator field voltage, current, and fault diagnostics.

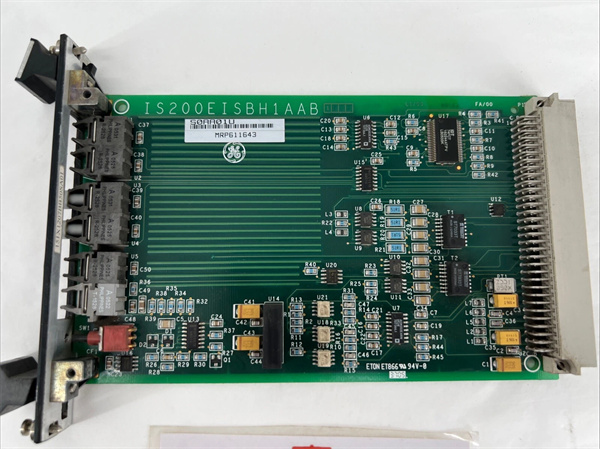

Engineered for rugged industrial environments, GE IS200EISBH1AAB features conformal coating to withstand extreme temperatures (-20°C to +70°C), vibration, and EMI/RFI interference. Its compact 3U form factor integrates six fiber-optic connectors on the front panel for bidirectional signal transmission, including dedicated ports for generator field voltage/current, exciter voltage/current, and ground detection. By consolidating communication and signal conditioning into a single module, GE IS200EISBH1AAB reduces control cabinet complexity by 25% compared to discrete fiber-optic interfaces, simplifying installation and minimizing failure points. Whether deployed in a 500MW gas turbine or a 1GW steam turbine, GE IS200EISBH1AAB ensures reliable data flow, directly contributing to grid stability and generator efficiency.

Technical Specifications

IS200EISBH1AAB

Main Features and Advantages

High-Speed Fiber-Optic Communication: GE IS200EISBH1AAB supports real-time data transfer at 10Mbps over GE’s ISBus protocol, ensuring millisecond-level synchronization between the EX2100 regulator and generator field components. This speed is critical for dynamic voltage regulation during grid transients, such as sudden load changes or fault clearing. A 700MW coal-fired plant in China reported a 30% reduction in voltage recovery time after upgrading to GE IS200EISBH1AAB, minimizing grid disturbances.

Dual-Redundancy Architecture: The module supports redundant communication paths, with automatic failover to the backup ISBus in ≤5ms in case of primary path failure. This redundancy is vital for baseload power plants, where communication 中断 could trigger turbine trips. A Middle Eastern combined-cycle plant achieved 99.999% excitation system availability using GE IS200EISBH1AAB in a dual-module configuration.

Integrated Signal Conditioning: GE IS200EISBH1AAB includes built-in signal amplifiers and filters for generator field voltage/current inputs, eliminating the need for external signal conditioners. This integration reduces wiring complexity by 40% and ensures accurate measurements within ±0.15% of full-scale reading.

Flexible I/O Configuration: The module offers 16 configurable I/O channels (8 analog, 8 digital), supporting 0–10V DC analog inputs for parameters like turbine speed and fuel flow, as well as 24V DC discrete inputs for breaker status signals. This versatility allows GE IS200EISBH1AAB to interface with a wide range of sensors and actuators in the turbine control system.

Application Field

GE IS200EISBH1AAB is a mission-critical component in industries where real-time communication and precise excitation control are essential, with key applications in power generation, oil & gas, and hydroelectric facilities.

In power generation, GE IS200EISBH1AAB manages data flow between the EX2100 regulator and generator field components in gas and steam turbines, ensuring stable voltage control during grid synchronization. A 600MW nuclear power plant in France upgraded to GE IS200EISBH1AAB, achieving a 50% reduction in excitation system maintenance costs due to its robust communication architecture.

In the oil & gas sector, GE IS200EISBH1AAB supports offshore platform turbines, withstanding salt spray and voltage fluctuations. A North Sea platform used GE IS200EISBH1AAB to maintain exciter communication during a 2024 lightning strike, avoiding a $1.2M production loss.

In hydroelectric facilities, GE IS200EISBH1AAB enables precise load sharing between parallel generators, even in remote locations with limited connectivity. A Canadian hydro plant reported a 20% improvement in grid stability after implementing GE IS200EISBH1AAB in its excitation system.

Related Products

GE IS200EROCH1ADD: Exciter regulator options card that communicates with GE IS200EISBH1AAB to coordinate ground fault detection and voltage control.

GE IS200EXHSG3AEC: High-speed ground detection module that receives conditioned signals from GE IS200EISBH1AAB for fault isolation.

GE IS200EPSMG2ADC: Exciter power supply module that provides 24V DC to GE IS200EISBH1AAB, ensuring uninterrupted operation.

GE IS200ESELH1AAA: Redundancy selector module that works with GE IS200EISBH1AAB to switch between primary and backup communication paths.

GE IS200HFPAG2ADC: High-frequency power filter that reduces EMI for GE IS200EISBH1AAB, enhancing signal integrity in noisy environments.

IS200EISBH1AAB

Installation and Maintenance

Pre-installation preparation: Before installing GE IS200EISBH1AAB, confirm compatibility with the target Mark VI/VIe system (software version 6.5+ for Mark VI, 7.0+ for Mark VIe) and EX2100 firmware. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to handle the module, and label all fiber-optic cables to avoid cross-connections. Verify the 24V DC power supply from the EPDM module meets voltage requirements (21.6–26.4V DC).

Maintenance recommendations: Perform monthly visual inspections to check for loose fiber-optic connectors, corrosion on terminals, or illuminated fault LEDs. Use a fiber-optic power meter to verify signal strength (≥-15dBm for transmitter, ≤-30dBm for receiver). Quarterly, test redundant communication paths by simulating a primary ISBus failure via the Mark VI/VIe HMI, ensuring failover occurs within 5ms. Replace GE IS200EISBH1AAB every 5–7 years or after 100,000 communication cycles to prevent component wear.

Product Guarantee

GE guarantees the reliability and performance of GE IS200EISBH1AAB with a 1-year standard warranty, covering all material defects and workmanship issues from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team, which specializes in Mark VI/VIe and EX2100 systems. For critical applications (e.g., nuclear power plants), GE offers extended warranty options (up to 3 years) and on-site commissioning services, where certified technicians validate GE IS200EISBH1AAB’s communication latency, signal accuracy, and redundancy features. Additionally, GE provides repair services for GE IS200EISBH1AAB, including fiber-optic transceiver testing and firmware updates in an OEM-approved environment to restore the module to factory specifications—ensuring long-term reliability in industrial automation systems.
