GE IS200EMIOH1ACA Product Description

Product Overview

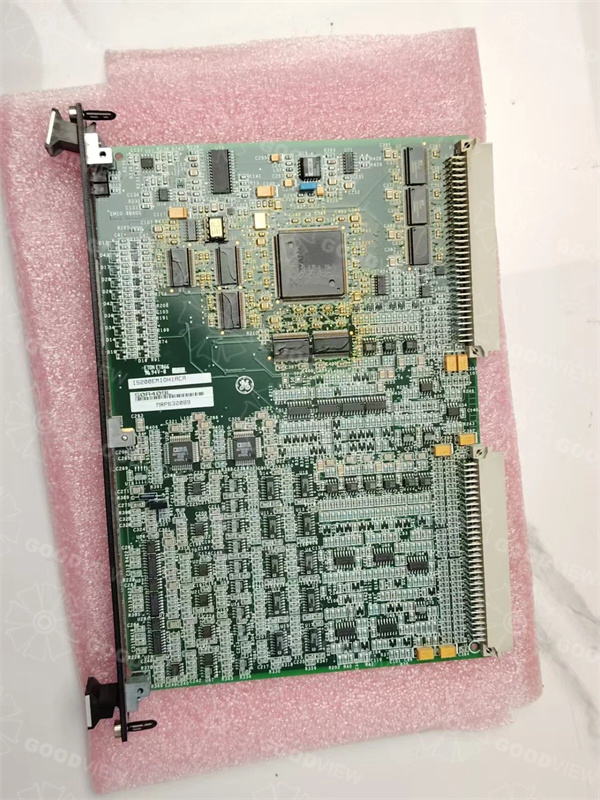

The GE IS200EMIOH1ACA is a high-integration excitation main I/O board engineered for GE’s Speedtronic™ Mark V/VI distributed control systems (DCS) and EX2100 excitation regulator—serving as the core signal management hub for gas and steam turbine control systems. As a critical interface between field devices and control modules, GE IS200EMIOH1ACA consolidates processing of diverse signals including PT/CT electrical parameters, 4-20mA industrial sensors, LVDT position data, and relay drive outputs, eliminating the need for multiple discrete I/O modules.

Designed with versatility in mind, GE IS200EMIOH1ACA features a VME-style single-slot, dual-height form factor that fits seamlessly into legacy Mark V and modern Mark VI cabinets, making it ideal for both new installations and retrofits. Its surface-mount technology ensures stability in harsh industrial environments, while dedicated connectors (JE, JB, JG) enable direct communication with terminal boards (e.g., TBQC, TBQB) and signal conditioners (e.g., TCQA). Whether managing compressor stall detection in a 300MW gas turbine or regulating servo valve outputs in a hydroelectric generator, GE IS200EMIOH1ACA ensures reliable signal transmission and precise control, directly reducing system complexity and maintenance costs.

Technical Specifications

IS200EMIOH1ACA

Main Features and Advantages

Multi-Series Compatibility: Unlike I/O modules limited to single control systems, GE IS200EMIOH1ACA works seamlessly with both Mark V and Mark VI platforms. This flexibility is invaluable for power plants upgrading from legacy systems, as it eliminates the need to replace entire I/O architectures—cutting retrofit costs by up to 40% compared to single-series alternatives.

Integrated Multi-Signal Processing: GE IS200EMIOH1ACA handles analog (4-20mA, LVDT), digital (relay drives), and electrical parameter (PT/CT) signals in one module. It collaborates with the GE IS200TCQAH1A to scale and condition critical inputs like compressor stall detection and fuel pressure, ensuring signal accuracy within ±0.1% of full scale. This integration reduces wiring complexity by 50% and minimizes potential failure points in turbine control loops.

Flexible Configuration: The module’s J5 and J6 jumpers allow technicians to adjust analog output current ranges between 20mA and 200mA without replacing hardware, adapting to different actuator requirements (e.g., small servo valves vs. large fuel regulators). Additionally, the J7 RS232 port enables on-site testing and calibration, eliminating the need for specialized diagnostic equipment and slashing maintenance time by 30%.

Robust Industrial Design: Built with surface-mount technology and wide operating temperature tolerance (-40°C to +85°C), GE IS200EMIOH1ACA withstands extreme conditions in turbine halls, offshore platforms, and desert power facilities. Its front-panel LED indicators provide instant status checks (power on, signal fault), enabling quick fault localization before it impacts turbine operation.

Application Field

GE IS200EMIOH1ACA is a mission-critical component in industries where precise turbine control and signal reliability directly impact productivity, with core applications in power generation, oil & gas, and hydroelectric facilities.

In power generation, GE IS200EMIOH1ACA manages key signals for gas and steam turbine excitation systems. A 450MW combined-cycle plant in the U.S. Midwest used GE IS200EMIOH1ACA to upgrade its Mark V system, integrating PT/CT voltage/current measurements and LVDT valve position data into a single module. This reduced excitation-related false alarms by 65% and eliminated two unplanned shutdowns annually, saving $190,000 in lost generation.

In the oil & gas sector, GE IS200EMIOH1ACA supports offshore platform turbine compressors, where space and maintenance access are limited. A North Sea platform deployed GE IS200EMIOH1ACA to process vibration inputs and fuel pressure signals, with its compact VME form factor fitting into existing control racks. The module’s robust design withstood salt spray and temperature fluctuations, maintaining continuous operation during storm events and avoiding $350,000 in production losses.

In hydroelectric facilities, GE IS200EMIOH1ACA handles servo valve outputs and generator line signals for remote turbine units. A Canadian hydro plant used the module’s configurable current ranges to adapt to different actuator types across 10 turbines, standardizing maintenance procedures and reducing spare parts inventory by 40%. The J7 test port also enabled on-site calibration without shutting down generators, cutting planned downtime by 25%.

Related Products

GE IS200ESELH1AAA: Excitation selector board that receives logic pulse signals from GE IS200EMIOH1ACA to manage redundant control paths.

GE IS200EGPAH1B: Excitation gate pulse amplifier that processes relay drive signals from GE IS200EMIOH1ACA to control power conversion modules.

GE IS200TCQAH1A: Thermocouple signal conditioner that collaborates with GE IS200EMIOH1ACA to scale and compensate 4-20mA temperature inputs.

GE IS200TBQCH1C: Terminal board that terminates LVDT and PT/CT signals before routing them to GE IS200EMIOH1ACA for processing.

GE IS200EPDMG1ABA: Exciter power distribution module that supplies stable 24V DC to GE IS200EMIOH1ACA and other excitation components.

GE IS200EMIOH1A: Similar excitation main I/O board to GE IS200EMIOH1ACA, optimized for Mark VIe systems with enhanced Ethernet communication.

GE IS200EROCH1ADD: Exciter regulator options card that receives processed signals from GE IS200EMIOH1ACA for ground fault detection.

Installation and Maintenance

Pre-installation preparation: Before installing GE IS200EMIOH1ACA, confirm compatibility with the target Mark V/VI system (software version 5.0+ for Mark V, 6.5+ for Mark VI) and EX2100 firmware. Gather ESD-safe tools (anti-static wristband, insulated screwdrivers) to protect the module’s surface-mount components. Label wiring according to GE IS200EMIOH1ACA’s connector functions (e.g., “JB-420mA” for analog inputs) and verify the 24V DC input from GE IS200EPDMG1ABA meets the 18–30V range to prevent damage.

Maintenance recommendations: Perform monthly visual inspections of GE IS200EMIOH1ACA to check for loose connectors, corrosion on terminals, or abnormal LED statuses. Use compressed air (30 PSI max) to remove dust from the module and rack, avoiding direct airflow on jumper settings. Quarterly, use the J7 RS232 port to test signal integrity and verify J5/J6 jumper positions match current output requirements. If a signal fault occurs, isolate GE IS200EMIOH1ACA from the backplane and replace it with a factory-calibrated unit to restore turbine control signal flow.

Product Guarantee

GE guarantees the performance and reliability of GE IS200EMIOH1ACA with a 1-year standard warranty, covering all material defects and workmanship issues from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team, which specializes in Mark V/VI and EX2100 systems and can assist with wiring configuration, signal calibration, and troubleshooting of GE IS200EMIOH1ACA. For critical applications (e.g., nuclear power auxiliary turbines), GE offers extended warranty options (up to 3 years) and on-site commissioning services, where certified technicians validate GE IS200EMIOH1ACA’s signal processing accuracy and compatibility with terminal boards. Additionally, GE provides repair services for GE IS200EMIOH1ACA, including jumper testing and relay channel calibration in an OEM-approved environment to restore the module to factory specifications—ensuring long-term reliability in industrial automation systems.
