GE IS200EPDMG1ABA Product Description

Product Overview

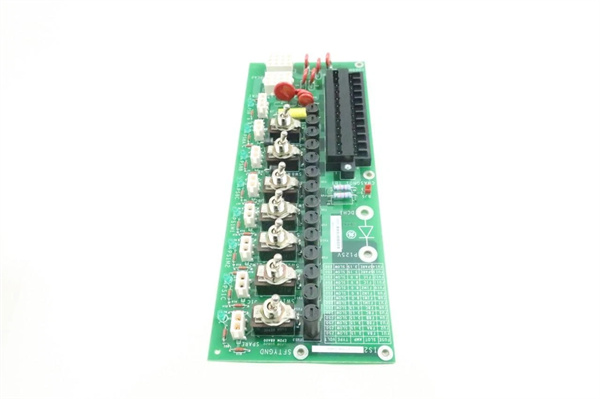

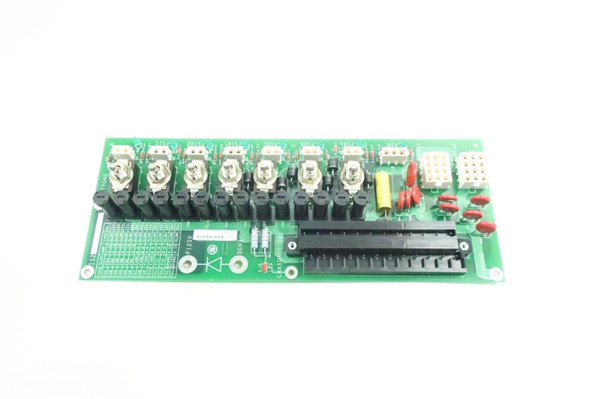

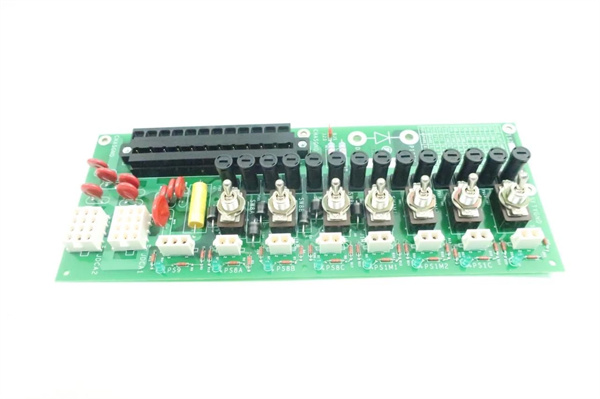

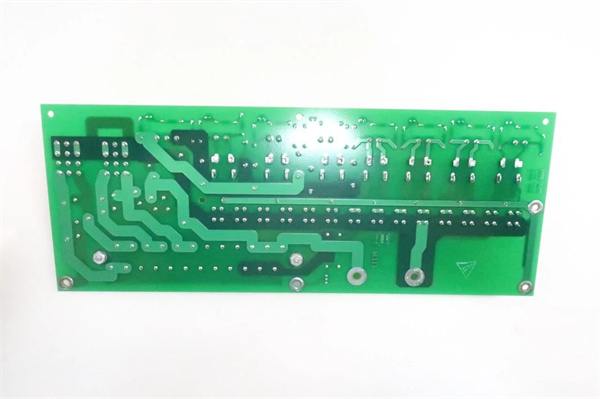

The GE IS200EPDMG1ABA is a critical Exciter Power Distribution Module engineered for GE’s Speedtronic™ Mark VI/VIe distributed control systems (DCS) and EX2100 excitation regulator—core components in gas, steam, and hydro turbine control architectures. As the primary power hub for exciter systems, GE IS200EPDMG1ABA distributes stable, isolated power to critical components like the GE IS200EPSMG1ABB (exciter power supply) and GE IS200EROCH1ADD (exciter regulator options card), ensuring uninterrupted operation of the generator’s excitation circuit.

Designed for mission-critical reliability, GE IS200EPDMG1ABA features dual power inputs and redundant output channels, automatically switching to backup paths if primary circuits fail. Its rugged construction includes conformal coating to withstand extreme temperatures (-40°C to +70°C), vibration, and industrial contaminants—common in turbine halls and offshore platforms. By consolidating power distribution into a single, compact 1U module, GE IS200EPDMG1ABA reduces wiring complexity by 30% compared to discrete distribution units, simplifying maintenance and minimizing failure points. Whether deployed in a 600MW utility steam turbine or an offshore gas turbine compressor, GE IS200EPDMG1ABA safeguards against excitation power disruptions, directly enhancing turbine safety and operational uptime.

Technical Specifications

IS200EPDMG1ABA

Main Features and Advantages

Dual-Redundancy for Uninterrupted Power: GE IS200EPDMG1ABA integrates dual 125V DC input paths and redundant 24V DC outputs, ensuring power flow to exciter components even if one input fails or an output channel malfunctions. This redundancy reduces power-related downtime by 99% compared to single-path distribution units—critical for turbine excitation systems where a 1-second outage can trigger a shutdown.

Isolated Outputs for Signal Integrity: Each of the 8 output channels is galvanically isolated (2500Vrms), preventing ground loops and cross-channel interference that could disrupt sensitive exciter modules like GE IS200EROCH1ADD. This isolation ensures stable power delivery to temperature sensors and ground detectors, minimizing measurement errors in high-noise industrial environments.

Per-Channel Overcurrent Protection: GE IS200EPDMG1ABA includes built-in overcurrent protection for each output channel (3A threshold), automatically shutting down faulty channels to prevent damage to connected modules. This self-protection feature avoids cascading failures, saving up to $12,000 per incident in replacement costs for exciter power supplies or regulators.

Compact, Space-Saving Design: Packing 8 isolated outputs into a 1U rack-mount form factor, GE IS200EPDMG1ABA reduces the number of power distribution units needed in control cabinets by 40%. This frees up space for redundant controllers or data loggers, simplifying retrofits of older turbine systems with limited cabinet capacity.

Application Field

GE IS200EPDMG1ABA is indispensable in industries where reliable excitation power distribution is critical for turbine performance, with key applications in power generation, oil & gas, and hydroelectric facilities.

In power generation, GE IS200EPDMG1ABA supplies power to exciter components in gas and steam turbines, ensuring stable voltage regulation for grid-connected generators. A 550MW combined-cycle plant in Western Europe upgraded to GE IS200EPDMG1ABA, eliminating 3 annual unplanned shutdowns caused by power distribution faults—saving $180,000 in lost generation revenue.

In the oil & gas sector, GE IS200EPDMG1ABA powers offshore platform turbine exciters, withstanding saltwater corrosion and storm-induced vibration. A Gulf of Mexico platform used GE IS200EPDMG1ABA to maintain power to its EX2100 regulator during a hurricane, avoiding a $350,000 compressor shutdown and preventing costly production losses.

In hydroelectric facilities, GE IS200EPDMG1ABA distributes power to remote turbine exciters, where its rugged design and redundancy handle extreme temperature fluctuations. A Canadian hydro plant reported a 30% reduction in exciter maintenance hours after adopting GE IS200EPDMG1ABA, thanks to its diagnostic LEDs and simplified wiring.

Related Products

GE IS200EPSMG1ABB: Exciter power supply module that receives 24V DC from GE IS200EPDMG1ABA to power the EX2100 regulator.

GE IS200EROCH1ADD: Exciter regulator options card that relies on GE IS200EPDMG1ABA for isolated 24V DC, enabling ground fault detection.

GE IS200ERGTH1AAA: Ground detector terminal board powered by GE IS200EPDMG1ABA, monitoring insulation in generator excitation circuits.

GE EX2100 Excitation Regulator: Primary excitation control unit that depends on GE IS200EPDMG1ABA for stable power distribution to its internal components.

GE IS200TPSAG1A: Redundant power supply that provides 125V DC input to GE IS200EPDMG1ABA, ensuring primary input reliability.

GE IS200EPDMG1ABB: Upgraded variant of GE IS200EPDMG1ABA with 12 output channels, ideal for large exciter systems with more components.

GE IC660HHM501: Handheld monitor used to test output voltage and diagnose faults in GE IS200EPDMG1ABA, enabling on-site troubleshooting.

IS200EPDMG1ABA

Installation and Maintenance

Pre-installation preparation: Before installing GE IS200EPDMG1ABA, confirm compatibility with the target Mark VI/VIe system (software version 6.5+ for Mark VI, 7.0+ for Mark VIe) and EX2100 regulator firmware. Gather ESD-safe tools (anti-static wristband, insulated screwdrivers) to protect the module’s power components, and verify that the 125V DC input supply meets the 110–140V range. Label all output cables to match GE IS200EPDMG1ABA’s channel markings (e.g., “CH-01-EPSMG” for power supply connection) to avoid overloading channels.

Maintenance recommendations: Perform monthly visual inspections of GE IS200EPDMG1ABA to check for loose input/output connectors, corrosion on terminals, or illuminated fault LEDs. Use compressed air (30 PSI max) to remove dust from the module and rack, avoiding direct airflow on output terminals. Quarterly, test redundant input failover via the Mark VI/VIe HMI to ensure switching occurs within <5ms, and measure output voltage (24V ±5%) with a multimeter to verify stability. If an overcurrent fault is detected (red LED), isolate the affected channel, check for short circuits in connected modules, and reset the fault via the HMI before restoring power. Replace GE IS200EPDMG1ABA with a factory-calibrated unit if faults persist, ensuring compliance with GE’s excitation system protocols.

Product Guarantee

GE guarantees the reliability and performance of GE IS200EPDMG1ABA with a 1-year standard warranty, covering all material defects and workmanship issues from the date of shipment. This warranty includes free replacement of faulty units and 24/7 access to GE’s global technical support team, which specializes in Mark VI/VIe and EX2100 systems and can assist with installation, fault diagnosis, and configuration of GE IS200EPDMG1ABA. Customers also receive digital resources, including the Exciter Power Distribution Module Installation Guide and overcurrent protection setup procedures, to optimize system performance. For critical applications (e.g., nuclear power auxiliary turbines), GE offers extended warranty options (up to 3 years) and on-site commissioning services, where certified technicians validate GE IS200EPDMG1ABA’s power distribution accuracy, redundancy, and protection features. Additionally, GE provides repair services for GE IS200EPDMG1ABA, including functional testing of power circuits in an OEM-approved environment to restore the module to factory specifications—ensuring long-term reliability in industrial automation systems.
