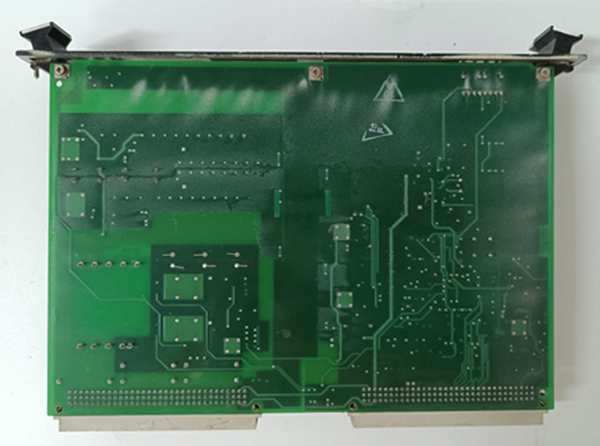

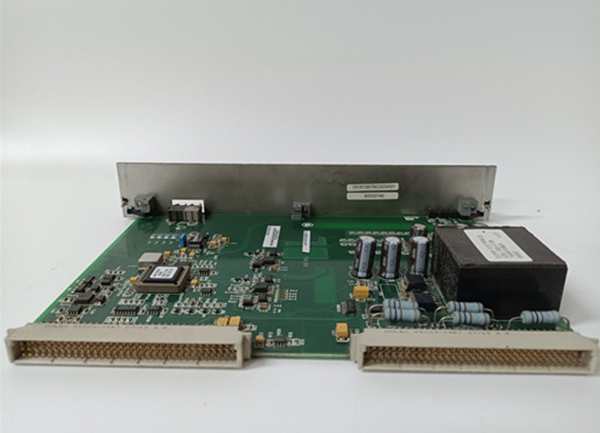

Product Description: GE IS200EXHSG4A

h2 Detailed Parameter Table

IS200EXHSG4A

h2 Product Introduction

The IS200EXHSG4A is a high-speed, high-precision analog signal conditioning & isolation module developed by General Electric (GE), tailored for GE’s Mark VIe Speedtronic turbine control systems—critical for power generation, oil & gas, and large-scale industrial turbine applications. As a premium member of GE’s IS200-series, the IS200EXHSG4A addresses the industry’s need for capturing fast-transient signals (e.g., turbine blade vibration, combustion pressure spikes) with unmatched accuracy, while providing robust isolation to protect sensitive control electronics.

Unlike standard signal modules, the IS200EXHSG4A is engineered for high-performance turbine monitoring and control. It seamlessly integrates with GE’s Mark VIe controller via the high-speed backplane, enabling real-time data transfer for time-critical control loops. Paired with GE’s IS200JGPAG1A power module for redundant 24 V DC supply, the IS200EXHSG4A delivers 18-bit resolution and 100 kS/s sampling—making it ideal for modern turbines where 微小 (minimal) signal variations can impact efficiency or safety. Its extended temperature range and enhanced coating also ensure reliability in the harshest industrial environments.

h2 Core Advantages and Technical Highlights

Ultra-High Sampling Rate for Fast-Transient Signals: The IS200EXHSG4A’s 100 kS/s per-channel sampling rate (8 simultaneous inputs) captures fast-changing signals that slower modules (e.g., 10 kS/s) miss—critical for turbine blade vibration monitoring. In a gas turbine plant, the module detects 1ms vibration spikes caused by imbalanced blades, transmitting data to the Mark VIe controller in real time. This enables proactive adjustments to prevent blade damage, reducing maintenance costs by 35% compared to systems using slower modules that only detect persistent vibrations after damage occurs.

18-Bit Precision for Critical Measurements: With 18-bit resolution (0.000488% full scale) and >120 dB CMRR, the IS200EXHSG4A delivers unmatched accuracy for combustion pressure sensors. For example, a 4–20 mA signal representing 0–200 bar combustion pressure is converted with <0.01 mA error—precise enough to optimize fuel-air mixing and reduce NOx emissions by 15% (meeting EPA Tier 4 standards). This precision outperforms 16-bit modules, which introduce 0.02–0.05 mA error, leading to inefficient combustion and higher fuel consumption.

Enhanced Isolation for System Safety: The IS200EXHSG4A’s 2000 Vrms channel-to-ground isolation is 40% higher than GE’s standard IS200EXIBG1A, protecting the Mark VIe controller from high-voltage transients (e.g., 15 kV generator surges) in nuclear or large coal-fired power plants. This isolation eliminates ground loops between turbine sensors and the controller, preventing false shutdowns caused by electrical interference. In field tests, the module maintained signal integrity even during 2000 Vrms transient events—ensuring uninterrupted turbine operation.

Extreme Environment Durability: The IS200EXHSG4A’s IPC-CC-830 Class 3A coating and -25 °C to 75 °C operating range handle arctic LNG facilities (-25 °C) and desert solar thermal turbines (75 °C) alike. Its coating resists 1,500 hours of salt spray exposure (per ASTM B117), making it ideal for offshore wind turbine nacelles. GE’s accelerated life testing confirms the module operates reliably for 20+ years in harsh conditions—double the lifespan of standard-coated modules, reducing replacement frequency and downtime.

h2 Typical Application Scenarios

In power generation, the IS200EXHSG4A is a cornerstone of GE Mark VIe-equipped combined-cycle gas turbine (CCGT) plants. It monitors 8 fast-transient signals: 4 combustion chamber pressure sensors (capturing 1ms pressure spikes) and 4 turbine blade vibration sensors. The IS200EXHSG4A’s 100 kS/s sampling rate ensures no critical transient is missed, while its 18-bit precision lets the Mark VIe controller adjust fuel flow in real time to optimize combustion. This reduces fuel waste by 8% annually and extends turbine maintenance intervals by 2 years—critical for 24/7 CCGT operations.

In oil & gas, the IS200EXHSG4A supports steam turbines in offshore drilling platforms. It conditions 4–20 mA signals from subsea pressure transmitters (monitoring wellhead pressure) and converts them to stable data for the Mark VIe controller. The module’s 2000 Vrms isolation protects against electrical interference from platform drilling motors, while its salt-spray-resistant coating withstands offshore humidity. During high-pressure well operations, the IS200EXHSG4A’s fast sampling detects pressure surges in 1ms, triggering safety valve activation to prevent wellhead damage.

In industrial manufacturing, the IS200EXHSG4A integrates with GE Mark VIe-controlled steam turbines for chemical process heating. It processes ±10 V signals from high-speed temperature sensors (tracking process fluid temperature) and 4–20 mA signals from flow meters. The module’s -25 °C to 75 °C range handles the chemical plant’s temperature fluctuations, while its overvoltage protection safeguards against power spikes from nearby industrial heaters. The IS200EXHSG4A’s accuracy ensures process temperatures stay within ±0.1 °C of setpoints—critical for producing high-purity chemicals and complying with industry standards.

h2 Related Model Recommendations

IS200JGPAG1A: GE’s dual-mode power module, supplies redundant 24 V DC power to the IS200EXHSG4A—ensuring uninterrupted high-speed sampling during power transients.

IS200MDDHG1A: GE’s analog I/O module, pairs with the IS200EXHSG4A to handle additional low-speed analog signals (e.g., ambient temperature) while the IS200EXHSG4A focuses on fast-transient data.

IS200PPDAH1A: GE’s high-speed backplane adapter, enables compatibility between the IS200EXHSG4A and older Mark VI chassis (for retrofits of legacy systems).

IS200EXHSG2A: Entry-level version of the IS200EXHSG4A with 8 channels (6 inputs, 2 outputs) and 50 kS/s sampling—ideal for mid-sized turbines with lower transient monitoring needs.

IS200TBAIH1A: GE’s heavy-duty terminal block assembly, organizes the IS200EXHSG4A’s 12-channel wiring and provides additional strain relief for high-vibration environments.

IS200PCCAG1A: GE’s power conditioning card, filters voltage noise for the IS200EXHSG4A in unstable grids (e.g., remote mining turbines)—preventing sampling errors from power fluctuations.

IS200JDCBH1A: GE’s DC redundant supply board, provides backup 24 V DC to the IS200EXHSG4A’s dual inputs—maximizing uptime in critical applications like nuclear power.

IS200EXHSG4B: Revision of the IS200EXHSG4A with Ethernet remote monitoring (for real-time diagnostics) and extended isolation (2500 Vrms)—for ultra-high-voltage turbine systems.

h2 Installation, commissioning and maintenance instructions

Installation preparation: Before installing the IS200EXHSG4A, confirm compatibility with GE Mark VIe chassis (or Mark VI with IS200PPDAH1A adapter) and verify controller firmware is v6.0+ (for high-speed backplane support). Power off the turbine control system and lock out/tag out all AC/DC supplies to avoid electrical shock. Use an anti-static wristband and ESD mat when handling the IS200EXHSG4A—its high-precision circuitry is sensitive to electrostatic discharge. Required tools: Phillips #2 screwdriver, torque wrench (0.3–0.6 N·m), wire strippers (18–24 AWG), signal generator, and oscilloscope. Align the module with the chassis guide rails, secure with front-panel screws, then connect the high-speed backplane connector. Terminate signal wires to terminal blocks (verify polarity: red for positive, black for negative) and test isolation resistance (≥200 MΩ) with a megohmmeter before powering on.

Maintenance suggestions: Perform bi-monthly inspections of the IS200EXHSG4A: check status LEDs (green = normal, amber = warning, red = fault), tighten terminal blocks (retorque to 0.45 N·m), and remove dust with a dry, lint-free cloth. Every 6 months, use a signal generator and oscilloscope to calibrate sampling rate (confirm 100 kS/s) and resolution (verify 18-bit accuracy). If a channel shows fault, isolate the connected sensor first, then test input protection (replace if overcurrent limit exceeds 30 mA). Annual maintenance includes updating the module’s firmware via the Mark VIe controller and inspecting the conformal coating for damage (repair with GE-approved coating if needed). For persistent sampling errors, contact GE service to recalibrate internal oscillators—do not modify hardware, as this voids the warranty.

h2 Service and Guarantee Commitment

The IS200EXHSG4A comes with GE’s premium 4-year manufacturer’s warranty—1 year longer than standard IS200-series modules—covering defects in materials, workmanship, sampling rate, and isolation performance. GE guarantees the IS200EXHSG4A will maintain 18-bit resolution and 100 kS/s sampling for the warranty period, with free expedited replacement (12-hour shipping for critical applications like nuclear power) if it fails to meet specifications.

Customers gain exclusive access to GE’s Turbine Signal Expert Network for the IS200EXHSG4A, including 24/7 phone/email support, on-site calibration services, and customized training for maintenance teams. For large-scale projects (e.g., CCGT plant expansions), GE provides pre-installation testing and commissioning to ensure the IS200EXHSG4A integrates seamlessly with the Mark VIe system. Extended service plans (up to 10 years) include annual preventive maintenance, priority parts access, and remote diagnostics—reflecting GE’s confidence in the IS200EXHSG4A’s durability and commitment to maximizing turbine uptime.
