Description

GE IS200ISBBG1AAB Mark VIe Basic Intelligent Signal Conditioning Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS200ISBBG1AAB** Manufacturer | GE General Electric Product Category | Industrial Basic Intelligent Signal Conditioning Module Series | Mark VIe (Turbine Control System) Signal Processing Type | Analog Signal Isolation, Amplification, Filtering Input Signal Types | 4-20mA, 0-10V, Standard Thermocouple (K/J type) Output Signal Types | Standard 4-20mA, 0-10V (Isolated) Number of Channels | 8 Input/8 Output (1:1 Correspondence) Isolation Voltage | 2000V AC (Input to Output, Channel to Channel) Accuracy | ±0.1% of Full Scale Linearity Error | ≤±0.05% of Full Scale Filter Bandwidth | Fixed (10Hz, 100Hz, 1kHz Optional) Temperature Drift | ≤10ppm/°C Communication Protocols | GE SRTP Operating Temperature | -10°C to 65°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 12 (Chassis Mount) Physical Dimensions | 145mm × 125mm × 32mm Certifications | UL 508, CE, CSA, IEC 61010-1 Power Supply | 24V DC ±10%, 0.6A Max

Product Introduction

The **GE IS200ISBBG1AAB** is a cost-effective basic intelligent signal conditioning module customized for GE’s Mark VIe turbine control system, focusing on reliable processing of conventional signals from turbine field sensors and converting them into standard signals for the control system. As a practical “signal optimizer” in the Mark VIe control system’s basic signal chain, this module is mainly used to process signals from turbine conventional sensors such as common thermocouples (temperature measurement), standard pressure transmitters, and level transmitters. It can effectively suppress common electromagnetic interference, amplify moderately weak signals, and convert non-standard signals into standard 4-20mA or 0-10V signals that the control system can directly identify, ensuring the basic accuracy and stability of signal transmission. Its balanced performance, high cost-effectiveness, and easy operation make it an ideal signal conditioning equipment for conventional turbine monitoring scenarios such as thermal power plant auxiliary turbines, industrial boiler steam turbines, and small hydropower turbines.

What distinguishes the **GE IS200ISBBG1AAB** is its practical signal processing capability, high cost-effectiveness, and easy maintenance—advantages that meet the core demand for stable and economical signal transmission in conventional turbine control environments. Leveraging GE’s mature signal processing technology, the module adopts a dedicated operational amplifier for each channel, realizing independent processing of 8 channels without mutual interference. The accuracy reaches ±0.1% of full scale, and the temperature drift is controlled within 10ppm/°C, ensuring stable signal processing performance in general temperature fluctuation environments. It integrates 2000V AC isolation between input and output, effectively blocking common ground loops and general-mode interference generated by turbine auxiliary equipment. With simplified functional design, it reduces operation complexity while ensuring basic performance, making on-site commissioning and maintenance easier. By building a “stable signal link” between field conventional sensors and the control system, it provides reliable support for the normal operation of conventional turbines at a reasonable cost.

Core Advantages and Technical Highlights

Conventional Signal Adaptive Processing: The **IS200ISBBG1AAB** supports mainstream conventional input signals, including standard 4-20mA/0-10V signals and common thermocouple (K/J type) millivolt-level signals. Each channel can be simply configured through the upper system to match different conventional sensor types, eliminating the need for additional signal conversion modules in general scenarios. For example, when processing turbine lubricating oil temperature signals collected by K-type thermocouples, the module automatically provides matching excitation, converts the millivolt-level temperature signals into standard 4-20mA signals, and transmits them to the Mark VIe control system, with a temperature measurement error of less than ±0.3°C, which fully meets the monitoring requirements of conventional turbine temperature parameters.

Reliable Isolation and Interference Suppression: The module adopts input-output dual-port isolation technology with an isolation voltage of 2000V AC, which can effectively suppress common-mode interference and differential-mode interference generated by turbine auxiliary motors, pumps, and other equipment. Each channel is equipped with a fixed-bandwidth digital filter, and users can select filter bandwidths of 10Hz, 100Hz, or 1kHz according to the signal type during configuration. For example, when processing turbine cooling water pressure signals (medium-frequency), selecting a 100Hz filter can effectively filter out mechanical vibration noise of the water pump, ensuring the stability of pressure monitoring data.

Basic Status Monitoring and Easy Configuration: The **IS200ISBBG1AAB** mainly supports GE SRTP communication protocol, realizing real-time synchronization of signal processing status and basic configuration parameters with the Mark VIe control module. Maintenance personnel can remotely monitor the input/output signal values and channel fault information of each channel through the upper system. The module’s configuration parameters are simplified, focusing on practical functions such as channel signal type and filter bandwidth selection, which can be completed through the standard interface of Mark VIe Configuration Studio without professional complex operations. When a channel fault occurs (such as sensor open circuit), the module immediately sends an alarm signal to the upper system and maintains the last valid output value to ensure the stability of the control system.

Conventional Environment Adaptability and Basic Protection: The module adopts a practical structural design, with an operating temperature range of -10°C to 65°C, which can adapt to the general environment of turbine control rooms with moderate temperature changes and normal dust levels. It integrates basic protection functions such as input/output overvoltage, overcurrent, and reverse polarity, which can effectively avoid module damage caused by common sensor wiring errors or short-term abnormal signals, improving the basic reliability of the system. Its simplified design reduces the number of components while ensuring practical performance, lowering the probability of fault occurrence and facilitating on-site maintenance.

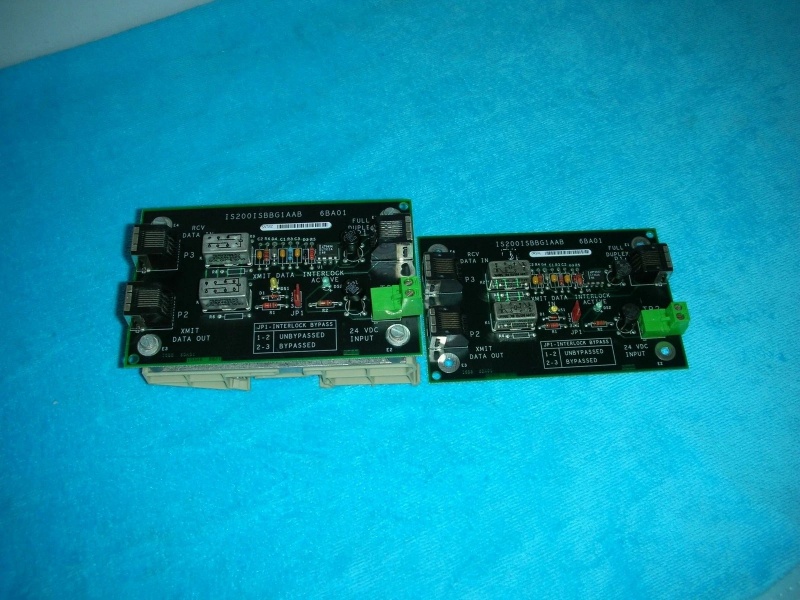

IS200ISBBG1AAB

Typical Application Scenarios

In thermal power plant auxiliary turbine (induced draft fan turbine) temperature monitoring systems, the **IS200ISBBG1AAB** serves as the core signal conditioning unit. It processes signals from 8 K-type thermocouple sensors installed at the turbine bearing, motor stator, and other key positions. The module provides matching constant voltage excitation for the thermocouples, amplifies the millivolt-level temperature signals, filters out high-frequency interference from the fan and auxiliary power lines through a 10Hz fixed filter, and converts them into standard 4-20mA signals. Through SRTP protocol, the conditioned signals are transmitted to the Mark VIe control system within 8ms. When the bearing temperature exceeds the set threshold, the control system immediately issues a fan speed reduction command based on the stable temperature data, preventing bearing burnout. The module’s 2000V AC isolation function effectively avoids ground loop interference between the thermocouple wiring and the control system, ensuring the temperature measurement error is within ±0.5°C, which fully meets the monitoring requirements of auxiliary turbines.

In industrial boiler steam turbine pressure and level monitoring systems (such as textile mill self-provided power turbines), the **IS200ISBBG1AAB** undertakes the signal conditioning task of 8 conventional sensors, including 4 pressure transmitters (measuring steam pressure, feedwater pressure) and 4 level transmitters (measuring boiler water level, oil tank level). The sensors output 4-20mA or 0-10V signals, which are easily interfered by the workshop’s motor equipment and power lines. The module’s 2000V AC isolation and 100Hz fixed filter functions effectively suppress the interference, and the linearity error of the conditioned signals is ≤±0.05% of full scale. The module communicates with the Mark VIe control system through SRTP protocol, and maintenance personnel can remotely monitor the pressure, level data, and module status through the on-site HMI. When the boiler water level is too low, the module immediately sends an alarm signal to the control system, which triggers the feedwater adjustment mechanism to ensure the safe operation of the steam turbine. The module’s -10°C to 65°C operating temperature range adapts to the temperature changes of the workshop control room, and its simple structure is convenient for on-site maintenance.

In small hydropower plant turbine oil system monitoring systems, the **IS200ISBBG1AAB** processes signals from 8 conventional sensors, including 6 J-type thermocouples (measuring lubricating oil temperature, hydraulic oil temperature) and 2 pressure transmitters (measuring oil supply pressure). The thermocouples output weak millivolt-level signals, which are easily affected by the hydropower plant’s generator auxiliary equipment. The module’s operational amplifier amplifies the weak signals appropriately, and the 10Hz fixed filter filters out high-frequency electromagnetic noise. The conditioned signals are converted into standard 4-20mA signals and transmitted to the Mark VIe control system. The module’s dual-port isolation technology prevents the sensor signals from interfering with the control system, ensuring the reliability of oil system parameter monitoring. When the lubricating oil temperature exceeds the safety threshold, the module sends an alarm signal to the control system, which starts the cooling system; when the oil supply pressure is too low, it triggers the standby oil pump to start, avoiding turbine bearing damage due to oil shortage and ensuring the stable operation of the small hydropower turbine.

Related Model Recommendations

**IS200ISBBG2AAB**: Extended-channel variant of **IS200ISBBG1AAB**, supporting 16 input/16 output channels, suitable for conventional turbine monitoring systems with more sensors.

**IS200MACCH1A**: Standard Mark VIe control module that receives and processes the conditioned signals from **IS200ISBBG1AAB**, executes conventional turbine control logic, and issues control commands.

**IS200RAPAG1BBA**: Mark VIe basic redundant power adapter module that provides stable 24V DC power for **IS200ISBBG1AAB**, ensuring continuous and reliable signal processing.

**GE 3051 Pressure Transmitter**: Conventional high-reliability pressure transmitter that matches **IS200ISBBG1AAB**, providing stable 4-20mA signals for turbine pressure monitoring.

**IC754VSF08CTD**: Standard monitoring HMI that displays the real-time input/output signal values and fault information of **IS200ISBBG1AAB**, facilitating on-site monitoring and operation.

**IS200MCCPG1A**: Basic Mark VIe communication module that transmits the signal processing data of **IS200ISBBG1AAB** to the plant-level conventional SCADA system, ensuring basic data transmission needs.

**IS200TDBPG1A**: Mark VIe standard signal terminal block module, providing standardized wiring interfaces for **IS200ISBBG1AAB** and field conventional sensors, simplifying on-site wiring.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS200ISBBG1AAB**, power off the Mark VIe control cabinet and field sensor circuits, and confirm the mounting slot compatibility (reserve ≥8cm heat dissipation space around the module). The input terminals must be correctly connected to the field conventional sensors (pay attention to the polarity of thermocouples and current signals), and the output terminals to the Mark VIe I/O modules. Use shielded twisted-pair cables for signal wiring, with the shield grounded at the control cabinet end (single-point grounding) to avoid interference. Configure module parameters (channel signal type, filter bandwidth selection) via Mark VIe Configuration Studio. Perform insulation resistance testing (input/output to ground ≥200MΩ) and loop continuity testing before power-on to ensure wiring correctness.

Maintenance suggestions: Conduct daily remote monitoring of the input/output signal values and channel status of **IS200ISBBG1AAB** via the upper system, focusing on checking whether the signal values are consistent with the field sensor status. Perform monthly on-site inspections: clean dust on the module and terminal blocks, check wiring terminal tightness (torque ≥1.0N·m), and measure module surface temperature (normal ≤65°C). Calibrate signal processing accuracy quarterly using a standard signal calibrator, ensuring the error is within ±0.1% of full scale. Verify filter effectiveness and isolation performance semi-annually. Conduct annual insulation resistance testing (input to output ≥2000MΩ at 2000V AC). Update module firmware annually via GE’s local technical support platform, and back up configuration parameters before updating. After maintenance, perform a simple system test to ensure the consistency between the conditioned signals and the actual sensor data.

Service and Guarantee Commitment

GE General Electric provides a 48-month quality guarantee for the **IS200ISBBG1AAB**, covering manufacturing defects, signal processing accuracy degradation, channel failure, and communication malfunction under normal operating conditions. Our technical team offers 8×5 on-site and remote assistance, including module configuration guidance, basic fault diagnosis, and maintenance training. Customers can obtain Mark VIe basic signal conditioning configuration tools and module technical manuals for free during the guarantee period. Priority service customers enjoy 48-hour emergency replacement of faulty modules and on-site technical support services, ensuring minimal downtime for conventional turbine signal conditioning systems. For batch application projects, we provide customized on-site installation and commissioning guidance services to improve the efficiency of project implementation.
