Description

GE IS200IVFBG1AAA Mark VIe Intelligent Valve Feedback Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS200IVFBG1AAA** Manufacturer | GE General Electric Product Category | Industrial Intelligent Valve Feedback Module Series | Mark VIe (Turbine Control System) Application Object | Turbine Control Valves, Regulating Valves, Safety Valves Feedback Signal Type | Position Feedback (4-20mA), Status Feedback (Digital) Position Sensing Accuracy | ±0.1% of Full Stroke Position Resolution | 0.01% of Full Stroke Analog Input Channels | 4 Differential Inputs (for Position Transducer) Digital Input Channels | 8 Optically Isolated Inputs (Valve Status: Open/Close/Limit) Digital Output Channels | 8 Relay Outputs (Valve Control: Enable/Test/Alarm) Communication Protocols | GE SRTP, HART 7.0, MODBUS RTU Response Time | ≤2ms (Digital Signals), ≤10ms (Analog Position Signals) Isolation Voltage | 2000V AC (Signal to Power, Channel to Channel) Operating Temperature | -20°C to 70°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 4X (Terminal Housing Optional) Physical Dimensions | 145mm × 125mm × 32mm Certifications | UL 508, CE, CSA, IEC 61508 (SIL 2), ATEX (Zone 2 Optional) Power Supply | 24V DC ±10%, 0.5A Max

Product Introduction

The **GE IS200IVFBG1AAA** is a high-precision intelligent valve feedback module tailored for GE’s Mark VIe turbine control system, specializing in real-time collection, processing, and transmission of turbine valve status signals, as well as issuing auxiliary control commands. As a core link connecting the turbine control system and valve execution components in GE’s industrial valve control portfolio, this module is mainly used with critical turbine valves such as main steam valves, governor valves, fuel control valves, and emergency shutdown valves. It can accurately capture valve position information, switch status, and fault signals, and feed them back to the upper control system in real time, while receiving control instructions to realize auxiliary valve control such as enable and test. Its ultra-high position sensing accuracy, multi-protocol communication capability, and SIL 2 functional safety certification make it an essential equipment for valve status monitoring and control in thermal power plants, nuclear power auxiliary systems, offshore gas turbines, and other critical turbine application scenarios.

What distinguishes the **GE IS200IVFBG1AAA** is its ultra-precise position feedback, intelligent signal processing, and reliable safety guarantee—advantages that meet the core demand for high-reliability and high-accuracy valve status monitoring in turbine control scenarios. Leveraging GE’s advanced valve feedback processing technology, the module adopts a dual-channel position signal acquisition design, which can simultaneously collect signals from two position transducers for mutual verification, ensuring the authenticity of position data. The position sensing accuracy reaches ±0.1% of full stroke, which can capture subtle position changes of the valve (such as a 0.01mm variation in the stroke of a small regulating valve). It integrates HART 7.0 communication protocol, supporting on-site parameter configuration and fault diagnosis without stopping the machine. With 2000V AC high-voltage isolation and SIL 2 functional safety certification, it can effectively resist electromagnetic interference in harsh industrial environments and ensure reliable transmission of valve safety signals. By building an “intelligent perception bridge” between the turbine control system and valves, it provides a solid guarantee for the precise control and safe operation of the turbine.

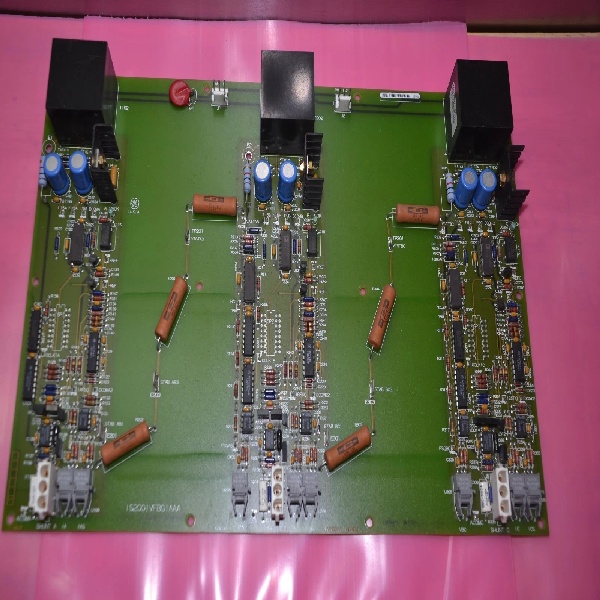

IS200IVFBG1AAA

Core Advantages and Technical Highlights

Ultra-Precise Valve Position Feedback: The **IS200IVFBG1AAA** adopts a high-resolution signal processing circuit, matching with linear variable differential transformers (LVDTs) or magnetostrictive position transducers commonly used in turbine valves, with a position sensing accuracy of ±0.1% of full stroke and a resolution of 0.01% of full stroke. It is equipped with 4 analog input channels, which can connect two sets of position transducers (dual redundancy) for each key valve, and the internal logic unit performs weighted average or voting processing on the two-channel signals to eliminate abnormal signals caused by transducer faults. For example, when monitoring the main steam valve of a thermal power turbine, it can accurately feed back the valve opening to the control system with an error of less than 0.05mm, ensuring the precise control of steam intake.

Multi-Dimensional Valve Status Monitoring: The module integrates 8 digital input channels and 8 digital output channels, realizing comprehensive monitoring and auxiliary control of valve status. Digital input channels are used to collect discrete signals such as valve full-open/full-close status, limit switch action, solenoid valve status, and manual/automatic mode, with a response time of ≤2ms, which can immediately capture valve emergency status. Digital output channels adopt high-reliability relays, which can issue control signals such as valve enable, test, and local alarm, and the relay mechanical life is more than 10 million times, ensuring stable operation. The module’s internal intelligent processing unit can realize logic judgment such as “position signal and switch status consistency verification”, and automatically trigger an alarm when a contradiction occurs, helping to identify faults such as valve jamming.

Dual-Protocol Communication and On-Site Intelligence: The **IS200IVFBG1AAA** supports GE SRTP and HART 7.0 dual communication protocols. Through SRTP protocol, it realizes high-speed data synchronization with the Mark VIe main control module, ensuring that valve status data is transmitted to the upper system within 10ms. The HART 7.0 protocol supports on-site communication with handheld communicators (such as GE 475 Field Communicator), enabling on-site configuration of module parameters (such as position signal range, alarm threshold), reading of historical fault records, and online calibration without stopping the turbine control system. This on-site intelligent function greatly improves the maintenance efficiency of the valve control system and reduces the downtime caused by maintenance.

Safety Compliance and Strong Anti-Interference: The module has passed IEC 61508 SIL 2 functional safety certification, and its hardware and software design fully complies with the requirements of safety-related systems, ensuring reliable transmission of valve safety signals (such as emergency shutdown valve status). It adopts 2000V AC high-voltage isolation between signal circuits and power circuits, and between different channels, effectively avoiding cross-interference between signals. The module integrates multi-layer EMI filtering circuits and surge protection components, complying with EN 61000-6-2 and EN 61000-6-4 immunity standards, which can resist electromagnetic interference from turbine generators, high-voltage switchgear, and other equipment, and ensure stable operation in harsh industrial environments. The optional ATEX Zone 2 explosion-proof certification version can be applied to explosive hazardous areas such as offshore oil and gas platforms.

Typical Application Scenarios

In thermal power plant ultra-supercritical steam turbine main steam valve control systems, the **IS200IVFBG1AAA** serves as the core status monitoring module. It connects two LVDT position transducers of the main steam valve through 4 analog input channels, collects the valve position signal (4-20mA) in real time, and verifies the consistency of the two-channel signals. Through 8 digital input channels, it collects the full-open/full-close limit switch status, solenoid valve power-on status, and manual operation status of the main steam valve. When the turbine load needs to be adjusted, the module feeds the precise valve position data back to the Mark VIe control system within 8ms, and the control system adjusts the valve opening according to the load demand. If the position signal and limit switch status are inconsistent (such as the position signal shows 50% opening but the full-open switch is triggered), the module immediately sends an alarm signal to the upper system and outputs a valve lock signal through the digital output channel, preventing abnormal steam intake and ensuring the safe operation of the turbine.

In offshore gas turbine fuel control valve systems, the **IS200IVFBG1AAA** (ATEX Zone 2 version) undertakes the status feedback and auxiliary control tasks of the fuel control valve. It collects the position feedback signal of the fuel control valve through analog input channels, and monitors the valve’s emergency cut-off status, filter blockage alarm, and drive mechanism fault status through digital input channels. The module communicates with the Mark VIe control system through SRTP protocol, and transmits the fuel control valve status data to the upper system in real time. When the gas turbine load increases, the control system issues a valve opening command, and the module feeds back the precise opening of the valve to form a closed-loop control, ensuring that the fuel supply matches the load demand. The HART 7.0 protocol of the module allows maintenance personnel to use a handheld communicator to read the valve position drift trend on site, realizing predictive maintenance and avoiding sudden failures of the fuel control system.

In nuclear power plant auxiliary turbine emergency shutdown valve control systems, the **IS200IVFBG1AAA** (SIL 2 certified) provides reliable status feedback for the emergency shutdown valve. It connects two redundant position transducers of the emergency shutdown valve, and the internal logic unit performs 2-out-of-2 voting on the two-channel position signals to ensure the reliability of the position data. Through digital input channels, it collects the valve’s power-on status, mechanical interlock status, and manual override status. When the reactor protection system issues an emergency shutdown command, the module immediately feeds back the valve’s closing process and final closing status to the protection system. If the valve fails to close within the specified time (such as 1s), the module triggers a level 1 alarm through the digital output channel and sends a signal to the backup shutdown system, ensuring that the auxiliary turbine can be shut down reliably and avoiding potential safety risks to the nuclear power plant.

Related Model Recommendations

**IS200IVFBG2AAA**: Multi-valve monitoring variant of **IS200IVFBG1AAA**, supporting 8 analog input channels and 16 digital I/O channels, capable of monitoring 4 valves simultaneously, suitable for large-scale turbine valve groups.

**IS200MACCH1B**: Redundant Mark VIe control module that processes the valve status data collected by **IS200IVFBG1AAA**, executes valve control logic, and issues emergency control commands to ensure the reliability of the upper control link.

**IS200RAPAG1BCA**: Mark VIe dual redundant power adapter module that provides stable 24V DC power for **IS200IVFBG1AAA**, ensuring the continuous and reliable operation of the valve feedback link.

**GE 475 Field Communicator**: Handheld HART communicator that connects with **IS200IVFBG1AAA** through HART 7.0 protocol, realizing on-site parameter configuration, fault diagnosis, and online calibration.

**IC754VSF12CTD-EX-Pro**: Redundant monitoring HMI that displays the real-time position, status, and fault information of the valve collected by **IS200IVFBG1AAA**, supporting remote status monitoring and alarm handling.

**IS200MCCPG3A**: Dual redundant Mark VIe communication module that transmits the valve status data of **IS200IVFBG1AAA** to the plant-level redundant SCADA system, ensuring uninterrupted transmission of safety-related data.

**IS200TDBPG1A**: Mark VIe signal terminal block module with surge protection function, providing standardized wiring interfaces for **IS200IVFBG1AAA** and valve position transducers, improving on-site wiring reliability.

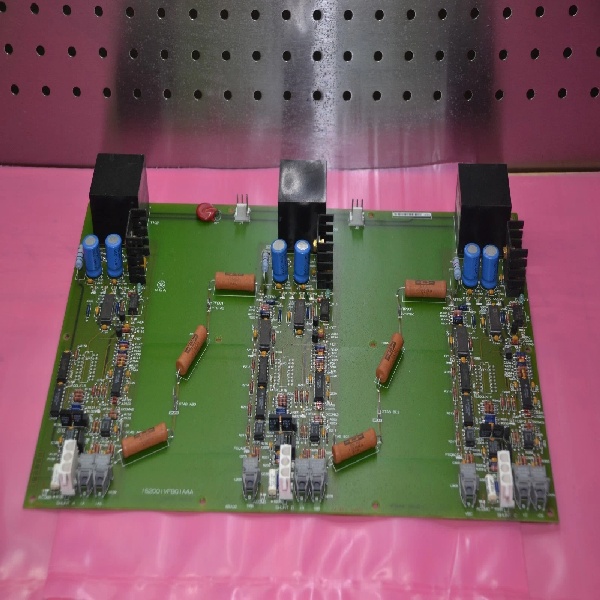

IS200IVFBG1AAA

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS200IVFBG1AAA**, power off the Mark VIe control cabinet and the valve drive system, and confirm the compatibility of the mounting slot (reserve heat dissipation space around the module, ≥8cm). The module’s analog input channels must be correctly connected to the valve position transducer (pay attention to the polarity of LVDT signals), and the digital input/output channels must be matched with the valve status switch and control solenoid valve. Use shielded twisted-pair cables for all signal wiring, with the shield grounded at the control cabinet end (single-point grounding) to avoid interference. For nuclear power and offshore applications, use explosion-proof terminal housings that meet the site level. Configure module parameters (position signal range, HART address, alarm threshold, redundancy voting mode) via Mark VIe Configuration Studio or GE 475 Field Communicator. Perform insulation resistance testing (signal channel to ground ≥500MΩ) and loop resistance testing before power-on to ensure wiring correctness.

Maintenance suggestions: Conduct daily remote monitoring of the valve position data, status signals, and communication status of **IS200IVFBG1AAA** via the upper system, focusing on checking whether the position data is stable and whether the status signals are consistent with the field valve. Perform monthly on-site inspections: clean the dust on the module and terminal block, check the tightness of the wiring terminals (torque ≥1.0N·m), and measure the module surface temperature (normal ≤65°C). Calibrate the position feedback accuracy quarterly using a high-precision valve calibrator, ensuring the error is within ±0.1% of full stroke. Verify the response time of digital I/O channels and the action reliability of relays. Use a HART communicator to read the module’s internal fault records and performance parameters semi-annually, and perform online parameter verification. Conduct annual insulation resistance testing (channel to channel ≥2000MΩ at 2000V AC) and surge protection performance verification. Update the module firmware annually via GE’s secure technical platform, and back up the configuration parameters before updating. After maintenance, perform a valve action test to ensure the consistency between the module’s feedback data and the actual valve status.

Service and Guarantee Commitment

GE General Electric provides a 60-month quality guarantee for the **IS200IVFBG1AAA**, covering manufacturing defects, position feedback accuracy degradation, channel failure, communication malfunction, and safety function failure under normal operating conditions. Our professional valve control technical team offers 24×7 on-site and remote emergency support, including module configuration guidance, valve feedback system debugging, fault diagnosis, and SIL 2 compliance verification. Customers receive exclusive access to GE’s Mark VIe valve control configuration tools, SIL 2 certification documents, HART communication manuals, and valve transducer compatibility lists. Priority service customers enjoy 24-hour emergency replacement of faulty modules, free annual valve feedback system health checks, and dedicated technical account managers—ensuring the long-term reliable operation of the turbine valve control system. For nuclear power and offshore applications, we provide extended warranty options (up to 84 months) and on-site resident technical support services, as well as regular SIL 2 function verification services.
