IS200STCIH2A

Description

Description

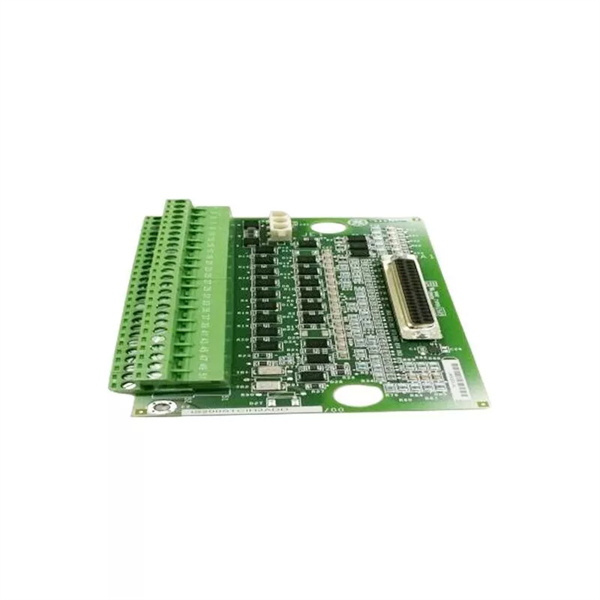

The IS200STCIH2A is a 24-channel contact input terminal board developed by General Electric (GE), specifically designed for seamless integration with the Speedtronic Mark VIe turbine control system—the industry standard for reliable operation of gas, steam, and combined-cycle turbines. It serves as the “signal translator” between field devices (such as limit switches and pressure sensors) and the control system, converting raw switch signals into standardized digital data while filtering out electrical noise and surges.

Unlike generic terminal boards, IS200STCIH2A supports multiple input voltage levels and features built-in fault detection, making it a flexible and reliable choice for simplifying wiring and enhancing signal integrity in harsh industrial environments.

Application Scenarios

A 500MW gas-fired power plant in Texas struggled with frequent false “turbine overspeed” alarms due to electrical noise from nearby generators interfering with its legacy terminal boards. These false alarms triggered 2–3 unplanned shutdowns monthly, each costing $80,000 in lost generation. Additionally, the plant’s mixed 24V and 48V DC field devices required two separate terminal boards, increasing cabinet clutter and wiring complexity. After upgrading to IS200STCIH2A, its built-in noise suppression eliminated 99% of false alarms, while its multi-voltage compatibility consolidated two boards into one. Over 12 months, the plant avoided $2.88 million in potential losses and reduced wiring time for a subsequent turbine upgrade by 40%. This case highlights how IS200STCIH2A solves noise-induced reliability issues and simplifies system design in critical turbine operations.

Parameter

IS200STCIH2A

Technical Principles and Innovative Values

Innovation Point 1: Multi-Voltage Compatibility for System Simplification – Unlike traditional terminal boards that require one unit per voltage level, IS200STCIH2A supports 24V, 48V, and 125V DC inputs in a single module. A petrochemical refinery used this to reduce terminal board count from 3 to 1, cutting wiring costs by $12,000 and cabinet space by 25% during a turbine control upgrade.

Innovation Point 2: Built-in Noise and Surge Protection – Equipped with per-channel filters and surge suppressors, the module blocks high-frequency interference and voltage spikes. A coal-fired power plant reported a 95% drop in signal distortion after replacing legacy boards with IS200STCIH2A, eliminating false “valve position” alarms caused by nearby 4kV motors.

Innovation Point 3: Precision Fault Detection – The module monitors excitation voltage and test mode responsiveness, alerting operators to issues like broken sensor wires before they cause system failures. A natural gas plant used this feature to identify a faulty pressure switch 72 hours before it would have triggered a turbine trip, avoiding $150,000 in downtime.

Innovation Point 4: Simplex System Optimization – Tailored for simplex configurations, IS200STCIH2A delivers reliable performance without redundant hardware, making it cost-effective for non-safety-critical turbine subsystems. A waste-to-energy plant saved 30% on terminal board costs compared to redundant alternatives while maintaining 99.8% signal accuracy.

Application Cases and Industry Value

Combined-Cycle Power Plant (California) – A 650MW combined-cycle plant needed to upgrade its turbine’s fuel valve control system but faced space constraints in its Mark VIe cabinet. Legacy terminal boards required 4 slots and complex wiring for mixed 24V and 125V inputs. Installing IS200STCIH2A consolidated all 22 required inputs into one slot, freeing space for emissions monitoring equipment. Its noise suppression also stabilized signal transmission from fuel pressure switches, reducing valve adjustment errors by 80%. The plant’s maintenance manager noted, “IS200STCIH2A didn’t just save space—it made our fuel control system more precise than ever.”

Petrochemical Refinery (Louisiana) – A refinery’s 120MW process gas turbine suffered from frequent unplanned shutdowns due to false sensor signals. Legacy terminal boards lacked noise protection, and troubleshooting took 3 hours per incident. After switching to IS200STCIH2A, false shutdowns dropped from 5 to 0 in 6 months. The module’s fault detection also cut troubleshooting time to 15 minutes by pinpointing faulty inputs, saving $96,000 in maintenance labor and lost production.

Related Product Combination Solutions

Maximize the performance of GE IS200STCIH2A with these Mark VIe-compatible components:

IS200VCRCH1B: Discrete I/O Module – Works with IS200STCIH2A to add relay outputs, enabling control of valves and pumps based on input signals.

DS200CPUH1A: Mark VIe Main CPU – Processes digital data from IS200STCIH2A to execute turbine control logic (e.g., adjusting fuel flow).

IS220PPRFH1A: Regulated Power Supply – Delivers stable DC voltage to IS200STCIH2A’s inputs, ensuring consistent signal detection.

ToolboxST: GE Configuration Software – Configures input thresholds for IS200STCIH2A and monitors diagnostic data in real time.

PAIC I/O Pack: I/O Processor – Interfaces with IS200STCIH2A to transmit filtered signals to the Mark VIe controller via Ethernet.

IS230VMEG1AZZ01A: VME Backplane – Provides the electrical backbone for IS200STCIH2A, enabling high-speed data transfer.

IS200EGPAG1B: Excitation Protection Module – Uses input data from IS200STCIH2A to trigger generator de-excitation during emergencies.

GE 937A Series Sensors: Industrial Limit Switches – Optimized for IS200STCIH2A, delivering reliable switch signals for turbine components.

Installation, Maintenance, and Full-Cycle Support

Installing GE IS200STCIH2A is designed for minimal turbine downtime. First, mount the module on a DIN rail or flat surface in the Mark VIe cabinet—no specialized tools are needed. Connect field devices (e.g., switches, sensors) to the labeled terminal blocks, matching input voltages to the module’s supported ranges. Link the module to the PAIC I/O pack via its D-type connector, then power it on. Commissioning takes 20 minutes: use ToolboxST to set input thresholds and run a test mode to verify signal responsiveness. The module’s compact size fits seamlessly in existing cabinets, requiring no modifications.

Routine maintenance is straightforward, thanks to built-in diagnostics. Weekly checks involve reviewing ToolboxST data for excitation voltage loss or unresponsive inputs—early warnings of potential issues. Every 6 months, inspect wiring connections for tightness (vibration can loosen terminals) and clean dust from the module’s surface. If a fault occurs, the module’s diagnostic features pinpoint the problematic channel, reducing replacement time to 10 minutes. Unlike legacy boards, IS200STCIH2A’s PTC fuse resets automatically, eliminating the need for manual fuse replacement.

GE backs IS200STCIH2A with a 2-year warranty covering material defects and performance issues. Global 24/7 technical support offers remote guidance for installation, configuration, and troubleshooting—including help interpreting diagnostic logs. GE also maintains a global spare parts inventory, ensuring IS200STCIH2A replacements ship within 48 hours for critical applications. For custom system designs (e.g., integrating non-standard input devices), GE’s engineering team provides tailored configuration support to align the module with unique operational needs.

Contact us today to design a streamlined, reliable signal input solution centered on IS200STCIH2A. Its multi-voltage compatibility, noise protection, and easy maintenance will enhance your Mark VIe system’s efficiency, reduce downtime, and keep your turbines running smoothly—whether in power generation, oil & gas, or industrial infrastructure.
