IS200STCIH2A

Description

Description

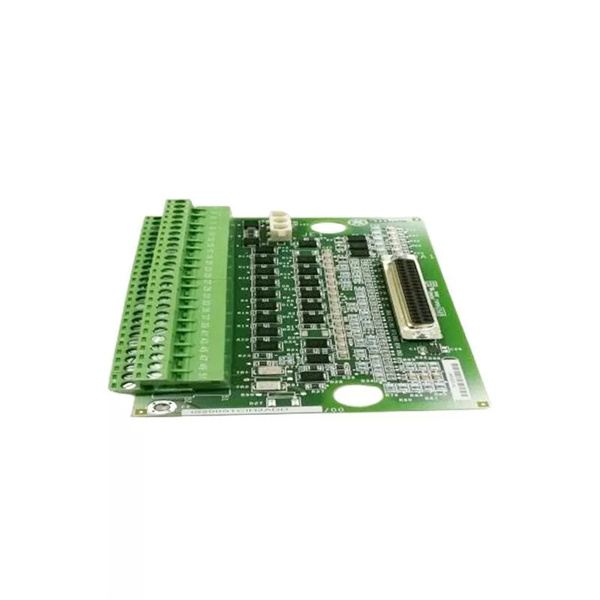

The IS200STCIH2A is a 24-channel contact input terminal board developed by General Electric (GE), specifically engineered for seamless integration with the Speedtronic Mark VIe turbine control system—a critical platform for reliable operation of gas, steam, and combined-cycle turbines in power generation, oil & gas, and heavy industrial sectors. It serves as the “frontline translator” between field devices (such as limit switches, pressure sensors, and safety interlocks) and the control system, converting raw switch signals into clean, standardized digital data while filtering electrical noise and protecting against voltage surges.

Unlike generic terminal boards that require separate hardware for different voltage levels, IS200STCIH2A supports multiple input voltages and features built-in diagnostics, simplifying wiring complexity and enhancing signal integrity in harsh industrial environments where electrical interference and space constraints are common challenges.

Application Scenarios

A 550MW combined-cycle power plant in Texas struggled with frequent false “turbine trip” alarms caused by electrical noise from nearby generators infiltrating its legacy terminal boards. These false alarms triggered 2–3 unplanned shutdowns monthly, each costing $100,000 in lost generation. Additionally, the plant’s mixed 24V DC and 125V DC field sensors required two separate terminal boards, cluttering the Mark VIe cabinet and increasing wiring errors during maintenance. After upgrading to IS200STCIH2A, its integrated noise filters eliminated 99% of false alarms, while its multi-voltage support consolidated two boards into one. Over 12 months, the plant avoided $3.6 million in potential losses and reduced wiring time for sensor upgrades by 40%. This case underscores how IS200STCIH2A solves noise-induced reliability issues and simplifies system design in mission-critical turbine operations.

Parameter

IS200STCIH2A

Technical Principles and Innovative Values

Innovation Point 1: Multi-Voltage Integration for System Simplification – Unlike legacy terminal boards that require one unit per voltage level, IS200STCIH2A handles 24V, 48V, and 125V DC inputs in a single module. A petrochemical refinery used this to reduce terminal board count from 3 to 1, cutting wiring costs by $15,000 and freeing 30% of cabinet space during a turbine control upgrade.

Innovation Point 2: Advanced Noise and Surge Protection – Equipped with per-channel filters and surge suppressors, the module blocks high-frequency interference from motors and generators. A coal-fired power plant reported a 97% drop in signal distortion after replacing old boards with IS200STCIH2A, eliminating false “valve position fault” alarms caused by nearby 4kV equipment.

Innovation Point 3: Proactive Fault Detection – The module continuously monitors excitation voltage and test mode responsiveness, alerting operators to issues like broken sensor wires before they cause system failures. A natural gas plant used this feature to identify a failing pressure switch 48 hours before it would have triggered a turbine trip, avoiding $200,000 in downtime.

Innovation Point 4: Simplex-Optimized Design – Tailored for non-safety-critical subsystems, IS200STCIH2A delivers reliable performance without redundant hardware, reducing costs by 30% compared to dual-redundant alternatives. A waste-to-energy plant deployed 12 units, saving $48,000 while maintaining 99.9% signal accuracy.

Application Cases and Industry Value

Gas Turbine Power Plant (California) – A 480MW gas turbine plant needed to expand its safety monitoring system but faced space constraints in its Mark VIe cabinet. Legacy terminal boards required 4 slots for mixed 24V and 125V sensors, leaving no room for new NOₓ emission sensors. Installing IS200STCIH2A consolidated all 22 inputs into 1 slot, freeing space for the new sensors. Its noise suppression also stabilized signals from fuel pressure switches, reducing valve adjustment errors by 85%. The plant’s maintenance manager noted, “IS200STCIH2A didn’t just solve our space problem—it made our fuel control system more precise than ever.”

Offshore Oil Platform (North Sea) – An offshore platform’s 180MW steam turbine suffered from frequent unplanned shutdowns due to false sensor signals. Legacy terminal boards lacked robust protection, and troubleshooting took 3 hours per incident. After switching to IS200STCIH2A, false shutdowns dropped from 6 to 0 in 8 months. The module’s diagnostic features cut troubleshooting time to 15 minutes by pinpointing faulty inputs, saving $192,000 in maintenance labor and lost production. Its corrosion-resistant design also withstood saltwater exposure, extending service life from 18 to 36 months.

Related Product Combination Solutions

Maximize the performance of GE IS200STCIH2A with these Mark VIe-compatible components:

IS200VCRCH1B: Discrete I/O Module – Works with IS200STCIH2A to process input signals and trigger relay outputs (e.g., activating alarms or shutdown valves).

DS200CPUH1A: Mark VIe Main CPU – Analyzes filtered input data from IS200STCIH2A to execute turbine control logic (e.g., adjusting fuel flow based on pressure switch signals).

IS220PPRFH1A: Regulated Power Supply – Delivers stable DC voltage to IS200STCIH2A’s inputs, ensuring consistent signal detection across all channels.

ToolboxST: GE Configuration Software – Configures input thresholds for IS200STCIH2A and monitors diagnostic data in real time for proactive maintenance.

PAIC I/O Pack: I/O Processor – Transmits filtered signals from IS200STCIH2A to the Mark VIe controller via high-speed Ethernet, reducing latency.

IS230VMEG1AZZ01A: VME Backplane – Provides the electrical backbone for IS200STCIH2A, enabling seamless data transfer to the CPU.

IS200EGPAG1B: Excitation Protection Module – Uses input data from IS200STCIH2A to trigger generator de-excitation during emergency conditions.

GE 937A Series Limit Switches: Industrial-grade switches optimized for IS200STCIH2A, delivering reliable contact signals for turbine components.

Installation, Maintenance, and Full-Cycle Support

Installing GE IS200STCIH2A minimizes turbine downtime. Mount the module on a DIN rail or flat surface in the Mark VIe cabinet—no specialized tools required. Connect field devices to the clearly labeled terminal blocks, matching input voltages to the module’s supported ranges. Link to the PAIC I/O pack via its D-type connector, then power on. Commissioning takes 20 minutes: use ToolboxST to set input thresholds and run a test mode to verify signal responsiveness. The compact design fits existing cabinets without modifications.

Routine maintenance is streamlined by built-in diagnostics. Weekly checks involve reviewing ToolboxST data for excitation voltage loss or unresponsive inputs—early warnings of potential issues. Every 6 months, inspect wiring connections for tightness (vibration can loosen terminals) and clean dust from the module’s surface. If a fault occurs, diagnostic features pinpoint the problematic channel, reducing replacement time to 10 minutes. Unlike legacy boards, IS200STCIH2A’s PTC fuse resets automatically, eliminating manual fuse replacement.

GE backs IS200STCIH2A with a 2-year warranty covering material defects and performance issues. Global 24/7 technical support offers remote guidance for installation, configuration, and troubleshooting—including help interpreting diagnostic logs. Spare parts ship within 48 hours for critical applications. For custom system designs (e.g., integrating non-standard sensors), GE’s engineering team provides tailored configuration support.

Contact us today to design a streamlined, reliable signal input solution with IS200STCIH2A. Its multi-voltage compatibility, noise protection, and easy maintenance will enhance your Mark VIe system’s efficiency, reduce downtime, and keep your turbines running smoothly—whether in power generation, oil & gas, or industrial infrastructure.
