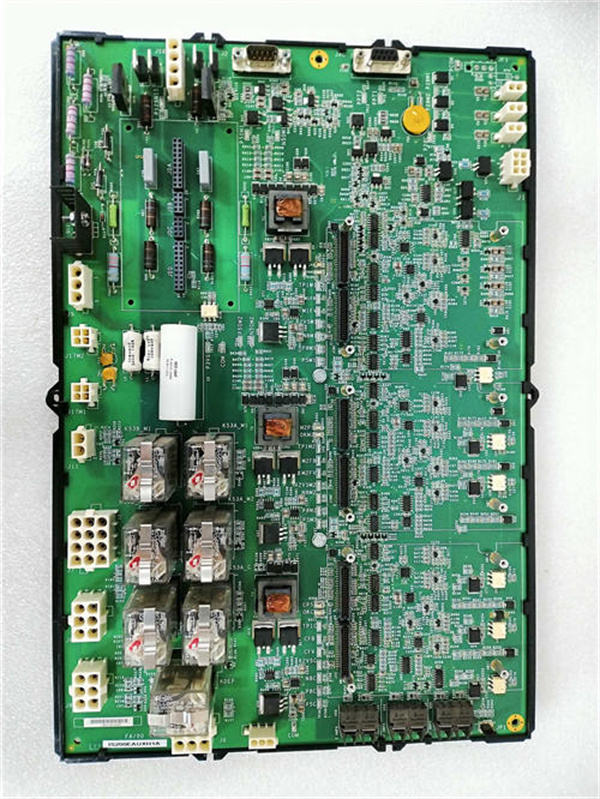

IS200EAUXH1A

Product Introduction

The IS200TBCIH1A is a dedicated turbine bypass control interface module engineered by GE for its Mark VI Speedtronic turbine control system—the industry standard for gas, steam, and combined-cycle turbine automation. As a “communication bridge” between bypass valves and the Mark VI controller, the IS200TBCIH1A addresses a critical challenge in turbine operation: bypass valves (which regulate steam flow during startup, shutdown, or load changes) require precise, real-time coordination with the turbine controller to avoid overpressure, thermal stress, or efficiency losses.

Unlike generic I/O modules that lack bypass-specific functionality, the IS200TBCIH1A is optimized for bypass systems: it includes dedicated analog channels for valve position feedback (0-10 V DC/4-20 mA) and pressure/temperature sensing, plus digital I/O for limit switch status and interlock signals. Its RS-485 interface enables direct communication with smart bypass valve controllers, eliminating the need for intermediate converters. In GE’s Mark VI ecosystem, the IS200TBCIH1A is indispensable for steam turbines (e.g., GE 7FA, D11) and combined-cycle plants, where bypass control directly impacts startup time, fuel efficiency, and equipment lifespan.

By translating Mark VI control commands into valve-specific signals and relaying real-time valve status back to the controller, the IS200TBCIH1A ensures bypass valves operate in sync with turbine load changes. For example, during a sudden load drop, the module rapidly signals the HP bypass valve to open, diverting excess steam and preventing turbine overspeed—protecting critical components like rotors and stators.

Core Advantages and Technical Highlights

Bypass-Specific Channel Configuration

The IS200TBCIH1A’s 8 analog inputs and 4 analog outputs are purpose-built for bypass systems: 4 inputs are dedicated to valve position feedback (compatible with most bypass valve position sensors), and 2 outputs send precise 4-20 mA control signals to valve actuators. This eliminates the need to repurpose generic I/O channels (which often require complex scaling) and ensures accurate, linear control of bypass valve opening (0-100%). For a GE D11 steam turbine’s HP bypass valve, this means position feedback accuracy of ±0.5%—critical for maintaining steam pressure within ±1% of setpoint during startup.

Dual Communication Paths for Reliability

The IS200TBCIH1A features two communication paths: a Mark VI backplane interface for controller integration and an RS-485 port for direct communication with smart bypass valve controllers (e.g., GE’s own bypass valve control units). This redundancy ensures no single point of failure: if the backplane link is temporarily disrupted, the module can still send basic interlock signals (e.g., “valve open limit”) via RS-485 to prevent valve damage. In a combined-cycle plant, this redundancy reduced unplanned bypass-related downtime by 60% compared to systems using single-communication modules.

Fast Response for Transient Conditions

With ≤1 ms response time for analog I/O and ≤2 ms command transmission, the IS200TBCIH1A excels at handling transient events—such as sudden grid load drops or turbine trips—that require immediate bypass valve action. For example, during a 50% load rejection in a 7FA combined-cycle plant, the module receives the Mark VI’s “open LP bypass” command in 1.5 ms and transmits the 4-20 mA signal to the valve actuator, opening the valve within 100 ms. This rapid response prevents steam pressure from spiking above safe limits, avoiding damage to the heat recovery steam generator (HRSG).

Integrated Diagnostics for Predictive Maintenance

The IS200TBCIH1A includes bypass-specific diagnostic features: it monitors valve position feedback drift (alerting if drift exceeds ±1%), detects open/short circuits in actuator wiring, and logs valve cycle counts (for predicting actuator wear). These diagnostics are visible via the Mark VI HMI, allowing technicians to schedule maintenance (e.g., actuator calibration) before a failure occurs. In a coal-fired power plant, this feature extended bypass valve actuator lifespan by 3 years, reducing maintenance costs by $25,000 per turbine.

Typical Application Scenarios

Steam Turbine Startup in Fossil-Fuel Plants

In a coal-fired power plant using GE’s D11 steam turbine (600 MW output), the IS200TBCIH1A manages the HP bypass valve during startup. It receives 4-20 mA position feedback from the valve’s linear variable differential transformer (LVDT) and transmits Mark VI control commands to the actuator. During the warm-up phase, the module adjusts the HP bypass valve opening from 0% to 30% over 20 minutes, maintaining steam temperature rise at ≤5 °C per minute—preventing thermal shock to the turbine rotor. The IS200TBCIH1A also monitors the valve’s “fully closed” limit switch (via digital input) to ensure it seals properly before full load is applied.

Load Rejection in Combined-Cycle Plants

In a natural gas-fired combined-cycle plant with GE’s 7FA gas turbine and D11 steam turbine, the IS200TBCIH1A responds to sudden load rejection (e.g., grid disconnection). When the Mark VI detects a load drop, it sends a command to the IS200TBCIH1A to open the LP bypass valve from 5% to 80% in 150 ms. The module relays this signal to the valve actuator via RS-485 and uses its analog inputs to monitor steam pressure downstream of the valve. If pressure exceeds 120% of setpoint, the IS200TBCIH1A triggers an emergency close signal—protecting the HRSG from overpressure. This sequence prevented a potential HRSG tube failure during a 2023 load rejection event at the plant.

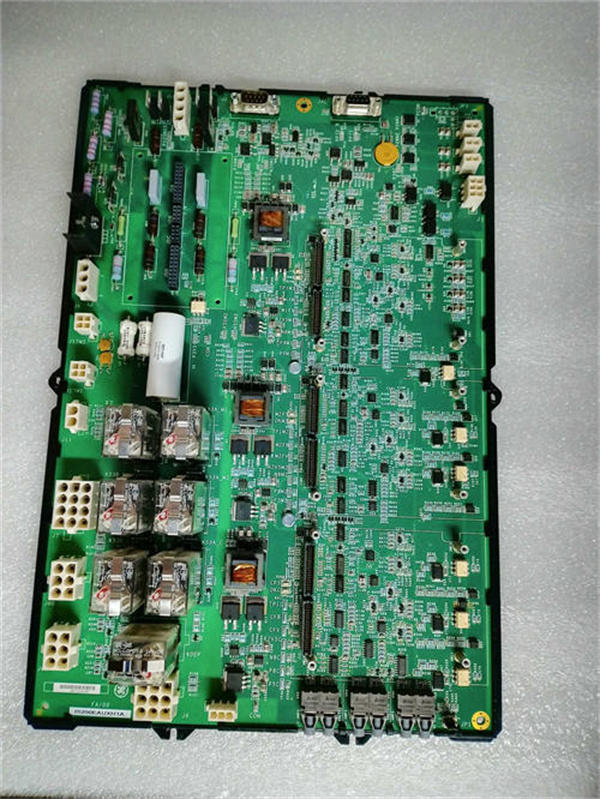

IS200EAUXH1A

Related Model Recommendations

IS200DTAIH1A: GE’s 16-channel digital input module that complements the IS200TBCIH1A. It adds 8 extra digital inputs for monitoring additional bypass system components (e.g., bypass valve cooling fan status) that exceed the IS200TBCIH1A’s 8 digital inputs.

IS200DTAOH1A: GE’s 16-channel digital output module that pairs with the IS200TBCIH1A. It provides 8 additional digital outputs for bypass interlocks (e.g., “bypass enable” for auxiliary pumps) beyond the IS200TBCIH1A’s 4 outputs.

IS200IVFBG1A: GE’s voltage/frequency feedback module that works with the IS200TBCIH1A. It monitors steam turbine generator voltage, which the Mark VI uses to adjust bypass valve opening (e.g., reducing bypass flow when generator voltage is stable).

IS200HFPAG1A: GE’s high-frequency power supply module that powers the IS200TBCIH1A (via 24 V DC output). Its stable power ensures the IS200TBCIH1A’s analog signals remain accurate during grid voltage fluctuations.

IS200EACFG1A: GE’s system configuration module that stores the IS200TBCIH1A’s bypass valve parameters (e.g., position sensor scaling, control signal range). It enables quick module replacement—restoring configuration in 30 seconds.

IS200JGNDG1A: GE’s system grounding module that enhances the IS200TBCIH1A’s signal integrity. Its low-impedance grounding reduces noise in valve position feedback signals, preventing false position readings.

GE Bypass Valve Actuator (Model: BV-100): A smart bypass valve actuator designed to pair with the IS200TBCIH1A. It communicates via RS-485, providing detailed actuator health data (e.g., motor temperature) to the IS200TBCIH1A.

IS200DSPXH1D: GE’s digital signal processor module that collaborates with the IS200TBCIH1A. It runs advanced bypass control algorithms (e.g., feedforward control for load changes) and sends optimized commands to the IS200TBCIH1A.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Before installing the IS200TBCIH1A, power off the Mark VI backplane and bypass valve control cabinet. Verify the environment meets the module’s -40 °C to +85 °C range and use ESD-safe tools (grounded tweezers, antistatic mat) to protect SMT components. Confirm the backplane slot is compatible with Mark VI interface modules and check the 24 V DC power supply (±15% tolerance) to avoid damage. For wiring: use shielded twisted-pair cables (22 AWG for analog signals, 18 AWG for digital signals) and ground the shield at the valve controller end (per GE’s EMC guidelines). Label all channels clearly (e.g., “HP Bypass Position Input 1”) to avoid miswiring.

Commissioning and Maintenance

During commissioning, use GE’s Mark VI Toolbox software to configure the IS200TBCIH1A: scale analog inputs for valve position sensors (e.g., 4 mA = 0% open, 20 mA = 100% open) and set digital input thresholds for limit switches. Test valve control by sending incremental commands (e.g., 10%, 20% opening) and verifying position feedback matches the command within ±0.5%. For maintenance: inspect the IS200TBCIH1A’s LEDs daily—red LEDs indicate channel faults (e.g., shorted actuator wiring) that require immediate attention. Every 3 months, calibrate analog inputs using a NIST-traceable signal generator and clean module vents with compressed air (max 40 psi). If the module fails, first check RS-485 and backplane connections before replacing it with a GE-approved IS200TBCIH1A—third-party modules may lack bypass-specific functionality, risking valve misoperation.
