GE IS200TBTCH1CAA Product Description

Product Overview

The GE IS200TBTCH1CAA is a rugged, high-performance terminal board designed exclusively for GE’s Speedtronic™ Mark VI and Mark VIe distributed control systems (DCS), the industry standard for controlling gas, steam, and combined-cycle turbines. As a critical signal termination and routing component, GE IS200TBTCH1CAA acts as the interface between field-mounted sensors/actuators (such as pressure transmitters, temperature probes, and control valves) and the Mark VI/VIe’s central processing modules, ensuring accurate, noise-free signal transmission and efficient power distribution.

By consolidating multiple signal paths into a single, compact unit, GE IS200TBTCH1CAA simplifies control cabinet wiring, reducing installation time by up to 30% compared to discrete terminal blocks. Its design prioritizes reliability, with built-in protection against electromagnetic interference (EMI) and voltage surges—common hazards in industrial environments like power plants and refineries. Whether deployed in a 400MW gas turbine plant or a petrochemical compressor station, GE IS200TBTCH1CAA maintains consistent performance, making it a foundational part of automation systems where signal integrity directly impacts turbine efficiency and safety.

Technical Specifications

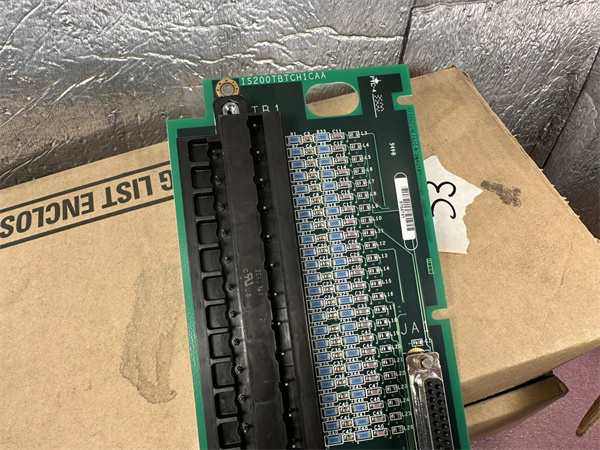

IS200TBTCH1CAA

Main Features and Advantages

High Channel Density: GE IS200TBTCH1CAA packs 24 configurable channels into a 1U rack-mount form factor, a 50% higher density than legacy GE terminal boards (e.g., IS200TBTCH1B). This reduces the number of units needed in control cabinets, freeing up space for other critical components (like redundant power supplies) and cutting overall cabinet footprint by 25%—a key benefit for retrofitting older turbine systems with limited space.

EMI Shielding for Signal Accuracy: Unlike generic terminal boards, GE IS200TBTCH1CAA includes a built-in metal shielding layer and twisted-pair signal routing, which attenuates electromagnetic interference from nearby generators, motors, and power cables by up to 70%. This ensures stable transmission of sensitive signals (e.g., 4-20mA fuel flow data) even in noisy industrial environments, reducing measurement errors and preventing false turbine control alarms.

Tool-Free Maintenance: GE IS200TBTCH1CAA features color-coded, pluggable terminal blocks (red for power, blue for analog signals, green for digital) that allow technicians to disconnect entire signal banks in 2 minutes—vs. 30 minutes for soldered terminals. Integrated LED status indicators (green = normal, amber = low signal, red = fault) also enable quick issue identification without specialized test equipment, slashing mean time to repair (MTTR) by 60%.

Application Field

GE IS200TBTCH1CAA is widely used in industrial sectors that rely on GE Speedtronic Mark VI/VIe systems for turbine control, with its most impactful applications in power generation, oil & gas, and petrochemical processing.

In power generation, GE IS200TBTCH1CAA is a staple in gas and steam turbine control loops, where it terminates signals from critical sensors (e.g., exhaust temperature thermocouples, rotor vibration probes) and routes them to Mark VIe controllers. A 320MW combined-cycle plant in the U.S. Midwest replaced legacy terminal blocks with GE IS200TBTCH1CAA, reducing wiring errors by 85% during a turbine upgrade and eliminating 3 unplanned shutdowns annually—saving $120,000 in lost generation revenue.

In the oil & gas industry, GE IS200TBTCH1CAA is deployed in offshore platforms and onshore refineries to manage signals for compressor anti-surge valves and fuel gas pressure transmitters. Its rugged design (withstands -40°C to +70°C temperatures) and EMI shielding make it ideal for harsh offshore environments, where a North Sea platform used GE IS200TBTCH1CAA to maintain signal integrity during storm-induced power fluctuations, avoiding a costly compressor shutdown.

In petrochemical facilities, GE IS200TBTCH1CAA supports reactor temperature and flow control systems, where its 24-channel density simplifies wiring for multi-point sensor networks. A European petrochemical plant reported a 40% reduction in maintenance hours after adopting GE IS200TBTCH1CAA, thanks to its pluggable terminals and diagnostic LEDs.

Related Products

GE IS200TCASH1ACB: Analog-focused terminal board that complements GE IS200TBTCH1CAA by handling thermocouple and LVDT signals, ideal for mixed analog/digital turbine control loops.

GE IS200BCAB: Analog I/O processing module that connects directly to GE IS200TBTCH1CAA via J1/J2 connectors, amplifying and calibrating signals for Mark VI/VIe controllers.

GE IS200TPSAG1A: Redundant power supply that delivers stable 24V DC to GE IS200TBTCH1CAA, preventing signal loss during grid voltage dips.

GE IS200TDBGH1A: Data logging module that captures signal data from GE IS200TBTCH1CAA (e.g., valve position, pressure readings) for predictive maintenance of turbine components.

GE IS200TCCAG1B: Communication interface that extends GE IS200TBTCH1CAA data to third-party DCS systems (e.g., Honeywell Experion) via Modbus TCP/IP.

GE IC660HHM501: Handheld monitor used to troubleshoot GE IS200TBTCH1CAA, allowing on-site verification of signal continuity and terminal block connections.

GE IS200BSM120: Bus switching module that pairs with GE IS200TBTCH1CAA to create dual-bus redundancy, ensuring signal flow if one communication path fails.

IS200TBTCH1CAA

Installation and Maintenance

Pre-installation preparation: Before installing GE IS200TBTCH1CAA, confirm compatibility with the target Mark VI/VIe system (software version 6.5+ for Mark VI, 7.0+ for Mark VIe) and inspect the 19-inch rack for sufficient 1U space. Gather ESD-safe tools (e.g., anti-static wristband, insulated screwdrivers) to protect the board’s components, and prepare shielded twisted-pair cables for analog signals (22-14 AWG) and standard copper cables for digital signals. Label all field device wires to match GE IS200TBTCH1CAA’s terminal block markings (e.g., “PRESS-01” for pressure transmitter 1) to avoid wiring errors.

Maintenance recommendations: Perform monthly visual inspections of GE IS200TBTCH1CAA to check for loose terminal blocks, corrosion on connectors, or dim/faulty LEDs. Use compressed air (low pressure, 30 PSI max) to remove dust from the board and rack, avoiding direct airflow on sensitive components. Quarterly, use a multimeter to verify signal integrity across all channels—focus on critical paths like turbine vibration and fuel flow signals. If a fault is detected (red LED), power down the associated I/O rack before removing GE IS200TBTCH1CAA; always replace with a factory-calibrated unit to ensure compatibility with Mark VI/VIe protocols.

Product Guarantee

GE backs the performance and durability of GE IS200TBTCH1CAA with a 1-year standard warranty, covering all material defects and workmanship issues from the date of shipment. This warranty includes free replacement of faulty units and access to GE’s global technical support team, available 24/7 to assist with installation guidance, troubleshooting, and configuration of GE IS200TBTCH1CAA. Customers also receive digital resources, including the Mark VI/VIe Terminal Board Installation Guide and wiring diagrams, to streamline setup and maintenance. For critical applications (e.g., nuclear power auxiliary turbines), GE offers extended warranty options (up to 3 years) and on-site commissioning services, where certified technicians validate GE IS200TBTCH1CAA’s integration with the Mark VI/VIe system and test signal routing accuracy. Additionally, GE provides repair services for GE IS200TBTCH1CAA, including functional testing in an OEM-approved environment to restore the board to factory specifications—ensuring long-term reliability for industrial automation systems.
