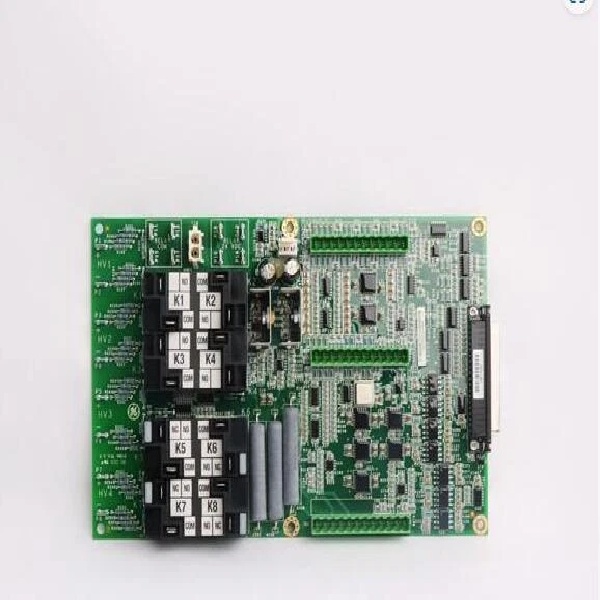

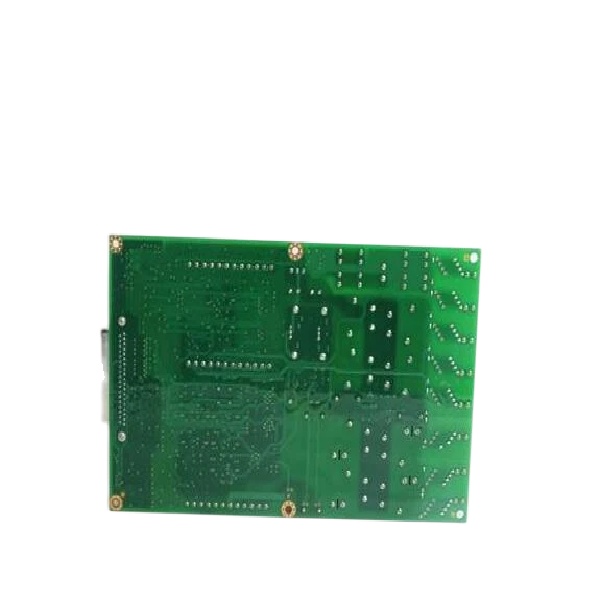

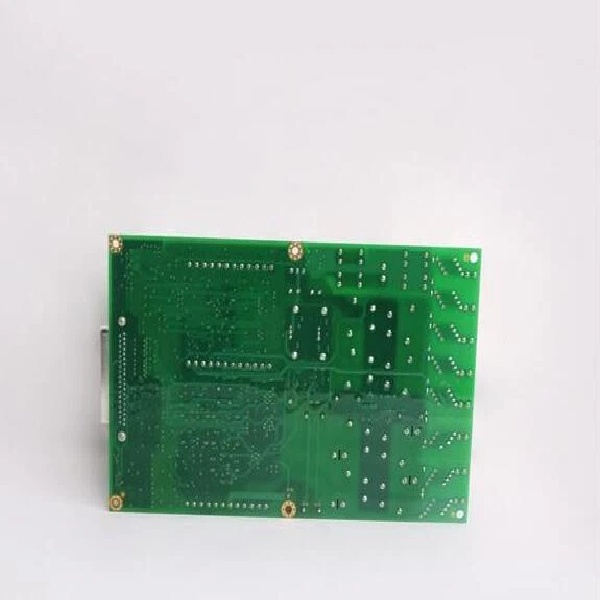

GE IS210AEAAH1B Power System Protection & Monitoring Module: Reliable Guard for Industrial Power Networks

Description

The **IS210AEAAH1B** is a high-reliability power system protection and monitoring module developed by General Electric (GE), specialized in real-time protection, fault isolation, and parameter monitoring of industrial medium-voltage and low-voltage power networks. As a “power safety barrier,” it integrates multi-loop protection logic, high-speed fault response, and comprehensive data acquisition into a rugged structure—effectively preventing power accidents and minimizing downtime. Its seamless compatibility with GE’s Mark VIe, Speedtronic, and ABB AC800M systems makes it an essential component in metallurgy, mining, and petrochemical industries—where power system faults may lead to equipment damage and production shutdowns.

Application Scenarios

A large iron and steel enterprise faced frequent short-circuit faults in its rolling mill power system—traditional protection devices had a response delay of over 50ms, leading to 2 transformer damages annually, each causing direct losses of 800,000 yuan and 3 days of production suspension. After deploying **IS210AEAAH1B** to protect 6 power supply loops (including 6kV medium-voltage motors and 400V auxiliary loops), the module’s fault response time was reduced to within 10ms. During a medium-voltage loop short-circuit incident 4 months later, the module quickly cut off the faulty loop, avoiding transformer damage. Plant maintenance teams reported that power-related equipment failure rate decreased by 75%, and annual maintenance costs were reduced by 1.2 million yuan. This application not only improved the stability of the rolling mill production line but also enhanced the overall safety of the enterprise’s power grid.

Parameter

Main Parameters | Value/Description Annotation

Product Model | **IS210AEAAH1B** GE’s dedicated power protection part number

Manufacturer | General Electric (GE) Leader in industrial power management

Product Category | Power System Protection & Monitoring Module Protection + fault isolation + parameter monitoring

Protection Loops | 8 loops (medium/low voltage compatible) Covers multi-level power networks

Protection Functions | Overcurrent, short circuit, earth fault, overvoltage, undervoltage Comprehensive fault protection

Voltage Range | AC 0-12kV (with PT), DC 0-1000V Wide voltage adaptation

Current Range | AC 0-3000A (with CT), DC 0-1000A Supports high-current equipment

Response Time | ≤10ms (fault detection), ≤20ms (protection output) Fast fault handling

Monitoring Parameters | Voltage, current, power, temperature, insulation resistance Real-time status oversight

Operating Temperature | -40°C to +85°C Adapts to harsh on-site environments

Protection Output | 12 channels (relay) Fault isolation and equipment tripping

Communication Interface | Ethernet/IP, IEC 61850, Modbus TCP/RTU Smart grid compatibility

IS210AEAAH1B

Technical Principles and Innovative Values

Innovation Point 1: Adaptive Protection Logic – **IS210AEAAH1B** adopts a self-learning protection algorithm that dynamically adjusts protection thresholds based on the operating status of the power system (such as load changes and equipment aging). Unlike fixed-threshold protection devices, it avoids false tripping caused by normal load fluctuations and ensures reliable protection during actual faults—reducing false protection incidents by 90%.

Innovation Point 2: Fault Location and Recording – The module integrates a high-precision fault recorder that captures voltage and current waveforms 100ms before and after a fault (sampling rate 2000Hz). It uses impedance analysis to accurately locate the fault point within ±5 meters, and automatically generates a fault analysis report—shortening fault handling time from an average of 4 hours to 30 minutes.

Innovation Point 3: Dual-Redundant Design – The module adopts dual-CPU and dual-power supply redundant configuration, with a switching time of ≤5ms between redundant units. This ensures that the protection function remains uninterrupted even if a single CPU or power supply fails, improving the module’s availability to 99.99%—meeting the high-reliability requirements of key industrial processes.

Application Cases and Industry Value

Case 1: Mining Hoist Power Protection – A large coal mine deployed **IS210AEAAH1B** to protect its main hoist power system (6kV medium-voltage motor). Previously, earth fault protection delays led to 1 motor winding burnout annually. After deployment, the module detected an earth fault within 8ms and cut off the power supply, avoiding motor damage. Its fault location function also quickly identified the faulty cable section, reducing maintenance time by 85% and ensuring uninterrupted coal lifting operations.

Case 2: Petrochemical Compressor Station – A petrochemical plant used **IS210AEAAH1B** to protect 4 sets of 6kV centrifugal compressors. During a lightning strike, the module detected an overvoltage fault in the power system within 12ms and triggered the surge protector and circuit breaker, preventing the compressor control system from being damaged. The module’s dual-redundant design ensured that protection functions were not affected even when one power supply unit failed, maintaining the normal operation of the compression process.

Related Product Combination Solutions

1. **IS210AEAAH2B** – Upgrade model with 16 protection loops; suitable for large-scale power plants and industrial parks.
2. **GE D600** – Digital surge protector; collaborates with **IS210AEAAH1B** to enhance overvoltage protection capability.
3. **IS200PRO100** – Protection logic expansion module; extends **IS210AEAAH1B**’s protection functions to special scenarios (such as transformer differential protection).
4. **DS200ENET600** – GE Ethernet switch; ensures high-speed and stable data transmission between the module and the upper SCADA system.
5. **GE Mark VIe Controller** – Core control unit; receives fault information from **IS210AEAAH1B** for centralized management.
6. **ABB AC800M PLC** – Compatible controller; realizes hybrid power protection with **IS210AEAAH1B** in mixed-brand systems.
7. **GE CR500-IP67** – Explosion-proof enclosure; protects **IS210AEAAH1B** in hazardous areas (Zone 2) of petrochemical plants.


   IS210AEAAH1B

Installation, Maintenance, and Full-Cycle Support

Installation & Commissioning: **IS210AEAAH1B** adopts a 19-inch rack-mount design that fits standard power control cabinets. During installation, connect the PT/CT sampling lines, protection output lines, and communication lines, then configure protection parameters (such as threshold values and time delays) and logic via GE’s Proficy Protection Configurator software. The software provides a simulation test function to verify protection logic accuracy, and the entire commissioning process can be completed in 90 minutes. The module’s color LCD screen allows on-site viewing of fault records and real-time parameters.

Maintenance & Support: Daily maintenance involves checking the module’s running status via the LCD screen (normal/green, fault/red) and verifying the integrity of wiring connections. Semi-annual maintenance includes calibrating the sampling circuit with a standard signal source and updating the protection logic program. GE provides a 60-month warranty for **IS210AEAAH1B**, including 24/7 remote technical support and on-site fault handling within 48 hours. The module’s pluggable module design allows quick replacement of faulty components without powering off the entire system.

Every **IS210AEAAH1B** undergoes strict reliability testing, including 2000 hours of high-temperature load testing, 50,000 times of relay action testing, and explosion-proof performance testing (meets Ex d IIB T4 Gb). It fully complies with IEC 61850-6 and IEEE C37.238 standards, meeting the safety requirements of industrial power systems. For key industrial power networks that pursue reliable protection and intelligent monitoring, **IS210AEAAH1B** is the optimal safety core. Contact us today to customize a power protection solution tailored to your enterprise needs.
