Description

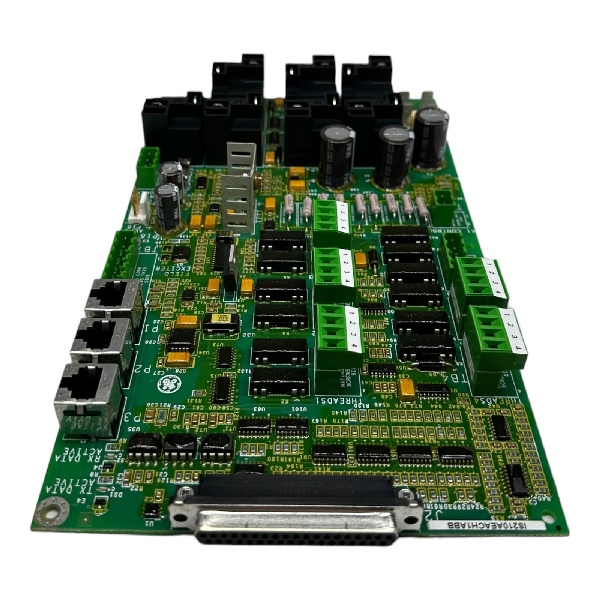

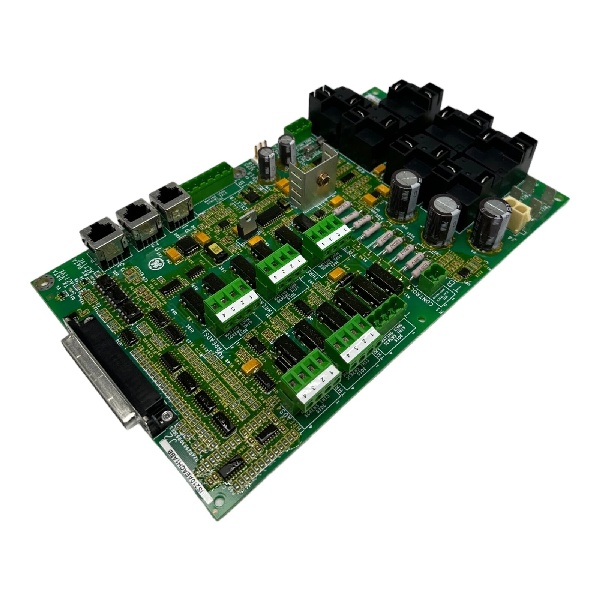

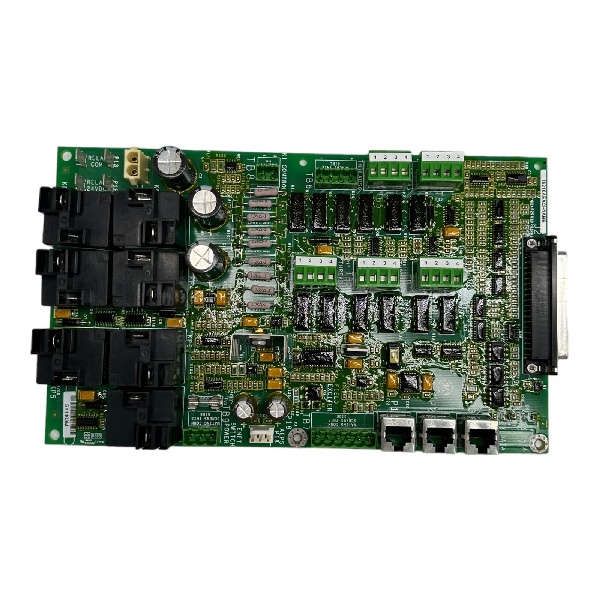

GE IS210AEACH1ABB Mark VIe Analog Input Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS210AEACH1ABB** Manufacturer | GE General Electric Product Category | Industrial Analog Input Module Series | Mark VIe (Turbine Control System) Input Channels | 8 Isolated Differential Channels Input Type | 4-20mA DC, 0-10V DC, Thermocouple (Type J/K/T/E), RTD (Pt100) Input Range | 4-20mA (0-20mA optional), 0-10V (0-5V optional), -200°C to 1760°C (Thermocouple), -200°C to 850°C (RTD) Accuracy | ±0.01% of Full Scale (4-20mA/0-10V), ±0.1°C (RTD), ±0.2°C (Thermocouple) Resolution | 16-bit Isolation Voltage | 1000V AC (Channel to Channel, Channel to Ground) Sampling Rate | 100 Samples/Second per Channel Diagnostic Functions | Channel Short/Open Detection, Sensor Fault Diagnosis, Self-Calibration, Power Supply Monitoring Power Supply | 24V DC (from Mark VIe Power Module) Operating Temperature | -10°C to 65°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 12 (Chassis Mount) Physical Dimensions | 140mm × 100mm × 30mm Certifications | UL 508, CE, CSA, IEC 61131-2 Communication Protocols | GE SRTP (Mark VIe Backplane Dedicated)

Product Introduction

The **GE IS210AEACH1ABB** is a high-precision analog input module tailored for GE’s Mark VIe turbine control system, specializing in the reliable collection and conversion of continuous analog signals from critical turbine components. As a core continuous data acquisition unit in GE’s industrial portfolio, the module captures continuous process signals—including turbine bearing temperature (via RTD/Thermocouple), steam pressure (via 4-20mA transmitters), fuel flow rate (via 0-10V sensors), and generator winding temperature—and converts them into high-resolution digital data for Mark VIe control modules (such as the **IS210MACCH1A**). Its 8-channel isolated design, multi-signal type compatibility, and high measurement accuracy make it an indispensable choice for onshore thermal power plants, gas turbine systems, and industrial steam turbine facilities where precise continuous parameter monitoring is crucial for operational safety and efficiency optimization.

What distinguishes the **GE IS210AEACH1ABB** is its exceptional measurement accuracy, multi-signal adaptability, and robust isolation performance—advantages that address the core needs of turbine continuous process monitoring. Leveraging GE’s advanced analog signal processing technologies, the module features 16-bit resolution and ±0.01% full-scale accuracy, ensuring even subtle changes in process parameters are captured. Its channel-to-channel isolation (1000V AC) effectively suppresses electromagnetic interference from turbine generators and high-voltage cables, while built-in self-calibration and sensor fault diagnosis functions reduce maintenance workload. By delivering precise and reliable analog data to the control system, it enables real-time process adjustment, early fault warning, and compliance with industrial process monitoring standards, directly enhancing the operational efficiency and safety of turbine systems.

Core Advantages and Technical Highlights

High-Precision Measurement and Multi-Signal Compatibility: The **IS210AEACH1ABB** is equipped with 8 fully isolated differential channels, each supporting flexible configuration for 4-20mA DC, 0-10V DC, thermocouple (J/K/T/E), and RTD (Pt100) inputs. With 16-bit resolution and ±0.01% full-scale accuracy for standard analog signals, it can accurately measure subtle changes in turbine parameters—such as a 0.1°C fluctuation in bearing temperature or a 0.02mA variation in pressure transmitter signals—providing a solid data foundation for turbine condition monitoring and control.

Robust Isolation and Anti-Interference Performance: Each channel of the module features 1000V AC isolation from other channels and ground, effectively preventing signal crosstalk and interference from high-voltage equipment (such as turbine generators and power distribution systems). It integrates multi-layer EMI filtering circuits and signal conditioning technology, which can suppress common-mode interference and differential-mode interference in industrial environments, ensuring stable signal acquisition even in complex electromagnetic fields near turbines.

Intelligent Diagnostics and Self-Maintenance: The module is equipped with comprehensive diagnostic functions, including real-time detection of channel short circuits/open circuits, RTD/thermocouple sensor faults (such as broken wires and cold junctions), and power supply abnormalities. Its built-in self-calibration function automatically corrects measurement deviations caused by temperature drift and component aging, eliminating the need for frequent manual calibration. Fault information is transmitted to the control system in real time with clear fault codes, reducing troubleshooting time by over 60%.

Seamless Integration with Mark VIe Ecosystem: The **IS210AEACH1ABB** adopts a standard Mark VIe module form factor, which can be directly installed on the Mark VIe chassis and communicate with the backplane via GE SRTP dedicated protocol. It realizes real-time synchronization of analog data with the **IS210MACCH1A** control module and on-site HMI. The module supports flexible channel configuration via Mark VIe Configuration Studio, allowing engineers to set signal types, measurement ranges, and alarm thresholds for each channel independently—adapting to different turbine monitoring scenarios without additional hardware modifications.

Typical Application Scenarios

In onshore thermal power plant steam turbine systems, the **IS210AEACH1ABB** serves as the core analog input module for the Mark VIe control system. It monitors 8 key continuous parameters, including high-pressure turbine bearing temperature (via Pt100 RTD), main steam pressure (via 4-20mA pressure transmitter), steam temperature (via Type K thermocouple), and generator stator winding temperature (via Pt100). When the bearing temperature rises by 0.5°C above the normal threshold, the module accurately captures this change and transmits the data to the **IS210MACCH1A**, prompting the control system to adjust the lubrication system output—preventing potential overheating faults.

In industrial gas turbine systems, the **IS210AEACH1ABB** is responsible for monitoring critical analog signals of the fuel and combustion system, including fuel pressure (4-20mA), fuel temperature (Type T thermocouple), exhaust gas temperature (Type E thermocouple), and compressor inlet pressure (0-10V). Its high sampling rate (100 samples/second per channel) ensures real-time capture of rapid changes in exhaust gas temperature during turbine load adjustments, while the anti-interference design resists electrical noise from fuel injectors and ignition systems—ensuring stable and accurate signal transmission.

In small and medium-sized hydropower plant turbine systems, the **IS210AEACH1ABB** collects continuous signals from the governor and cooling systems, such as turbine speed (converted to 4-20mA), cooling water temperature (Pt100), wicket gate opening (0-10V), and oil pressure (4-20mA). Its -10°C to 65°C operating temperature range adapts to the varying environmental conditions of hydropower plants, while the self-calibration function ensures long-term measurement accuracy without frequent on-site maintenance. The module’s reliable data transmission supports the governor system in precise speed regulation, improving the power generation efficiency of the hydropower unit.

Related Model Recommendations

**IS210AEACH2ABB**: 16-channel variant of **IS210AEACH1ABB**, designed for large-scale Mark VIe systems (such as multi-turbine power plants) requiring extended continuous parameter monitoring.

**IS210MACCH1A**: Standard Mark VIe control module that processes high-precision analog data from **IS210AEACH1ABB**, executing closed-loop control and fault early warning for turbine systems.

**IS210BPPBH2B**: Enhanced Mark VIe power supply module with stable 24V DC output and surge protection, providing reliable power support for **IS210AEACH1ABB** in industrial power grids.

**IS210AEBIH1A**: Mark VIe digital input module that complements **IS210AEACH1ABB**, collecting discrete signals (such as switch status) to form comprehensive turbine status monitoring with continuous parameters.

**IS210BDAOH1A**: Mark VIe digital output module that works with **IS210AEACH1ABB**, executing discrete control commands (such as valve actuation) based on continuous parameter thresholds (e.g., high temperature trigger shutdown).

**IC754VSF12CTD**: GE VersaMax HMI that displays real-time high-precision analog data and diagnostic information from **IS210AEACH1ABB**, enabling operators to monitor turbine process parameters intuitively.

**IS210MCCPG1A**: Basic Mark VIe communication module that connects **IS210AEACH1ABB** to the plant-level SCADA system, realizing centralized monitoring of turbine continuous process parameters.

IS210AEACH1ABB

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS210AEACH1ABB**, power off the Mark VIe chassis and confirm backplane slot compatibility. Ensure the module receives stable 24V DC power from a dedicated power module (e.g., **IS210BPPBH2B**). For sensor wiring, use shielded twisted-pair cables—for RTD/thermocouple signals, use dedicated extension cables to avoid measurement errors. Ground the cable shield at the chassis end to enhance anti-interference. Configure each channel’s signal type, measurement range, and calibration parameters via Mark VIe Configuration Studio according to the turbine parameter monitoring requirements. Clearly label the connecting wires and perform insulation resistance testing (≥100MΩ at 500V DC) before power-on.

Maintenance suggestions: Conduct monthly on-site visual inspections of **IS210AEACH1ABB**, checking for loose wiring, connector oxidation, and dust accumulation—clean the module surface with a dry anti-static brush. Trigger the self-calibration function quarterly to ensure measurement accuracy. Test each channel semi-annually using a precision signal calibrator to verify accuracy (±0.01% of full scale for analog signals, ±0.1°C for RTD). Perform annual isolation resistance testing (≥100MΩ at 1000V DC) and EMI filtering performance checks. Keep the control cabinet well-ventilated to maintain the operating temperature within -10°C to 65°C. Update the module firmware annually via GE’s technical support platform to optimize performance.

Service and Guarantee Commitment

GE General Electric provides a 36-month quality guarantee for the **IS210AEACH1ABB**, covering manufacturing defects, measurement accuracy degradation, channel failures, isolation performance issues, and diagnostic function malfunctions under normal operating conditions. Our technical support team offers 8×5 on-site and remote assistance, including module configuration guidance, calibration support, and fault diagnosis. Customers can obtain Mark VIe configuration tools and calibration documents for free during the guarantee period. Priority service customers enjoy 48-hour replacement of faulty modules and on-site technical training services, ensuring minimal downtime for turbine continuous monitoring systems.
