GE IS210AEBIH1ADB Mark VIe Digital Input Module
Detailed Parameter Table
Parameter Name | Parameter Value ———|——– Product Model | **IS210AEBIH1ADB** Manufacturer | GE General Electric Product Category | Industrial Digital Input Module Series | Mark VIe (Turbine Control System) Input Channels | 16 Isolated Differential Channels Input Type | Dry Contact (NO/NC), 24V DC Wet Contact Input Voltage Range | 15-33V DC (Wet Contact) Response Time | ≤0.3ms Isolation Voltage | 1000V AC (Channel to Channel, Channel to Ground) Input Current | 3.5mA @ 24V DC (Wet Contact) Diagnostic Functions | Precision Channel Open/Short Detection, Power Supply Fluctuation Monitoring, Self-Diagnosis with Fault Code Output, Cable Degradation Prediction Power Supply | 24V DC (from Mark VIe Power Module) Operating Temperature | -15°C to 70°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 4X (Chassis Mount Compatible) Physical Dimensions | 140mm × 100mm × 30mm Certifications | UL 508, CE, CSA, IEC 61131-2, ATEX Zone 2, IECEx Zone 2 Communication Protocols | GE SRTP, Modbus TCP/IP, OPC UA (for Remote Diagnostics)
Product Introduction
The **GE IS210AEBIH1ADB** is a high-end digital input module with intelligent diagnostic and remote communication capabilities, upgraded for GE’s Mark VIe turbine control system. It specializes in ultra-reliable collection and transmission of discrete signals from critical turbine components in harsh, remote industrial environments. As a flagship discrete data acquisition unit in GE’s portfolio, the module captures on/off status signals—including turbine valve position switches, emergency stop contacts, bearing temperature limit switches, and pump running status—and converts them into standardized digital data for Mark VIe control modules (such as the **IS210MACCH1A**). Its 16-channel isolated design, extended environmental adaptability, precision diagnostic functions, and multi-protocol communication support make it the preferred choice for remote offshore wind farms, cross-border pipeline turbine systems, and large-scale power plants requiring intelligent remote运维 (O&M) where ultra-reliable discrete monitoring and proactive fault management are essential.
What sets the **GE IS210AEBIH1ADB** apart is its intelligent diagnostic system, multi-protocol communication capability, and enhanced environmental resilience—advantages that address the core needs of remote and large-scale industrial scenarios. Leveraging GE’s cutting-edge turbine control and signal processing technologies, the module retains 1000V AC high-voltage isolation and multi-layer EMI filtering while adding precision fault diagnosis (with 16-level fault coding) and cable degradation prediction. Its OPC UA protocol support enables seamless connection to cloud-based monitoring platforms, while the extended operating temperature range (-15°C to 70°C) adapts to more extreme on-site conditions. By delivering ultra-fast, accurate discrete data and actionable diagnostic insights, it ensures the control system’s rapid fault response, meets strict international safety standards, and significantly reduces on-site maintenance costs for remote complex turbine control systems.
Core Advantages and Technical Highlights
High-Voltage Isolation and Enhanced Anti-Interference: The **IS210AEBIH1ADB** is equipped with 16 fully isolated differential channels, each with 1000V AC channel-to-channel and channel-to-ground isolation. It integrates enhanced multi-layer EMI/RFI filtering circuits (supporting EN 61000-6-2 immunity standards) to suppress conducted and radiated interference, ensuring accurate data collection even when monitoring high-noise discrete signals (such as turbine fuel valve switches and generator breaker statuses) in offshore, high-altitude, or cross-border industrial environments with complex electromagnetic fields.
Flexible Dual-Input and Extreme Environmental Adaptability: The module supports both dry contact (NO/NC) and 24V DC wet contact inputs, compatible with a wider range of discrete sensors and switches. Its expanded input voltage range (15-33V DC) tolerates severe power supply fluctuations, while the -15°C to 70°C operating temperature range adapts to frigid offshore winters, scorching desert turbine rooms, and high-altitude power stations. This flexibility eliminates the need for additional signal regulators and environmental control equipment, simplifying integration in extreme and remote scenarios.
Ultra-Fast Response and Intelligent Precision Diagnostics: With a response time of ≤0.3ms, the module captures rapid discrete signal changes (such as emergency stop button presses or valve fault triggers) faster than its predecessor, ensuring the **IS210MACCH1A** control module receives real-time status updates for immediate protective actions. It features advanced diagnostic functions, including 0.1mA precision channel open/short detection, power supply fluctuation monitoring (with 0.5V resolution), internal self-diagnosis with 16-level fault codes, and cable degradation prediction (based on signal integrity analysis)—reducing troubleshooting time by over 70% and enabling proactive maintenance.
Remote Communication and Ecosystem Integration: The **IS210AEBIH1ADB** adopts a reinforced housing design, compatible with NEMA 4X chassis for dustproof, waterproof, and anti-corrosion protection in humid, saline-alkali, or dusty environments. It supports GE SRTP, Modbus TCP/IP, and OPC UA protocols, enabling real-time synchronization of discrete data and diagnostic information with the **IS210MACCH1A**, on-site HMI, and cloud-based monitoring platforms. It supports advanced online configuration, fault simulation, and firmware updates via Mark VIe Configuration Studio and cloud tools, enabling remote maintenance without on-site personnel—critical for remote offshore or cross-border facilities.

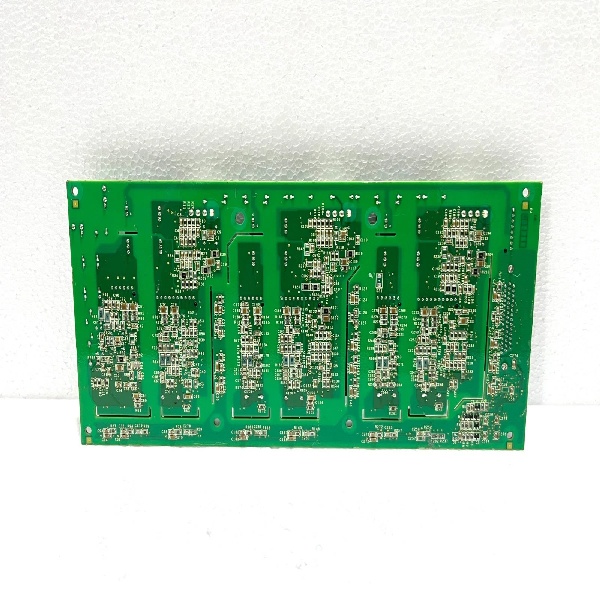

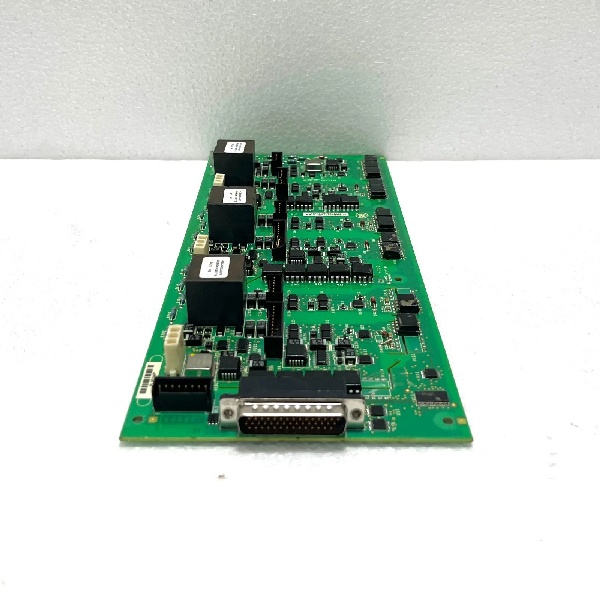

IS210AEBIH1ADB
Typical Application Scenarios
In remote offshore wind-turbine clusters (far from the shore), the **IS210AEBIH1ADB** serves as the core discrete input module for the Mark VIe control system. It monitors 16 critical signals, including wind turbine yaw position switches, hydraulic brake status, generator temperature limit contacts, and emergency stop signals. Its -15°C low-temperature resistance adapts to polar offshore conditions, while 1000V AC isolation resists interference from wind turbine converters and offshore power grids. The module transmits real-time data and diagnostic insights to the onshore cloud platform via OPC UA, and when cable degradation is predicted, it sends early warnings to maintenance teams, enabling scheduled replacement before faults occur.
In cross-border natural gas pipeline turbine systems (spanning multiple regions), the **IS210AEBIH1ADB** monitors discrete signals from explosion-proof areas (ATEX Zone 2/IECEx Zone 2), including fuel gas valve position switches, flame detection contacts, and emergency shutdown valve status. Its dual explosion-proof certifications ensure compliance with international standards, while precision channel diagnostics quickly identify wiring faults caused by pipeline vibration or temperature changes. The module communicates with the regional SCADA system via Modbus TCP/IP, enabling unified monitoring and maintenance across borders—reducing cross-regional coordination costs.
In large-scale desert solar-wind hybrid power plants, the **IS210AEBIH1ADB** collects discrete signals from combined turbine systems, such as energy storage system valve limit switches, steam turbine governor status, and auxiliary pump running signals. Its 70°C high-temperature resistance adapts to desert heat, while enhanced EMI filtering resists interference from solar inverters and wind converters. The module’s cable degradation prediction function monitors the integrity of wires exposed to sand and UV radiation, sending early alerts to avoid unexpected failures in the harsh desert environment.
Related Model Recommendations
**IS210AEBIH2ADB**: 32-channel variant of **IS210AEBIH1ADB**, designed for large-scale Mark VIe systems (such as multi-turbine offshore wind farms or cross-border pipeline networks) requiring extended discrete signal monitoring.
**IS210MACCH1B**: Enhanced Mark VIe control module that processes discrete data and precision diagnostic information from **IS210AEBIH1ADB**, executing intelligent protective actions and fault response strategies for complex turbine systems.
**IS210BPPBH2BAP-EX**: Extreme environment Mark VIe power supply module with surge protection and wide voltage input (18-36V DC), providing stable power to **IS210AEBIH1ADB** in remote areas with unstable power grids.
**IS210BAPAH1ADB**: Analog input module with intelligent diagnostic functions, complementing **IS210AEBIH1ADB** to provide comprehensive turbine status monitoring and integrated remote diagnostics in high-interference, remote environments.
**IS210BDAOH1ADB**: Digital output module with precision control and explosion-proof certification, working with **IS210AEBIH1ADB** to execute discrete control commands (e.g., valve actuation) and feed back execution status for closed-loop control in hazardous areas.
**IC754VSF12CTD-EX-Pro**: Intelligent explosion-proof GE VersaMax HMI that displays real-time discrete status, diagnostic data, and fault codes from **IS210AEBIH1ADB**, supporting local operation and remote data forwarding to cloud platforms.
**IS210MCCPG3A**: High-speed, multi-protocol Mark VIe communication module that enhances **IS210AEBIH1ADB**’s connectivity to 5G and satellite communication networks, enabling stable data transmission for ultra-remote turbine systems (e.g., offshore wind farms far from shore).
Installation, Commissioning and Maintenance Instructions
Installation preparation: Before installing **IS210AEBIH1ADB**, power off the Mark VIe chassis and verify backplane compatibility. For hazardous areas, ensure the module is installed in a NEMA 4X explosion-proof enclosure with IP67 sealing. Use double-shielded, UV-resistant, and corrosion-resistant twisted-pair cables (armored for offshore/pipeline applications) for sensor connections, and ground the cable shield at both ends with low-resistance grounding clamps. Configure each channel’s input type, diagnostic thresholds, fault alarm levels, and communication protocols (OPC UA/Modbus) via Mark VIe Configuration Studio. Label wires clearly according to the turbine signal schematic, and perform insulation resistance testing (≥200MΩ at 500V DC) and signal integrity testing before power-on.
Maintenance suggestions: Conduct monthly remote diagnostic checks via the cloud platform to monitor fault codes and cable degradation status of **IS210AEBIH1ADB**. Perform on-site visual inspections quarterly, checking for loose wiring, connector corrosion, enclosure sealing integrity, and cable wear—clean the module with a dry anti-static cloth (avoid water in hazardous areas). Test each channel quarterly using a precision signal simulator to verify response time (≤0.3ms) and input accuracy. Perform semi-annual isolation resistance testing (≥200MΩ at 1000V DC) and EMI filtering performance checks. Update the module’s firmware remotely via GE’s secure cloud platform annually. For offshore/pipeline applications, replace shielded cables every 5 years and conduct full-system diagnostic calibration every 2 years.

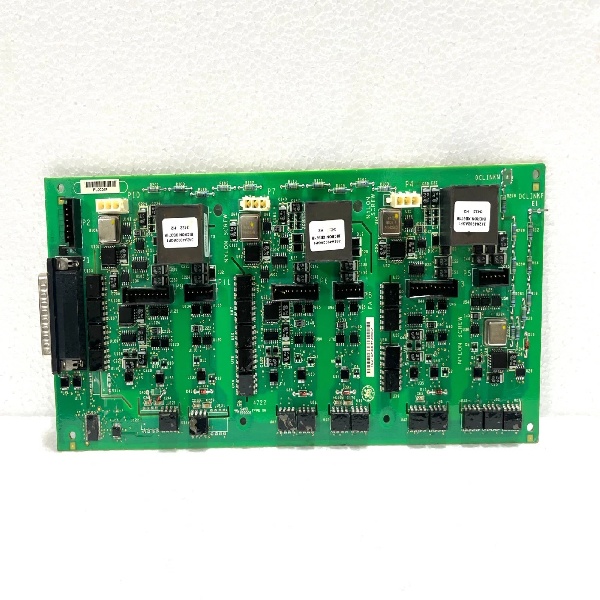

IS210AEBIH1ADB
Service and Guarantee Commitment
GE General Electric provides a 60-month quality guarantee for the **IS210AEBIH1ADB**, covering manufacturing defects, channel failures, isolation performance degradation, diagnostic function malfunctions, communication protocol errors, and EMI filtering failures under normal operating conditions. Our global technical support team offers 24/7 specialized remote services for extreme and remote applications, including cloud-based diagnostic analysis, remote fault location, customized configuration solutions, and 5G/satellite communication debugging. Customers receive exclusive access to GE’s intelligent Mark VIe Cloud Monitoring Platform, international explosion-proof installation guidelines, and precision calibration documentation for the module. Priority service clients benefit from 12-hour emergency replacement of defective modules, dedicated technical account managers, and free remote calibration services during the guarantee period—ensuring minimal downtime for critical remote turbine systems.
