GE IS210AEPSG1A Mark VIe Power System Monitoring Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS210AEPSG1A** Manufacturer | GE General Electric Product Category | Industrial Power System Monitoring Module Series | Mark VIe (Turbine Control System) Monitoring Channels | 2 Power Module Inputs, 2 Power Module Outputs Monitored Parameters | Voltage, Current, Power Consumption, Temperature, Efficiency Input Voltage Range | 0-300V AC/DC (for monitoring) Output Current Monitoring Range | 0-50A DC Measurement Accuracy | ±0.2% of Full Scale (Voltage/Current) Communication Interface | GE SRTP, Modbus TCP (Mark VIe Backplane Compatible) Power Supply | 24V DC (from Mark VIe Power Module) Operating Temperature | 0°C to 60°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 12 (Chassis Mount) Physical Dimensions | 140mm × 80mm × 30mm Certifications | UL 508, CE, CSA, IEC 61010-1

Product Introduction

The **GE IS210AEPSG1A** is a compact power system monitoring module tailored for GE’s Mark VIe turbine control system, specializing in real-time supervision and fault diagnosis of power supply infrastructure in small to mid-sized setups. As a cost-effective “power guardian” in GE’s industrial portfolio, the **GE IS210AEPSG1A** continuously tracks key operating parameters of Mark VIe power modules (such as the **IS210BPPBH1B**), including input/output voltage, load current, internal temperature, and energy efficiency. It converts these monitoring data into actionable insights for Mark VIe control modules (like the **IS210MACCH1A**), enabling proactive fault handling and ensuring the stable power supply vital for compact turbine control systems in distributed power plants and industrial auxiliary facilities.

What makes the **GE IS210AEPSG1A** stand out is its streamlined design for small-scale Mark VIe ecosystems and focus on cost-efficient predictive power management. Leveraging GE’s expertise in industrial power monitoring and turbine control, the **GE IS210AEPSG1A** retains high-precision data collection while reducing channel count, making it ideal for systems with 1-2 power modules. It not only collects real-time power data but also analyzes trends to predict potential failures—such as abnormal voltage fluctuations or overheating—transmitting early warnings to avoid unplanned shutdowns and improve the reliability of compact control systems.

Core Advantages and Technical Highlights

Streamlined Multi-Channel Monitoring: The **IS210AEPSG1A** features 2 dedicated channels for power module inputs and 2 for outputs, supporting simultaneous supervision of up to 2 Mark VIe power modules. This optimized design balances monitoring coverage and cost, eliminating redundant hardware in small systems while ensuring full visibility of critical power flows for the control cabinet.

High-Precision Measurement Retention: With ±0.2% full-scale accuracy for voltage and current—matching its higher-channel counterpart—the **IS210AEPSG1A** captures subtle parameter changes, such as minor voltage drops under peak loads or current increases indicating module degradation. This precision ensures the **IS210MACCH1A** receives reliable data for accurate power system assessment, even in compact setups.

Proactive Fault Warning: The **IS210AEPSG1A** includes GE’s proprietary fault diagnosis algorithms, triggering immediate alerts for over-voltage, under-voltage, over-current, and over-temperature conditions. It sends diagnostic details (fault location/severity) to the Mark VIe HMI, allowing maintenance teams to address issues before they escalate—critical for avoiding downtime in small facilities with limited redundancy.

Seamless Compact Ecosystem Integration: The **IS210AEPSG1A** communicates via GE SRTP with the Mark VIe backplane and supports Modbus TCP for SCADA integration. Its reduced physical size (140mm × 80mm × 30mm) fits easily in compact control cabinets, while real-time data synchronization with the **IS210MACCH1A** ensures unified power management for small turbine systems.

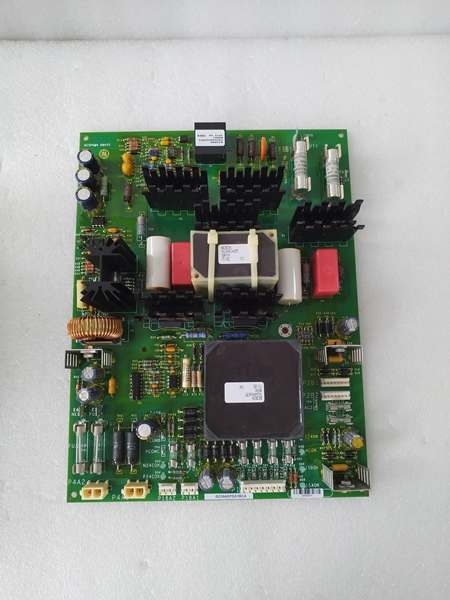

IS210AEPSG1A

Typical Application Scenarios

In distributed gas turbine power plants (5-20 MW), the **IS210AEPSG1A** monitors 1 main and 1 backup **IS210BPPBH1B** power module. It tracks input voltage from the local grid, output current to the **IS210MACCH1A**, and module temperatures. When grid voltage fluctuates beyond thresholds, it alerts the control system to switch to backup power, preventing interruptions in small-scale turbine operations.

For industrial auxiliary turbine systems (e.g., boiler feedwater turbines), the **IS210AEPSG1A** monitors the primary power module and a small backup unit. It tracks load distribution, alerting operators if the main module bears excessive current—helping balance loads and extend equipment life. This ensures continuous auxiliary power for manufacturing processes without redundant monitoring hardware.

In remote small hydroelectric plants (micro-hydro), the **IS210AEPSG1A** transmits power module data to central SCADA via Modbus TCP. It monitors the efficiency of a single **IS210BPPBH1B** module powered by on-site renewable energy, identifying inefficiencies to optimize consumption. Its compact size fits in limited cabinet space, while over-temperature alerts protect modules in high-humidity environments.

Related Model Recommendations

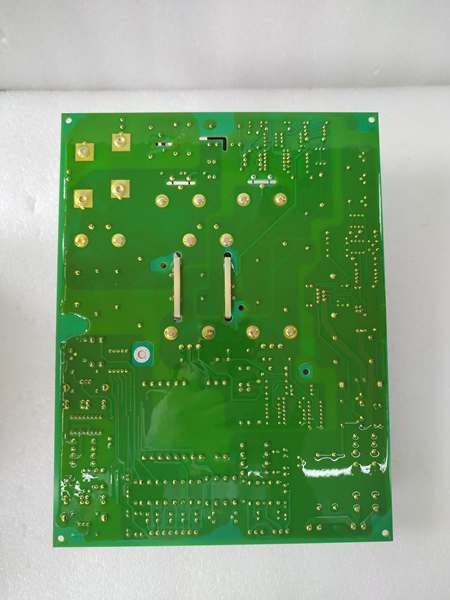

**IS210AEPSG2B**: 4-channel variant of **IS210AEPSG1A**, ideal for large Mark VIe systems with multiple power modules, such as multi-turbine power plants.

**IS210MACCH1A**: Mark VIe control module that processes monitoring data from **IS210AEPSG1A**, executing fault responses for power system anomalies in small setups.

**IS210BPPBH1B**: Compact Mark VIe power supply module monitored by **IS210AEPSG1A**, forming a cost-effective “supply-monitoring” pair for small turbine systems.

**IC754VSF08CTD-JH**: Compact GE VersaMax HMI that displays data from **IS210AEPSG1A**, fitting in small control cabinets for local operator monitoring.

**IS210MCCPG1A**: Mark VIe communication module that extends **IS210AEPSG1A**’s connectivity to legacy SCADA, supporting small-system upgrades.

**IS210BAPAH1A**: Analog input module complementing **IS210AEPSG1A** to collect sensor data, providing full system visibility in compact setups.

**IS210BDAOH1A**: Digital output module working with **IS210AEPSG1A**, executing commands like backup power switching based on monitoring data.

IS210AEPSG1A

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS210AEPSG1A**, power off the Mark VIe chassis and verify backplane compatibility. Ensure 24V DC power from a dedicated module. Connect its 2 input/output channels to target power modules using shielded cables. Configure SRTP parameters and fault thresholds via Mark VIe Configuration Studio, aligning with the small-system power design.

Maintenance suggestions: Conduct monthly visual inspections of **IS210AEPSG1A**, checking wiring and dust—clean with a dry anti-static brush. Calibrate its 2 channels quarterly with a precision source to ensure ±0.2% accuracy. Test fault alerts semi-annually by simulating anomalies. Maintain cabinet temperature at 0°C to 60°C, and update firmware annually via GE support.

Service and Guarantee Commitment

GE General Electric provides a 30-month quality guarantee for the **IS210AEPSG1A**, covering manufacturing defects, measurement inaccuracies, and communication failures under normal use. Our 24/7 technical team offers remote calibration and troubleshooting. Customers get access to configuration tools and documentation, with priority clients receiving 48-hour module replacement to minimize small-system downtime.
