Description

GE IS210BPPBH2BMD Mark VIe Power Supply Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS210BPPBH2BMD** Manufacturer | GE General Electric Product Category | Industrial Power Supply Module Series | Mark VIe (Turbine Control System) Input Voltage | 85-264V AC (Wide-Range), 110-300V DC Output Voltage | 24V DC (Regulated) Output Current | 15A (Continuous), 25A (Peak) Efficiency | ≥91% @ Full Load Protection Features | Over-Voltage, Over-Current, Short-Circuit, Over-Temperature, Reverse Polarity Operating Temperature | -10°C to 65°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 12 (Chassis Mount) Physical Dimensions | 150mm × 110mm × 35mm Certifications | UL 508, IEC 60950-1, CE, CSA, ATEX (Zone 2)

Product Introduction

The **GE IS210BPPBH2BMD** is a ruggedized power supply module engineered for GE’s Mark VIe turbine control system, functioning as the reliable energy backbone for critical control components in harsh industrial environments. As an enhanced power management solution in GE’s industrial portfolio, the **GE IS210BPPBH2BMD** delivers stable, regulated 24V DC power to Mark VIe control modules (such as the **IS210MACCH1A**), I/O modules, and safety systems—ensuring uninterrupted operation of turbine control functions. Its wide-range input design, extended temperature tolerance, and ATEX certification make it adaptable to extreme power grid conditions and hazardous areas, a key requirement for offshore, petrochemical, and remote power generation facilities.

What distinguishes the **GE IS210BPPBH2BMD** is its seamless integration with the Mark VIe ecosystem and focus on harsh-environment reliability. Building on GE’s expertise in power electronics and industrial system design, the **GE IS210BPPBH2BMD** maintains precise voltage regulation even during extreme load fluctuations and low-temperature starts—common scenarios in offshore wind or arctic power facilities. By providing consistent power in challenging conditions, it directly enhances the reliability of the entire control system, reducing the risk of unplanned turbine downtime and associated revenue losses—ideal for mid-sized generation facilities in demanding settings.

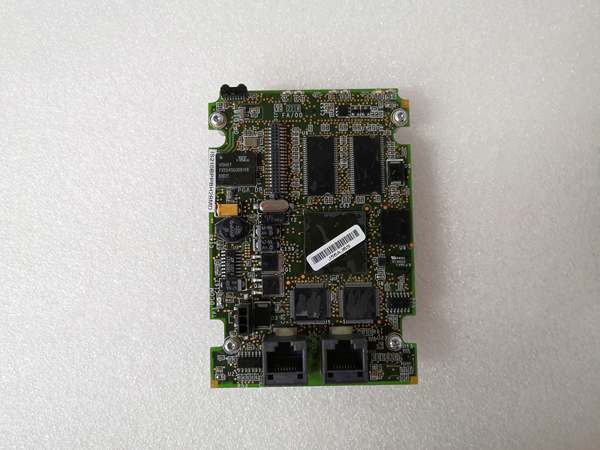

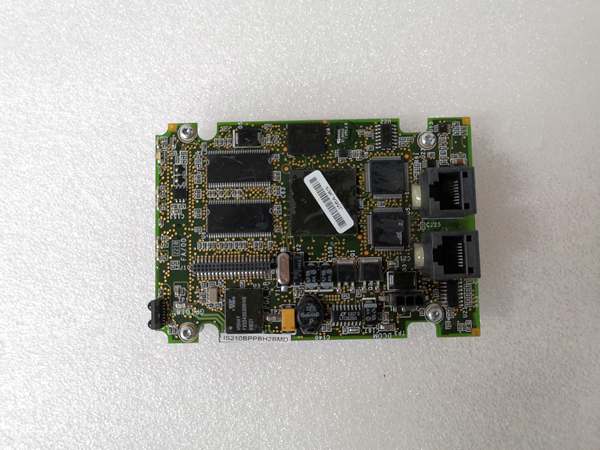

IS210BPPBH2BMD

Core Advantages and Technical Highlights

Wide-Range Input Adaptability: The **IS210BPPBH2BMD** supports an ultra-wide input range of 85-264V AC and 110-300V DC, eliminating manual configuration and adapting to unstable or low-quality power grids—critical for remote mining or offshore turbine installations where voltage fluctuations are frequent. Reverse polarity protection on DC input further prevents damage from wiring errors, a common on-site risk.

Stable Regulated Output: Delivering 24V DC with ±0.5V precision, the **IS210BPPBH2BMD** maintains consistent power to Mark VIe components even under 15A continuous load. Its advanced switching topology ensures minimal voltage ripple (<50mV), protecting sensitive electronics in control modules like the **IS210MACCH1A** from signal interference and performance degradation—even in high-electromagnetic environments near turbine generators.

Enhanced Protection and Hazardous Area Compliance: The **IS210BPPBH2BMD** integrates multi-layer protection, including over-voltage (28V DC cutoff), over-current (25A peak limit), short-circuit, over-temperature, and reverse polarity safeguards. ATEX Zone 2 certification allows deployment in explosive atmospheres (e.g., petrochemical refineries), while its rugged design resists corrosion from salt air—ideal for offshore turbine applications.

Extreme Temperature Performance: With ≥91% efficiency at full load and an operating temperature range of -10°C to 65°C, the **IS210BPPBH2BMD** minimizes energy waste and functions reliably in arctic or desert environments. Its enhanced passive heat dissipation design, with heat-dissipating fins and high-conductivity housing, eliminates fan-related maintenance and failure risks in both cold and hot turbine enclosures.

Typical Application Scenarios

In offshore wind turbine control systems, the **IS210BPPBH2BMD** acts as the primary power source for the Mark VIe control cabinet. It supplies regulated 24V DC to the **IS210MACCH1A** control module, I/O modules, and HMI interfaces, withstanding salt air corrosion and voltage fluctuations from offshore power grids. Its wide AC input range (85-264V) adapts to unstable power from on-board generators, ensuring consistent performance during storm-induced load changes.

For petrochemical refinery turbine systems, the **IS210BPPBH2BMD**’s ATEX Zone 2 certification enables deployment in hazardous areas, powering turbine control systems for process steam generation. It integrates with both main AC power and backup DC battery systems, switching seamlessly during grid outages to maintain power to safety shutdown systems—critical for preventing explosive gas leaks or process disruptions.

In remote arctic or desert power plants, the **IS210BPPBH2BMD**’s -10°C to 65°C operating range ensures reliable power supply to Mark VIe control systems. It powers the **IS210MACCH1A** and environmental control modules, maintaining turbine operation during extreme cold starts and hot afternoons. Its reverse polarity protection and wide DC input range (110-300V) make it compatible with local solar or diesel backup systems, a key requirement for off-grid facilities.

Related Model Recommendations

**IS210BPPBH1BMD**: 10A variant of **IS210BPPBH2BMD**, with identical harsh-environment features, ideal for small-scale Mark VIe systems in hazardous areas.

**IS210MACCH1A**: Mark VIe control module directly powered by **IS210BPPBH2BMD**, forming a harsh-environment-ready control-power combination for mid-sized turbines.

**IS210BPPBH2BMD-R**: Redundant power supply kit with two **IS210BPPBH2BMD** modules and a redundancy controller, ensuring 100% power availability for critical hazardous-area systems.

**IS210MCPMG1A**: Power monitoring module that pairs with **IS210BPPBH2BMD** to track voltage, current, and efficiency, sending alerts to SCADA systems for remote maintenance.

**IS210IAIH1A-EX**: Explosion-proof analog input module, receiving stable power from **IS210BPPBH2BMD** to collect turbine sensor data in hazardous areas.

**IS210BPPBH3BMD**: 20A high-capacity variant of **IS210BPPBH2BMD**, designed for large Mark VIe systems in harsh environments with multiple control modules.

**IC754VSF12CTD-EX**: Explosion-proof GE VersaMax HMI, powered by **IS210BPPBH2BMD** to display real-time turbine data in hazardous-area control rooms.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS210BPPBH2BMD**, confirm compliance with hazardous-area regulations (ATEX Zone 2) and disconnect all primary power. Verify input voltage matches the supply (85-264V AC or 110-300V DC) and use corrosion-resistant wiring (tinned copper) sized for 15A continuous current (16 AWG minimum). Use insulated, explosion-proof tools for terminal connections, secure the module with stainless steel screws to resist corrosion, and label wires clearly to avoid reverse polarity errors.

Maintenance suggestions: Conduct bi-monthly visual inspections of **IS210BPPBH2BMD** in harsh environments, checking for corrosion, loose terminals, and dust—clean with a dry, anti-static brush (avoid compressed air in explosive areas). Measure output voltage quarterly to ensure 23.5-24.5V DC and test protection functions annually. Replace the module if efficiency drops below 86% or corrosion affects terminals. Ensure control cabinets maintain positive pressure (for hazardous areas) and avoid exposing **IS210BPPBH2BMD** to direct salt spray or chemical fumes.

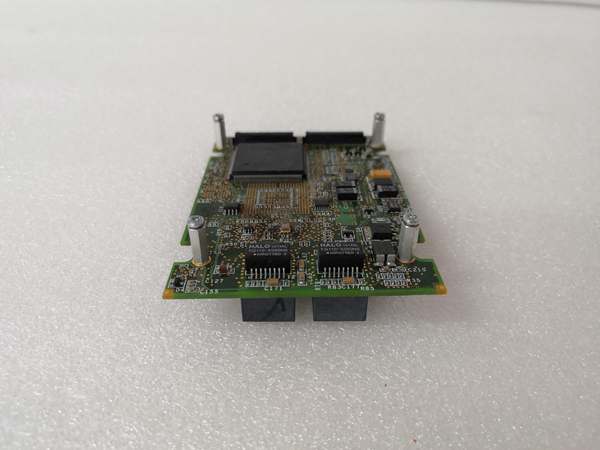

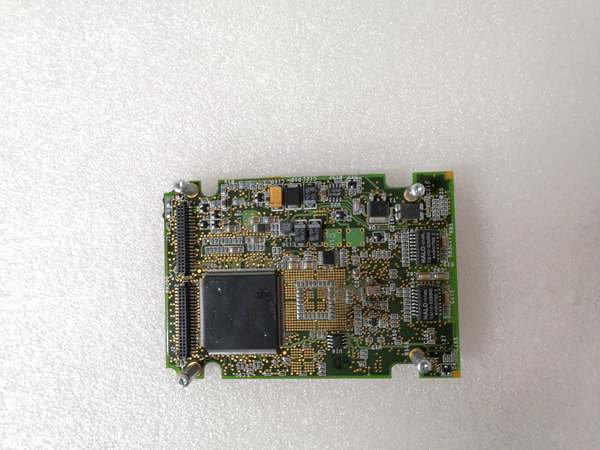

IS210BPPBH2BMD

Service and Guarantee Commitment

GE General Electric provides a 36-month quality guarantee for the **IS210BPPBH2BMD**, covering manufacturing defects, output regulation failures, and protection system malfunctions—including corrosion resistance under normal harsh-environment operation. Our global technical support team offers 24/7 hazardous-area installation guidance, remote troubleshooting, and firmware updates. Customers receive access to ATEX compliance documentation and GE’s Power Supply Configuration Tool for the **IS210BPPBH2BMD** throughout the guarantee period. Priority clients get 48-hour replacement of defective modules to minimize downtime in critical facilities.
