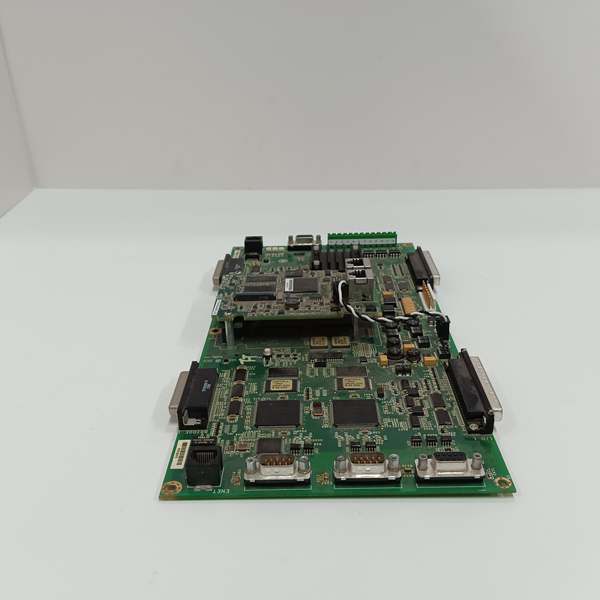

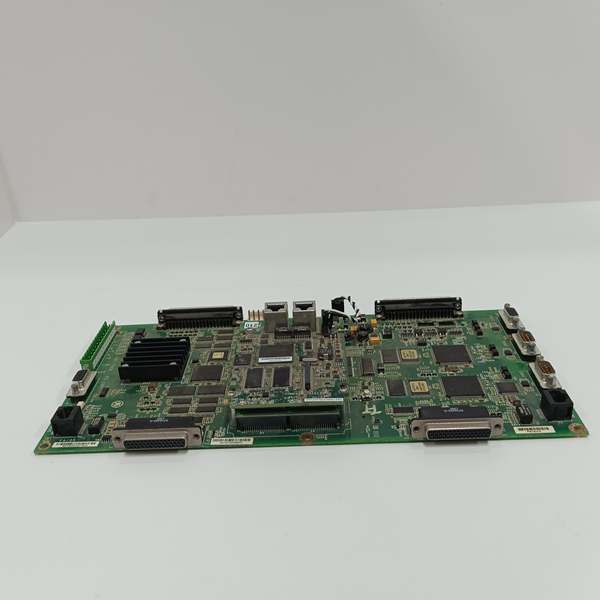

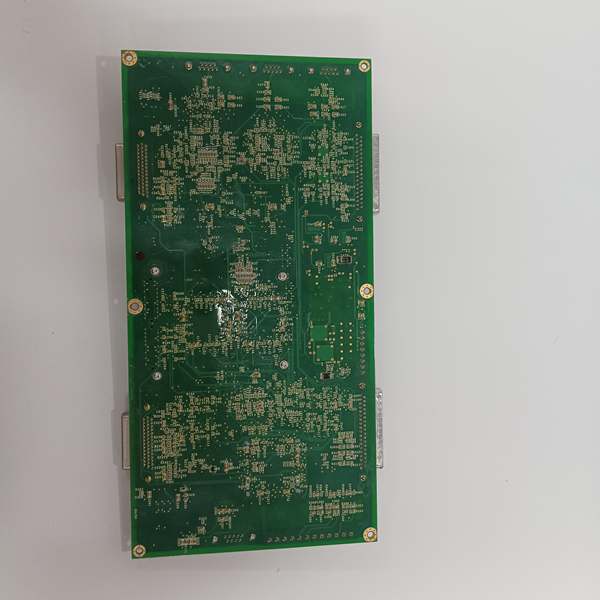

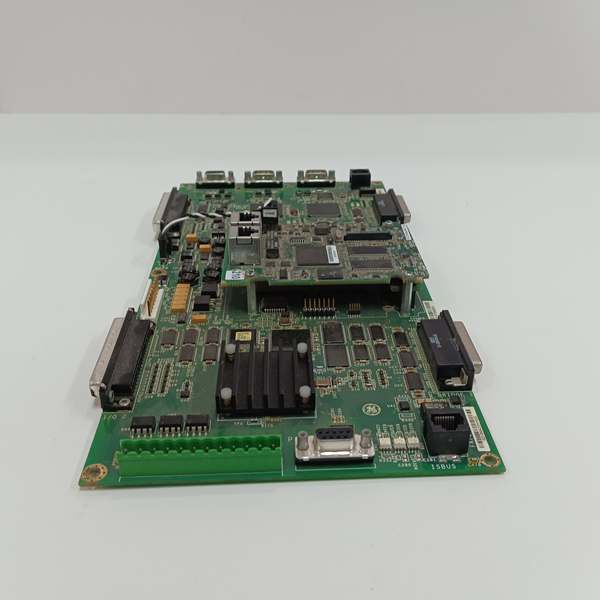

GE IS210MACCH1A Mark VIe Control Module

Detailed Parameter Table

Parameter Name | Parameter Value ———|——– Product Model | **IS210MACCH1A** Manufacturer | GE General Electric Product Category | Industrial Control Module Series | Mark VIe (Turbine Control System) Processor | 32-bit PowerPC, 533 MHz Memory | 256 MB RAM, 128 MB Flash Communication Protocols | GE SRTP, Modbus TCP, Ethernet/IP I/O Interfaces | 6×Digital Inputs, 6×Digital Outputs, 2×Analog Inputs (4-20mA) Operating Voltage | 24V DC (±10%) Operating Temperature | 0°C to 60°C Storage Temperature | -40°C to 85°C Protection Rating | IP20 (Module), NEMA 12 (Chassis Mount) Physical Dimensions | 140mm × 100mm × 30mm Certifications | IEC 61508 (SIL 2), UL 508, CE

Product Introduction

The **GE IS210MACCH1A** is a reliable control module that acts as the core processing unit of GE’s Mark VIe turbine control system, tailored for gas, steam, and small-to-medium hydro turbine applications. As a cost-effective flagship component in GE’s industrial control portfolio, the **GE IS210MACCH1A** integrates solid processing capabilities with dedicated turbine control algorithms, enabling precise regulation of speed, load, and basic safety functions. Its design caters to the practical demands of power generation, where consistent performance and cost-efficiency are key to operational profitability.

What distinguishes the **GE IS210MACCH1A** is its seamless integration within the Mark VIe ecosystem, collaborating with I/O modules, HMI interfaces, and safety systems to form a streamlined control solution. Leveraging GE’s extensive turbine control expertise, the **GE IS210MACCH1A** ensures stable operation under dynamic load conditions, shortens start-up time, and optimizes fuel consumption—delivering tangible value by enhancing turbine performance and extending service life for power plant operators, especially in mid-sized generation facilities.

Core Advantages and Technical Highlights

Turbine-Specific Control Logic: The **IS210MACCH1A** comes preloaded with GE’s proprietary turbine control algorithms, optimized for speed governing, basic load sharing, and essential fault protection. These built-in functions eliminate the need for complex custom programming, reducing deployment time while ensuring compliance with industry performance standards—ideal for steam turbine applications requiring steady response to grid load changes.

Reliable Performance (SIL 2 Certified): Compliant with IEC 61508 SIL 2 standards, the **IS210MACCH1A** features built-in self-diagnostic functions that continuously monitor internal components and communication links. It sends real-time fault alerts to the control system, enabling timely maintenance—ensuring reliable operation in mid-sized power generation scenarios where controlled downtime is manageable with proper planning.

Multi-Protocol Connectivity: Equipped with support for GE SRTP, Modbus TCP, and Ethernet/IP, the **IS210MACCH1A** seamlessly connects to plant DCS systems and SCADA platforms. This versatility allows power plant operators to integrate turbine data into centralized control networks, facilitating predictive maintenance and data-driven optimization of the generation process—without the need for additional communication adapters.

Efficient Thermal Management: The **IS210MACCH1A** adopts a passive heat dissipation design with high-conductivity aluminum housing, eliminating fan-dependent cooling. This reduces moving parts and potential failure points, ensuring stable performance even in the warm environments of turbine enclosures—enhancing long-term reliability and lowering maintenance costs for budget-conscious operators.

IS210MACCH1A

Typical Application Scenarios

In small-scale combined cycle power plants and industrial cogeneration facilities (common in manufacturing plants and university campuses), the **IS210MACCH1A** serves as the primary control unit for medium-capacity gas or steam turbines. It regulates fuel flow and air intake to maintain optimal efficiency, while communicating with auxiliary systems via Ethernet/IP to coordinate output with on-site energy demands—delivering consistent fuel savings and reducing reliance on external power grids.

For small hydroelectric power plants (under 50 MW), the **IS210MACCH1A** manages turbine governor systems, adjusting runner blades and wicket gates to respond to water flow variations and grid demand. Its SIL 2 certification meets safety standards for small dam operations, while compatibility with GE’s PlantPAx DCS allows integration into local power grid management—supporting renewable energy integration and grid stability in regional networks.

In hydroelectric power plants, the **IS210MACCH1AFG** manages turbine governor systems, adjusting runner blades and wicket gates to respond to changes in water flow and grid demand. Its SIL 3 certification ensures compliance with safety standards for dam and turbine operations, while its compatibility with GE’s PlantPAx DCS allows integration into regional power grid management systems—supporting grid stability and renewable energy integration.

Related Model Recommendations

**IS210MACCH1AFG**: Enhanced variant of **IS210MACCH1A** with expanded I/O (8×DI/DO, 4×AI) and SIL 3 certification, designed for large-scale turbine systems requiring higher reliability.

**IS210MCCPG1A**: Mark VIe communication module that extends **IS210MACCH1A**’s connectivity to legacy turbine control systems via RS-485 Modbus, ideal for system upgrades.

**IS210IAIH1A**: Analog input module paired with **IS210MACCH1A** to expand sensor data collection (pressure, temperature) for comprehensive turbine monitoring.

**IC754VSF12CTD-JH**: 12-inch GE VersaMax HMI, cost-matched to **IS210MACCH1A** for displaying real-time turbine data and enabling operator control.

**IS210MCPMG1A**: Power management module for Mark VIe systems, ensuring stable 24V DC supply to **IS210MACCH1A** and associated I/O modules in small turbine setups.

**IS210MAGSG1A**: Safety logic module that complements **IS210MACCH1A** to implement emergency shutdown functions, upgrading safety performance for critical applications.

**IS210MACCH1A-R**: Refurbished version of **IS210MACCH1A**, offering cost-effective replacement for legacy Mark VIe systems in small power plants.

IS210MACCH1A

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing **IS210MACCH1A**, ensure the Mark VIe chassis is powered off and grounded to prevent ESD damage. Verify the chassis slot is compatible with Mark VIe modules and the 24V DC power supply is within the ±10% tolerance range. Label all I/O wires according to the turbine control schematic to avoid misconnection, and use shielded cables for analog inputs to reduce electromagnetic interference from turbine generators.

Maintenance suggestions: Conduct monthly visual inspections of **IS210MACCH1A**, checking for loose wiring and dust accumulation—use compressed air (max 0.3 MPa) to clean the module’s ventilation slots. Run quarterly diagnostic tests via GE’s Turbine Control Studio software to verify processor performance and communication integrity. Replace the module’s backup battery every 2 years to preserve configuration data during power outages. Avoid exposing **IS210MACCH1A** to direct steam or oil mist, and ensure the turbine enclosure maintains proper ventilation.
