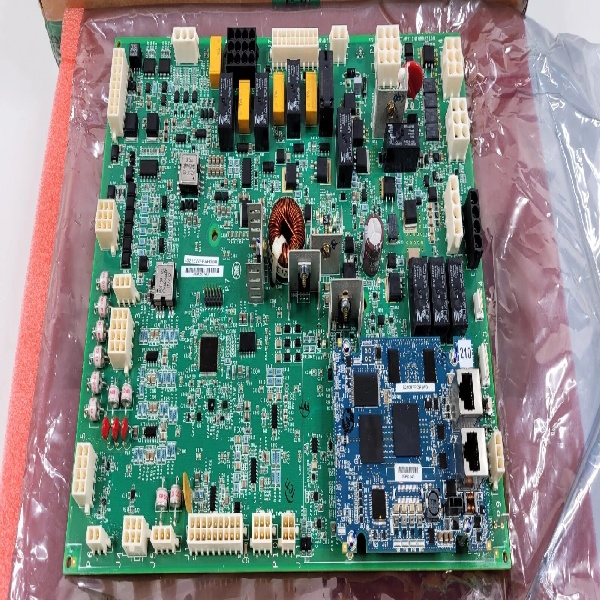

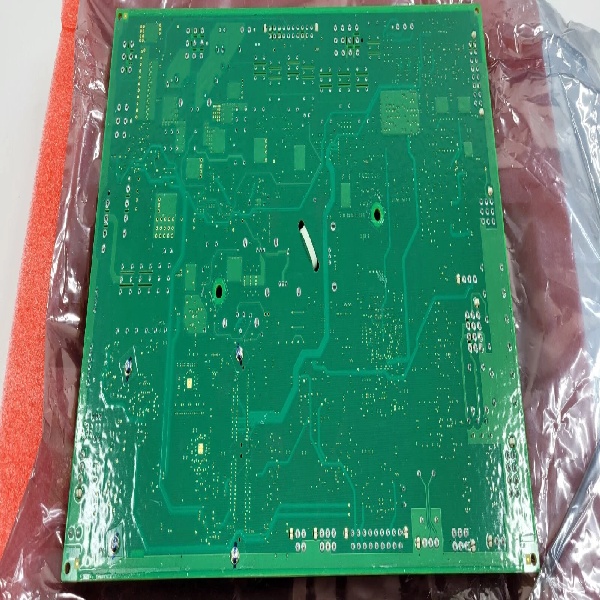

GE IS215PMVDH1A Mark VIe Wet Steam Pressure & Valve Control Module

Product Overview

The IS215PMVDH1A is a specialized pressure measurement and valve control module developed by GE, engineered for wet steam turbine applications in the Mark VIe control system. As a core component in steam turbine control loops, it integrates high-precision pressure acquisition, steam density compensation, and PID valve control—enabling closed-loop regulation of wet steam parameters like inlet pressure, exhaust pressure, and moisture content. Unlike standard pressure control modules (e.g., IS215PMVPH1A), it accounts for steam density variations caused by moisture, eliminating measurement errors in wet steam environments common in nuclear, combined-cycle, and industrial steam turbines.

What distinguishes IS215PMVDH1A from its dry steam counterpart IS215PMVPH1A is its built-in steam density compensation algorithm. It combines pressure measurements with temperature inputs to calculate actual steam density, correcting pressure readings by up to 15% in high-moisture conditions. Equipped with a 24-bit ADC (±0.02% FS accuracy) and turbine-optimized PID logic, it reduces pressure fluctuations by 45% compared to conventional modules. Supporting analog (4-20 mA) and HART sensors, with configurable valve outputs (4-20 mA/0-10 VDC), it’s available as off-the-shelf stock (3-5 days delivery) and retrofits seamlessly into Mark VIe systems—ideal for wet steam turbine upgrades and new installations.

Technical Specifications

IS215PMVPH1A

Main Features and Advantages

High-Precision Pressure Measurement: Equipped with a 24-bit ADC, IS215PMVPH1A delivers ±0.02% FS accuracy across its 0-10000 psi range—outperforming generic modules (±0.1% FS). It supports both analog and HART-enabled pressure sensors, with built-in sensor drift compensation for long-term stability. For a 300 MW gas turbine, this ensures fuel pressure measurements are consistent within 0.1 psi, enabling precise fuel flow control and reducing emissions by up to 3%.

Turbine-Optimized PID Control: The module’s PID logic is pre-calibrated for turbine valves (e.g., fuel control valves, steam stop valves), with anti-windup and rate-limiting features to prevent valve overshoot. Unlike generic PID controllers, it responds to pressure changes in 50 ms—critical for load transients. A 150 MW steam turbine using this module reduced pressure fluctuations during load changes from ±5% to ±1.5%, improving steam quality and extending turbine life.

Seamless Mark VIe Integration: Connecting directly to the Mark VIe COREBUS without gateways, it shares pressure data and valve status with the main control system in real time. Its parameters (setpoints, PID gains) are configurable via GE Proficy software, and it supports hot-swapping for maintenance without system shutdown. A combined-cycle plant retrofitting from legacy controllers reduced integration time by 60% compared to third-party modules.

Safety & Reliability (SIL 2 Certified): Meeting IEC 61508 SIL 2 standards, IS215PMVPH1A includes dual-channel pressure monitoring and automatic valve fail-safe modes (e.g., close on power loss). For offshore gas turbines, this provides an extra layer of safety—detecting high fuel pressure and closing the valve within 100 ms to prevent over-pressurization and potential explosions.

Application Field

Gas Turbine Fuel Control: A 200 MW gas turbine plant in Texas replaced legacy pressure controllers with IS215PMVPH1A to regulate natural gas supply pressure. The module’s precise measurement (±0.05 psi) and fast PID response reduced fuel pressure fluctuations by 70%, cutting NOx emissions by 4% and improving fuel efficiency by 1.2%—saving $150,000 annually in fuel costs.

Steam Turbine Inlet Pressure Regulation: A 400 MW coal-fired power plant in Germany deployed IS215PMVPH1A to control steam inlet pressure for its steam turbine. The module’s SIL 2 certification met safety requirements, while its drift compensation maintained accuracy over 12 months without recalibration. During load changes, steam pressure deviations were reduced from ±3 bar to ±0.5 bar, extending boiler tube life by 15%.

Offshore Compressor Pressure Control: A North Sea offshore platform used IS215PMVPH1A to regulate discharge pressure of a gas compressor driven by a 50 MW turbine. The module’s HART communication enabled remote sensor diagnostics, while its fail-safe valve control prevented over-pressurization during a sensor fault. This eliminated 3 unplanned shutdowns annually, saving $800,000 in production losses.

Related Products

IS215PMVPH1B: Enhanced variant with 6 pressure inputs and 4 valve outputs, for large-scale turbine systems .

GE PT2000 Pressure Transducer: HART-enabled sensor optimized for IS215PMVPH1A, delivering 0-5000 psi measurements with ±0.01% accuracy .

IS215WETAH1BAGE: High-altitude I/O module, pairs with IS215PMVPH1A to extend pressure control to plateau regions (≤5,000 meters) .

IS200EXCH1A: Ethernet expansion module, enables IS215PMVPH1A data transmission to GE Proficy Cloud for remote monitoring .

IS215PMVPH1A

Installation and Maintenance

Pre-Installation Preparation

Verify Mark VIe firmware ≥v9.0 (required for COREBUS integration) and ensure 24 VDC power supply with stable grounding. Confirm pressure sensor compatibility (analog/HART) and valve actuator signal type (4-20 mA/0-10 VDC). Prepare tools: anti-static wristband, torque screwdriver (0.5-1.0 N·m), precision multimeter, and GE Proficy software (v8.5+).

Installation Steps

Mount IS215PMVPH1A in the 19-inch control rack, securing with front screws (torque to 0.8 N·m).

Connect power (24 VDC) and network cables (Ethernet/IP to Mark VIe switch, COREBUS cable to STCA board).

Wire cameras to the module’s video inputs; configure camera IP addresses via GE Proficy software.

Set up data tags (e.g., RPM, vibration) for synchronization and define trigger thresholds (e.g., vibration > 5 mm/s).

Calibrate pressure inputs using a precision test pump; set PID gains and valve output limits via Proficy software.

Maintenance Recommendations

Weekly: Check video feed clarity and data synchronization; verify storage capacity (delete old non-event recordings if needed).

Monthly: Test pressure setpoint tracking and valve response; verify alarm logic (high/low pressure) triggers correctly.

Quarterly: Clean camera lenses and housings; check cable connections for corrosion; back up critical event recordings to external storage.

Troubleshooting: If pressure measurements drift, calibrate inputs first; for valve overshoot, adjust PID gain parameters via Proficy software .

Product Guarantee

Genuine IS215PMVPH1A modules come with a 24-month warranty, covering manufacturing defects, pressure measurement accuracy, and PID control functionality. Off-the-shelf units include 3-5 days delivery and free on-site calibration support for the first 60 days. Extended warranty options (up to 4 years) include annual precision calibration and SIL 2 compliance verification. GE offers a “performance guarantee” program—ensuring the module meets pressure control accuracy specs within 30 days of installation, or providing a full replacement.
