IS220PAICH1B

Description

Detailed Parameter Table

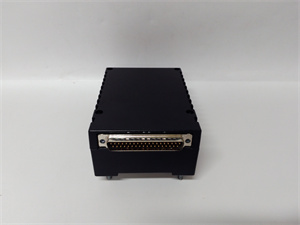

IS220PAICH1B

Product Introduction

The IS220PAICH1B is a high-precision analog input module developed by GE for seamless integration with its Mark VIe Distributed Control System (DCS)—a platform trusted globally for reliability in power generation, oil & gas, and process manufacturing. Unlike the digital I/O-focused IS220PDIAH1A or thermocouple-specific IS220PTCCH1A, the IS220PAICH1B specializes in acquiring and converting standard industrial analog signals (current: 4–20 mA; voltage: 0–10 V DC, etc.) into high-fidelity digital data, enabling accurate monitoring of critical process variables like pressure, flow, level, and pH.

With 16 fully isolated, independently configurable channels, the IS220PAICH1B adapts to diverse analog measurement needs—from low-range pressure sensors in chemical reactors to high-flow transmitters in water treatment plants. Its 16-bit A/D converter and ±0.05% full-scale accuracy ensure even subtle signal variations are captured, while a maximum sampling frequency of 200 Hz supports real-time control of fast-changing processes. For plant engineers, the IS220PAICH1B delivers unmatched flexibility: it works with 90% of industrial analog sensors, eliminates the need for external signal conditioners, and integrates seamlessly with other Mark VIe modules—making it a core component of comprehensive process control systems.

Core Advantages and Technical Highlights

Channel-Level Isolation for Uncompromised Accuracy

A standout feature of the IS220PAICH1B is its 250 V DC channel-to-channel isolation, which prevents ground loops and cross-signal interference—common issues in dense DCS racks where modules like the IS220PDIAH1A (digital I/O) or IS220PTCCH1A (thermocouple) operate alongside analog sensors. For example, if a pressure transmitter connected to Channel 1 experiences a voltage spike, the isolation ensures the fault does not propagate to other channels or damage the Mark VIe backplane. This design also eliminates the need for external isolation barriers, reducing rack complexity and procurement costs by up to 30%.

High Precision and Flexible Sampling for Critical Processes

The IS220PAICH1B sets a benchmark for analog input accuracy with its 16-bit A/D converter and ±0.05% full-scale error—outperforming entry-level analog modules by a factor of 2–3. This precision is critical for applications like oil refinery distillation columns, where a 0.1% deviation in flow measurement can translate to thousands of dollars in lost product. Additionally, the module’s configurable sampling frequency (up to 200 Hz globally) allows users to match performance to process needs: high-frequency sampling for fast-changing variables (e.g., pump discharge pressure) and lower frequencies for stable variables (e.g., tank level) to optimize DCS bandwidth.

Rugged Design for Harsh Industrial Conditions

Built to GE’s rigorous industrial standards, the IS220PAICH1B features a metal-shielded housing that complies with EN 61000-6-2 EMI standards, blocking electromagnetic interference from nearby motors, variable frequency drives, or power cables—ensuring signal integrity even in noisy environments like steel mills or power plant turbine halls. Its wide operating temperature range (-30°C to 65°C) and resistance to non-condensing humidity make it suitable for extreme locations: from freezing offshore platforms to hot cement kiln control rooms. With a mean time between failures (MTBF) exceeding 180,000 hours, the IS220PAICH1B minimizes unplanned downtime, a key advantage over generic analog modules with shorter lifespans.

Typical Application Scenarios

In combined-cycle power plants, the IS220PAICH1B works in tandem with the IS220PDIAH1A (digital I/O) and IS220PTCCH1A (thermocouple) to form a complete control subsystem. The IS220PAICH1B monitors analog variables like gas turbine inlet pressure (4–20 mA signal from pressure transmitters), steam flow rate (0–10 V DC from flow meters), and generator cooling water level (4–20 mA from level sensors). This data is integrated with discrete status signals from the IS220PDIAH1A (e.g., valve open/closed) and temperature data from the IS220PTCCH1A to optimize turbine efficiency and prevent overheating—critical for maximizing power output and extending equipment life.

In oil & gas upstream operations (e.g., offshore drilling rigs), the IS220PAICH1B is used to monitor wellhead pressure (4–20 mA from high-pressure transmitters) and crude oil flow rate (4–20 mA from Coriolis meters). Its channel isolation is particularly valuable here: drilling rigs have multiple ground points, which can cause ground loops in non-isolated modules—leading to inaccurate pressure readings that could compromise well safety. The IS220PAICH1B’s rugged design also withstands salt-laden air and vibration, ensuring reliable performance in harsh offshore conditions.

In water and wastewater treatment plants, the IS220PAICH1B tracks analog process variables like pH levels (4–20 mA from pH sensors), chemical dosage rates (0–5 V DC from metering pumps), and effluent turbidity (4–20 mA from turbidity meters). When paired with the IS220PDIAH1A (which controls chemical feed valves), the IS220PAICH1B creates a closed-loop system that adjusts chemical dosages in real time—ensuring compliance with environmental regulations while minimizing chemical waste. Its high accuracy ensures pH levels are maintained within ±0.1 units, a critical requirement for effective wastewater treatment.

Related Model Recommendations

IS220PDIAH1A: GE’s digital I/O module, often paired with IS220PAICH1B to combine analog signal acquisition (pressure/flow) and discrete control (valves/motors) in Mark VIe systems.

IS220PTCCH1A: GE’s thermocouple input module, complements IS220PAICH1B by adding temperature monitoring (e.g., reactor temperature) to analog process control loops.

IS220PAICH1A: Entry-level variant of IS220PAICH1B, featuring 12 channels and 12-bit A/D resolution. Ideal for non-critical analog applications (e.g., auxiliary pump pressure) to reduce costs.

TBPAI1C: Terminal board designed exclusively for IS220PAICH1B, providing color-coded terminals for easy analog signal wiring and built-in surge protection for transmitters.

IS220PSFDH1A: GE’s power supply module, powers IS220PAICH1B (±5 V DC logic power) and the IS220PDIAH1A (24 V DC) in Mark VIe racks, ensuring stable voltage delivery.

IS220UCSAH1A: GE’s universal analog input module, supports both standard signals (4–20 mA) and specialty signals (e.g., RTDs), serving as a backup for IS220PAICH1B in mixed-signal setups.

IS220PAICH2B: High-density upgrade of IS220PAICH1B, featuring 32 channels and 24-bit A/D resolution. Suitable for large-scale plants (e.g., refineries) with hundreds of analog measurement points.

IC695PBM300: GE Fanuc PLC module, enables communication between Mark VIe DCS (with IS220PAICH1B) and Fanuc PLCs in hybrid automation systems (e.g., manufacturing + process control).

IS220PAICH1B

Installation, Commissioning and Maintenance Instructions

Installation preparation for IS220PAICH1B starts with compatibility checks: ensure the Mark VIe rack has an available 1U slot and that the backplane provides stable ±5 V DC logic power (ripple <50 mV, verified via multimeter). For applications requiring auxiliary power (e.g., powering transmitters), confirm the 24 V DC supply (from IS220PSFDH1A) meets voltage tolerance (±10%). Gather tools: torque screwdriver (0.5–1.0 N·m for terminal blocks), wire strippers (for 16–22 AWG shielded signal wires), and a precision signal generator (for calibration). Always power down the Mark VIe rack before inserting the IS220PAICH1B—analog circuits are sensitive to hot-swapping and may be damaged by voltage spikes.

For commissioning, use the Mark VIe HMI to configure each channel’s input type (e.g., 4–20 mA, 0–10 V DC) and scaling (e.g., 4 mA = 0 psi, 20 mA = 1000 psi). Connect a signal generator to each channel, inject test signals (e.g., 4 mA, 12 mA, 20 mA for current inputs), and verify the DCS displays the correct scaled values (accuracy within ±0.05% of full scale). For field-wired sensors, check for shield grounding (single-point grounding at the module end) to prevent EMI interference.

For maintenance, conduct monthly checks via the Mark VIe HMI: monitor channel drift (should be <0.1% of full scale per month) and check for fault alarms (e.g., overcurrent, open circuit). Every 6 months, perform a full calibration using a NIST-traceable signal generator: adjust channel offsets via the HMI to restore accuracy if drift exceeds specifications. Inspect terminal blocks quarterly—tighten screws (to prevent loose connections) and clean shielded wire grounds (to maintain EMI protection). If replacement is needed, use only GE-authorized IS220PAICH1B spares (verify part numbers via GE’s industrial portal) to ensure Mark VIe compatibility. Post-replacement, re-commission all channels to confirm alignment with field sensors.

Service and Guarantee Commitment

The IS220PAICH1B is backed by GE’s 30-month manufacturer warranty—longer than the 24-month warranty for digital I/O modules like the IS220PDIAH1A—reflecting GE’s confidence in its analog precision and durability. The warranty covers defects in materials, workmanship, and A/D converter performance under normal operating conditions, including free replacement of faulty modules and on-site technical support for warranty-related issues.

GE provides 24/7 global technical support for the IS220PAICH1B: customers can access analog signal specialists via phone, email, or GE’s industrial support portal for help with calibration, troubleshooting, or integration with the IS220PDIAH1A and IS220PTCCH1A. The portal offers exclusive resources: IS220PAICH1B calibration guides, wiring diagrams for shielded signals, and video tutorials on drift compensation. For extended protection, GE offers service contracts (1–5 years) that include annual preventive maintenance (NIST-traceable calibration, EMI shield inspection) and priority spare parts shipping (24-hour delivery in North America/Europe, 48-hour delivery globally). All service work is performed by GE-certified technicians to ensure the module maintains its factory-calibrated accuracy and warranty validity.
