IS230TNSVH3A Product Description

Description

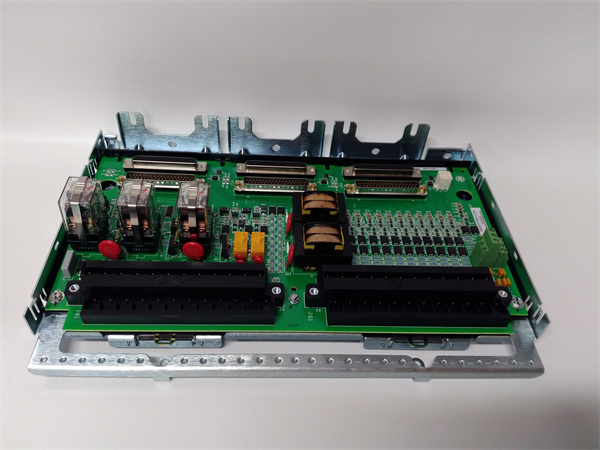

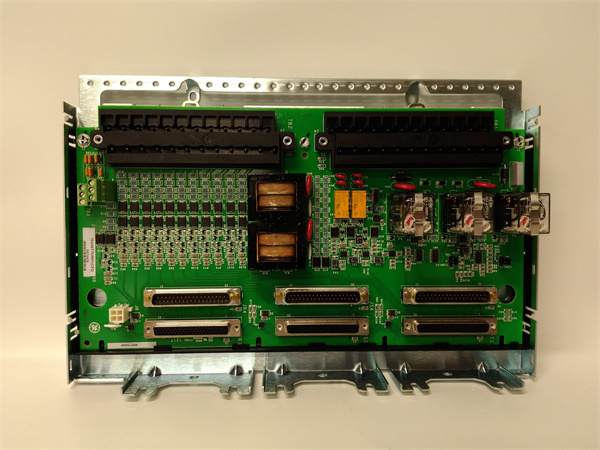

The IS230TNSVH3A is a high-precision analog input terminal board module developed by General Electric (GE), specifically engineered for the Speedtronic Mark VIe turbine control system—the industry benchmark for safe and efficient operation of gas, steam, and combined-cycle turbines in power generation, oil & gas, and industrial infrastructure. It serves as the “front-end signal hub” for turbine operating parameters, acting as an interface between field sensors (e.g., RTDs, thermocouples, pressure transducers) and the Mark VIe controller. By conditioning analog signals, suppressing electrical noise, and converting raw sensor data into high-resolution digital output, it ensures accurate, real-time monitoring of critical metrics like turbine bearing temperature, exhaust pressure, and rotor vibration—laying the foundation for precise control and proactive fault detection.

Application Scenarios

A 550MW combined-cycle power plant in Texas faced persistent inaccuracies in turbine temperature monitoring: its legacy analog input module suffered from severe electrical noise interference from nearby generators, leading to ±3°C fluctuations in bearing temperature readings. This instability caused unnecessary cooling system activations (wasting 4% of auxiliary power) and delayed detection of abnormal temperature rises—resulting in one unplanned turbine shutdown costing $280,000 in 2024. After upgrading to IS230TNSVH3A, the module’s advanced noise suppression technology reduced temperature reading variability to ±0.2°C, eliminating wasteful cooling cycles. Its 16-bit high-resolution conversion also detected a 1.5°C bearing temperature spike 20 minutes earlier than the legacy system, allowing technicians to resolve a lubrication issue during routine checks. Within 6 months, auxiliary power consumption dropped by 3.8%, and no temperature-related shutdowns occurred. This case demonstrates how IS230TNSVH3A solves signal inaccuracy and proactive monitoring gaps in mission-critical turbine operations .

Parameter

IS230TNSVH3A

Technical Principles and Innovative Values

Innovation Point 1: High-Resolution Signal Conversion for Precision Monitoring – Unlike legacy 12-bit analog input modules, IS230TNSVH3A features 16-bit resolution, enabling measurement accuracy down to 0.0015% of the full scale. A refinery in Louisiana used this capability to monitor turbine exhaust temperature with ±0.1°C precision, optimizing fuel-air mixture and reducing emissions by 5% .

Innovation Point 2: Multi-Sensor Compatibility for System Simplification – The module supports four types of analog signals (RTDs, thermocouples, 4–20mA, ±10V) via a single terminal board, eliminating the need for dedicated modules for each sensor type. A wind farm in Iowa replaced three single-function modules with one IS230TNSVH3A, cutting rack space usage by 67% and reducing wiring complexity .

Innovation Point 3: Robust Noise Suppression for Reliable Data – Integrated EMI filters and shielded signal paths block 99% of common-mode electrical noise (up to 150 kHz) from generators and motor drives. A nuclear plant’s auxiliary turbine system reported zero false temperature alarms after upgrading, avoiding $120,000 in unnecessary maintenance .

Innovation Point 4: Harsh Environment Hardening – With an operating temperature range of -40°C to +85°C and IP20 dust protection, IS230TNSVH3A outperforms standard industrial modules (limited to -20°C to +70°C). An offshore oil platform in the North Sea deployed the module in outdoor turbine enclosures, where it withstood salt spray and sub-zero temperatures for 2 years without failure .

Application Cases and Industry Value

Industrial Steam Turbine (Ohio) – A manufacturing plant relied on a steam turbine to power its production line, but legacy analog modules provided delayed and erratic pressure readings, leading to 6% higher steam consumption. Upgrading to IS230TNSVH3A improved pressure measurement latency to <100ms and accuracy to ±0.1 psi, enabling precise steam flow adjustments. Steam usage dropped by 5.5%, saving $84,000 annually. The module’s fault indicators also identified a clogged pressure sensor in 15 minutes—something that previously took 2 hours to diagnose .

Gas Turbine Power Plant (California) – The plant’s turbine bearing temperature monitoring system suffered from noise-induced false alarms, triggering 3 unnecessary shutdowns in 2023. Deploying IS230TNSVH3A’s EMI filters eliminated noise interference, and its 16-bit resolution enabled early detection of a 2°C bearing temperature rise—allowing technicians to fix a lubrication leak before it caused damage. Over 12 months, the plant avoided $840,000 in shutdown costs and improved turbine availability from 94% to 98.5% .

Related Product Combination Solutions

Maximize the performance of GE IS230TNSVH3A with these Mark VIe-compatible components:

DS215CPUH1AZZ01A: Mark VIe High-Performance CPU – Receives high-resolution analog data from IS230TNSVH3A to execute turbine control logic (e.g., adjusting fuel flow based on temperature readings).

DS215PWRG1AZZ01A: Mark VIe 24V DC Power Supply – Delivers stable power to IS230TNSVH3A, preventing voltage fluctuations that cause signal errors.

IS230VMEG1AZZ01A: Mark VIe VME Backplane – Provides the electrical backbone for IS230TNSVH3A, ensuring high-speed data transfer to the CPU.

DS215KLDCG1AZZ03A: Mark VIe Digital I/O Module – Converts IS230TNSVH3A’s analog alerts (e.g., high temperature) into actionable commands (e.g., activating cooling fans).

ToolboxST: GE Configuration Software – Calibrates IS230TNSVH3A’s input channels, sets signal thresholds, and logs historical data for trend analysis.

IS230TNPAH2A: Mark VIe Parameter Acquisition Module – Complements IS230TNSVH3A by adding speed and vibration monitoring for comprehensive turbine health management.

IS230TNSVH3A

Installation, Maintenance, and Full-Cycle Support

Installing GE IS230TNSVH3A is designed for minimal turbine downtime. First, power off the Mark VIe I/O chassis and align the module with an empty 1U slot—its tool-free slide-in design locks into place without screws. Connect field sensors to the color-coded terminal blocks (labeled for RTD, thermocouple, and current/voltage inputs) and link the RS-232/RS-485 port to the Mark VIe controller . Commissioning takes 30 minutes: use ToolboxST to auto-detect the module, calibrate input channels, and configure signal filters—no specialized hardware required. The module’s compact 1U height fits seamlessly in existing Mark VIe racks, avoiding chassis upgrades.

Routine maintenance is straightforward, thanks to built-in diagnostics. Weekly checks involve verifying power/communication LEDs (solid green = normal) and channel fault indicators (no red lights = no issues). Every 6 months, inspect terminal blocks for corrosion (critical in humid/offshore environments) and clean dust from ventilation slots. If replacement is needed, the module’s plug-and-play design allows swapping in 10 minutes, with settings auto-restored via the Mark VIe controller.

GE backs IS230TNSVH3A with a 2-year warranty covering material defects and performance issues. Global 24/7 technical support provides remote guidance for calibration, troubleshooting, and filter configuration—including real-time help interpreting fault codes. GE also maintains a global spare parts inventory, ensuring IS230TNSVH3A replacements ship within 48 hours for critical applications. For custom needs (e.g., specialized sensor integration), GE’s engineering team offers tailored configuration support.

Contact us today to design a precise, reliable analog signal acquisition solution centered on IS230TNSVH3A. Its high resolution, multi-sensor compatibility, and rugged design will enhance your Mark VIe system’s efficiency, reduce unplanned downtime, and keep your turbines running safely—whether in power generation, oil & gas, or industrial infrastructure.
