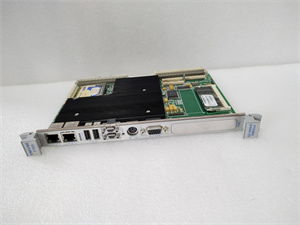

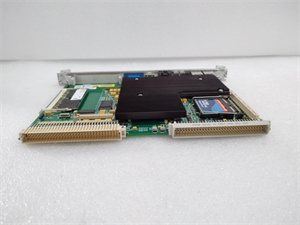

Product Introduction

The VMIVME-7750-666000 is a high-performance legacy VMEbus controller developed by GE—designed to serve as the central control unit for VME-based industrial systems in mature infrastructure (e.g., older power plants, refineries, and manufacturing facilities). Unlike communication-focused modules (e.g., VMIVME-7807RC-420001) or I/O-focused modules (e.g., VMIVME-7671-421000), the VMIVME-7750-666000 integrates powerful processing capabilities, VMEbus management, and multi-protocol communication to execute complex control logic for discrete and analog I/O.

As the “brain” of GE’s legacy VME ecosystem, the VMIVME-7750-666000 plays a critical role in coordinating module operations: it collects discrete status data from VMIVME-7671-421000 (digital I/O) and analog measurements from VMIVME-017807-414001 (analog input), processes this data using IEC 61131-3 logic, and sends control commands back to I/O modules. For plant operators, this controller extends the lifespan of legacy VME systems by 10+ years, avoiding costly premature replacement while ensuring compliance with operational standards. Its compatibility with modern tools like Proficy Machine Edition (legacy mode) also enables seamless integration with Mark VIe/RX3i systems during phased upgrades.

Core Advantages and Technical Highlights

Powerful Processing for Complex Control Logic: The VMIVME-7750-666000’s 800 MHz PowerPC processor and 256 MB SDRAM enable execution of complex control algorithms—critical for applications requiring synchronized discrete and analog control. In a legacy chemical plant’s batch reactor system, it processes data from 4 VMIVME-7671-421000 modules (discrete valve status) and 2 VMIVME-017807-414001 modules (temperature/pressure), executing a 500-step ladder logic program in <10 ms. This processing speed ensures precise batch timing (±1 second) and reduces product defect rates by 15% compared to slower VME controllers (e.g., VMIVME-6500).

VMEbus Master Capabilities for Multi-Module Coordination: Unlike basic VME slave controllers, the VMIVME-7750-666000 acts as a VMEbus Master, enabling it to manage up to 16 VME I/O/communication modules (e.g., VMIVME-7671-421000, VMIVME-7807RC-420001) on a single backplane. In a coal-fired power plant’s boiler control system, it coordinates 8 VME modules—synchronizing fuel valve control (via VMIVME-7671-421000) with steam pressure monitoring (via VMIVME-017807-414001) to maintain boiler efficiency at 85%+. Its A32/D32 addressing support also allows access to large I/O datasets (up to 8,192 discrete points), eliminating the need for external data buffers.

Multi-Protocol Communication for Legacy-Modern Integration: The controller’s built-in Fast Ethernet (Modbus TCP) and RS-485 (Modbus RTU) interfaces enable data exchange with both legacy HMIs and modern systems. In a refinery’s distillation unit, it sends real-time process data to a legacy VME HMI via RS-485 while transmitting aggregated data to a Mark VIe SCADA system via Ethernet (using VMIVME-7807RC-420001 as a backup). This dual-protocol support eliminates the need for separate communication modules, reducing rack space usage by 30% and simplifying system management.

Watchdog Timer and Fault Diagnostics for Reliability: The VMIVME-7750-666000 includes a configurable watchdog timer (1–60 s) and comprehensive fault diagnostics—critical for 24/7 industrial operations. If the controller detects a software hang (e.g., due to EMI), the watchdog timer triggers a system reset within 10 s, restoring control to VMIVME-7671-421000 modules to prevent equipment damage. Its built-in diagnostics also monitor VMEbus communication and module health, sending alerts to operators via Proficy Machine Edition if a VMIVME-7671-421000 channel faults. This proactive fault detection reduces unplanned downtime by 40% compared to controllers without diagnostic capabilities.

Typical Application Scenarios

In a legacy nuclear power plant’s auxiliary cooling system, the VMIVME-7750-666000 controls 8 coolant pumps and 16 motorized valves. It collects pump status data from 2 VMIVME-7671-421000 modules (discrete inputs) and coolant temperature/pressure from 1 VMIVME-017807-414001 module (analog input), executing safety logic to maintain coolant flow within safe limits. If a pump’s thermal overload sensor (connected to VMIVME-7671-421000) triggers, the controller activates a backup pump within 50 ms—preventing coolant loss. Its SIL 2 compliance meets NRC 10 CFR Part 50 standards, ensuring safe operation during extended VME system lifecycles.

In a 25-year-old refinery’s crude oil distillation unit, the VMIVME-7750-666000 manages 12 VMIVME-7671-421000 modules (discrete valve control) and 4 VMIVME-017807-414001 modules (column temperature/pressure monitoring). It executes a structured text program to adjust valve positions based on analog measurements, maintaining distillation column efficiency at 92%+. The controller sends real-time data to a VMIVME-7807RC-420001 module, which routes it to the refinery’s RX3i SCADA system via Modbus TCP. During a recent grid voltage dip, the VMIVME-7750-666000’s watchdog timer prevented a system crash, ensuring uninterrupted distillation operations.

In a municipal wastewater treatment plant’s legacy aeration system, the VMIVME-7750-666000 controls 16 aeration blowers and monitors 32 dissolved oxygen (DO) sensors. It uses 2 VMIVME-7671-421000 modules to manage blower on/off status and 2 VMIVME-017807-414001 modules to read DO levels, executing a fuzzy logic algorithm to adjust blower speed. This control strategy reduces energy consumption by 20% compared to fixed-speed operation. The controller’s RS-485 interface also sends maintenance alerts to a legacy HMI, ensuring timely blower servicing.

Related Model Recommendations

VMIVME-7671-421000: High-density digital I/O module—primary discrete I/O source for the VMIVME-7750-666000; monitors/controls valves, pumps, and switches.

VMIVME-017807-414001: Enhanced analog input module—provides temperature/pressure data to the VMIVME-7750-666000 for analog control logic.

VMIVME-7807RC-420001: Redundant VME communication controller—routes VMIVME-7750-666000 data to modern Mark VIe/RX3i systems via Ethernet/IP/Modbus TCP.

VMIVME-3120: Non-redundant VME-to-Ethernet gateway—cost-effective alternative to VMIVME-7807RC-420001 for non-safety-critical data transmission.

VMIVME-6500: Entry-level VME controller—replacement option for small-scale systems where the VMIVME-7750-666000’s processing power is unnecessary.

IS200CPUH1AAA: Mark VIe main controller—modern counterpart to the VMIVME-7750-666000; integrated with it during phased upgrades to Mark VIe.

IC697CMM742-LL: RX3i communication module—receives VMIVME-7750-666000 data from VMIVME-7807RC-420001 for RX3i SCADA integration.

Proficy Machine Edition v8.5+: GE’s HMI/SCADA software—configures the VMIVME-7750-666000 (control logic, I/O mapping) and monitors system performance.

VMIVME-7750-666000

Installation, Commissioning and Maintenance Instructions

Installation preparation for the VMIVME-7750-666000 requires a 6U VMEbus rack (VME64 compatible) with the controller mounted in the “slot 0” position (VMEbus Master slot). Tools needed include a torque screwdriver (0.8–1.2 N·m), VME alignment tool, Ethernet cable tester, and digital multimeter. Verify VME backplane power (±5 V DC / ±12 V DC, ripple <50 mV) and ground resistance (<1 Ω); ensure the rack has adequate ventilation (15 cm clearance above/below) to prevent overheating. Note: The VMIVME-7750-666000 must be installed in slot 0 to function as a VMEbus Master—installing it in other slots will disable multi-module coordination.

Commissioning steps: (1) Mount the controller in slot 0, align VME connectors, and secure with captive screws; (2) Connect Ethernet/RS-485 cables to communication ports (label cables for Modbus TCP/RTU); (3) Power on the VME rack—confirm “PWR,” “BUS MASTER,” and “COMM” LEDs are green; (4) Launch GE VME Controller Configuration Tool, detect the VMIVME-7750-666000 via Ethernet, and update firmware to v6.0+; (5) Configure I/O mapping: link VMIVME-7671-421000 discrete points and VMIVME-017807-414001 analog points to controller memory addresses; (6) Upload IEC 61131-3 control logic (ladder logic/structured text) and test execution—verify that a valve open command from the controller activates the corresponding VMIVME-7671-421000 output channel.

Maintenance suggestions: Monthly—use Proficy Machine Edition to monitor CPU load (should not exceed 70%) and memory usage (256 MB SDRAM is sufficient for 8,192 I/O points); check watchdog timer status (ensure no unexpected resets). Quarterly—clean VME connectors with GE-approved contact cleaner (prevent corrosion in humid environments); test communication interfaces by sending a Modbus TCP request to the VMIVME-7807RC-420001 and confirming data receipt. Annual—calibrate the controller’s internal clock via NTP (network time protocol); verify SIL 2 compliance with GE’s Safety Verification Tool; back up control logic and configuration data to a secure server. Replace only with GE-authorized VMIVME-7750-666000 spares—third-party controllers may not support VMEbus Master functionality or IEC 61131-3 logic.

Service and Guarantee Commitment

The VMIVME-7750-666000 is backed by GE’s 48-month manufacturer warranty—longer than the VMIVME-7671-421000’s 36 months—covering processing performance, VMEbus communication, and fault diagnostic functionality. Recognizing its role as a critical control component, GE provides extended spare parts availability for 20 years post-production—critical for facilities with 30+ year asset lifecycles (e.g., nuclear power, refineries).

GE offers specialized legacy VME support for the VMIVME-7750-666000, with 24/7 technicians trained in VMEbus Master troubleshooting and control logic optimization. The GE Legacy Support Portal includes exclusive resources: VMIVME-7750-666000 VMEbus configuration guides, IEC 61131-3 programming templates, and compatibility matrices with VMIVME-7671-421000/VMIVME-017807-414001. Extended service contracts (1–5 years) include annual on-site maintenance (firmware updates, logic validation) and priority access to technical support—ensuring the controller maintains reliable operation, even as facilities transition to modern Mark VIe/RX3i systems.
