Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | HIMA F8650X |
| Manufacturer | HIMA |
| Product Category | Safety PLC CPU Module |
| Processor | Intel 386EX, 32-bit |
| Clock Frequency | 25 MHz |
| Memory | 1 MB Flash-EPROM (OS), 1 MB Flash-EPROM (User), 1 MB SRAM (Data) |
| Input Voltage | 24V DC |
| Output Voltage | 5V DC/2A |
| Communication Interfaces | 2 x RS485, Ethernet |
| Operating Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Dimensions | 100mm x 75mm x 20mm |
| Weight | 0.3 kg |
| Certifications | SIL 3 (IEC 61508), PL e (ISO 13849) |

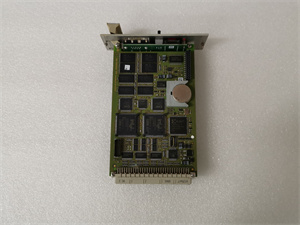

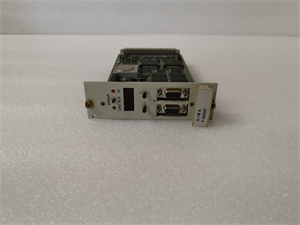

HIMA F8650X
Product Introduction
The HIMA F8650X is a high-performance safety PLC CPU module designed for critical safety applications. It is a core component of the HIMA HIMatrix and PES H51q series safety systems, providing reliable and safe control logic execution.
Core Advantages and Technical Highlights
High Safety Integrity Level
The HIMA F8650X is certified to SIL 3 (IEC 61508) and PL e (ISO 13849), making it suitable for high-risk applications.
Redundant Design
The module features dual Intel 386EX processors running in clock synchronization, ensuring high fault tolerance and system availability.
Comprehensive Diagnostics
It includes a four-digit alphanumeric display and LED indicators for detailed diagnostic information, simplifying on-site troubleshooting.

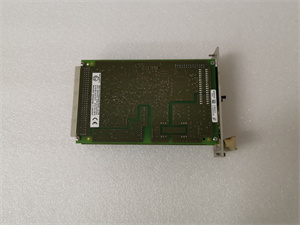

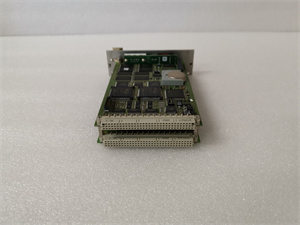

HIMA F8650X
Typical Application Scenarios
The HIMA F8650X is widely used in:
-
Oil and Gas: For emergency shutdown systems (ESD) and fire & gas detection systems.
-
Power Generation: For turbine overspeed protection and generator safety interlocks.
-
Chemical Processing: For controlling safety interlocks in reactors and storage tanks.
Related Model Recommendations
-
HIMA F8627X: An Ethernet communication module for seamless integration.
-
HIMA F8621A: A coprocessor module for enhanced system performance.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
