Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Honeywell 05704-A-0145 |
| Manufacturer | Honeywell |
| Product Category | Four-Channel Control Card |
| Operating Voltage | 24V DC or 120/240V AC |
| Input Channels | 4 x 4-20mA |
| Output Channels | 1 x 0-10V |
| Power Consumption | 8.3W (max), 7.5W (typical) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 132 mm x 25 mm x 172 mm |
| Weight | 0.31 lbs |
| Certifications | UL/CUL, CE |

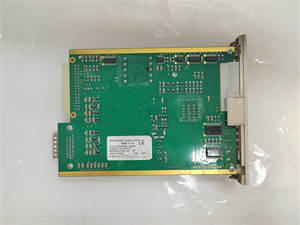

Honeywell 05704-A-0145
Product Introduction
The Honeywell 05704-A-0145 is a high-performance four-channel control card designed for industrial automation and process control applications. It efficiently handles multiple input and output signals, ensuring fast and accurate control.
Core Advantages and Technical Highlights
High Precision and Reliability
The Honeywell 05704-A-0145 features high precision with an accuracy of ±0.25% of full scale, ensuring reliable operation in industrial environments.
Robust Design
The module is designed to withstand harsh industrial conditions, with an operating temperature range of -40°C to +85°C and a storage temperature range of -40°C to +85°C.
Versatile Communication Capabilities
The module supports multiple communication protocols, facilitating seamless integration with existing industrial systems.
User-Friendly Interface
The module includes a user-friendly interface and clear documentation, making installation and maintenance straightforward.

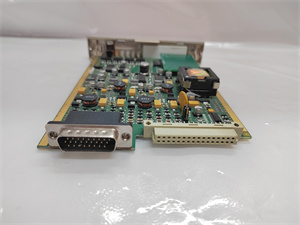

Honeywell 05704-A-0145
Typical Application Scenarios
The Honeywell 05704-A-0145 is widely used in:
-
Oil and Gas: For managing drilling operations, pipeline control, and refinery processes.
-
Power Generation: Control systems for turbines, boilers, and auxiliary equipment.
-
Chemical Processing: Monitoring and controlling chemical reactions and flow processes.
-
Manufacturing: For automation in assembly lines, robotics, and material handling.
-
Water and Wastewater Treatment: Managing pumps, valves, and filtration systems.
Related Model Recommendations
-
Honeywell 05704-A-0144: A related model with different specifications.
-
Honeywell 05701-A-0312: Another model in the same series with unique features.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
