Honeywell CC-PAIH51 | 16-Channel HART Analog Input Module – Specifications & Integration Guide

Description

System Architecture & Operational Principle

Upstream Communication

Downstream Communication

Operational Advantages

• HART Integration: Combines analog signal acquisition with digital diagnostics, reducing the need for manual field visits and enabling predictive maintenance.
• High Precision: 16-bit resolution and ±0.075% accuracy ensure reliable measurement of process variables (e.g., pressure, temperature), critical for maintaining process stability.
• Modular Design: Fits into standard Series C I/O racks, allowing easy expansion or replacement without modifying the entire system.
• Redundancy Support: Can be deployed in redundant configurations (using 12” IOTA chassis) for mission-critical applications, ensuring uninterrupted operation if one module fails.

Core Technical Specifications

Attribute​	Specification​
Input Channels​	16 single-ended (all channels support 4-20mA HART)
Input Range​	4-20mA DC (through 200Ω resistor)
Resolution​	16-bit A/D conversion
Accuracy​	±0.075% of full scale (23.5°±2°C); ±0.15% of full scale (0 to 60°C)
Scan Rate​	50ms per channel (total scan time: 800ms for all 16 channels)
Common Mode Rejection​	70 dB (dc to 60 Hz, 500Ω source imbalance)
Normal Mode Rejection​	19 dB (at 60 Hz)
Crosstalk​	-60 dB (dc to 60 Hz, channel-to-channel)
Input Impedance​	>1MΩ (voltage mode); 250Ω (current mode, 4-20mA)
Power Supply​	24V DC (from C-series I/O bus)
Power Consumption​	~180mA @ 24V DC
Operating Temperature​	-40°C to +70°C (-40°F to 158°F)
Storage Temperature​	-40°C to +85°C (-40°F to 185°F)
Humidity Tolerance​	5–95% non-condensing
Dimensions (W×H×D)​	~130mm × 23mm × 448mm (5.1 in × 0.9 in × 17.6 in) (estimated)
Weight​	~2 kg (4.4 lbs)
Certifications​	CE, UL, CSA, ATEX (Ex nA IIC T4)
Compatibility​	Honeywell Experion PKS R300+; C300 controller family; Series C I/O racks

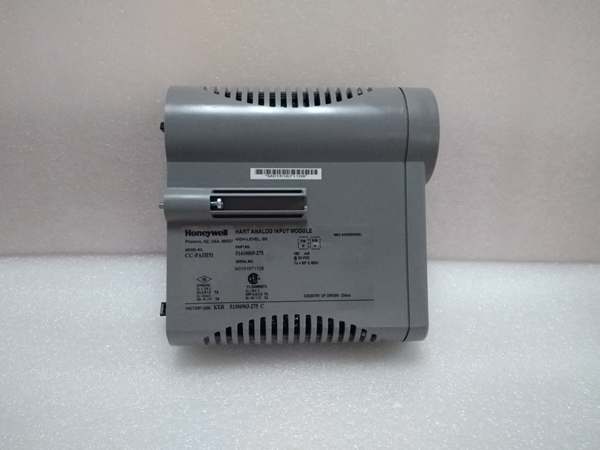

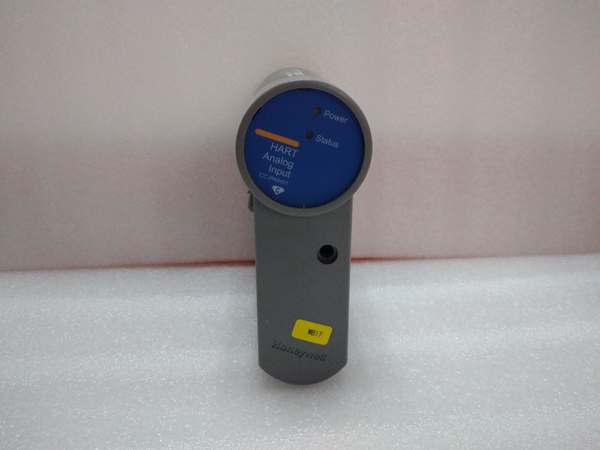

Honeywell CC-PAIH51

Customer Value & Operational Benefits

Field Engineer’s Notes (From the Trenches)

When installing the CC-PAIH51, always use shielded twisted-pair (STP) cables​ for field wiring—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to inaccurate signal readings. I once saw a site where a contractor used unshielded cables, resulting in a 2% error in pressure measurements. Switching to STP cables eliminated the problem immediately.

Another gotcha: verify the HART device address—each HART-enabled field device must have a unique address (1–15) to communicate with the CC-PAIH51. If two devices have the same address, the module will not be able to distinguish between them, leading to communication errors. Use a HART communicator (e.g., Honeywell’s STT3000) to check and set the addresses before connecting the devices.

If the module’s “FAULT” LED is red, check the input voltage first—the 24V DC power supply from the I/O bus must be within ±10% of the nominal value. I’ve fixed countless “fault” errors by replacing a faulty power supply or tightening loose connections.

Real-World Applications

• Oil Refinery: Distillation Column Monitoring​
  An oil refinery uses the CC-PAIH51 to monitor the pressure and temperature of its crude oil distillation columns. The module acquires 4-20mA signals from HART-enabled pressure transmitters and temperature sensors, transmitting the data to the C300 controller. The controller uses this data to adjust the reflux ratio (the amount of condensed liquid returned to the column), optimizing gasoline yield.
• Chemical Plant: Reactor Temperature Control​
  A chemical plant uses the CC-PAIH51 to monitor the temperature of its polymerization reactor. The module receives signals from HART-enabled temperature sensors, which are used by the C300 controller to adjust the flow of cooling water. The HART protocol allows technicians to remotely calibrate the temperature sensors, reducing the need for manual adjustments.
• Power Generation: Boiler Feedwater Control​
  A power plant uses the CC-PAIH51 to monitor the flow of feedwater into its boilers. The module acquires 4-20mA signals from HART-enabled flow transmitters, which are used by the C300 controller to adjust the speed of the feedwater pump. This ensures that the boiler receives a consistent flow of water, preventing overheating and improving efficiency.

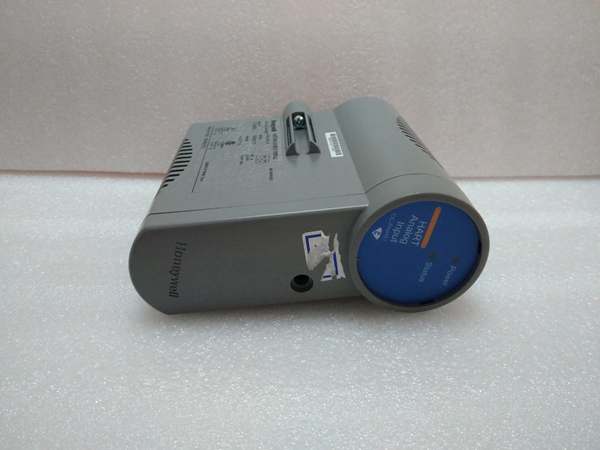

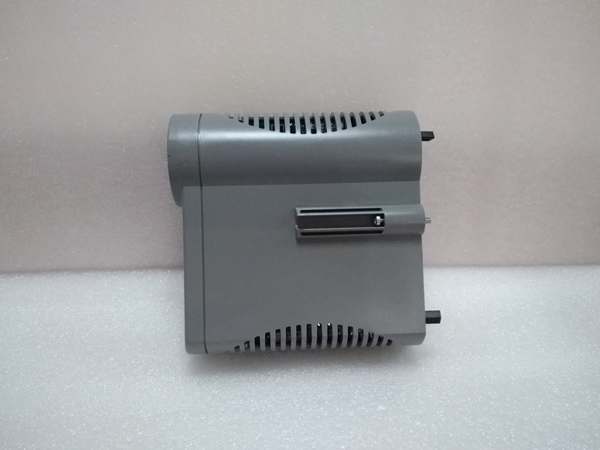

  Honeywell CC-PAIH51

High-Frequency Troubleshooting FAQ

• Power Supply Failure: The 24V DC power supply from the I/O bus is missing or outside the ±10% tolerance range.
• Input Overload: The input voltage exceeds ±30V (e.g., a short circuit in the field device).
• HART Communication Error: The module cannot communicate with a HART-enabled device (e.g., duplicate address, faulty device).
• Module Hardware Failure: The A/D converter or other internal components are faulty.
  Check the module’s diagnostic logs (via the Experion PKS software) for detailed fault codes and follow the manufacturer’s troubleshooting steps.

1. Power Down: Turn off the power to the Series C I/O rack (via the main circuit breaker).
2. Remove Old Module: Unscrew the module from the IOTA chassis (use a Phillips screwdriver) and disconnect the field wiring (label the wires to avoid confusion).
3. Install New Module: Insert the new CC-PAIH51 into the IOTA chassis and tighten the screws.
4. Reconnect Wiring: Reconnect the field wiring to the new module (match the labels from step 2).
5. Power Up: Turn on the power to the I/O rack and verify the module’s operation (check the “OK” LED).
6. Calibrate: If necessary, calibrate the new module using the Experion PKS software.

1. HART Address: Ensure the device has a unique address (1–15) using a HART communicator.
2. Wiring: Verify that the STP cable is connected correctly (positive to positive, negative to negative) and that the shield is grounded.
3. Module Configuration: Use the Experion PKS software to confirm that the module is configured for HART communication (e.g., correct baud rate, parity).
