Description
System Architecture & Operational Principle
The Honeywell FC-IOCHAS-0003R is a redundant I/O chassis designed for the Honeywell Experion PKS distributed control system (DCS), occupying Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in 19-inch control cabinets (rack-mounted) and serves as the backbone for redundant I/O modules (analog/digital), which connect to field devices (e.g., pressure transmitters, valve positioners) and the C300 controller (core of Experion PKS).
Upstream Communication
Receives 24V DC power from dual redundant power supplies (input voltage: 18–32V DC) to ensure uninterrupted operation. The chassis distributes power to redundant I/O modules via dual redundant power rails, eliminating single points of failure.
Downstream Communication
Transmits process data from field devices to the C300 controller via Honeywell’s proprietary I/O bus (high-speed serial communication). The chassis supports hot-swappable I/O modules, allowing technicians to replace faulty modules without shutting down the system—critical for 24/7 operations like oil refineries or chemical plants.
Operational Advantages
-
Redundancy: Dual power supplies and communication buses ensure that if one component fails, the other takes over seamlessly (failover time: <10ms).
-
High Density: Supports up to 3 redundant I/O modules (analog/digital) in a compact 19-inch chassis, reducing cabinet space.
-
Ruggedness: Industrial-grade steel/aluminum construction withstands harsh environments (vibration, temperature fluctuations).
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Slots
|
3 redundant I/O slots (supports hot-swap modules)
|
|
Power Supply
|
Dual 24V DC inputs (18–32V DC range); ≤15 W typical power consumption
|
|
Operating Temperature
|
-20°C to +60°C (-4°F to 140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity Tolerance
|
5–95% non-condensing
|
|
Vibration Resistance
|
5–150 Hz, 0.5 g rms (IEC 60068-2-6)
|
|
Shock Resistance
|
15 g, 11 ms (IEC 60068-2-27)
|
|
EMC Compliance
|
EN 61326-1, IEC 61000-6-2, IEC 61000-6-4
|
|
Communication Interface
|
Honeywell PKS I/O bus (daisy-chain redundancy)
|
|
Module Compatibility
|
Analog input/output, digital input/output redundant modules (e.g., FC-RUSIO-3224)
|
|
Dimensions (W×H×D)
|
150 mm × 300 mm × 120 mm (5.9 in × 11.8 in × 4.7 in)
|
|
Weight
|
2.5 kg (5.5 lbs)
|
|
Certifications
|
CE, UL, IEC compliance
|

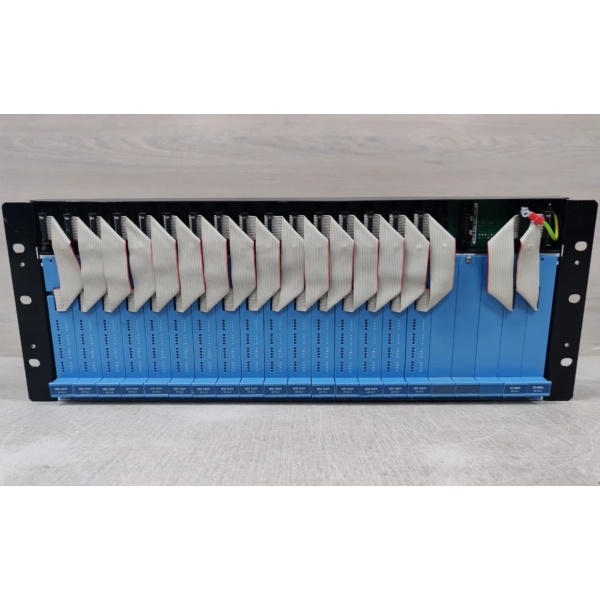

Honeywell FC-IOCHAS-0003R
Customer Value & Operational Benefits
Enhanced Process Reliability
The FC-IOCHAS-0003R’s redundant design eliminates single points of failure, ensuring that I/O modules remain operational even if a power supply or communication bus fails. For example, an oil refinery using the chassis for distillation column control reported a 99.9% uptime, preventing costly shutdowns.
Reduced Maintenance Costs
Hot-swappable I/O modules allow technicians to replace faulty components without shutting down the system. A chemical plant using the chassis reduced maintenance downtime by 50% compared to traditional non-redundant systems.
Cost-Effective Scalability
The 3-slot design allows facilities to expand I/O capacity without adding more cabinets. For a power plant, this meant adding 3 new I/O modules (e.g., for turbine monitoring) using a single chassis, saving $10,000+ in cabinet and installation costs.
Compliance with Industry Standards
The chassis’s CE and UL certifications ensure it meets global safety requirements, making it suitable for export-oriented manufacturers.
Field Engineer’s Notes (From the Trenches)
When installing the FC-IOCHAS-0003R, always use shielded twisted-pair (STP) cables for I/O module connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to inaccurate signal readings. I once saw a site where a contractor used unshielded cables, resulting in a 2% error in pressure measurements. Switching to STP cables eliminated the problem immediately.Another gotcha: verify the power supply voltage—the chassis requires 24V DC (±10% tolerance). I’ve fixed countless “power fault” errors by replacing a faulty UPS that was supplying 28V DC instead of 24V DC.If the chassis’s “FAULT” LED is red, check the redundant power supplies first—use a multimeter to test the output voltage of each power supply. If one is faulty, replace it immediately to restore redundancy.
Real-World Applications
-
Oil Refinery: Distillation Column MonitoringAn oil refinery uses the FC-IOCHAS-0003R to house redundant analog input modules for monitoring distillation column pressure and temperature. The chassis’s hot-swappable design allows technicians to replace a faulty module during operation, preventing downtime.
-
Chemical Plant: Reactor Temperature ControlA chemical plant uses the FC-IOCHAS-0003R to house redundant digital output modules for controlling reactor cooling valves. The redundant power supplies ensure that the valves remain operational even if one power supply fails, preventing overheating.
-
Power Generation: Turbine Speed ControlA power plant uses the FC-IOCHAS-0003R to house redundant pulse input modules for monitoring turbine speed. The chassis’s rugged construction withstands the vibration from the turbine, ensuring reliable operation.

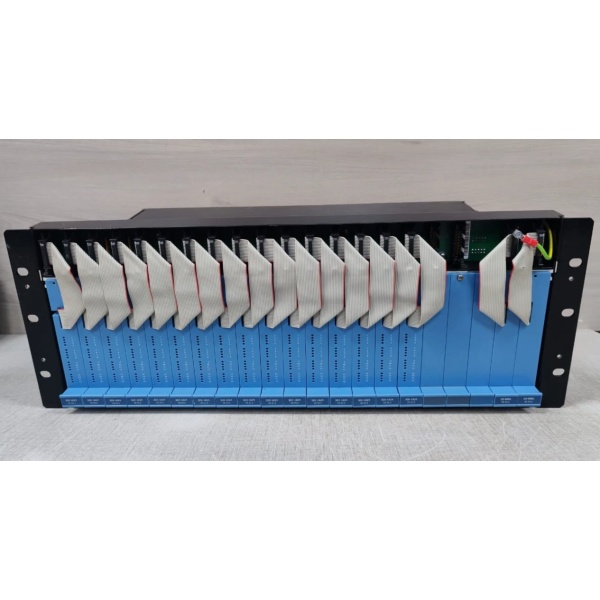

Honeywell FC-IOCHAS-0003R
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the FC-IOCHAS-0003R?
A: The red “FAULT” LED indicates a critical error, such as:
-
Power Supply Failure: One or both 24V DC power supplies are faulty (test with a multimeter).
-
Communication Bus Failure: The Honeywell PKS I/O bus is disconnected or faulty (check cables).
-
Module Fault: A redundant I/O module is faulty (replace the module).Check the Experion PKS diagnostic software for detailed fault codes and follow the manufacturer’s troubleshooting steps.
Q: Can the FC-IOCHAS-0003R be used with non-Experion PKS systems?
A: No, the chassis is designed exclusively for Honeywell Experion PKS systems. It relies on the Experion architecture for I/O communication and controller integration, so using it with non-Experion systems will result in compatibility issues.
Q: How do I replace a faulty I/O module in the FC-IOCHAS-0003R?
A: Follow these steps:
-
Power Down: Turn off the power to the chassis (via the main circuit breaker).
-
Remove Old Module: Unscrew the module from the chassis (use a Phillips screwdriver) and disconnect the field wiring (label the wires to avoid confusion).
-
Install New Module: Insert the new I/O module into the chassis and tighten the screws.
-
Reconnect Wiring: Reconnect the field wiring to the new module (match the labels from step 2).
-
Power Up: Turn on the power to the chassis and verify the module’s operation (check the “OK” LED).
Q: Why is the FC-IOCHAS-0003R not communicating with the C300 controller?
A: Check three things first:
-
I/O Bus Cables: Ensure the Honeywell PKS I/O bus cables are connected correctly (no loose connections).
-
Controller Configuration: Use the Experion software to confirm that the chassis is configured correctly (e.g., slot numbers, module types).
-
Power Supply: Verify that the 24V DC power supplies are delivering the correct voltage (24V DC ±10%).
