Description
System Architecture & Operational Principle
The ICS TRIPLEX T8231 is a triple modular redundant (TMR) power pack designed for the ICS TRIPLEX Trusted® system, a safety-critical control platform used in industries like oil & gas, power generation, and chemical processing. It resides in Trusted T8100 chassis (19-inch rack mount) and serves as the core power backbone for:
-
Trusted TMR Processors (e.g., T8110B): For safety logic processing;
-
I/O Modules (e.g., T8461 digital output modules): For field device communication;
-
Communication Interfaces (e.g., T8310 Ethernet modules): For network connectivity.
Upstream Communication
Receives AC power from plant-wide distribution systems (85-264 VAC, 47-63 Hz) via screw terminals. The input voltage is rectified and filtered to produce a stable DC voltage for the TMR circuitry.
Downstream Communication
Transmits 24-28 VDC regulated power to Trusted system components via the chassis’s backplane. The TMR design ensures that even if one power pack fails, the remaining two continue to supply power, maintaining system operation (fail-over time: <10 ms).
Operational Advantages
-
Triple Redundancy: Eliminates single points of failure, critical for safety systems (e.g., emergency shutdown (ESD) systems);
-
Hot-Swappable: Allows replacement without shutting down the system, minimizing downtime;
-
Wide Input Range: Compatible with global voltage standards (100-240 VAC), reducing the need for voltage converters;
-
High Efficiency: Power factor correction (PFC) improves energy efficiency, reducing operational costs.

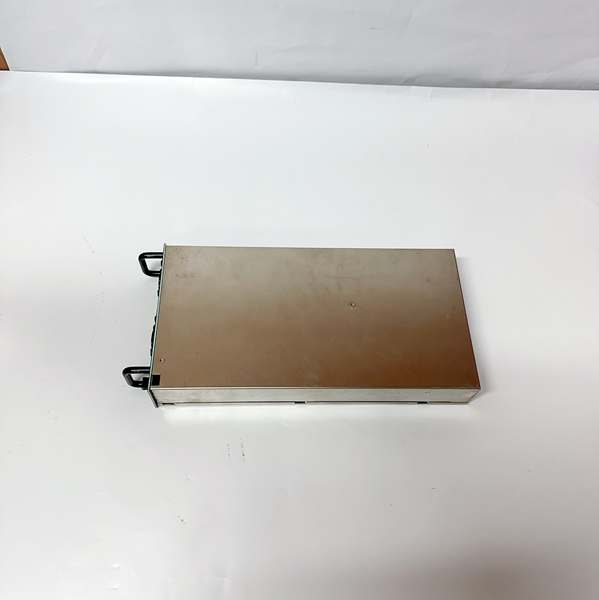

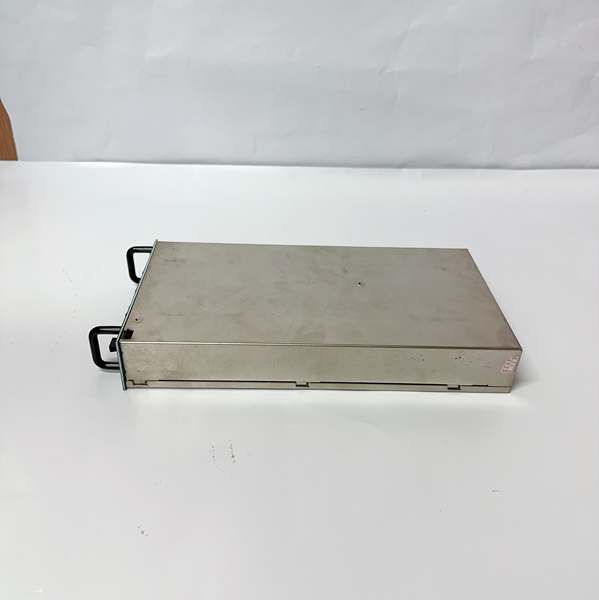

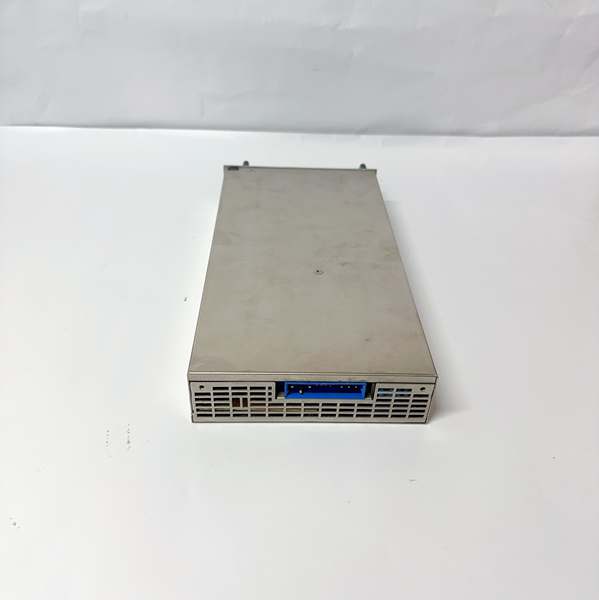

ICS TRIPLEX T8231
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Input Voltage
|
85-264 VAC (universal compatibility)
|
|
Input Frequency
|
47-63 Hz (automatic adjustment)
|
|
Output Voltage
|
24-28 VDC regulated (±1% accuracy)
|
|
Output Power
|
750W max (per power pack)
|
|
Power Factor
|
0.95 (typical, with PFC)
|
|
Operating Temperature
|
-40°C to +70°C (-40°F to 158°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to 185°F)
|
|
Humidity Tolerance
|
5–95% non-condensing
|
|
Mounting
|
19-inch rack mount (T8100 chassis) or DIN rail (optional)
|
|
Dimensions (W×H×D)
|
~483 mm × 43 mm × 340 mm (19 in × 1.7 in × 13.4 in) (estimated)
|
|
Weight
|
~2.7 kg (5.95 lbs)
|
|
Certifications
|
CE, UL, CSA, ATEX (Ex nA IIC T4), SIL 2/SIL 3 (IEC 61508/61511)
|
|
Compatibility
|
Trusted T8100 chassis; T8110/T8310 processor families; T8461 I/O modules
|
Customer Value & Operational Benefits
Enhanced System Reliability
The T8231’s triple redundant design ensures that safety systems (e.g., ESD, fire & gas detection) remain operational even if one power pack fails. For example, an oil refinery using the T8231 in its ESD system reported a 99.9% uptime, preventing costly shutdowns.
Reduced Maintenance Costs
The hot-swappable design allows technicians to replace a faulty power pack without shutting down the system. A chemical plant using the T8231 reduced maintenance downtime by 50% compared to traditional non-redundant power supplies.
Cost-Effective Scalability
The T8231’s compact 19-inch rack mount design reduces cabinet space requirements, saving $10,000+ in cabinet and installation costs for a power plant.
Compliance with Industry Standards
The T8231’s SIL 2/SIL 3 certification ensures it meets the rigorous safety requirements of industries like oil & gas and chemical processing, making it suitable for export-oriented manufacturers.
Field Engineer’s Notes (From the Trenches)

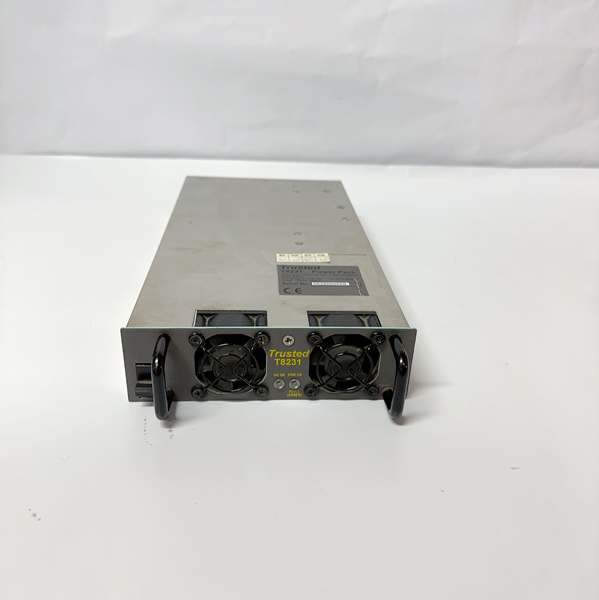

When installing the T8231, always use shielded AC cables (12-24 AWG) for input connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to erratic output voltage. I once saw a site where a contractor used unshielded cables, resulting in a “power supply fault” alarm that took 2 hours to diagnose.Another gotcha: verify the input voltage—the T8231 accepts 85-264 VAC, but if the input voltage is outside this range, the module will not start. Use a multimeter to check the input voltage before connecting the power supply.If the T8231’s “FAULT” LED is red, check the output voltage—use a multimeter to measure the 24-28 VDC output. If the voltage is below 24 VDC, the module may be faulty. Replace the module if the output voltage is out of specification.ICS TRIPLEX T8231
Real-World Applications
-
Oil Refinery: Emergency Shutdown (ESD) SystemAn oil refinery uses the T8231 to power its Trusted TMR-based ESD system. The triple redundant design ensures that if one power pack fails, the remaining two continue to supply power, maintaining the ESD system’s operation.
-
Power Plant: Turbine ControlA power plant uses the T8231 to power its Trusted TMR-based turbine control system. The hot-swappable design allows technicians to replace a faulty power pack during operation, minimizing downtime.
-
Chemical Plant: Fire & Gas DetectionA chemical plant uses the T8231 to power its Trusted TMR-based fire & gas detection system. The wide input range (85-264 VAC) allows the plant to use a single power supply for multiple voltage standards, reducing inventory costs.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the T8231?
A: The red “FAULT” LED indicates a critical error, such as:
-
Input Voltage Out of Range: The AC input is below 85 VAC or above 264 VAC;
-
Overcurrent: The output current exceeds 750W (e.g., due to a short circuit in the Trusted system);
-
Overtemperature: The module’s internal temperature exceeds 70°C (e.g., due to poor ventilation).Check the input voltage and output load first. If the input voltage is within range and the load is not excessive, replace the module.
Q: Can the T8231 be used with non-Trusted systems?
A: No, the T8231 is designed exclusively for ICS TRIPLEX Trusted systems. It relies on the Trusted T8100 chassis and backplane for power distribution, so using it with non-Trusted systems will result in compatibility issues.
Q: How do I replace a faulty T8231?
A: Follow these steps:
-
Power Down: Turn off the AC power supply to the T8231;
-
Remove Old Module: Unscrew the module from the T8100 chassis (use a Phillips screwdriver) and disconnect the AC input and DC output cables;
-
Install New Module: Insert the new T8231 into the chassis and tighten the screws;
-
Reconnect Cables: Reconnect the AC input and DC output cables to the new module;
-
Power Up: Turn on the AC power supply and verify the module’s operation (check the “OK” LED).
Q: Why is the T8231’s output voltage low?
A: Low output voltage is usually caused by:
-
Input Voltage Too Low: The AC input is below 85 VAC;
-
Overloaded Output: The Trusted system is drawing more than 750W of power;
-
Faulty Module: The module’s internal voltage regulator is damaged.Check the input voltage and output load first. If the input voltage is within range and the load is not excessive, replace the module.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
