Description
System Architecture & Operational Principle
The ICS TRIPLEX T8231 is a triple modular redundant (TMR) power supply designed to provide uninterrupted power to safety-critical industrial systems. It operates within the ICS TRIPLEX Trusted® TMR architecture, which uses three independent power packs to ensure fault tolerance—even if one pack fails, the other two maintain power delivery.
Architectural Role
The T8231 is installed in a 1U power chassis (e.g., T8100 series) and interfaces with:
-
Upstream: AC power sources (85–264 V AC) via screw terminals.
-
Downstream: ICS TRIPLEX Trusted® components (e.g., T8110B processor, T8461 I/O module) via 24 V DC outputs.
Its primary role is to convert AC power to stable 24 V DC power for safety systems, using TMR to eliminate single-point failures. The three power packs operate in parallel, with each pack supplying a portion of the load—if one pack fails, the remaining two automatically increase their output to compensate.
Operational Principle
The T8231 uses a 2-out-of-3 (2oo3) voting mechanism for power delivery:
-
Parallel Processing: Three independent power packs convert AC to DC simultaneously.
-
Voting Logic: A dedicated controller monitors the output of each pack. If two or more packs agree on the output voltage/current, the power is sent to the load.
-
Fault Handling: If one pack fails (e.g., overvoltage, overcurrent), the controller isolates it and alerts maintenance teams. The remaining two packs continue to supply power, ensuring no interruption to the safety system.
The T8231’s universal input voltage range (85–264 V AC) allows it to operate in regions with different power standards, while its wide operating temperature range (-40°C to +70°C) makes it suitable for harsh industrial environments (e.g., offshore platforms, refineries).

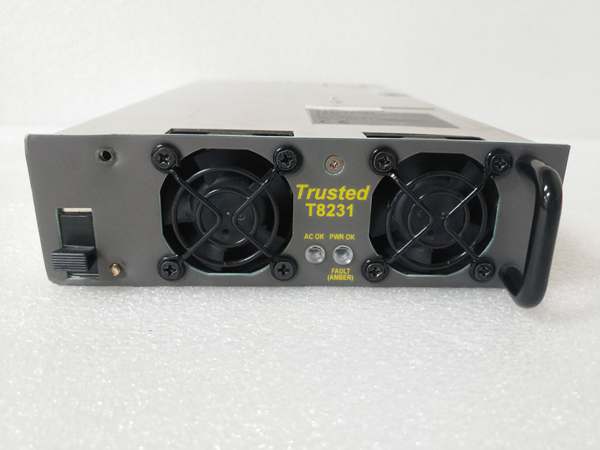

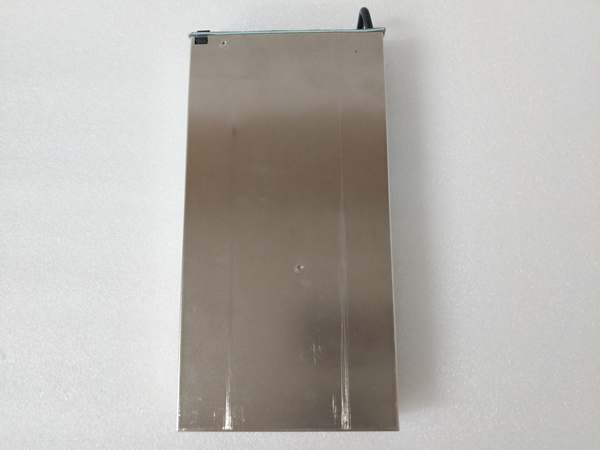

ICS Triplex T8231
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Power Packs
|
Up to 3 per chassis (750 W each; total 2250 W)
|
|
Output Voltage
|
24 V DC (±1% regulation)
|
|
Input Voltage
|
85–264 V AC (universal)
|
|
Output Current
|
31.25 A (per pack; 750 W / 24 V)
|
|
Efficiency
|
≥85% (typical at full load)
|
|
Protection Features
|
Overvoltage, overcurrent, short-circuit, thermal shutdown
|
|
Safety Certification
|
IEC 61508 SIL 3 (TÜV Rheinland)
|
|
Operating Temperature
|
-40°C to +70°C (ambient)
|
|
Mounting
|
1U rack mount (19-inch chassis)
|
|
Weight
|
~2.7 kg (per pack)
|
Customer Value & Operational Benefits
1. Uninterrupted Power for Safety-Critical Systems
The T8231’s TMR design ensures that safety systems (e.g., emergency shutdown, fire & gas detection) remain operational even if one power pack fails. This is critical for applications where power loss could lead to catastrophic consequences (e.g., offshore oil platform fires, refinery explosions).
2. Reduced Downtime with Hot-Swap Capability
The T8231 supports hot-swapping—technicians can replace a faulty power pack without shutting down the system. This minimizes downtime in continuous process industries (e.g., power generation, petrochemicals), where even a 1-hour outage can cost millions in lost production.
3. Global Compatibility with Universal Input
The T8231’s 85–264 V AC input range allows it to operate in regions with different power standards (e.g., 120 V AC in North America, 230 V AC in Europe). This eliminates the need for region-specific power supplies, simplifying inventory management and reducing costs.
4. Enhanced Safety Compliance
With IEC 61508 SIL 3 certification, the T8231 meets the highest standards for functional safety. Its built-in protection features (overvoltage, overcurrent) prevent damage to downstream components, while its fault-tolerant design ensures compliance with safety regulations (e.g., OSHA, ATEX).

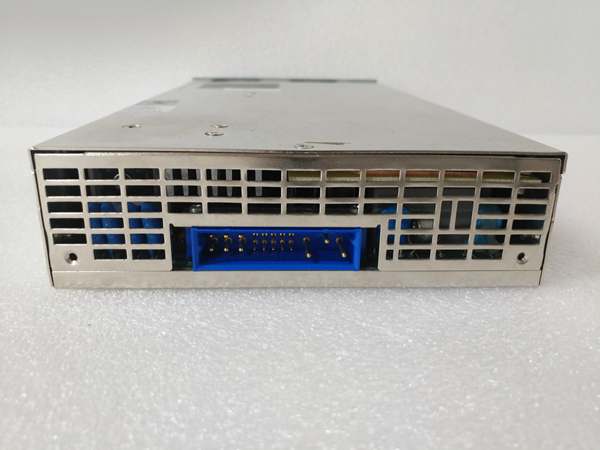

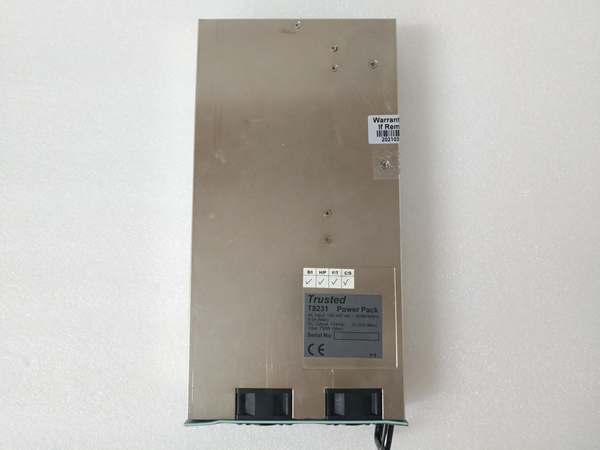

ICS Triplex T8231
Field Engineer’s Notes (From the Trenches)
When installing the T8231, always verify the input voltage—using a multimeter to confirm the AC voltage is within 85–264 V AC before connecting the power supply. I once saw a technician install the T8231 with 480 V AC input, which immediately damaged the power pack.Check the power chassis ventilation—the T8231 uses convection cooling, so ensure there is adequate airflow around the chassis. If the ambient temperature exceeds 70°C, use a fan to improve cooling.Test the hot-swap feature after installation—power down one power pack and verify that the remaining two packs maintain the 24 V DC output. This ensures that the TMR system works correctly, which is critical for safety.
Real-World Applications
1. Offshore Oil Platform Emergency Shutdown (ESD)
On an offshore oil platform, the T8231 powers the ESD system, which includes the T8110B processor and T8461 I/O module. If a fire is detected, the ESD system sends a shutdown command to the platform’s valves and pumps—powered by the T8231—to isolate the fuel source. The T8231’s TMR design ensures that the ESD system remains operational even if one power pack fails.
2. Refinery Fire & Gas (F&G) Detection
In a refinery, the T8231 powers the F&G detection system, which includes gas sensors and fire alarms. If a gas leak is detected, the F&G system triggers an alarm and activates the deluge system—powered by the T8231—to extinguish the fire. The T8231’s wide operating temperature range (-40°C to +70°C) makes it suitable for use in the refinery’s harsh outdoor environment.
