Name: ICS Triplex T8403CX | Trusted TMR Digital Input Module - XINYEDA
Brand: ICS Triplex

Description

T8403CX: Product Overview

The ICS Triplex T8403CX is a Trusted TMR digital input module designed for high-reliability industrial automation and safety instrumented systems. This module serves as a critical interface component within the Trusted Triple Modular Redundant (TMR) architecture, providing robust input monitoring capabilities for safety-critical applications. The T8403CX is engineered to ensure continuous operation in environments where system availability and fault tolerance are essential requirements.

The module’s primary function is to interface with up to 40 field devices, monitoring digital input signals from sensors, switches, and other field devices. Each input channel operates with triple modular redundancy, featuring three independent processing legs that vote on input decisions. This architecture ensures that a single component failure does not cause a dangerous failure of the safety function, making it suitable for Safety Integrity Level (SIL) 3 applications as certified by international standards. The module performs continuous diagnostic tests throughout its operation, monitoring both internal components and connected field wiring to detect faults before they can compromise safety functions.

As part of the Trusted TMR platform, the T8403CX benefits from a fully triplicated architecture that provides fault tolerance through three independent processing legs. The design incorporates robust input conditioning circuits and isolation barriers to ensure reliable operation in electrically noisy industrial environments. The module’s high channel density and built-in diagnostic features make it suitable for applications requiring extensive field device monitoring without compromising safety integrity.

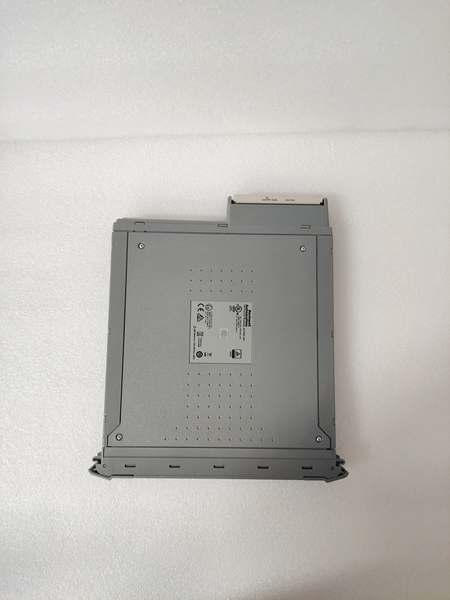

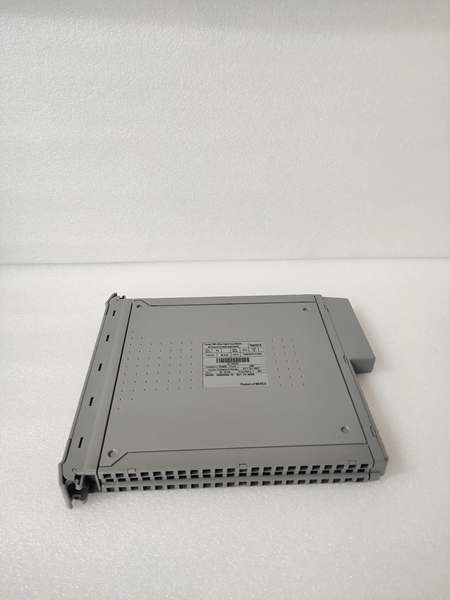

ICS TRIPLEX T8403CX

T8403CX: Technical Specifications

Model Number: T8403CX

Manufacturer: ICS Triplex

Product Type: Triple Modular Redundant Digital Input Module

Number of Channels: 40 digital inputs

Input Type: Sinking (NPN) or Sourcing (PNP) configurable

Input Voltage: 24V DC nominal (18-30V DC range)

Input Current: 2.5mA per channel typical

Power Supply: 24V DC

Power Consumption: 15W maximum

Operating Temperature: -40°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Isolation: 1500V RMS channel-to-channel

Response Time: <1ms

Safety Certification: SIL 3 per IEC 61508

Protection: Overvoltage, reverse polarity, and transient protection

Connector Type: Removable screw terminal block

Dimensions: 134mm × 85mm × 35mm

Weight: 0.5kg

Core Features & Customer Value

Triple Modular Redundant Architecture: The T8403CX’s TMR design incorporates three separate processing channels that execute identical operations and vote on inputs. For engineering teams responsible for safety system design, this architecture provides maximum fault tolerance that prevents single component failures from causing dangerous system states. The voting logic automatically masks faulty signals from the remaining healthy channels, maintaining control system integrity while alerting operators to the need for maintenance. This capability ensures that the system can continue operating safely even with a failed component, allowing maintenance to be scheduled during planned shutdowns rather than causing unplanned production interruptions.

High Channel Density: The module’s 40-channel configuration provides significant space savings in control panels compared to lower-density alternatives. For system designers, this high channel count reduces the number of modules required for large-scale applications, simplifying panel layout and reducing overall system cost. The compact form factor allows for high-density installations in space-constrained environments, while the modular design supports flexible configuration to meet specific application requirements.

Comprehensive Diagnostic Coverage: The module performs continuous self-monitoring of all critical components, including input circuits, power supplies, and communication interfaces. This diagnostic capability provides early detection of potential failures before they affect system operation. For maintenance personnel, the detailed fault reporting through front-panel indicators and system software reduces troubleshooting time and enables targeted component replacement. The module can detect open circuit conditions, short circuits, and wiring faults, providing specific fault information that helps technicians quickly identify and resolve issues.

Robust Protection Features: The input channels include comprehensive protection against overvoltage, reverse polarity, and transient conditions. These protection features prevent damage to the module and connected field devices during abnormal operating conditions. For plant operators, this robust protection translates to reduced maintenance requirements and improved system uptime, particularly in harsh industrial environments where electrical faults are more likely to occur.

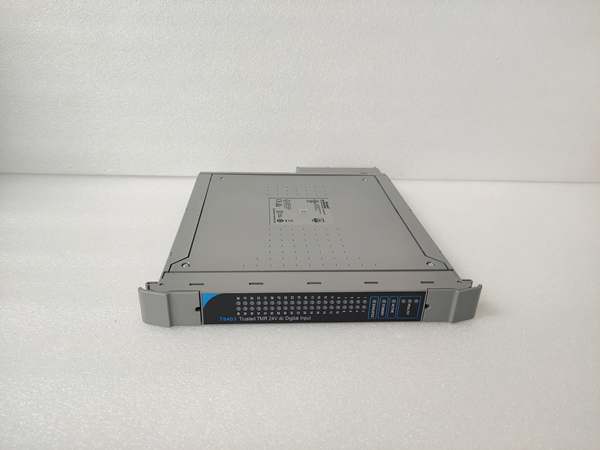

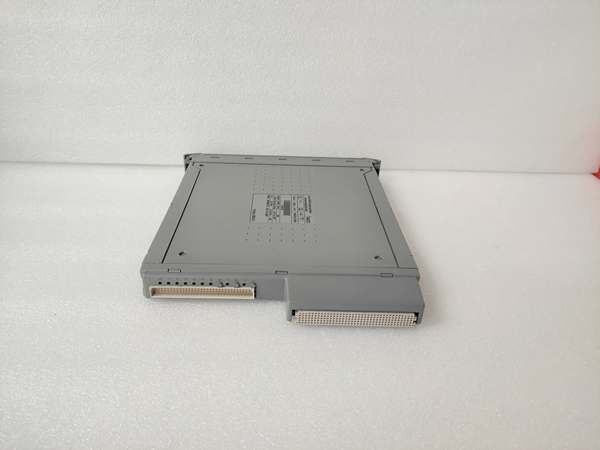

ICS TRIPLEX T8403CX

Typical Applications

The ICS Triplex T8403CX is extensively deployed in safety-critical process control applications within hydrocarbon processing facilities. In emergency shutdown systems (ESD), the module typically monitors critical process variables such as pressure switches, level switches, and temperature switches. The module’s fast response time (<1ms) ensures that safety functions are executed within the required safety time constraints, protecting personnel, equipment, and the environment.

In fire and gas detection systems, the T8403CX processes signals from fire detectors, gas detectors, and manual call points. The module’s high reliability and fault tolerance ensure that safety functions remain operational even during component failures, meeting the high availability requirements of life safety systems. The comprehensive diagnostic capabilities provide early warning of developing issues that could affect system reliability.

For compressor control applications in natural gas transmission pipelines, the module monitors status signals from anti-surge valves, vibration switches, and temperature switches. The wide operating temperature range (-40°C to +70°C) allows deployment in unmanned compressor stations where environmental control may be limited. The module’s robust construction and high immunity to electrical noise ensure reliable operation in the electrically noisy environments typical of compressor facilities.

In power generation applications, particularly in turbine control systems, the T8403CX monitors signals from overspeed trips, vibration monitors, and temperature sensors. The module’s comprehensive diagnostic capabilities provide early warning of developing issues that could affect unit reliability, while the hot-swappable design allows for maintenance without taking the unit offline. In these applications, the module’s ability to maintain monitoring during component failure ensures continuous power generation while allowing for planned maintenance during unit outages.
