Description
System Architecture & Operational Principle
The ICS TRIPLEX T8448 is a 40-channel Trusted TMR 24V DC zone interface module designed for safety-critical industrial applications, serving as a critical component in the ICS TRIPLEX Trusted® TMR system. It operates at Purdue Model Level 1–2 (Basic Control/Supervisory Control), acting as the interface between field zone devices (e.g., gas detectors, fire alarms, emergency stop buttons) and the Trusted® TMR processor (e.g., T8110B).
Architectural Role
The T8448 is installed in a Trusted® chassis (e.g., T8100 series) and interfaces with:
-
Upstream: 40 field devices (e.g., 24V DC sensors, switches) via screw terminals or connectorized cables, organized into 5 power groups (8 channels each) for zone-specific configuration.
-
Downstream: Trusted® TMR processor (e.g., T8110B) via the redundant backplane (IMB), transmitting digital/analog input data and diagnostic information.
Its primary role is to acquire and route zone-based signals from field devices to the Trusted® TMR processor for safety logic execution (e.g., fire & gas detection, emergency shutdown). The module uses Triple Modular Redundancy (TMR)—three independent input/output channels per point—to ensure fault tolerance: each signal is processed by three separate circuits, and a 2-out-of-3 voting mechanism eliminates single-point failures.
Operational Principle
The T8448 operates on a fault-tolerant, zone-based architecture:
-
Signal Acquisition: Each of the 40 input channels receives a 24V DC signal from a field device (e.g., a gas detector’s alarm signal).
-
TMR Voting: For each channel, three independent input circuits process the signal. A voting circuit compares the three outputs—if two or more agree, the signal is considered valid and transmitted to the Trusted® TMR processor.
-
Zone Configuration: The 40 channels are divided into 5 power groups (8 channels each), allowing flexible zone-based setup (e.g., grouping channels by plant area or process unit).
-
Diagnostics: The module performs continuous self-diagnostics (e.g., checking for open/short circuits in field wiring, monitoring input voltage levels) and reports faults to the processor via the backplane.
-
Hot-Swap: The module supports online replacement without system shutdown—technicians can remove a faulty module and install a new one while the system continues to operate, minimizing downtime.
The Trusted® backplane provides redundant power and data paths, ensuring that a backplane fault in one channel does not affect the others. This architecture delivers fault tolerance and zone-based signal integrity, essential for safety-critical applications like fire & gas (F&G) systems and emergency shutdown (ESD).

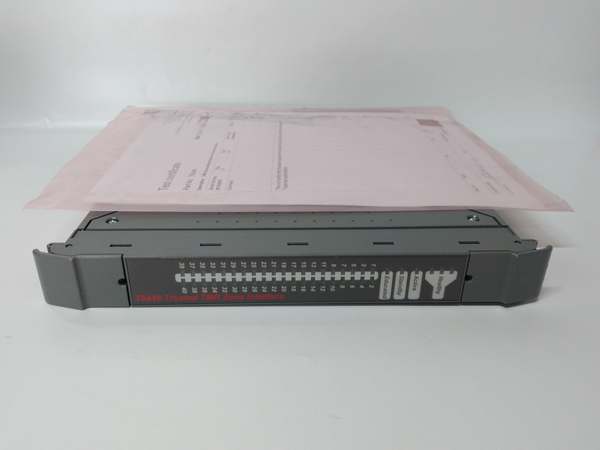

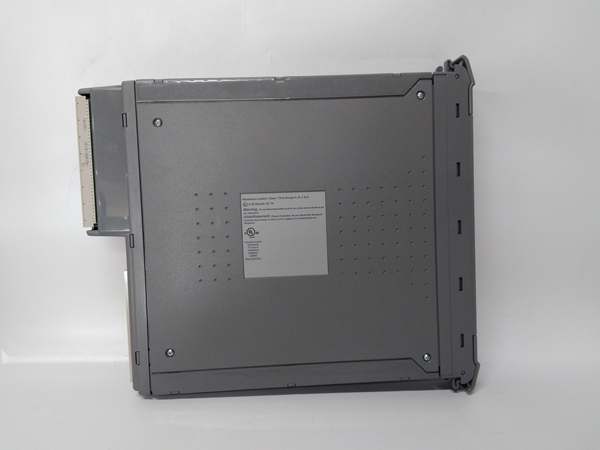

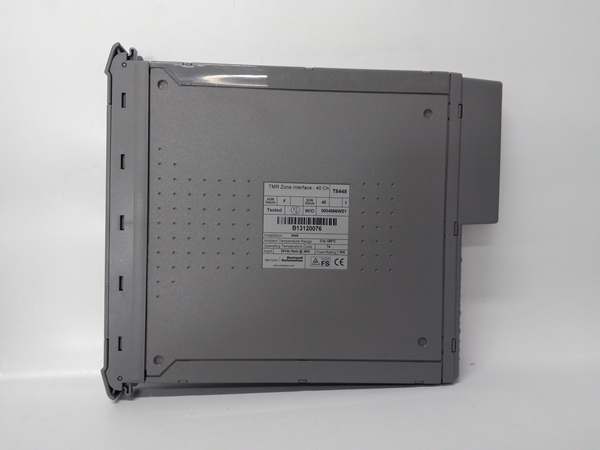

ICS Triplex T8448
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Channel Count
|
40 digital/analog configurable I/O channels
|
|
Input Voltage
|
24V DC (nominal); 18–32 V DC (operational range)
|
|
Output Voltage
|
24V DC (nominal); 18–32 V DC (operational range)
|
|
Power Groups
|
5 groups (8 channels each) for zone-specific configuration
|
|
Fault Tolerance
|
Triple Modular Redundancy (TMR) with 2-out-of-3 voting
|
|
Safety Certification
|
IEC 61508 SIL 3 (TÜV Rheinland)
|
|
Operating Temperature
|
-40°C to +70°C (ambient)
|
|
Isolation
|
2500V pulse-withstand optical/electrical isolation (channel-to-system)
|
|
Hot-Swap
|
Supported (online replacement without system shutdown)
|
|
Dimensions
|
266 mm × 31 mm × 303 mm (10.5 in × 1.2 in × 12.0 in) (per module)
|
|
Weight
|
~1.18 kg (2.6 lbs) per module
|
Customer Value & Operational Benefits
1. Fault Tolerance for Zone-Based Safety Applications
The T8448’s TMR architecture ensures that single-point failures (e.g., a faulty input circuit, a broken wire in a zone) do not disrupt system operation. The 2-out-of-3 voting mechanism masks faults, allowing the system to continue monitoring critical zone signals (e.g., a gas leak in a specific area) even if one channel fails. This is critical for fire & gas (F&G) systems, where a missed signal could lead to catastrophic consequences (e.g., a chemical spill, a fire outbreak).
2. Flexible Zone Configuration
The 5 power groups (8 channels each) allow zone-specific setup, enabling engineers to group channels by plant area (e.g., a refinery’s distillation unit) or process unit (e.g., a power plant’s turbine hall). This flexibility simplifies system design and maintenance, as technicians can easily identify and troubleshoot faults in specific zones.
3. Minimized Downtime with Hot-Swap Capability
The T8448’s hot-swap design allows technicians to replace a faulty module without shutting down the system. This is a game-changer for continuous process industries (e.g., power generation, petrochemicals), where even a 1-hour outage can cost millions in lost production. The Trusted® backplane automatically reroutes communication to the replacement module, ensuring seamless operation.
4. Compliance with Safety Standards
With IEC 61508 SIL 3 certification, the T8448 meets the highest standards for functional safety. This certification is required for safety-critical applications (e.g., nuclear power plants, oil refineries) and demonstrates that the module has undergone rigorous testing for fault tolerance and reliability.
Field Engineer’s Notes (From the Trenches)

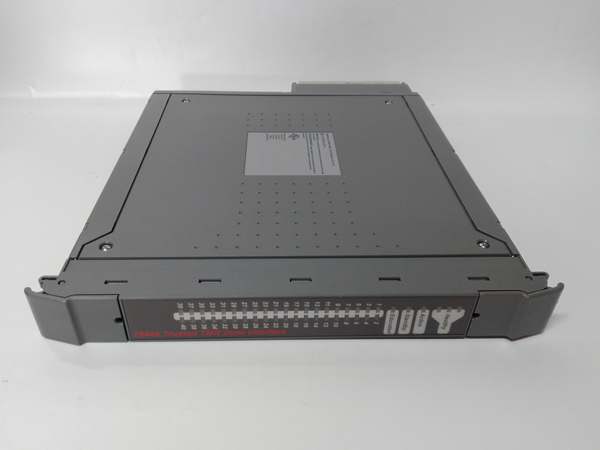

When installing the T8448, always verify the zone configuration—use the Trusted® software to map each channel to the correct zone (e.g., Zone 1 for the distillation unit, Zone 2 for the storage area). I once spent hours troubleshooting a “zone mismatch” fault only to find the channels were misconfigured.Check the field wiring for each power group—use a multimeter to check for open/short circuits in the input lines. A faulty wire in one group can cause all 8 channels to fail, so it’s critical to test each group individually.Test the hot-swap feature after installation—power down one module and verify that the remaining modules continue to operate. This ensures that the TMR system works correctly, which is critical for safety.ICS Triplex T8448
Real-World Applications
1. Fire & Gas (F&G) Systems
In a refinery, the T8448 is used to monitor gas detectors and fire alarms in different zones (e.g., Zone 1 for the distillation unit, Zone 2 for the storage area). If a gas detector in Zone 1 senses a leak, the T8448 transmits the signal to the Trusted® TMR processor, which triggers the deluge system and closes fire doors in that zone. The TMR architecture ensures that the system continues to monitor other zones even if one zone’s module fails.
2. Emergency Shutdown (ESD) Systems
In a power plant, the T8448 monitors emergency stop buttons and pressure switches in the turbine hall. If a button is pressed or a pressure switch trips, the T8448 sends a signal to the Trusted® TMR processor, which shuts down the turbine to prevent damage. The zone-based configuration allows technicians to quickly identify the faulty zone (e.g., the turbine hall) and troubleshoot the issue.
