Name: ICS Triplex T9110 | Trusted TMR Safety Controller - XINYEDA
Brand: ICS Triplex

Description

T9110: Technical Specifications

Model Number: T9110

Manufacturer: ICS Triplex

Product Type: Safety Controller

Input Voltage: 24 VDC

Power Consumption: 50 W

Operating Temperature: -20°C to 60°C

Humidity: 0% to 95% RH (non-condensing)

Dimensions (HxWxD): 266 × 200 × 255 mm

Weight: 8.2 kg

Safety Integrity Level: SIL 3

Certification: IEC 61508:2010 certified, TÜV-certified

Communication Protocols: Modbus, Profibus, Ethernet IP

Redundancy: Triple Modular Redundant (TMR) architecture

Diagnostics: Comprehensive diagnostic system with online monitoring

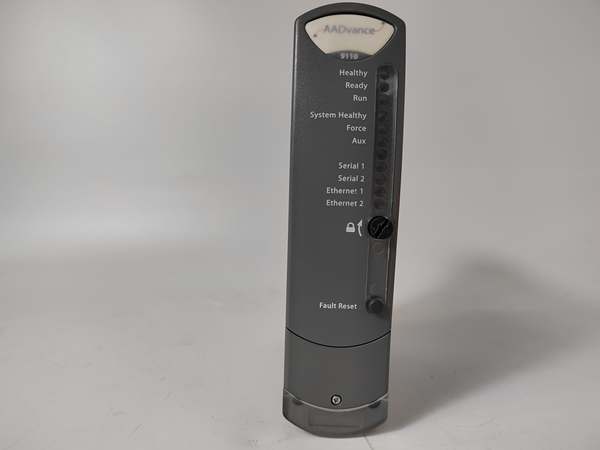

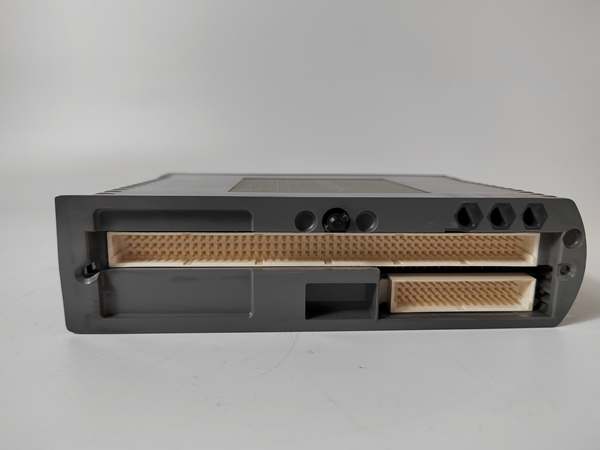

ICS Triplex T9110

Core Features & Customer Value

Triple Modular Redundancy Architecture: The T9110’s TMR design incorporates three independent processing channels that execute identical operations and vote on outputs. For engineering teams responsible for safety system design, this architecture provides maximum fault tolerance that prevents single component failures from causing dangerous system states. The voting logic automatically masks faulty signals from the remaining healthy channels, maintaining control system integrity while alerting operators to the need for maintenance. This capability ensures that the system can continue operating safely even with a failed component, allowing maintenance to be scheduled during planned shutdowns rather than causing unplanned production interruptions.

Comprehensive Diagnostic Coverage: The controller performs continuous self-monitoring of all critical components, including processing modules, power supplies, and communication interfaces. This diagnostic capability provides early detection of potential failures before they affect system operation. For maintenance personnel, the detailed fault reporting through front-panel indicators and system software reduces troubleshooting time and enables targeted component replacement. The system can detect and report various fault conditions, allowing technicians to quickly identify and resolve issues before they affect system operation.

Flexible Configuration and Integration: The T9110 supports a range of I/O modules and communication protocols, making it easy to integrate into existing control systems. The modular design allows for flexibility in configuration and expansion, while the support for various communication protocols including Ethernet, PROFIBUS, and Modbus enables seamless integration with other devices and systems. This flexibility reduces implementation time and costs for system integrators and end users.

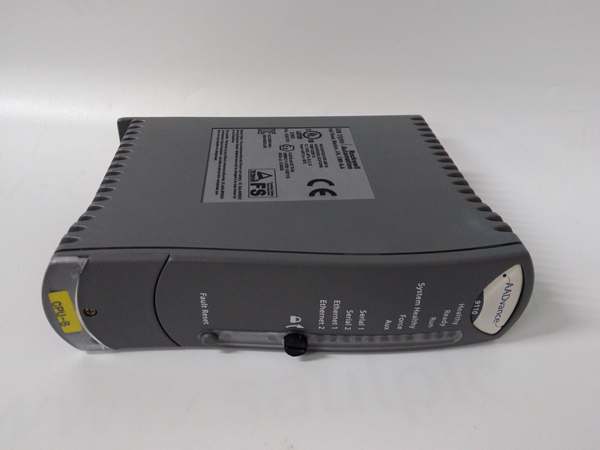

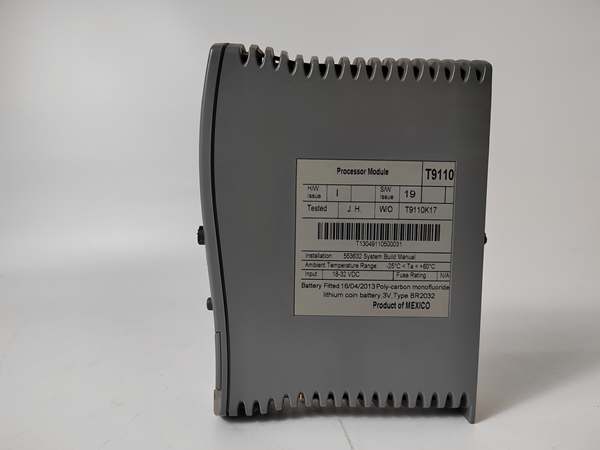

ICS Triplex T9110

Typical Applications

The ICS Triplex T9110 is extensively deployed in safety-critical process control applications within hydrocarbon processing facilities. In emergency shutdown systems (ESD), the controller typically monitors critical process variables and executes shutdown commands to isolate equipment and prevent hazardous situations. The controller’s fast response time and SIL 3 certification ensure that safety functions are executed within the required safety time constraints, protecting personnel, equipment, and the environment.

In fire and gas detection systems, the T9110 processes signals from fire and gas detectors and activates fire suppression systems, emergency ventilation dampers, and alarm systems. The controller’s high reliability and fault tolerance ensure that safety functions remain operational even during component failures, meeting the high availability requirements of life safety systems. The comprehensive diagnostic capabilities provide early warning of developing issues that could affect system reliability.

For power generation applications, particularly in turbine control systems, the T9110 provides control functions for anti-surge valves and fuel gas shutdown valves. The wide operating temperature range (-20°C to 60°C) allows deployment in unmanned compressor stations where environmental control may be limited. The controller’s robust construction and high immunity to electrical noise ensure reliable operation in the electrically noisy environments typical of power generation facilities.
