Description
System Architecture & Operational Principle
The KEBA SR161 is a compact, high-performance industrial controller designed for precision control in automation systems. It serves as the central processing unit (CPU) in KEBA’s control architecture, interfacing with:
-
Upstream: Human-Machine Interfaces (HMIs) or SCADA systems for operator input and monitoring.
-
Downstream: Sensors (e.g., proximity switches, temperature sensors) and actuators (e.g., motors, valves) via digital/analog I/O or fieldbuses (e.g., CANopen, EtherCAT).
Core Functional Blocks
-
Processing Unit: A 1GHz ARM Cortex-A9 processor executes logic programs (e.g., ladder logic, structured text) and motion control algorithms (e.g., PID, trajectory planning).
-
I/O Interface: Handles 16 digital inputs (24V DC), 16 digital outputs (24V DC), 4 analog inputs (±10V), and 4 analog outputs (±10V) for sensor feedback and actuator control.
-
Communication Interface: Supports 2 Ethernet ports (10/100 Mbps) for integration with HMIs, SCADA systems, or other controllers, and 1 RS232 port for legacy devices.
-
Power Supply: 24V DC input (±10%) with overvoltage and overcurrent protection.
Operational Workflow
-
Input Reception: The controller receives commands from the HMI (e.g., “start production line”) or SCADA system.
-
Logic Execution: The CPU executes the programmed logic (e.g., checking safety interlocks, calculating process parameters).
-
Output Transmission: The controller sends signals to actuators (e.g., starting a motor, opening a valve) via the I/O interface.
-
Feedback Processing: Sensors send data back to the controller for closed-loop control (e.g., adjusting motor speed based on temperature feedback).
-
Status Update: The controller sends status updates to the HMI or SCADA system (e.g., “production line running”).

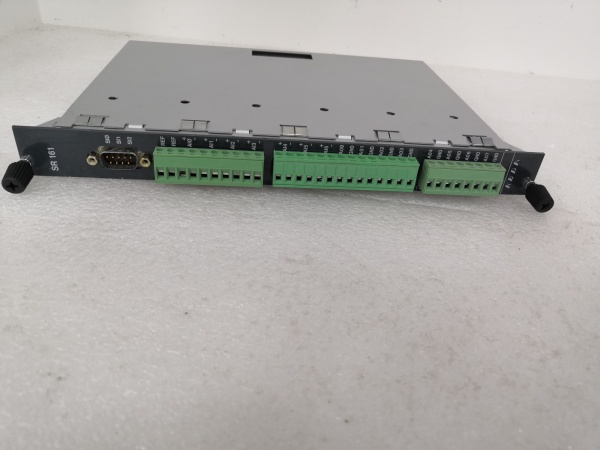

KEBA SR161
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Processor
|
1GHz ARM Cortex-A9 (32-bit RISC)
|
|
Memory
|
512MB DDR3 RAM (program/data storage), 4GB Flash (firmware/application)
|
|
I/O Channels
|
16 digital inputs (24V DC), 16 digital outputs (24V DC), 4 analog inputs (±10V), 4 analog outputs (±10V)
|
|
Communication
|
2x 10/100 Mbps Ethernet (RJ45), 1x RS232 (DB9)
|
|
Power Supply
|
24V DC (±10%); 500 mA max current draw
|
|
Operating Temperature
|
0°C to +55°C (ambient)
|
|
Protection Rating
|
IP20 (dust-protected, for indoor use)
|
|
Dimensions
|
150 mm × 100 mm × 50 mm (approx.)
|
|
Weight
|
~0.5 kg (1.1 lbs)
|
Customer Value & Operational Benefits
1. High Performance for Precision Control
The 1GHz ARM Cortex-A9 processor and 512MB RAM enable the SR161 to handle complex logic programs (e.g., multi-axis motion control, PID loops) and large datasets (e.g., from 100+ sensors). This is critical for applications like robotics (e.g., 6-axis robotic arm control) or precision machining (e.g., CNC milling machine control).
2. Flexible Integration with Existing Systems
The SR161’s support for multiple communication protocols (Ethernet, RS232) allows it to integrate with third-party devices (e.g., Siemens sensors, Schneider Electric actuators) and legacy systems. This flexibility reduces the need for costly system overhauls.
3. Reduced Downtime with Robust Design
The controller’s 24V DC power supply (with overvoltage/overcurrent protection) and IP20 protection rating (dust-resistant) ensure reliable operation in harsh industrial environments (e.g., factories, warehouses). The hot-swap capability (for I/O modules) minimizes downtime during maintenance.
4. Scalability for Growing Systems
The SR161’s modular design allows users to add expansion modules (e.g., additional I/O, communication interfaces) as system requirements grow. This scalability is ideal for small businesses or contractors who need to upgrade their systems over time.

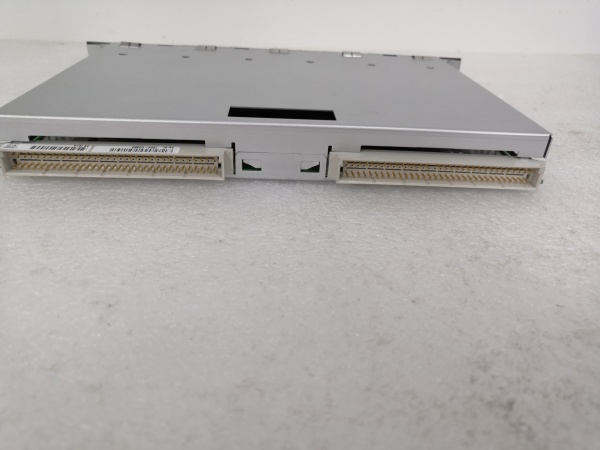

KEBA SR161
Field Engineer’s Notes (From the Trenches)
When installing the SR161, always verify the power supply voltage (24V DC ±10%) with a multimeter—low voltage can cause the controller to reset intermittently. I once saw a technician install the controller with a 12V DC power supply, leading to hours of downtime.Check the Ethernet cable shielding—unshielded cables can pick up electromagnetic interference (EMI) from nearby equipment (e.g., VFDs, motors), leading to communication errors. Use shielded twisted-pair (STP) Ethernet cable for all port connections.Update the firmware (via KEBA’s website) after installation—firmware updates often fix bugs and improve compatibility with new devices. I recommend checking for updates every 6 months, especially if you’re using the controller for critical applications.
Real-World Applications
1. Robotics: 6-Axis Robotic Arm Control
A automotive manufacturer uses the SR161 to control a 6-axis robotic arm for assembling car parts. The controller’s high-performance processor and motion control algorithms enable precise trajectory planning (e.g., picking a part from a conveyor belt and placing it in a fixture with ±0.1 mm accuracy).
2. Precision Machining: CNC Milling Machine
A machine shop uses the SR161 to control a CNC milling machine. The controller’s analog I/O interfaces (±10V) connect to servo drives (e.g., Yaskawa Sigma-7) for closed-loop control of spindle speed and feed rate. This ensures consistent part quality (e.g., drilling holes with ±0.05 mm tolerance).
3. Factory Automation: Production Line Control
A food packaging company uses the SR161 to control a production line for packaging snacks. The controller’s digital I/O interfaces (24V DC) connect to sensors (e.g., photoelectric sensors for product detection) and actuators (e.g., pneumatic cylinders for box sealing). The Ethernet interface integrates with the company’s SCADA system for real-time monitoring (e.g., tracking production counts, detecting faults).
