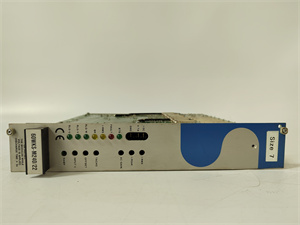

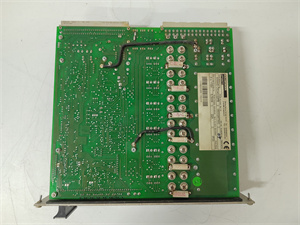

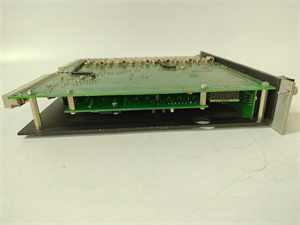

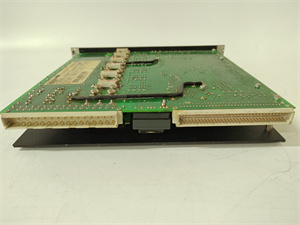

Kollmorgen 60WKS-M240/22

High Power Output: The 60WKS-M240/22 delivers a continuous power output of 3.75 kW, with a peak current capability of 44 A, making it suitable for high-power applications.
Advanced Control: It uses PI controllers to manage motor speed and current, ensuring stable and responsive performance.
Protection Features: The amplifier includes short-circuit and earth-fault protection at the motor terminals, as well as overvoltage, undervoltage, and overcurrent monitoring.
Versatile Feedback Options: Supports resolver and tachometer feedback systems, providing precise position and speed control.
Robust Design: The 60WKS-M240/22 is designed for operation in harsh industrial environments, with a wide operating temperature range and high humidity tolerance.
Get a Quote
Manufacturer:
Part number: Kollmorgen 60WKS-M240/22
Our extensive catalogue, including : Kollmorgen 60WKS-M240/22 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model 60WKS-M240/22
Manufacturer Kollmorgen
Product Category Analog Servo Amplifier
Operating Voltage 3 x 60-172 VAC (50-60 Hz ±10%)
Continuous Power 3.75 kW
Continuous Current 22 A
Peak Current 44 A (approx. 5s)
Feedback Options Resolver, Tachometer
Communication Protocols Analog Control Signals
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -20°C to 70°C
Humidity Range Up to 90% non-condensing
Dimensions (L×W×H) 249 mm × 163 mm × 83.3 mm
Weight 2 kg
Certifications CE, UL
60WKS-M240/22

60WKS-M240/22

Product Introduction

The Kollmorgen 60WKS-M240/22 is a high-performance analog servo amplifier designed for industrial automation applications. It offers precise control and robust performance, making it suitable for various precision motion control systems.

Core Advantages and Technical Highlights

High Power Output: The 60WKS-M240/22 delivers a continuous power output of 3.75 kW, with a peak current capability of 44 A, making it suitable for high-power applications.
Advanced Control: It uses PI controllers to manage motor speed and current, ensuring stable and responsive performance.
Protection Features: The amplifier includes short-circuit and earth-fault protection at the motor terminals, as well as overvoltage, undervoltage, and overcurrent monitoring.
Versatile Feedback Options: Supports resolver and tachometer feedback systems, providing precise position and speed control.
Robust Design: The 60WKS-M240/22 is designed for operation in harsh industrial environments, with a wide operating temperature range and high humidity tolerance.

60WKS-M240/22

60WKS-M240/22

Typical Application Scenarios

The Kollmorgen 60WKS-M240/22 is widely used in:
  • Machine Tools: For precise motion control in CNC machines.
  • Packaging Machinery: To control the movement of packaging lines.
  • Material Handling Systems: For efficient operation of conveyor systems and automated guided vehicles (AGVs).
  • Robotics: To drive motors in robotic arms and other automation equipment.

Related Model Recommendations

  • 60WKS-M240/6: A lower power variant with 6 A continuous current, suitable for applications requiring less torque.
  • 60WKS-M240/12: A mid-range power variant with 12 A continuous current, offering a balance between power and efficiency.
  • 60WKS-M240/26: A higher power variant with 26 A continuous current, suitable for heavy-duty applications.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Follow the installation manual carefully to ensure proper grounding and connection. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the amplifier for signs of damage or wear. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.

Service and Guarantee Commitment

The Kollmorgen 60WKS-M240/22 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Kollmorgen offers technical support and service to assist with installation, troubleshooting, and maintenance.
