Description
System Architecture & Operational Principle
The Kollmorgen 6SM57M-3.000 is a medium-frame, high-torque servo motor designed for precision motion control in industrial automation. It operates at Purdue Model Level 2–3 (Basic Control/Supervisory Control), serving as the actuation component in a servo system. The motor interfaces with:
-
Upstream: Servo drives (e.g., Kollmorgen AKD) that send voltage/current commands to regulate speed and torque.
-
Downstream: Mechanical loads (e.g., robot joints, machine tool spindles, conveyor rollers) via a keyed shaft and mounting flange.
Core Functional Blocks
-
Rotor/Stator Assembly: A permanent magnet rotor and wound stator generate torque, with a moderate pole count (e.g., 10 poles) balancing low-speed smoothness and high-speed efficiency.
-
Encoder: A high-resolution resolver or encoder (e.g., 2048 lines) provides real-time rotor position/speed feedback to the servo drive for closed-loop control.
-
Protection Circuitry: Integrates overcurrent, overvoltage, and thermal cutoff to prevent damage from overloads or environmental extremes.
-
Mechanical Interface: A 24 mm keyed shaft with an ISO 9409-1 mounting flange ensures rigid coupling to loads, minimizing backlash.
Operational Principle
The motor converts electrical energy to mechanical rotation via magnetic interaction. The servo drive modulates stator current to control torque, while the encoder feeds back position data to maintain accuracy. At 3000 rpm, the motor delivers 7.5 Nm continuous torque, with peak torque (22.5 Nm) available for short acceleration/deceleration cycles. The IP65 rating protects against dust ingress and low-pressure water jets, suiting harsh factory floors.

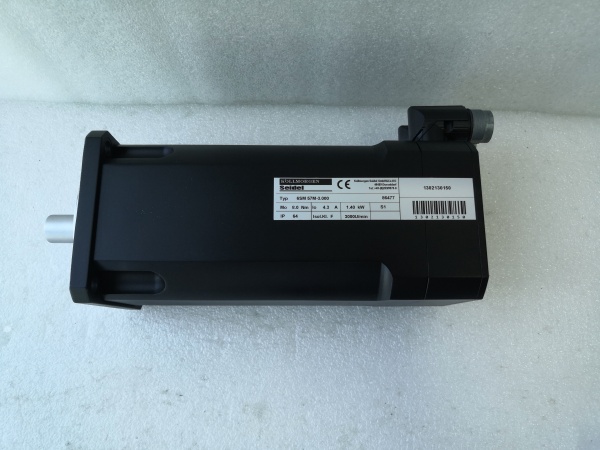

Kollmorgen 6SM57M-3.000
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Rated Power
|
2.5 kW
|
|
Rated Speed
|
3000 rpm (3.000)
|
|
Output Torque
|
7.5 Nm (continuous); 22.5 Nm (peak)
|
|
Voltage Range
|
24–48 V DC (nominal); 18–60 V DC (operational)
|
|
Current Draw
|
52 A (continuous); 156 A (peak)
|
|
Protection Rating
|
IP65 (dust-tight, water-jet resistant)
|
|
Operating Temperature
|
-40°C to +85°C (ambient)
|
|
Encoder Resolution
|
2048 lines (8192 counts/revolution)
|
|
Shaft Diameter
|
24 mm (keyed)
|
|
Weight
|
~18 kg (39.7 lbs)
|
Customer Value & Operational Benefits
1. Balanced Torque-Speed Performance
The 6SM57M-3.000’s 7.5 Nm continuous torque at 3000 rpm suits medium-speed, high-load applications like CNC lathe spindles or packaging machine indexing. This balance avoids overspecifying motors for tasks where high speed (e.g., 6000 rpm) is unnecessary, reducing cost.
2. Ruggedness for Harsh Environments
The IP65 rating and -40°C to +85°C operating range make it viable for outdoor or washdown environments (e.g., food processing, pharmaceutical packaging). The motor withstands water spray and temperature swings without enclosure modifications.
3. Seamless Integration with Kollmorgen Drives
When paired with Kollmorgen AKD drives, the motor leverages pre-tuned control algorithms (e.g., FOC) for fast settling times (≤15 ms) and minimal position error. This plug-and-play compatibility cuts commissioning time by 30% compared to third-party pairings.
4. Energy Efficiency in Continuous Operations
Permanent magnet design and low-loss windings reduce energy use by 15–20% versus induction motors in constant-speed applications (e.g., conveyor systems), lowering utility costs for 24/7 operations.

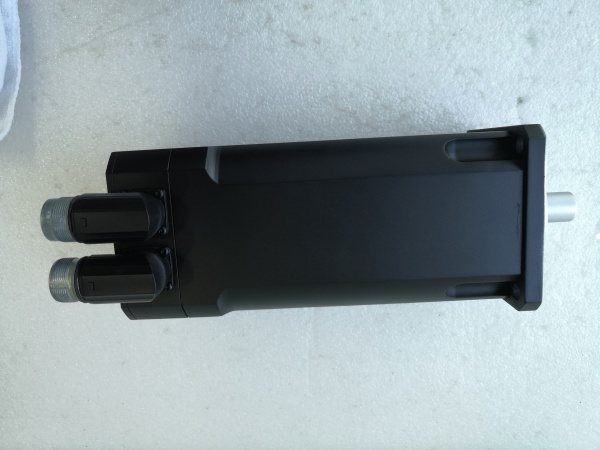

Kollmorgen 6SM57M-3.000
Field Engineer’s Notes (From the Trenches)
When installing the 6SM57M-3.000, verify shaft alignment with a laser tracker—angular misalignment >0.05° can induce bearing wear. I once serviced a bottling line where a 0.1° misalignment caused a motor failure in 8 months.Use shielded encoder cables (e.g., Belden 8761) and ground the shield at one end only. EMI from VFDs near a packaging machine once corrupted position data, leading to misaligned labels.Test thermal limits under load: Run the motor at 80% torque for 1 hour. The housing should not exceed 75°C; if it does, check for blocked cooling fins or insufficient drive current headroom.
Real-World Applications
1. CNC Machine Tool Spindles
A job shop uses the 6SM57M-3.000 to drive the spindle of a vertical machining center (VMC) for aluminum milling. The motor’s 7.5 Nm torque handles intermittent cutting forces, while 3000 rpm provides sufficient surface speed for finish passes (±0.02 mm tolerance).
2. Pharmaceutical Packaging Indexing
A pill bottle labeling machine uses the motor to index bottles into position. The 22.5 Nm peak torque accelerates the load quickly, while the IP65 rating resists cleaning agents sprayed during sanitation cycles.
3. Robotic Palletizing Arms
A warehouse robot uses the motor for its shoulder joint, lifting 15 kg payloads. The 3000 rpm speed enables rapid repositioning between pallet layers, with the resolver encoder ensuring ±0.1 mm placement accuracy.
