Description
System Architecture & Operational Principle
The Kollmorgen 6SM77K-3.000 is a high-power synchronous servo motor designed for precision motion control in industrial automation. It belongs to the 6SM series of synchronous servo motors, which are widely used in applications requiring high torque, high speed, and precise positioning.
Core Functional Blocks
-
Rotor/Stator Assembly: The motor uses a permanent magnet rotor and wound stator to generate torque. The high pole count (e.g., 8 poles) enables smooth operation at low speeds and high torque density.
-
Encoder: A high-resolution encoder (e.g., 2048 lines) provides feedback on rotor position and speed to the servo drive for closed-loop control.
-
Protection Circuitry: Includes overcurrent, overvoltage, and thermal protection to safeguard the motor from damage due to overloads or faults.
-
Mechanical Interface: A keyed shaft with a mounting flange (e.g., ISO 9409-1) allows easy integration with mechanical systems.
Operational Workflow
-
Command Reception: The servo drive sends a voltage/current command to the motor based on the desired speed/torque.
-
Torque Generation: The motor’s stator windings generate a magnetic field that interacts with the rotor’s permanent magnets, producing torque.
-
Feedback Loop: The encoder sends rotor position/speed data back to the servo drive, which adjusts the command to maintain precise control.
-
Load Actuation: The motor’s shaft rotates, driving the mechanical load (e.g., a robot arm) to the desired position.

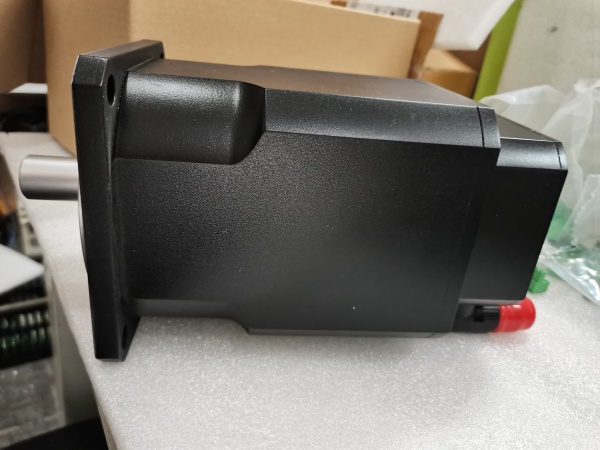

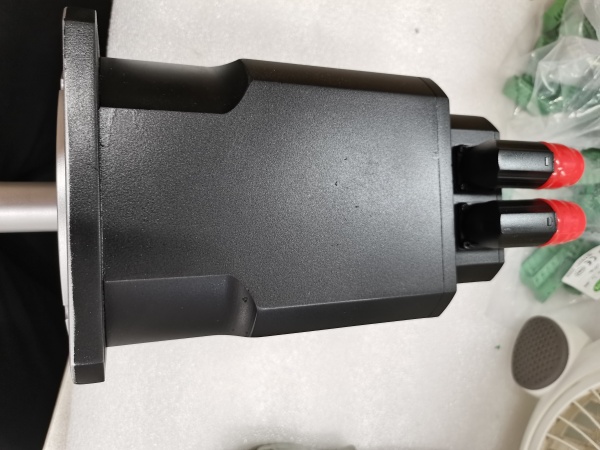

6SM77K-3.000
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Rated Power
|
12.6–18.9 kW
|
|
Rated Speed
|
3000 rpm
|
|
Output Torque
|
40 Nm (continuous); 120 Nm (peak)
|
|
Voltage Range
|
380–480 V AC (nominal); 360–500 V AC (operational)
|
|
Current Draw
|
32 A (continuous); 96 A (peak)
|
|
Protection Rating
|
IP65 (dust-tight, water-jet resistant)
|
|
Operating Temperature
|
-40°C to +85°C (ambient)
|
|
Encoder Resolution
|
2048 lines (8192 counts/revolution)
|
|
Shaft Diameter
|
24 mm (keyed)
|
|
Weight
|
~25 kg (55 lbs)
|
Customer Value & Operational Benefits
1. High Power Density for Demanding Applications
The 6SM77K-3.000’s 12.6–18.9 kW rated power and 40 Nm continuous torque make it ideal for high-power industrial applications like large robotic arms, heavy machine tools, and material handling systems. Its compact form factor (compared to traditional motors) allows for space-efficient integration.
2. Precise Motion Control for Quality Improvement
The motor’s high-resolution encoder (2048 lines) and fast dynamic response (≤10 ms settling time) enable micrometer-level precision in positioning, which is critical for high-quality manufacturing (e.g., automotive assembly, aerospace component fabrication).
3. Rugged Reliability for Harsh Environments
The IP65 protection rating and wide operating temperature range (-40°C to +85°C) make the motor suitable for harsh industrial environments (e.g., outdoor installations, factories with high vibration). The motor withstands dust, moisture, and temperature fluctuations without enclosure modifications.
4. Energy Efficiency for Cost Savings
The motor’s permanent magnet design and efficient winding configuration reduce energy consumption by up to 20% compared to traditional brushed motors, leading to lower operating costs for continuous-process industries (e.g., bottling lines, packaging machines).

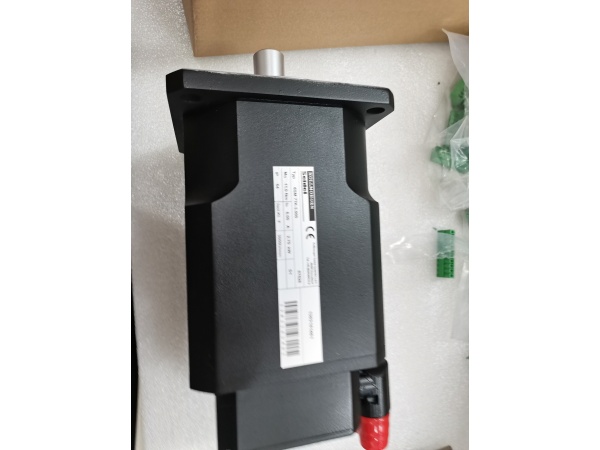

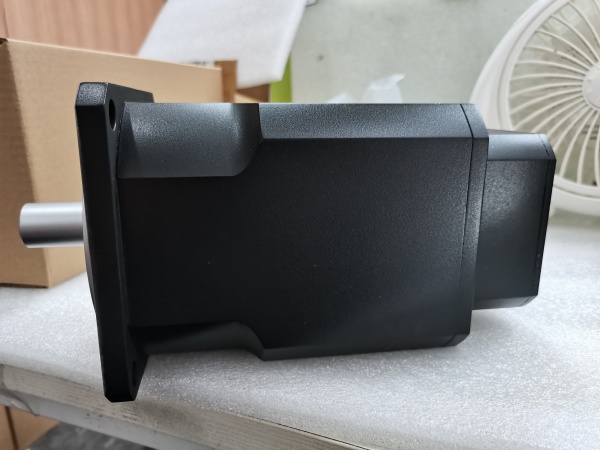

6SM77K-3.000
Field Engineer’s Notes (From the Trenches)
When installing the 6SM77K-3.000, always verify the shaft alignment with the load (e.g., a robot arm) using a dial indicator—misalignment can cause premature bearing wear and reduce motor life. I once saw a technician skip this step, leading to a $5,000 bearing replacement after 6 months.Check the encoder cable for shielding—unshielded cables can pick up electromagnetic interference (EMI) from nearby VFDs or motors, leading to position errors. Use a shielded twisted-pair (STP) cable for the encoder connection.Test the thermal protection after installation—run the motor at full load for 30 minutes and check the temperature (should not exceed 85°C). If it does, verify the cooling (e.g., a fan) or reduce the load.
Real-World Applications
1. Industrial Robotics: Large Robotic Arms
A automotive manufacturer uses the 6SM77K-3.000 to power the joints of a large robotic arm used for lifting and positioning car bodies. The motor’s high torque (40 Nm) allows the arm to lift heavy components (up to 50 kg) while maintaining precise positioning (±0.1 mm), improving assembly efficiency by 20%.
2. Machine Tools: Heavy-Duty CNC Mills
A machine shop uses the 6SM77K-3.000 to drive the spindle of a heavy-duty CNC mill used for cutting steel parts. The motor’s 12.6–18.9 kW power provides sufficient torque to handle tough materials, while the 3000 rpm speed enables fast cutting cycles (reducing cycle time by 15%).
3. Material Handling: Conveyor Belt Systems
A logistics company uses the 6SM77K-3.000 to power the conveyor belts in a large warehouse. The motor’s IP65 protection rating and wide operating temperature range make it suitable for the dusty, variable-temperature environment of the warehouse, reducing downtime due to motor faults by 30%.
