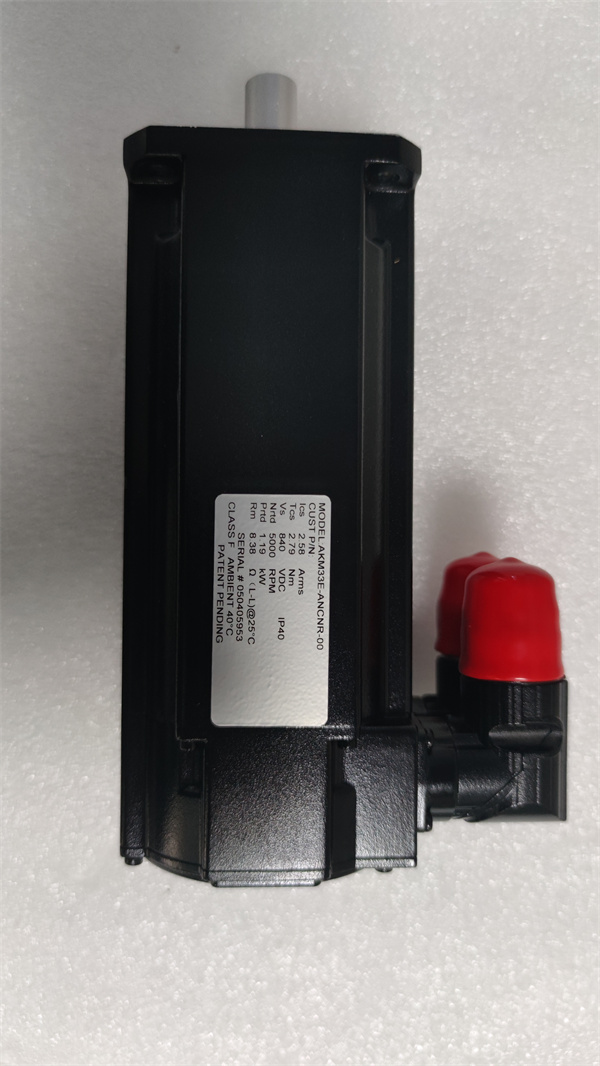

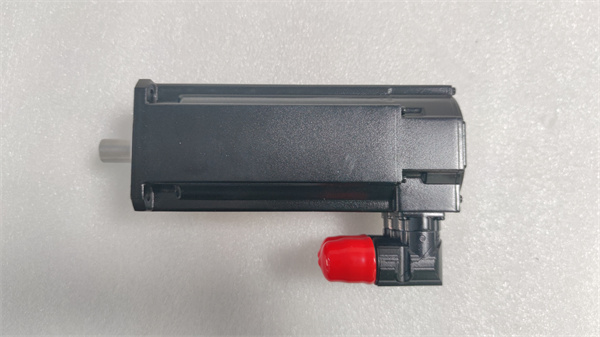

KOLLMORGEN AKM33E-ANCNR-00

Description

Product Overview

The KOLLMORGEN AKM33E – ANCNR – 00 is a high – performance synchronous servo motor, part of KOLLMORGEN’s renowned AKM series. As a key component in industrial automation systems, it is designed to deliver precise and reliable motion control.

This servo motor offers core functions such as accurate torque output and stable speed regulation. With a rated power of 1.19 kW (at 640 Vdc bus voltage), it can drive various mechanical components effectively. The AKM33E – ANCNR – 00 is well – positioned for applications where high – precision motion is crucial, like in advanced manufacturing processes. Its value lies in enhancing the efficiency and accuracy of machinery, reducing production errors, and ultimately contributing to increased productivity in industrial settings.

Technical Specifications

AKM33E-ANCNR-00

Main Features and Advantages

High – Precision Motion Control

Equipped with a 16 – bit 2 – pin resolver, the AKM33E – ANCNR – 00 provides highly accurate feedback on the motor’s position and speed. This enables it to achieve precise motion control, ensuring that mechanical components are positioned with great accuracy. In applications such as precision machining, the motor’s precision helps in creating parts with tight tolerances, improving product quality.

High – Power Output

With a rated power of 1.19 kW at 640 Vdc bus voltage, the motor can deliver substantial power. It can handle high – torque requirements and is capable of driving heavy – duty loads. In industrial settings like large – scale manufacturing equipment, its high – power output ensures smooth operation even under demanding conditions.

Robust Design

The AKM33E – ANCNR – 00 features an IP65 protection level, which means it is highly resistant to dust and water splashes. This makes it suitable for use in harsh industrial environments. The motor also has a durable construction with a 70x70mm IEC flange (tolerance n), providing a stable mounting solution. Additionally, it uses rare earth neodymium – iron – boron magnetic material, which contributes to its high – performance and dynamic operation.

Versatile Connectivity

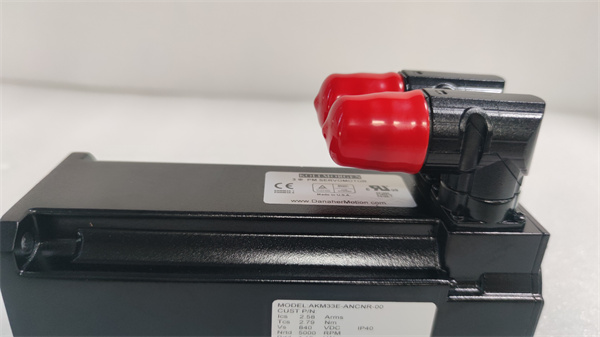

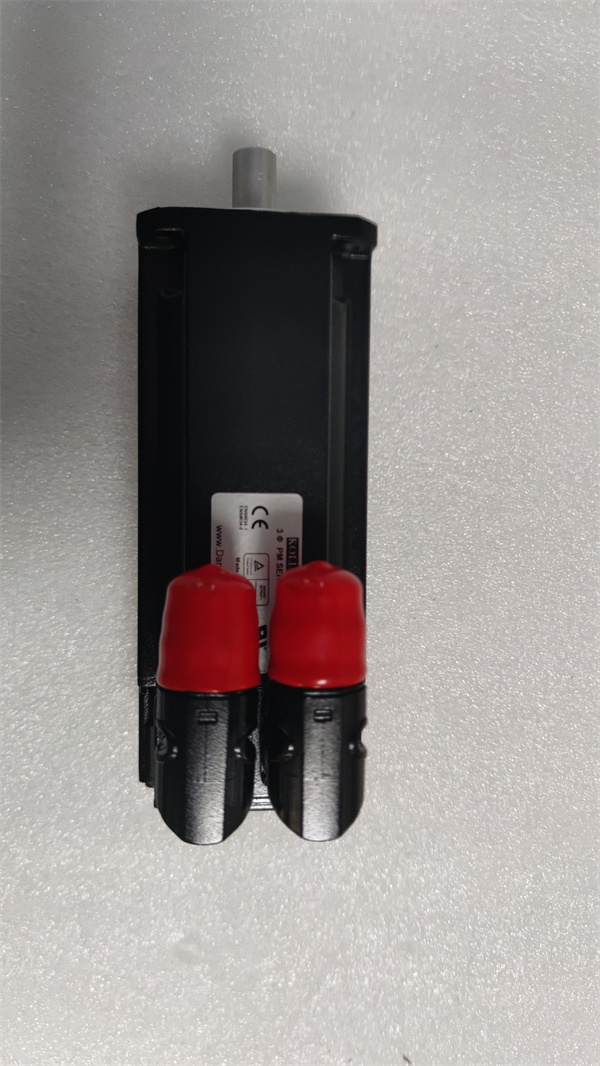

Featuring 2 x angled rotatable M23 connectors, the motor offers versatile connectivity options. This allows for easy integration with different control systems and other components in an industrial automation setup. Whether it’s connecting to a servo drive or other monitoring devices, the motor’s connectivity features simplify the installation and operation process.

AKM33E-ANCNR-00

Application Field

In the machine tool industry, the KOLLMORGEN AKM33E – ANCNR – 00 is widely used for driving the spindle and axes. Its high – precision motion control enables accurate cutting, milling, and drilling operations, resulting in high – quality machined parts.

For textile machinery, the motor is utilized to control the movement of spindles, looms, and other components. The AKM33E – ANCNR – 00‘s ability to maintain stable speed and torque ensures consistent fabric production with uniform quality.

In packaging machinery, this servo motor plays a crucial role in controlling the movement of conveyor belts, filling mechanisms, and capping machines. Its precise motion control helps in accurately positioning products for packaging, reducing packaging errors and improving production efficiency.

Industrial robots also benefit from the AKM33E – ANCNR – 00‘s performance. It powers the joints of robots, enabling them to perform complex tasks such as pick – and – place operations with high accuracy and speed.

Related Products

• KOLLMORGEN AKM33E – ANC2R – 00: Similar to the AKM33E – ANCNR – 00, but may have differences in the resolver or connection details. It could be an alternative for applications with specific resolver or connector requirements.
• KOLLMORGEN AKM36E – ANCNR – 00: Belonging to the same AKM series, this model might offer different power ratings or torque characteristics. It could be suitable for applications that require more power or different torque – speed profiles compared to the AKM33E – ANCNR – 00.
• KOLLMORGEN Servo Drives: These are essential for operating the AKM33E – ANCNR – 00servo motor. Different servo drive models from KOLLMORGEN offer various control features, communication protocols, and power capabilities to optimize the motor’s performance in different applications.
• AKM Series Accessories: This includes items like shaft – sealing rings, end caps, and additional connectors. These accessories can be used to enhance the functionality or adapt the AKM33E – ANCNR – 00to specific installation or environmental requirements.
• KOLLMORGEN Encoder Upgrades: For applications that demand even higher precision, there may be encoder upgrade options available. These upgrades can replace the standard 16 – bit resolver of the AKM33E – ANCNR – 00with a higher – resolution encoder, further improving the motor’s position and speed feedback accuracy.

Installation and Maintenance

Pre – installation preparation: Before installing the KOLLMORGEN AKM33E – ANCNR – 00, carefully check the installation environment. Ensure that the temperature is within the recommended range of 5 to 40 degrees Celsius and the humidity is no more than 95% without condensation. Verify that the mounting surface for the 70x70mm IEC flange is flat and clean. When connecting the motor to the servo drive, follow the wiring diagram provided in the manual precisely to avoid incorrect connections that could damage the motor or the drive.

Maintenance recommendations: Regularly inspect the AKM33E – ANCNR – 00 for any signs of physical damage, such as cracks in the housing or loose connectors. Clean the motor’s exterior periodically to remove dust and debris, as these can affect its performance. Monitor the operating temperature of the motor during operation. The ball – bearing life of the motor is 20,000 operating hours; if approaching this limit, consider bearing replacement. Also, check the resolver for accurate feedback and ensure that the winding insulation is in good condition.

Product Guarantee

KOLLMORGEN stands firmly behind the quality of the AKM33E – ANCNR – 00 servo motor. The product comes with a comprehensive quality assurance program. In case of any manufacturing defects, KOLLMORGEN offers repair or replacement services within the warranty period. Their dedicated technical support team is always available to assist customers with installation, operation, and troubleshooting. Whether it’s answering technical questions, providing guidance on system integration, or helping with maintenance issues, KOLLMORGEN’s support ensures that customers can maximize the performance of the AKM33E – ANCNR – 00, reflecting the company’s confidence in the product’s reliability and durability.
