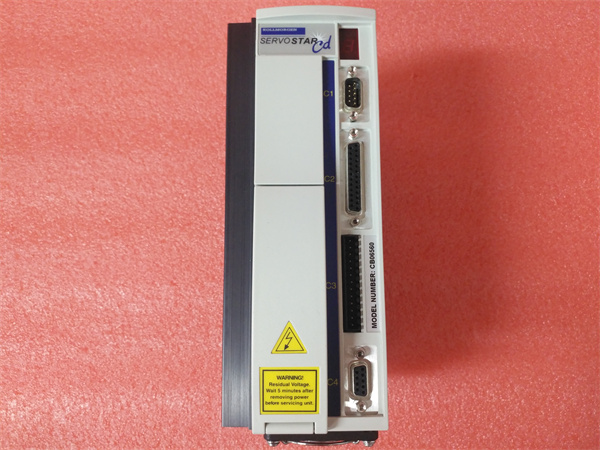

KOLLMORGEN CB06560 PRD-B040SAIB-62

Description

Product Overview

The KOLLMORGEN CB06560 PRD-B040SAIB-62 is a high-performance brushless servo motor from Kollmorgen’s PRD (Power Range Drive) series, designed for precision motion control in industrial automation, robotics, and CNC applications. This PRD-B040SAIB-62 model offers exceptional torque density, smooth operation, and high dynamic response, making it ideal for applications requiring fast acceleration, precise positioning, and repeatability.

Built with a compact 65 mm frame, the KOLLMORGEN CB06560 PRD-B040SAIB-62 integrates seamlessly with Kollmorgen’s servo drives (such as the AKD and S700 series), ensuring optimal performance in closed-loop control systems. The motor features a high-quality resolver for accurate feedback, along with robust construction for durability in demanding environments. With its IP65-rated housing, the PRD-B040SAIB-62 is protected against dust and water ingress, making it suitable for use in harsh industrial settings.

Technical Specifications

KOLLMORGEN CB06560 PRD-B040SAIB-62

Main Features and Advantages

High Torque Density & Dynamic Performance

The KOLLMORGEN CB06560 PRD-B040SAIB-62 delivers excellent torque-to-inertia ratios, enabling rapid acceleration and deceleration in high-speed automation applications. Its optimized electromagnetic design minimizes cogging, ensuring smooth motion even at low speeds.

Robust Construction for Harsh Environments

With an IP65 protection rating, the motor is resistant to dust and water splashes, making it suitable for use in food processing, packaging, and other industrial environments where contamination is a concern. The PRD-B040SAIB-62 also features high-quality bearings and thermal management for extended service life.

Seamless Integration with Kollmorgen Drives

This motor is fully compatible with Kollmorgen’s AKD and S700 servo drives, offering plug-and-play connectivity for simplified system integration. The resolver feedback ensures precise position control, while optional encoder support is available for applications requiring higher accuracy.

Energy Efficiency & Low Maintenance

Designed for continuous duty operation, the CB06560 PRD-B040SAIB-62 minimizes energy consumption while maintaining high efficiency. Its brushless design eliminates wear-and-tear issues associated with brushed motors, reducing maintenance requirements.

KOLLMORGEN CB06560 PRD-B040SAIB-62

Application Field

The KOLLMORGEN CB06560 PRD-B040SAIB-62 is widely used in industries requiring high-precision motion control, including:

Industrial Automation: High-speed pick-and-place robots, conveyor systems, and automated assembly lines.

Packaging Machinery: Servo-driven filling, labeling, and sealing machines.

CNC & Machine Tools: Precision milling, grinding, and laser cutting applications.

Medical & Laboratory Equipment: Automated diagnostic devices and robotic surgical systems.

Semiconductor Manufacturing: Wafer handling and inspection systems.

Related Products

AKD Series Servo Drives – Ideal for high-performance motion control with the PRD-B040SAIB-62.

PRD-B060SAIB-62 – Higher torque variant (60 mm frame) for more demanding applications.

CB06560 PRD-B040SAIB-63 – Same motor with multi-turn absolute encoder feedback.

S700 Servo Drive – Advanced servo drive for complex motion control tasks.

RBE Series Resolvers – Additional feedback options for enhanced precision.

Installation and Maintenance

Pre-installation preparation: Ensure proper alignment between the motor shaft and driven load to prevent excessive radial or axial forces. Verify electrical connections match the motor’s voltage and feedback requirements. Use appropriate mounting hardware to secure the KOLLMORGEN CB06560 PRD-B040SAIB-62 firmly, avoiding misalignment.

Maintenance recommendations: Regularly inspect motor cooling fins and ventilation paths for dust accumulation. Check resolver connections for signal integrity. Monitor bearing noise and replace if abnormal wear is detected. Avoid exposure to corrosive chemicals, and ensure environmental conditions remain within specified limits.

Product Guarantee

Kollmorgen provides a 24-month warranty for the CB06560 PRD-B040SAIB-62, covering manufacturing defects under normal operating conditions. Global technical support is available for troubleshooting and optimization. The motor undergoes rigorous testing to ensure compliance with industry standards, guaranteeing long-term reliability in mission-critical applications.
