System Architecture & Operational Principle
The Kongsberg RCU500 is a rugged remote controller unit designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in marine/offshore control cabinets (panel-mounted or DIN rail) and serves as the bridge between higher-level control systems (e.g., Kongsberg K-Chief 500) and field devices (e.g., thrusters, pumps, sensors).
Upstream Communication
Receives control commands from higher-level systems via:
-
Dual 100 Mb Ethernet LAN: For high-speed communication with process control networks;
-
Serial Ports (RS-232/422/485): For legacy device integration;
-
CANbus/Profibus: For industrial fieldbus communication.
These signals include target positions, speeds, or actuator commands, which are processed by the PowerPC processor.
Downstream Communication
Transmits control signals to field devices via:
-
Digital Outputs: For on/off control of valves, solenoids, or contactors;
-
Analog Outputs: For proportional control of actuators (e.g., 4-20 mA for valve positioners);
-
Serial Links: For communication with remote I/O units (e.g., RIO 400).
The RCU500 uses real-time operating systems (RTOS) to ensure deterministic processing, critical for marine applications like dynamic positioning (DP) where millisecond response times are required.
Operational Advantages
-
Rugged Design: Aluminum housing and wide temperature range (-20°C to +70°C) make it suitable for harsh marine/offshore environments;
-
Redundancy Support: Hot-swappable design allows replacement without system shutdown, minimizing downtime;
-
Integrated Diagnostics: Built-in self-test (BIST) and error reporting via operator stations simplify maintenance.

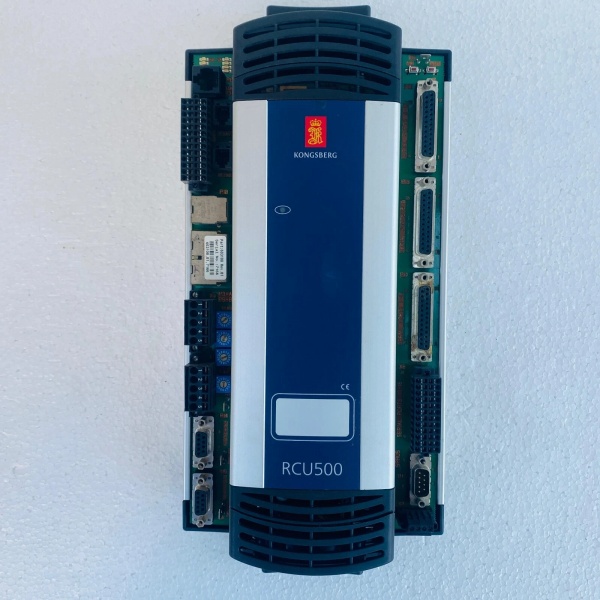

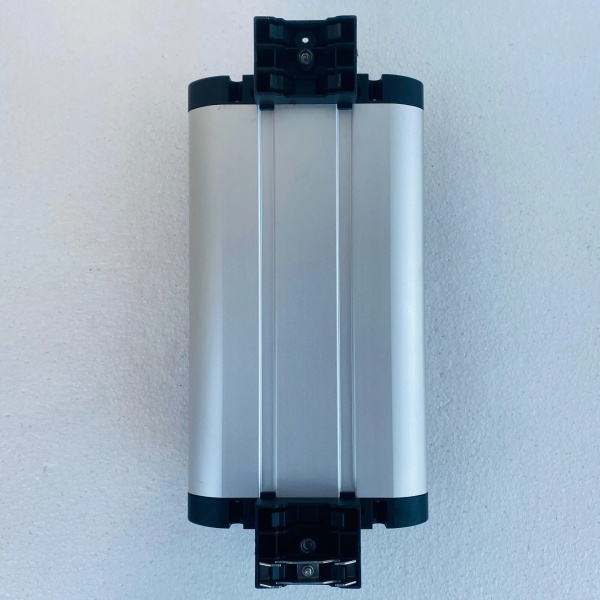

Kongsberg RCU500
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Processor
|
PowerPC 8245 (400 MHz)
|
|
Memory
|
32 MB SDRAM (main memory); 16 MB Flash (non-volatile storage)
|
|
Power Supply
|
24V DC ±20% (nominal); 19–32V DC (operating range)
|
|
Power Consumption
|
Max 20 W
|
|
Communication Interfaces
|
Dual 100 Mb Ethernet; 12x RS-232/422/485; 2x CANbus; 2x Profibus
|
|
Digital I/O
|
4x digital inputs (TTL); 4x digital outputs (relay)
|
|
Analog I/O
|
4x analog inputs (0-10V/4-20mA); 4x analog outputs (0-10V/4-20mA)
|
|
Operating Temperature
|
-20°C to +70°C (-4°F to 158°F)
|
|
Storage Temperature
|
-25°C to +70°C (-13°F to 158°F)
|
|
Humidity Tolerance
|
5–95% non-condensing
|
|
Dimensions (W×H×D)
|
~355 mm × 158 mm × 87 mm (14 in × 6.2 in × 3.4 in) (estimated)
|
|
Weight
|
~1.35 kg (2.97 lbs)
|
|
Certifications
|
DNV GL, ABS, IEC 61508 (SIL 2/3), Ex Zone 2 (optional)
|
Customer Value & Operational Benefits
Enhanced Marine Safety
The RCU500’s SIL 2/3 certification and redundant design ensure reliable operation of critical systems like dynamic positioning (DP) and thruster control, reducing the risk of collisions or groundings. For example, a offshore supply vessel using the RCU500 reported a 99.9% uptime for its DP system, preventing costly delays.
Reduced Maintenance Costs
The hot-swappable design and integrated diagnostics allow technicians to replace faulty units without shutting down the system. A chemical tanker using the RCU500 reduced maintenance downtime by 50% compared to traditional controllers.
Cost-Effective Integration
The RCU500’s support for multiple communication protocols (Ethernet, CANbus, RS-232/485) eliminates the need for protocol converters, reducing integration costs. A power plant using the RCU500 saved $10,000 in converter costs by using its native CANbus interface.
Compliance with Industry Standards
The RCU500’s DNV GL, ABS, and IEC 61508 certifications ensure it meets the rigorous safety requirements of marine and offshore applications, making it suitable for export-oriented vessels.
Field Engineer’s Notes (From the Trenches)

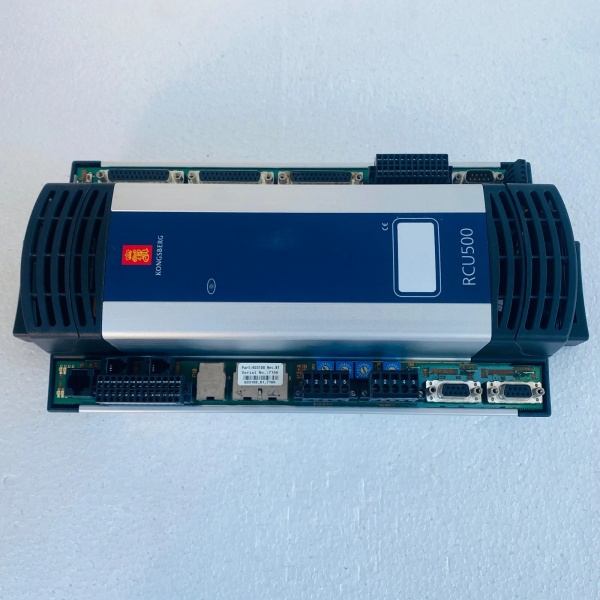

When installing the RCU500, always use shielded cables for Ethernet and serial connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby power lines, leading to communication errors. I once saw a site where a contractor used unshielded cables, resulting in a “loss of communication” fault that took 3 hours to diagnose.Another gotcha: verify the power supply voltage—the RCU500 requires 24V DC ±20%. I’ve fixed countless “power fault” errors by replacing a faulty UPS that was supplying 18V DC instead of 24V DC.If the RCU500’s “FAULT” LED is red, check the self-test logs—the module will log faults (e.g., “processor failure” or “communication timeout”) in the K-Chief 500 system. Use the system’s diagnostic software to retrieve the fault code and follow the manufacturer’s troubleshooting steps.Kongsberg RCU500
Real-World Applications
-
Marine: Dynamic Positioning (DP) SystemsAn offshore supply vessel uses the RCU500 to control its thrusters and DP system. The module’s real-time processing ensures that the vessel maintains its position within 1 meter of the target, even in rough seas.
-
Offshore: Oil & Gas ProductionAn oil platform uses the RCU500 to control its wellhead valves and pumps. The module’s SIL 3 certification ensures that the valves close automatically in case of a fire or gas leak, preventing spills.
-
Industrial: Power Plant AutomationA coal-fired power plant uses the RCU500 to control its boiler feedwater pumps. The module’s analog outputs adjust the pump speed based on steam pressure, optimizing efficiency.
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the RCU500?
A: The red “FAULT” LED indicates a critical error, such as:
-
Processor Failure: The PowerPC processor has failed (check the self-test logs);
-
Communication Timeout: The RCU500 is not receiving data from the K-Chief 500 system (check the Ethernet cables);
-
Power Supply Fault: The 24V DC power supply is missing or outside the tolerance range (use a multimeter to check).
Q: Can the RCU500 be used with non-Kongsberg systems?
A: Yes, but you must verify the communication protocol compatibility (e.g., Modbus RTU, CANopen). Use the RCU500’s configuration software to adjust the protocol settings for optimal performance.
Q: How do I replace a faulty RCU500?
A: Follow these steps:
-
Power Down: Turn off the 24V DC power supply to the RCU500;
-
Remove Old Module: Unscrew the module from the control cabinet (use a Phillips screwdriver) and disconnect the cables;
-
Install New Module: Insert the new RCU500 into the cabinet and tighten the screws;
-
Reconnect Cables: Reconnect the Ethernet, serial, and power cables;
-
Power Up: Turn on the power supply and verify the module’s operation (check the “OK” LED).
Q: Why is the RCU500 not communicating with the K-Chief 500?
A: Check three things first:
-
Ethernet Cable: Ensure the Ethernet cable is connected to the correct port (Port 1 on the RCU500);
-
IP Address: Verify that the RCU500’s IP address matches the K-Chief 500’s configuration;
-
Protocol Settings: Ensure the K-Chief 500 is configured for the correct communication protocol (e.g., Ethernet/IP).
