Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi ST1X4-DE1 |
| Manufacturer | Mitsubishi Electric |
| Product category | Digital Input Module |
| Input Channels | 4 digital inputs |
| Input Voltage | 24 V DC |
| Input Type | Source (negative common) |
| Communication Protocol | Compatible with MELSEC ST Series |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 12.6 mm × 554 mm × 74.1 mm |
| Weight | 0.05 kg |
| Certifications | CE, RoHS compliant |

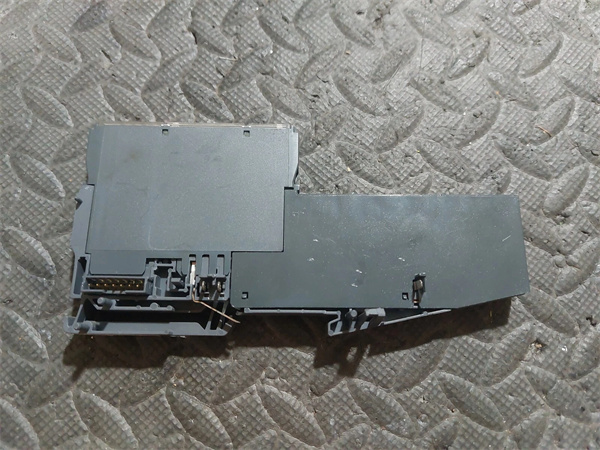

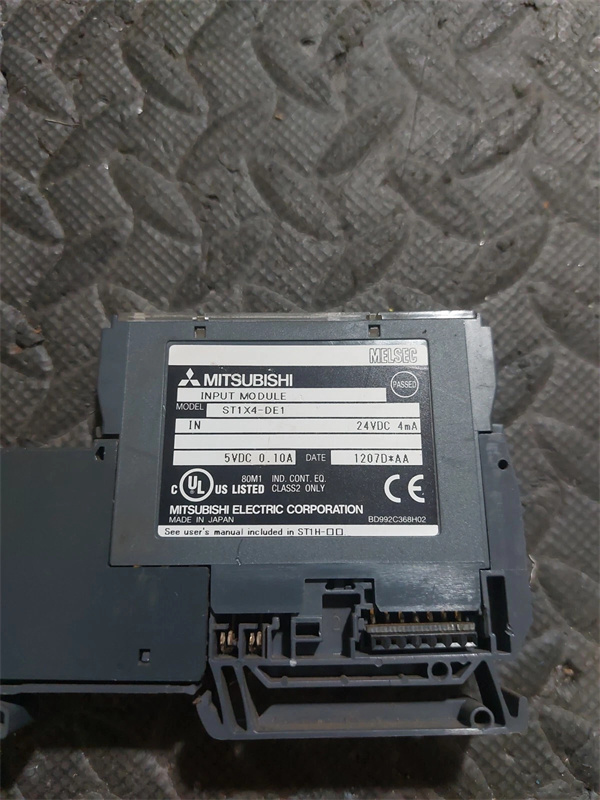

Mitsubishi ST1X4-DE1
Product Introduction
The Mitsubishi ST1X4-DE1 is a high-performance digital input module designed for industrial automation control systems. It is part of the MELSEC ST Series and provides reliable and efficient signal processing for various industrial applications.
Core Advantages and Technical Highlights
Compact Design
The ST1X4-DE1 features a compact form factor, making it suitable for installations in tight spaces. Its thin profile allows for easy integration into existing systems without requiring significant space.
High-Speed Signal Processing
This module supports high-speed digital signal processing, ensuring real-time control and monitoring in demanding industrial environments.
Robust and Reliable
Constructed with high-quality materials, the ST1X4-DE1 is designed to withstand harsh industrial conditions. It operates reliably within a wide temperature range and features a protection rating suitable for industrial use.
Easy Installation and Maintenance
The module supports plug-in mounting, allowing for quick and easy installation. It also features online module replacement capability, reducing downtime during maintenance.

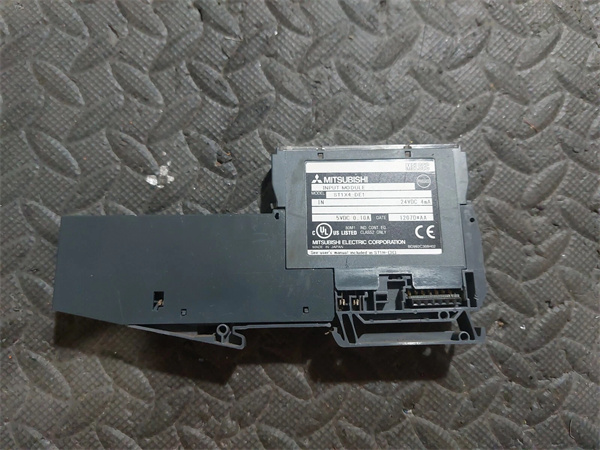

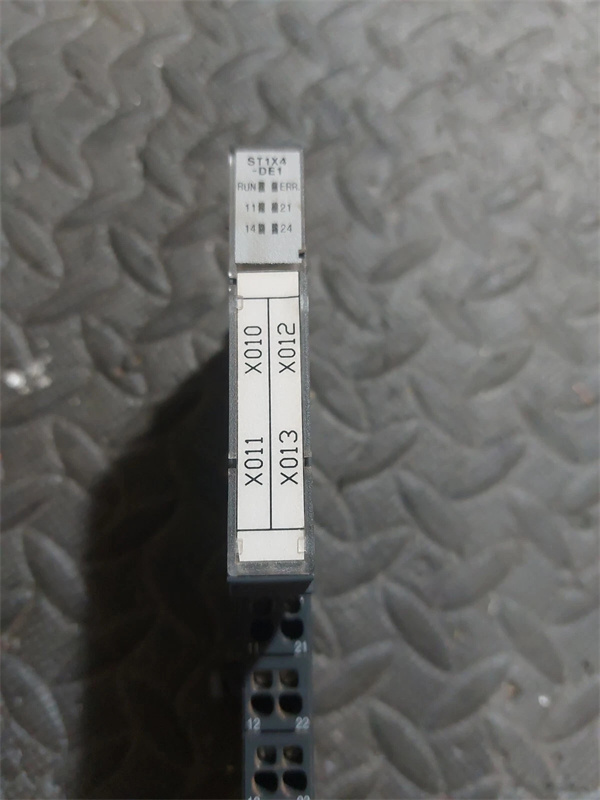

Mitsubishi ST1X4-DE1
Typical Application Scenarios
The Mitsubishi ST1X4-DE1 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
STX2-DE1: A 2-channel digital input module for smaller-scale applications.
-
STY2-Tiz: A digital output module for versatile control applications.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ST1X4-DE1, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (0°C to 55°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ST1X4-DE1. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The Mitsubishi ST1X4-DE1 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Mitsubishi Electric is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
