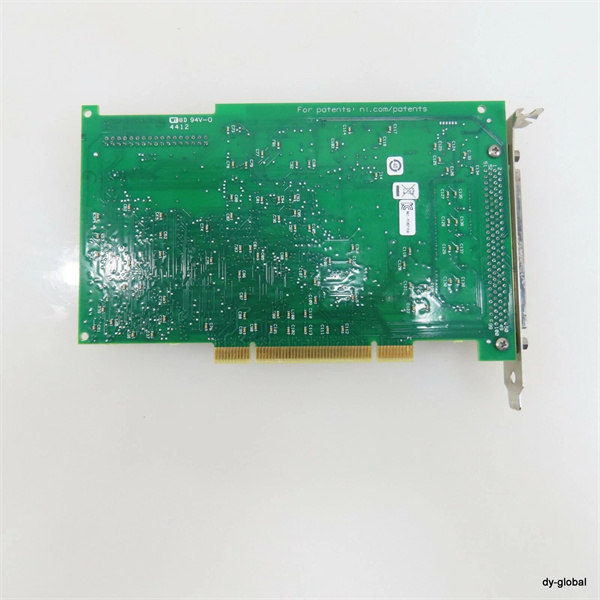

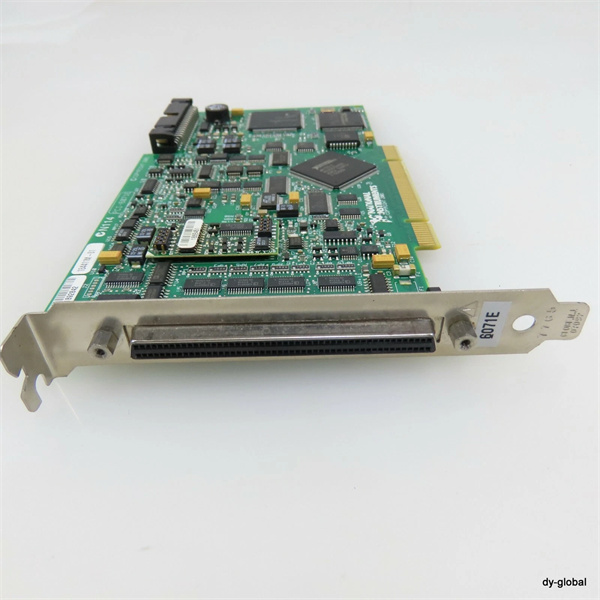

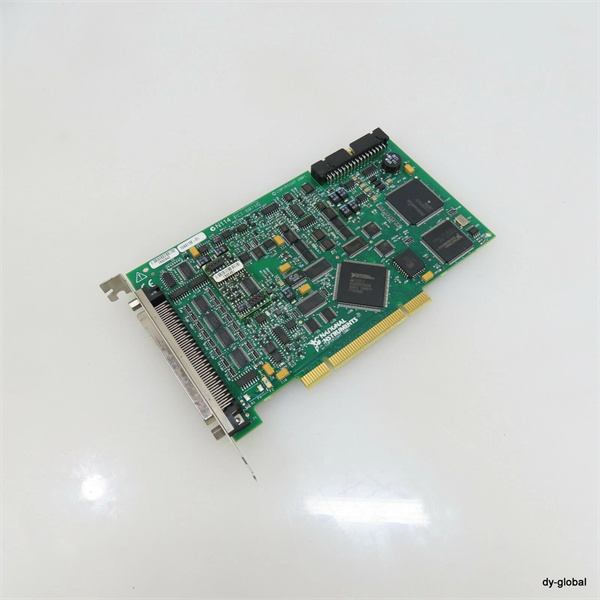

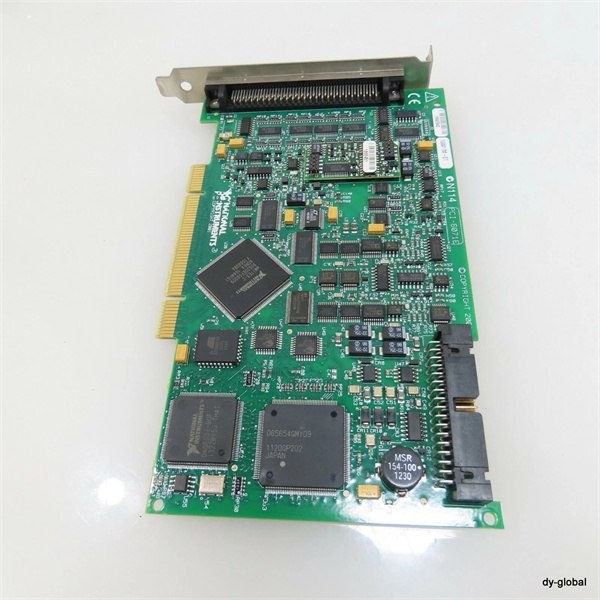

NI PCI-6071E

Product introduction

The NI PCI-6071E is a legacy high-speed multifunction DAQ card developed by National Instruments (NI)—the flagship of NI’s early 2000s high-speed PCI DAQ lineup, engineered to solve the “speed vs. channel density” challenge for legacy systems requiring dynamic signal acquisition. As an enhanced upgrade to the NI PCI-6052E, it retains the 16 single-ended/8 differential channel count but elevates performance with a 4× higher single-channel sampling rate (5 MS/s vs. 1.25 MS/s) and 10× faster analog output update rate (1 MS/s vs. 100 kS/s)—making it the go-to choice for legacy setups where capturing fast transient signals (e.g., power electronics switching spikes, aerospace engine vibrations) is mission-critical.

Designed for power electronics engineers, aerospace test specialists, and dynamic signal analysts, the NI PCI-6071E addresses the limitations of the PCI-6052E in high-speed scenarios: its parallel analog input architecture eliminates channel scanning delays, enabling simultaneous sampling of 8 differential channels at 2 MS/s—critical for capturing phase-aligned data from multi-sensor setups (e.g., 3-phase motor current monitoring). Unlike the PCI-6052E, it includes a hardware-based anti-alias filter with a 2 MHz cutoff, ensuring signals above the Nyquist frequency (2.5 MHz at 5 MS/s) are attenuated by >60 dB, preventing aliasing in high-frequency measurements.

At its core, the NI PCI-6071E merges legacy compatibility with high-speed engineering. Powered by both Traditional NI-DAQ (for decades-old LabVIEW test workflows) and NI-DAQmx (for partial modern integration), it seamlessly fits into existing systems—avoiding the cost of rewriting code for custom high-speed procedures (e.g., FAA-certified aircraft engine transient tests). Its 64 kB analog input FIFO buffer and scatter-gather DMA reduce CPU load by 40% compared to the PCI-6052E, ensuring smooth data transfer even when sampling all 8 differential channels at 2 MS/s. Whether used to test legacy power inverters, monitor aerospace component transients, or analyze dynamic structural vibrations, the NI PCI-6071E delivers reliable, high-fidelity measurements that preserve investment in mission-critical legacy infrastructure.

Core advantages and technical highlights

Parallel Architecture & Ultra-High Sampling Rate

The NI PCI-6071E’s parallel analog input architecture is its defining advantage over the PCI-6052E’s sequential scanning design. This architecture enables 8 differential channels to be sampled simultaneously at 2 MS/s—eliminating inter-channel delay (a critical issue in the PCI-6052E when scanning multiple channels). For example, in a legacy 3-phase motor test rig, the PCI-6071E can sample current signals from 6 differential current sensors (2 per phase) at 2 MS/s, capturing phase-aligned waveforms with <10 ns timing skew—essential for calculating real-time power factor and torque. Its 5 MS/s single-channel rate also captures ultra-fast transients: when testing a legacy power inverter, it can resolve 200 ns switching spikes (common in IGBT circuits) that the PCI-6052E’s 1.25 MS/s rate would smooth out.

High-Speed Analog Output for Closed-Loop Control

With a 1 MS/s analog output update rate (10× faster than the PCI-6052E), the NI PCI-6071E enables closed-loop control of high-speed systems. In a legacy dynamic vibration shaker test, for example, the card’s analog output generates a 500 kHz sine wave to drive the shaker, while its analog input samples the shaker’s acceleration response at 5 MS/s—creating a closed-loop system with <1 ms latency. This speed is critical for maintaining stability in high-frequency control loops, where the PCI-6052E’s 100 kS/s output would introduce unacceptable delays. The simultaneous AI/AO capability further enhances this use case: the card can adjust the output waveform in real time based on input feedback, ensuring the shaker maintains the desired vibration profile.

Hardware Anti-Alias Filter for High-Frequency Signal Integrity

Unlike the PCI-6052E’s software-configurable filter, the NI PCI-6071E includes a hardware-based 4-pole Butterworth anti-alias filter with a dynamically adjustable cutoff frequency (e.g., 2 MHz at 5 MS/s, 1 MHz at 2 MS/s). This filter provides a steeper roll-off (48 dB/octave) than the PCI-6052E, ensuring signals above the Nyquist frequency are effectively attenuated. In a legacy aerospace engine vibration test, for example, the filter eliminates 5 MHz electromagnetic interference (EMI) from engine ignition systems, preventing it from aliasing into the 2 MHz measurement band. This protection is critical for accurate analysis of high-frequency vibration modes (1–2 MHz) in turbine blades—modes the PCI-6052E would miss due to insufficient filtering.

Enhanced DMA & FIFO for High-Throughput Data Transfer

The NI PCI-6071E’s scatter-gather DMA and 64 kB analog input FIFO buffer (2× the PCI-6052E) enable efficient transfer of high-volume data. When sampling 8 differential channels at 2 MS/s, the card generates 32 MB/s of data—scatter-gather DMA splits this into 4 kB blocks and transfers them to non-contiguous PC memory, reducing CPU utilization by 40% compared to the PCI-6052E’s basic DMA. The 64 kB FIFO buffer stores 12.8 ms of data (vs. 6.4 ms in the PCI-6052E), ensuring no data loss even if the PCI bus is temporarily busy (e.g., during concurrent PLC communication). This reliability is critical for time-sensitive applications like fault detection in power electronics, where missing a 200 ns transient could lead to unplanned downtime.

Typical application scenarios

Legacy Power Electronics Testing

Power electronics manufacturers use the NI PCI-6071E to test legacy inverters, converters, and motor drives. A 2006-era 3-phase inverter test rig, for example, uses the card to sample 6 differential current sensors (2 per phase) at 2 MS/s and 2 differential voltage sensors at 5 MS/s. The PCI-6071E’s parallel architecture ensures phase-aligned current/voltage data, enabling accurate calculation of switching losses (critical for inverter efficiency validation). Its hardware anti-alias filter eliminates 5 MHz EMI from IGBT switching, while the 1 MS/s analog output generates a 500 kHz PWM signal to control the inverter’s gate drivers. Traditional NI-DAQ compatibility preserves the LabVIEW 2009 code used to automate the test, avoiding a $250k+ upgrade to a modern test system.

Aerospace Engine Transient Monitoring

Aerospace manufacturers rely on the NI PCI-6071E to monitor legacy aircraft engine transients. A 2008-era engine test cell uses the card to sample 8 differential pressure sensors (measuring combustion chamber pressure) at 2 MS/s during startup. The PCI-6071E’s 5 MS/s single-channel rate captures 100 µs pressure spikes (indicative of abnormal combustion), while its RTSI synchronization with a NI PCI-5102 digitizer aligns pressure data with fuel flow measurements. The card’s 64 kB FIFO buffer ensures no data loss during engine startup transients, and its high-speed digital I/O triggers a safety shutdown if pressure exceeds 1000 psi. This setup meets FAA AC 20-115 standards for engine transient testing, extending the test cell’s life by 7+ years.

Dynamic Structural Vibration Analysis

In legacy structural testing labs, the NI PCI-6071E is used to analyze high-frequency vibrations. A 2007-era civil engineering test rig uses the card to sample 8 differential accelerometers (attached to a bridge model) at 2 MS/s during a seismic simulation. The PCI-6071E’s parallel sampling captures phase-aligned vibration data from all 8 sensors, enabling modal analysis of the bridge’s 1–2 MHz resonance modes—details the PCI-6052E’s 1.25 MS/s rate would miss. Its simultaneous AI/AO capability lets the card generate a 1 MHz shaker drive signal while sampling the response, creating a closed-loop test system. Traditional NI-DAQ compatibility preserves the LabVIEW 2010 code for modal analysis, avoiding the cost of rewriting software for a modern DAQ card.

NI PCI-6071E

Related model recommendations

NI PCI-6052E

The predecessor to the NI PCI-6071E, with a lower single-channel sampling rate (1.25 MS/s vs. 5 MS/s) but 7 input ranges (vs. 5). It’s a cost-effective alternative for legacy setups where speed is less critical (e.g., slow process monitoring) but range flexibility is needed.

NI PCI-6284

A modern high-speed upgrade to the NI PCI-6071E, offering 16-bit resolution (vs. 12-bit), 1.25 MS/s sampling rate (single-channel), and 32 single-ended/16 differential channels. It supports NI-DAQmx natively (no Traditional NI-DAQ) and adds USB compatibility via adapter—ideal for users migrating from legacy PCI systems to modern workflows while preserving high-speed capabilities.

NI TB-4351

A high-speed terminal block designed for the NI PCI-6071E’s dual 68-pin connectors, offering built-in signal conditioning for high-frequency current sensors (e.g., Rogowski coils) and voltage dividers (for 1000 V+ measurements). Unlike the TB-2707, it includes 50 Ω impedance matching for high-speed signals, making it ideal for power electronics testing.

NI PCI-5412

A legacy high-speed waveform generator that pairs with the NI PCI-6071E in closed-loop test systems. The PCI-5412 generates 2 channels of high-frequency test signals (up to 40 MHz), while the PCI-6071E samples the DUT’s response—synchronized via RTSI for time-aligned measurements, common in aerospace or power electronics testing.

NI LabVIEW 2010

The recommended software for maximizing the NI PCI-6071E’s legacy high-speed capabilities. It fully supports Traditional NI-DAQ’s high-speed transfer APIs, letting users automate parallel AI/AO, anti-alias filter configuration, and multi-card synchronization. For partial modernization, LabVIEW 2010 can export high-speed data to CSV for analysis in MATLAB.

NI USB-6363

A USB-powered high-speed DAQ module that complements the NI PCI-6071E for field testing. Unlike the PCI-based PCI-6071E, it’s portable and works with laptops—perfect for on-site troubleshooting of legacy power electronics (e.g., inverter field service). It shares 1 MS/s analog output and 2 MS/s analog input capabilities, ensuring consistency between lab and field measurements.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the NI PCI-6071E, power off the legacy PC and confirm it has an empty PCI 2.1/2.2 slot (PCIe slots require a PCI-to-PCIe adapter rated for 3.3 V signaling and 33 MHz bus speed). Wear an ESD wristband and use a grounded workbench to prevent electrostatic damage to the card’s high-speed components. Insert the card firmly into the slot—ensure the PCI edge connector is fully seated (misalignment causes signal integrity issues at 5 MS/s) and secure it with the chassis screw.

Connect sensors to the dual 68-pin SCSI-II terminal blocks: use NI TB-4351 for high-frequency current/voltage sensors (with 50 Ω impedance matching), TB-2707 for general high-speed signals, or TB-2627 for thermocouples (if combining temperature with dynamic measurements). For multi-card synchronization, use a shielded 8-line RTSI cable to connect to other NI PCI instruments (e.g., NI PCI-5412). If using high-current digital I/O (>10 mA per line), connect the optional external 5 VDC power supply to the 2-pin header.

Download Traditional NI-DAQ (v7.4+) or NI-DAQmx (v9.0+) from NI’s legacy driver archive—select drivers marked “high-speed optimized” for the PCI-6071E. Use NI Measurement & Automation Explorer (MAX) v4.6+ to detect the card, then run the “High-Speed Self-Test” (unique to the PCI-6071E) to verify 5 MS/s sampling and anti-alias filter performance.

Maintenance suggestions

To preserve the NI PCI-6071E’s high-speed performance, perform quarterly calibration of the anti-alias filter—use a 10 MHz signal generator to verify attenuation of signals above the cutoff frequency (e.g., 2 MHz at 5 MS/s). Inspect the dual 68-pin and RTSI connectors monthly for corrosion or loose pins: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth, and avoid using abrasive tools that could damage pin plating (critical for 50 Ω impedance matching).

Monitor the card’s operating temperature—install a thermal sensor near the PCI slot and ensure it stays below 45 °C (10 °C lower than the 55 °C maximum) to prevent thermal drift of high-speed amplifiers. If analog measurements show aliasing, replace the card’s anti-alias filter capacitors (available via NI’s legacy spare parts program)—aged capacitors reduce filter roll-off, leading to signal distortion.

For software maintenance, avoid updating the OS beyond Windows 10—newer OSes may break Traditional NI-DAQ’s high-speed DMA APIs. Back up the card’s filter calibration coefficients (stored in MAX) to a secure location—loss of these coefficients requires recalibration with a precision signal generator.

Service and guarantee commitment

National Instruments (NI) provides specialized legacy support for the NI PCI-6071E, recognizing its role in mission-critical high-speed setups. While the standard warranty has expired, NI offers a Legacy High-Speed Service Plan that includes:

Annual factory calibration of the anti-alias filter and high-speed amplifiers (traceable to NIST standards) to restore 5 MS/s sampling performance.

Priority technical support for high-speed-related issues (e.g., aliasing, DMA transfer errors) via a dedicated team of NI high-speed measurement experts.

Access to exclusive legacy resources: application notes on parallel AI architecture, Traditional NI-DAQ high-speed APIs, and troubleshooting guides for multi-card synchronization.

For out-of-warranty repairs, NI’s High-Speed Restore Service replaces aged high-speed components (e.g., anti-alias filter capacitors, parallel ADC buffers) and performs full signal integrity testing—returning the card to factory specifications for 5 MS/s sampling. NI also maintains a dedicated user forum for legacy high-speed DAQ cards, where engineers share best practices for maintaining high-frequency performance in long-running setups.

This commitment reflects NI’s understanding that the NI PCI-6071E is not just a legacy component, but a critical part of high-speed test workflows—ensuring users can continue to meet industry standards (FAA, SEMI) without costly system overhauls.
