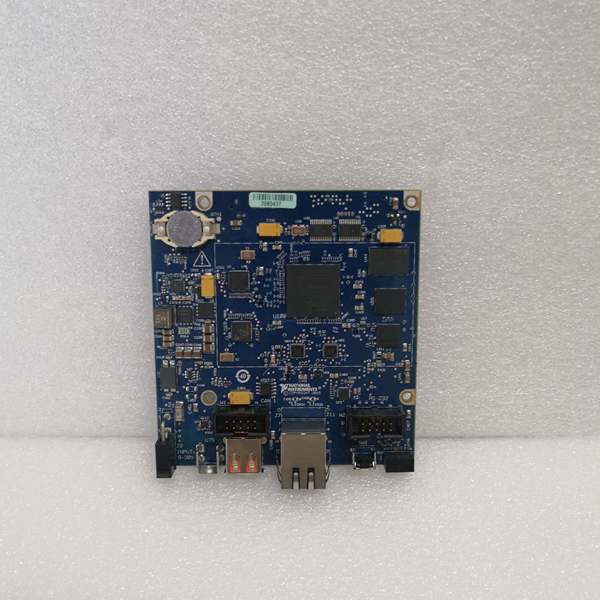

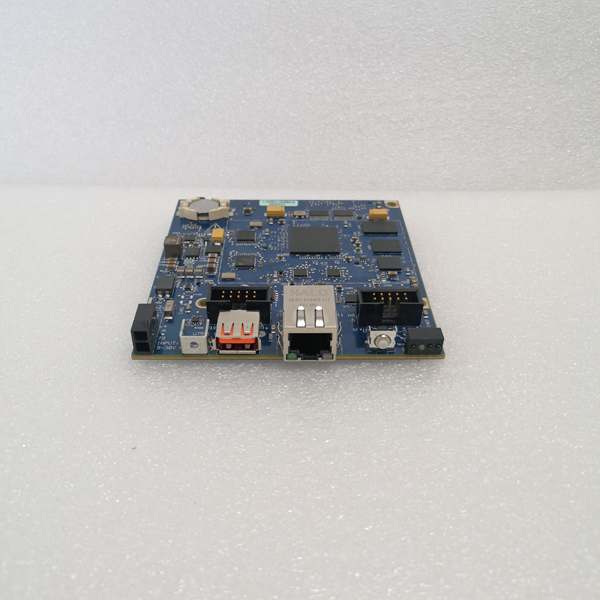

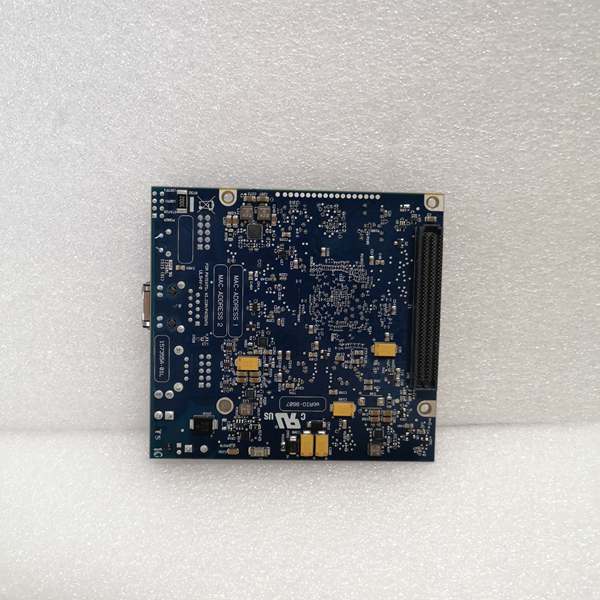

NI SBRIO-9607 | High-Speed Data Acquisition Controller

  • Brand:​ National Instruments (NI)
  • •
    Model:​ SBRIO-9607
  • •
    Product Type:​ Synchronous RIO (Real-Time Interface) Module
  • •
    Series:​ SBRIO Series
  • •
    Core Function:​ Provides real-time I/O expansion for PXI and CompactRIO platforms with high-speed, synchronous data acquisition and control capabilities.
  • •
    Key Specs:​ 32 digital I/O channels, 8 analog inputs, 2 analog outputs, 250 kS/s sampling rate, 16-bit resolution.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

SBRIO-9607: Product Overview
The National Instruments SBRIO-9607 is a high-performance synchronous RIO (Real-Time Interface) module designed for real-time I/O expansion in PXI and CompactRIO platforms. This module serves as a versatile interface solution that supports multiple signal types including digital I/O, analog input/output, and other signal formats, making it suitable for systems requiring high-speed, synchronous data acquisition and control operations

.

The SBRIO-9607 features a robust architecture that enables precise synchronization between multiple modules, ensuring accurate data acquisition and control timing. With its multifunctional capabilities, the module can be configured for various industrial automation, energy management, transportation, and scientific research applications. The module’s design allows for easy integration with other NI modules and devices, providing a scalable solution for complex system requirements NI sbRIO-9607

.

SBRIO-9607: Technical Specifications
  • •
    Model Number:​ SBRIO-9607
  • •
    Manufacturer:​ National Instruments
  • •
    Product Type:​ Synchronous RIO Module
  • •
    Compatible Platforms:​ PXI and CompactRIO
  • •
    Digital I/O:​ 32 channels, configurable as 16 bidirectional channels
  • •
    Analog Input:​ 8 single-ended or 4 differential channels
  • •
    Analog Output:​ 2 channels
  • •
    Sampling Rate:​ Up to 250 kS/s (analog input/output)
  • •
    Resolution:​ 16 bits (analog input/output)
  • •
    Processor:​ 667 MHz dual-core CPU with Xilinx Zynq-7020 FPGA
  • •
    Memory:​ 512 MB DRAM and 512 MB non-volatile memory
  • •
    Interfaces:​ Gigabit Ethernet, CAN, serial, USB ports
  • •
    Operating System:​ NI Linux Real-Time
  • •
    Operating Temperature:​ -40°C to 85°C
  • •
    Programming:​ LabVIEW Real-Time, C/C++, LabVIEW FPGA

    NI sbRIO-9607

    NI sbRIO-9607

Core Features & Customer Value
The SBRIO-9607 delivers significant value through its high-performance synchronous operation, enabling precise timing and synchronization critical for demanding industrial applications. The module’s multifunctional I/O capabilities​ provide flexibility for various signal types, while the high-speed processing​ with dual-core CPU and FPGA ensures efficient data handling and control execution

.

For system integrators and engineers, the module offers easy expandability​ through its PXI and CompactRIO platform compatibility, allowing seamless integration with existing NI ecosystems. The robust operating environment​ (-40°C to 85°C) ensures reliable operation in harsh industrial conditions, while the comprehensive programming support​ through LabVIEW and other languages enables rapid application development and customization

.

Typical Applications
  • •
    Industrial Automation:​ Production line control, process flow monitoring
  • •
    Energy Management:​ Smart grids, wind power generation, solar energy systems
  • •
    Transportation:​ Train control systems, intelligent transportation systems
  • •
    Scientific Research:​ Laboratory experiments, test and measurement applications
