NI SCB-68

Description

NI SCB-68 Product Description

Detailed parameter table

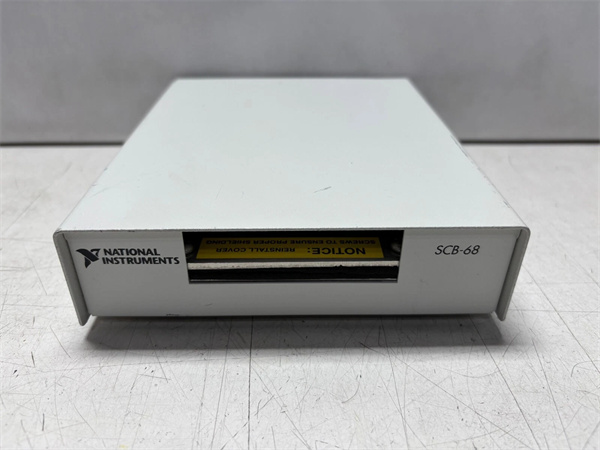

NI SCB-68

Product introduction

The NI SCB-68 is a high – performance connector block developed by National Instruments (NI), a renowned provider of test, measurement, and automation solutions. This compact yet powerful device serves as a crucial interface between NI data acquisition devices and external sensors or instruments, streamlining the connection process and enhancing the overall efficiency of measurement systems.

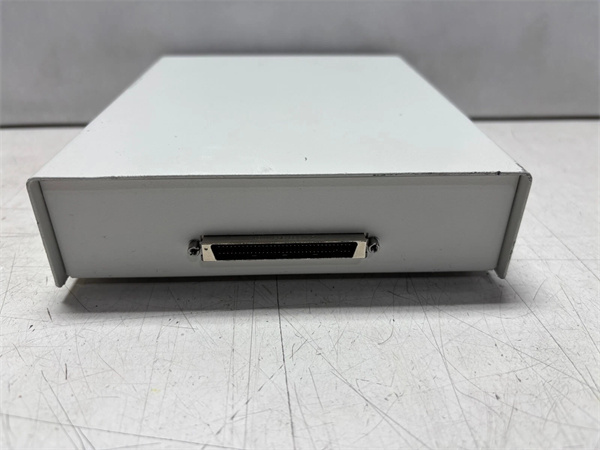

Featuring a 68 – pin SCSI connector, the NI SCB-68 provides 68 individually – shielded signal lines, ensuring reliable and interference – free signal transmission. With a maximum voltage rating of 42 VDC and a maximum current rating of 500 mA per line, it can handle a wide variety of electrical signals. Its non – isolated design makes it suitable for applications where isolation is not a requirement, offering a cost – effective and straightforward connection solution. The SCB-68‘s versatility in mounting options, including rack – mounting, bench – mounting, and DIN – rail mounting, allows it to be easily integrated into different laboratory, industrial, and research setups. Whether you’re setting up a complex data acquisition system for industrial monitoring or a simple experiment in a research lab, the NI SCB-68 plays an essential role in facilitating seamless connectivity.

Core advantages and technical highlights

Reliable Signal Transmission: The 68 individually – shielded signal lines of the NI SCB-68 are designed to minimize electromagnetic interference, ensuring that the signals transmitted between the data acquisition device and external equipment remain accurate and undistorted. This is especially important in applications where precise measurements are critical, such as in high – precision sensor data collection or electrical signal analysis.

Versatile Connectivity: With its 68 – pin SCSI interface, the SCB-68 offers extensive connectivity options. It can be used to connect a wide range of sensors, actuators, and other devices to NI data acquisition systems. This versatility makes it a go – to choice for engineers and researchers who need to build flexible and customizable measurement setups. For example, in a multi – sensor industrial monitoring project, the NI SCB-68 can connect various sensors measuring temperature, pressure, and vibration to the data acquisition device, enabling comprehensive data collection.

Flexible Mounting Options: The ability to be rack – mounted, bench – mounted, or DIN – rail mounted gives the NI SCB-68 great flexibility in installation. In an industrial control room, it can be conveniently rack – mounted for a clean and organized setup. In a research laboratory, bench – mounting allows for easy access during experiments. The DIN – rail mounting option is ideal for integrating the SCB-68 into existing industrial control panels. This flexibility ensures that the SCB-68 can adapt to different installation environments and user preferences.

Cost – effective Solution: The non – isolated design of the SCB-68 makes it a more affordable option compared to isolated connector blocks, without sacrificing performance in applications where isolation is not necessary. This cost – effectiveness, combined with its high – quality construction and reliable performance, makes it an attractive choice for a wide range of users, from educational institutions on a budget to industrial companies looking to optimize their measurement system costs.

NI SCB-68

Typical application scenarios

In industrial automation, the NI SCB-68 is widely used for connecting sensors and actuators to data acquisition and control systems. In a manufacturing plant, it can be used to interface sensors that monitor production line parameters such as conveyor belt speed, product dimensions, and machine vibration to NI data acquisition cards. The reliable signal transmission of the SCB-68 ensures that accurate data is collected, enabling operators to monitor and optimize the production process in real – time.

In research laboratories, the NI SCB-68 simplifies the connection of various experimental instruments and sensors to data acquisition systems. For instance, in an electronics research lab, it can be used to connect prototype circuits, signal generators, and oscilloscopes to NI data acquisition devices for performance testing and analysis. Its flexible mounting options allow researchers to set up the connection block in a way that best suits their experimental setup, facilitating efficient data collection and analysis.

In the field of education, the SCB-68 is an excellent tool for teaching students about data acquisition and measurement systems. Its user – friendly design and straightforward connection process make it easy for students to understand how to interface different sensors and devices with data acquisition equipment. It can be used in laboratories for courses related to electrical engineering, physics, and automation, helping students gain practical hands – on experience in building and operating measurement systems.

Related model recommendations

1. NI SCB-100: Similar to the SCB-68, but with a 100 – pin connector, offering even more connectivity options. It is suitable for applications that require a larger number of signal connections, such as in complex industrial control systems or high – channel – count research experiments. It can be used in combination with the SCB-68to expand the overall connectivity of a measurement system.
2. NI SCB-68A: An isolated version of the SCB-68. It provides electrical isolation between the data acquisition device and external equipment, which is essential in applications where electrical noise or ground loops could affect the measurement accuracy. When dealing with sensitive electrical signals or in environments with high electrical interference, the SCB-68Ais a better choice compared to the non – isolated SCB-68.
3. NI BNC – 2110: A BNC – based connector block. It uses BNC connectors instead of the SCSI interface of the SCB-68, making it suitable for applications that require coaxial connections, such as in RF signal measurement or video signal acquisition. It can be used alongside the SCB-68in a system that needs to handle both SCSI – connected and BNC – connected devices.
4. NI TB – 2706: A terminal block designed for use with NI CompactDAQ systems. It offers a different form of connection and is optimized for the CompactDAQ platform. While it has a different connection mechanism than the SCB-68, it can be part of a larger NI measurement ecosystem, and users may choose between them depending on their specific system requirements and the type of devices they need to connect.
5. NI SCB – 68 – R: A version of the SCB-68with additional features or modifications. It may have enhanced signal protection, different mounting accessories, or other improvements. It can be considered as an alternative or an upgrade option for users who need specific additional functionality while still maintaining compatibility with the 68 – pin SCSI – based connection standard of the SCB-68.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI SCB-68, ensure that all power sources are turned off to prevent electrical shock. Select an appropriate mounting location based on your setup requirements, whether it’s a rack, bench, or DIN – rail. Gather the necessary mounting hardware, such as screws and brackets. When connecting the SCB-68 to the NI data acquisition device and external equipment, refer to the wiring diagrams provided in the product manual to ensure correct pin – to – pin connections. Make sure to tighten all connections securely to avoid loose or intermittent connections.

Maintenance suggestions: Regularly inspect the SCB-68 for any signs of physical damage, such as cracks or bent pins. Clean the connector contacts periodically using a suitable electrical contact cleaner to remove dirt, dust, and oxidation, which can affect signal transmission. Check the mounting hardware to ensure that the SCB-68 remains firmly in place. In case of any connection issues, such as intermittent signal loss or incorrect readings, first check the cable connections and the integrity of the cables. If the problem persists, refer to the troubleshooting guide in the product manual. When replacing any cables or components connected to the SCB-68, use only compatible and high – quality parts to maintain the performance of the system.

Service and guarantee commitment

We stand firmly behind the quality of the NI SCB-68. The product comes with a comprehensive warranty that covers any manufacturing defects. During the warranty period, if the connector block fails to function as specified, we will repair or replace it free of charge. Our dedicated technical support team is available to assist customers with installation, commissioning, and any technical issues that may arise. We offer a wealth of online resources, including detailed user manuals, wiring diagrams, and application notes, to help users make the most of the SCB-68. Additionally, we are committed to continuous improvement and regularly review and update our products based on customer feedback, ensuring that the NI SCB-68 remains a reliable and high – performing solution for all your connectivity needs.
