Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | PHOENIX 2961192 |
| Manufacturer | PHOENIX CONTACT |
| Product category | Power Relay |
| Coil Voltage | 24 V DC |
| Contact Configuration | DPDT (Double Pole Double Throw) |
| Contact Current | 8 A |
| Contact Voltage (AC) | 250 VAC |
| Contact Voltage (DC) | 250 VDC |
| Coil Resistance | 1.44 kΩ |
| Operating Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 12.7 mm × 15.7 mm × 29 mm |
| Weight | 15.94 g (excluding packaging) |
| Certifications | CE, RoHS |
| Protection Class | IP67 |
| Mounting Type | Through Hole |
| Series | REL-MR Series |
Product Introduction
The PHOENIX 2961192 is a high-performance plug-in miniature power relay designed for industrial automation applications. It features a robust design and reliable performance, making it suitable for various industrial environments.
Core Advantages and Technical Highlights
High-Performance Relay
The PHOENIX 2961192 is designed to handle high current and voltage loads, with a contact current rating of 8 A and a maximum switching voltage of 250 VAC/VDC. This makes it ideal for applications requiring high power handling capabilities.
Robust Design
The relay features an IP67 protection rating, safeguarding against dust and water ingress. It is designed to operate reliably in harsh industrial conditions, with an operating temperature range of -40°C to +85°C.
Compact Size
With dimensions of 12.7 mm × 15.7 mm × 29 mm, the PHOENIX 2961192 is compact and lightweight, making it easy to integrate into tight spaces.
Long Lifespan
The relay has a lifespan of up to 3 x 10^7 cycles, ensuring long-term reliability and minimal maintenance.
PHOENIX 2961192
Typical Application Scenarios
The PHOENIX 2961192 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-

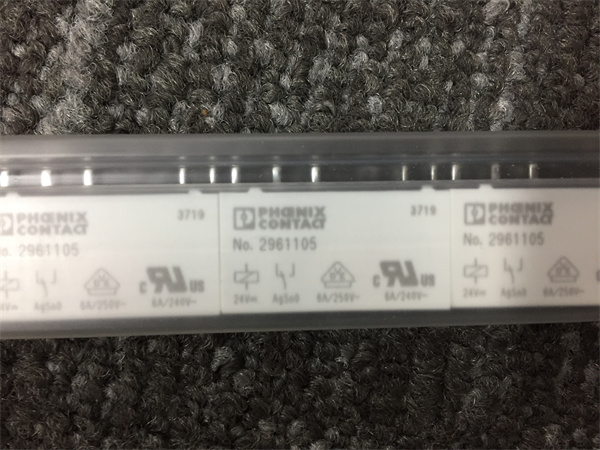

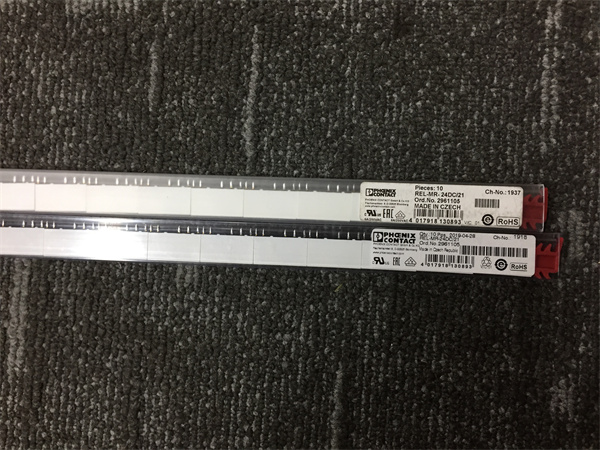

PHOENIX 2961105: A similar relay with different contact configurations.
-
PHOENIX 2961118: A single relay with different voltage and current ratings.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the PHOENIX 2961192, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the relay’s requirements (24 V DC) and that the operating temperature range (-40°C to +85°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the PHOENIX 2961192. Perform routine inspections to check for loose connections or signs of wear. Clean the relay periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The PHOENIX 2961192 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. PHOENIX CONTACT is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
